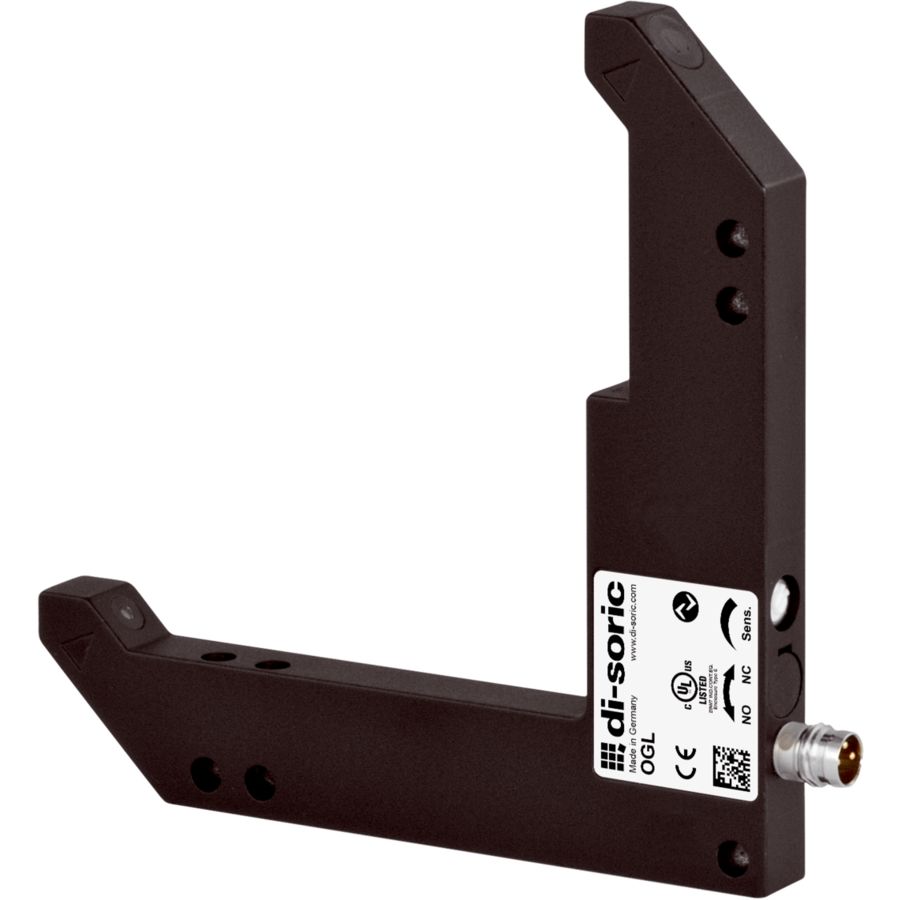

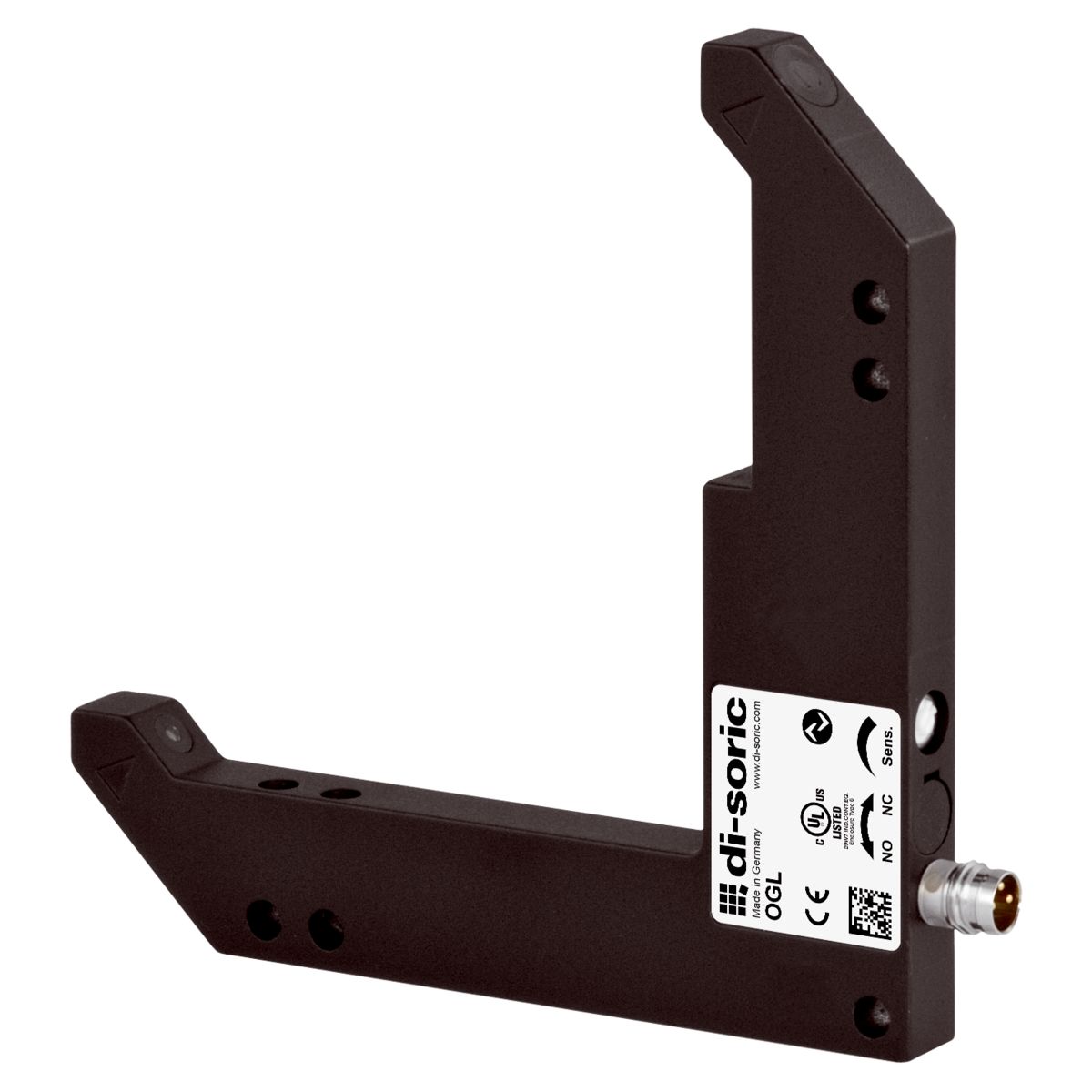

Angled Light Barrier - OGL 080 G3-T3
Part Number: OGL 080 G3-T3
Article Number: 210631
Technical Details
| Ambient Light Immunity | 25 kLx |
|---|---|
| Ambient Temperature During Operation | -25.0 ... 60.0°C |
| Color | Infrared |

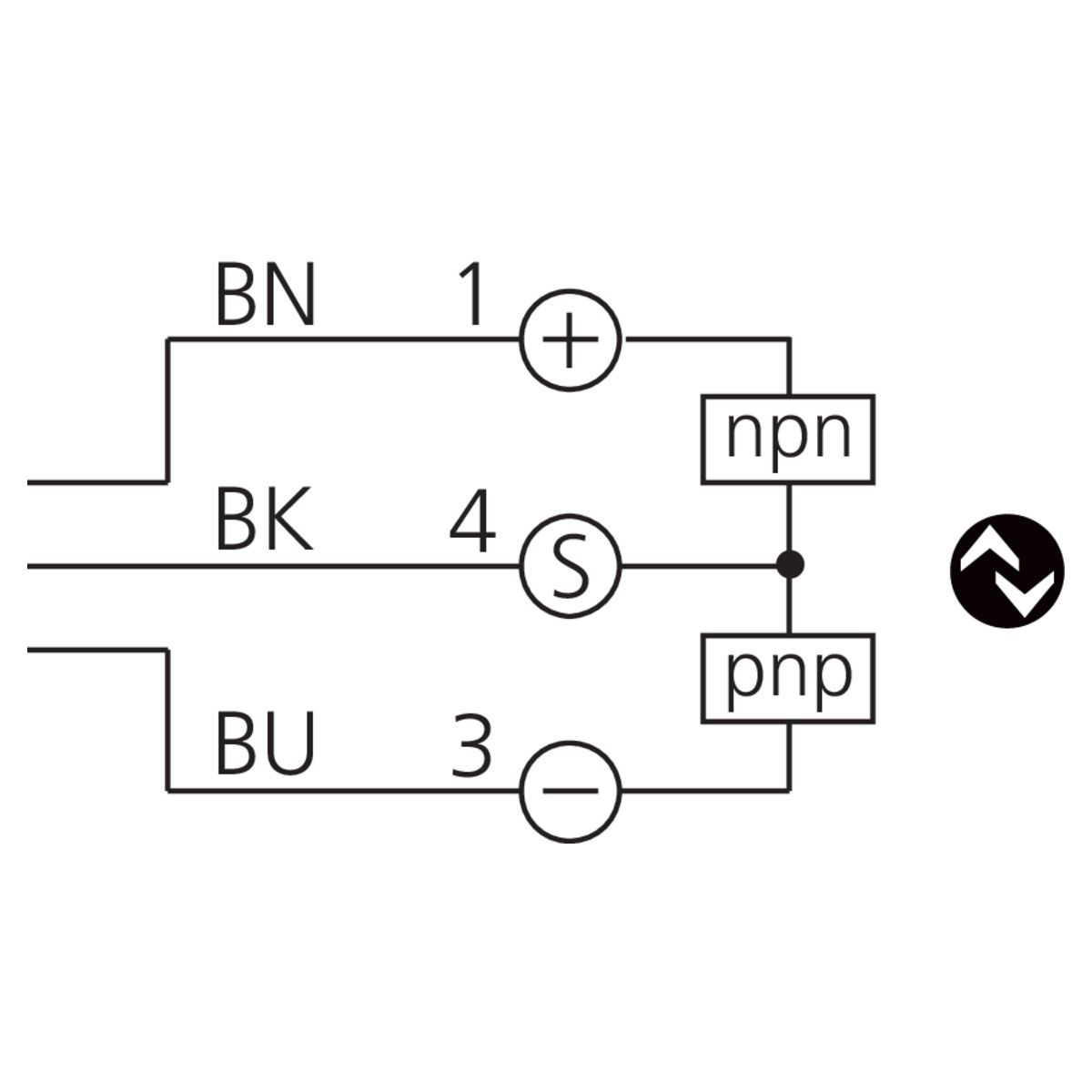

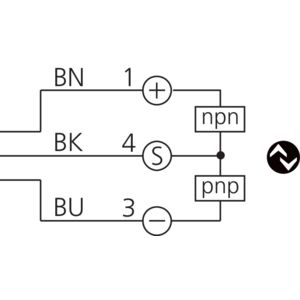

| Connection | Connector M8 3-pin |
| Connection Cable | TK ... |
| Design | Angle |
| Evaluation | digital |

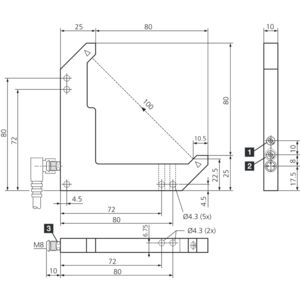

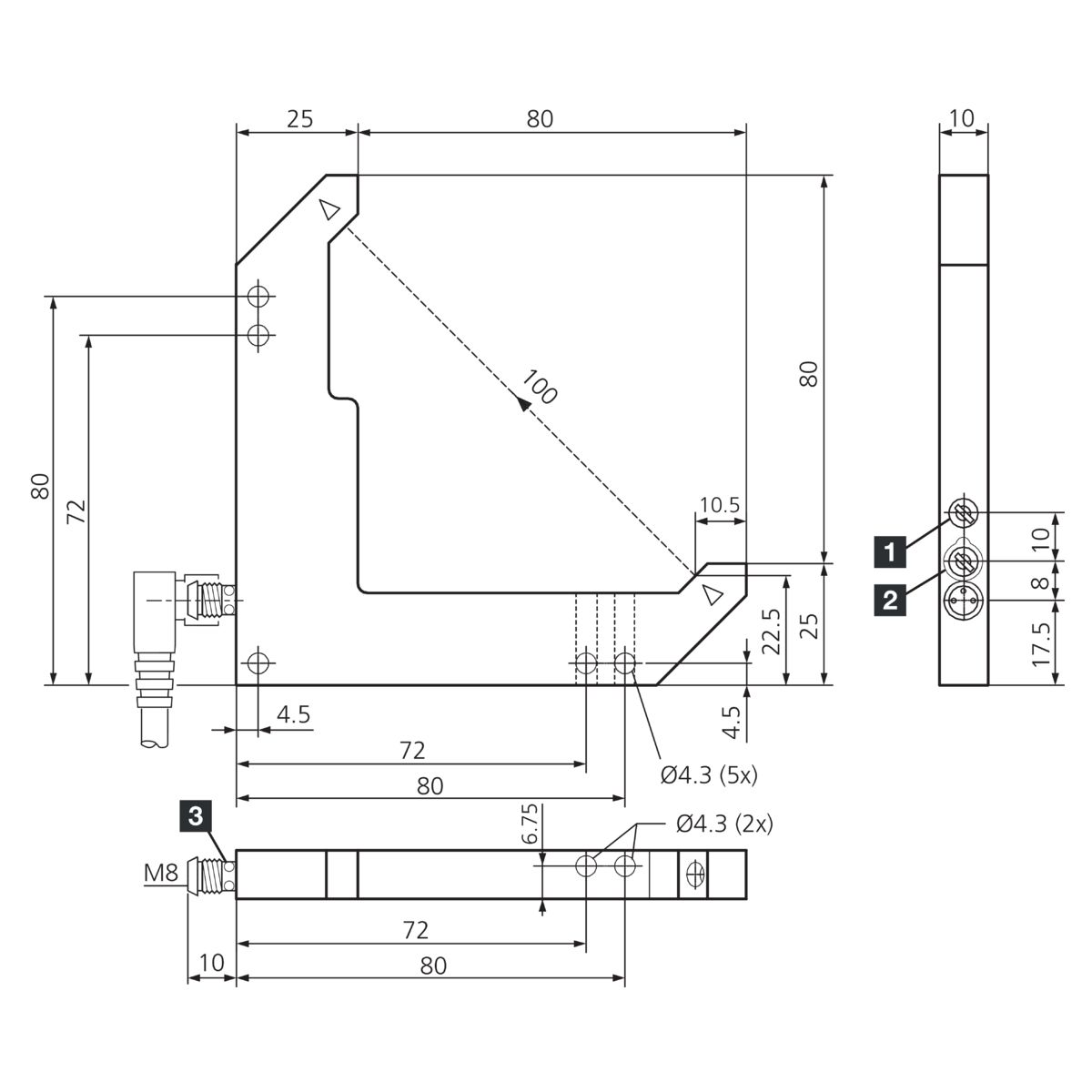

| Housing Dimensions | 105 x 105 x 10 mm |
| Housing length | 105.0 mm |
| Housing Material | Die-cast zinc powder-coated |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Interface | IO-Link V1.1, COM2 38.4 kBd, Smart Sensor Profile |
| Leg Length Internal | 80;80 mm;mm |
| Light Source | LED |
| Material | Mineral glass Optics |
| Modulation | Clocked |
| No Load Current (max.) | 30.0 mA |
| Operating Principle | Optical |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Range | 100.0mm (optical axis) |
| Reproducibility (Factory Setting) | 0.02 mm STANDARD |
| Reproducibility (HIGH RESOLUTION) | 0.02 mm |
| Reproducibility (POWER) | 0.02 mm |
| Reproducibility (SPEED) | 0.02 mm |
| Reproducibility (STANDARD) | 0.02 mm |
| Resolution (Factory Setting) | 0.3 mm STANDARD |
| Resolution (HIGH RESOLUTION) | 0.2 mm |
| Resolution (POWER) | 1.0 mm |
| Resolution (SPEED) | 0.3 mm |
| Resolution (STANDARD) | 0.3 mm |
| Sensitivity Adjustment | Potentiometer |
| Service Voltage | 10.0 ... 30.0V DC |
| Shock Vibration Load | 30 g, 10 ... 55 Hz / 0.5 mm |
| Switching Frequency (Factory Setting) | 5000.0 Hz STANDARD |
| Switching Frequency (HIGH RESOLUTION) | 1500.0 Hz |
| Switching Frequency (POWER) | 250.0 Hz |
| Switching Frequency (SPEED) | 8000.0 Hz |
| Switching Frequency (STANDARD) | 5000.0 Hz |
| Switching Output | Push-pull 100.0 mA NO/NC switchable |
| Voltage Drop (max.) | 1.0 V |
| Wavelength | 880 nm |
