Area Light - BE-F50/50-F1-K
Part Number: BE-F50/50-F1-K
Article Number: 207690
Technical Details
| Ambient Temperature During Operation | 0.0 ... 40.0°C |
|---|---|
| Color | Red diffuse |

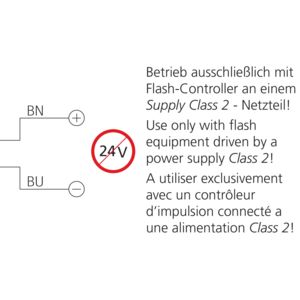

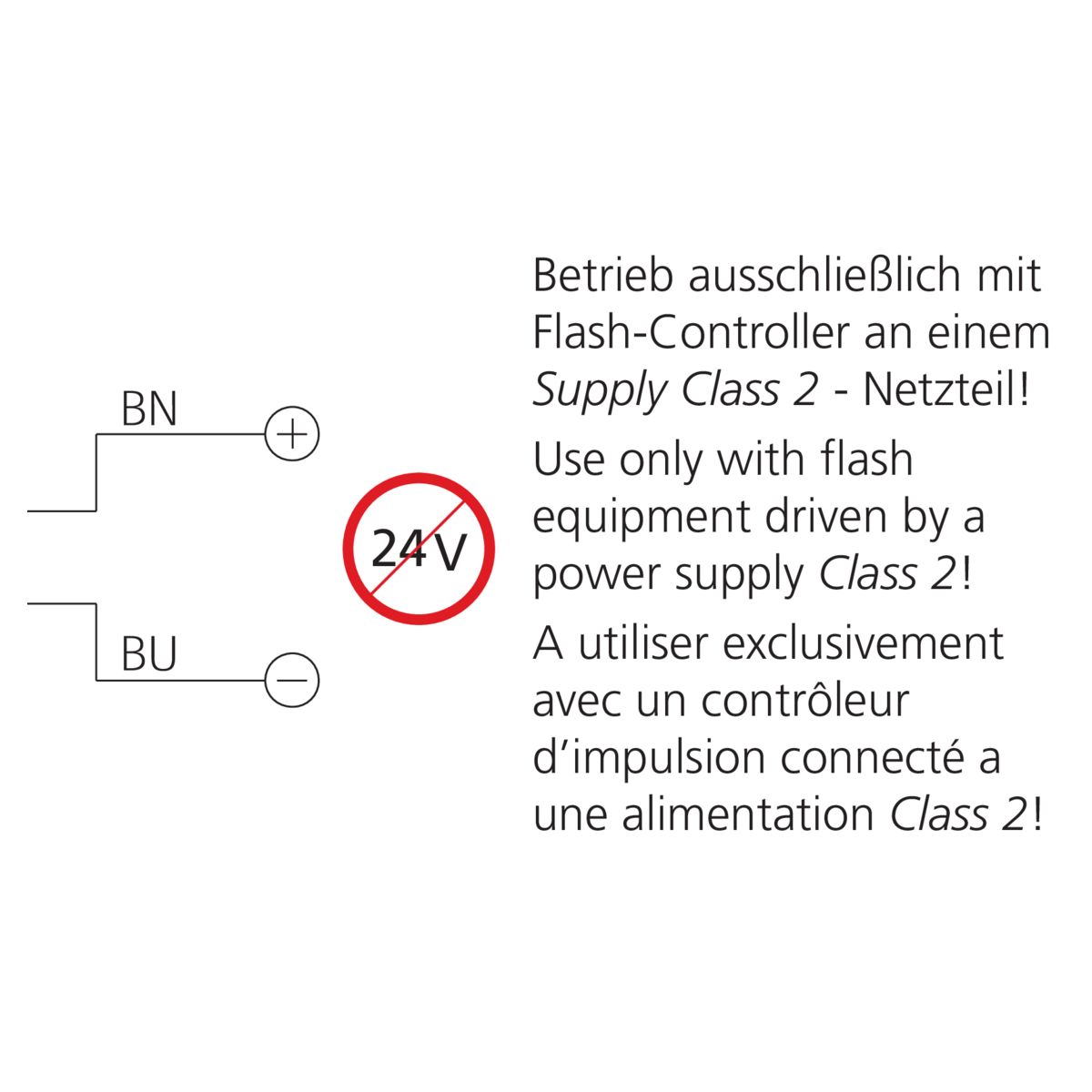

| Connection | Cable 2.5 m flying leads;Use only with flash controller! |
| Control | Flashable by means of flash controller |
| Design | Area light |
| Energization (In Pulse / max.) | 1600.0 mA |
| Energization Factor (In Pulse / max.) | 6.4 |
| Housing Material | Aluminum Black Anodized |

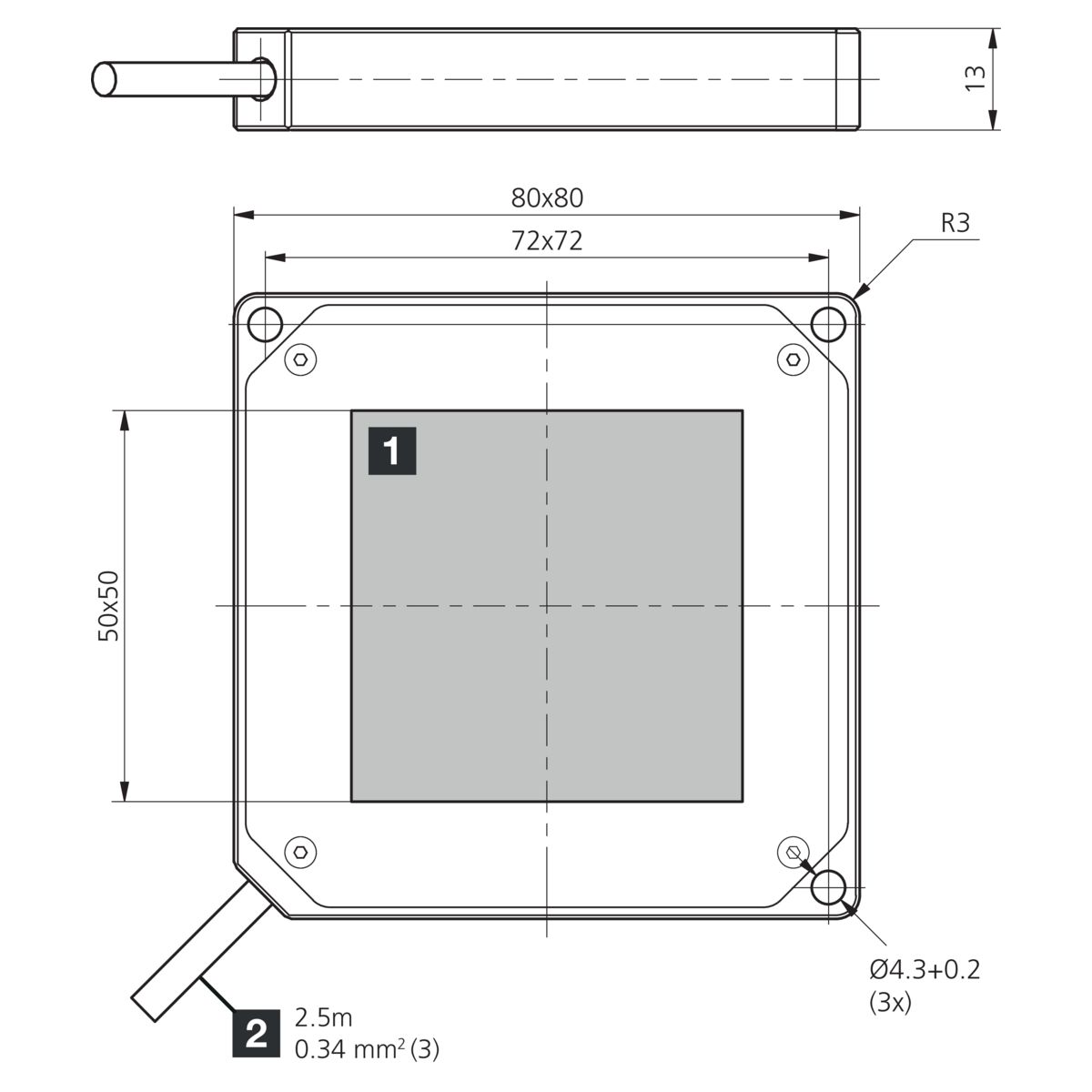

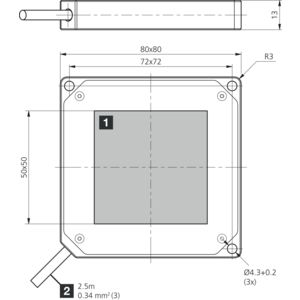

| Illuminated Area | 50.0 mm 50.0 mm |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Inverse Polarity Protection | no |
| Light Source | LED |
| Material | Polyurethane;PC, opal diffuse Cable;Protection optics |
| Power Consumption (In Pulse / max.) | 25.0 W |
| Protection Type | IP 67 |
| Risk Group (DIN EN 62471) | Free group |
| Shock Vibration Load | 30 g, 11 ms / 10 ... 55 Hz, 1.0 mm |
| Wavelength | 625 nm |
