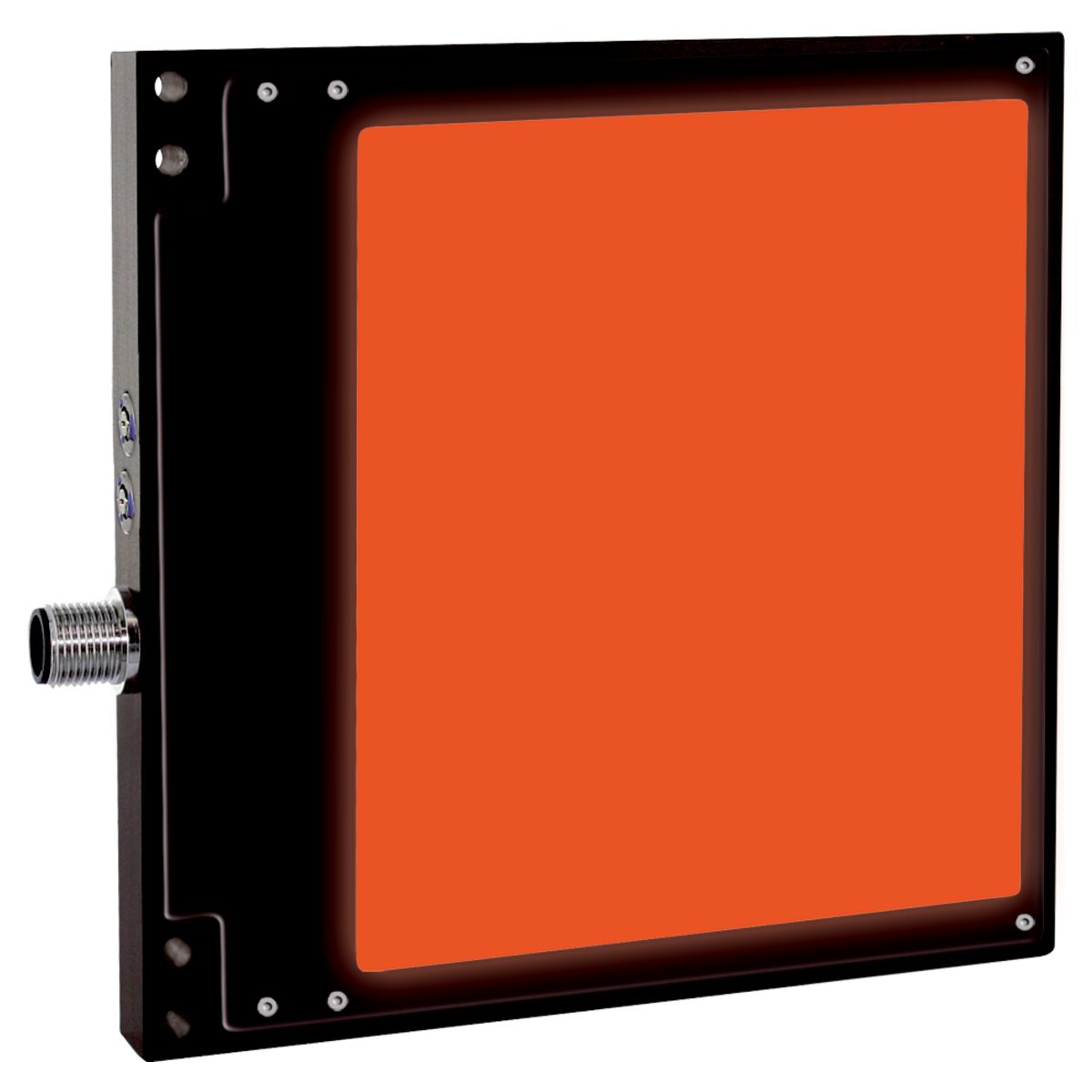

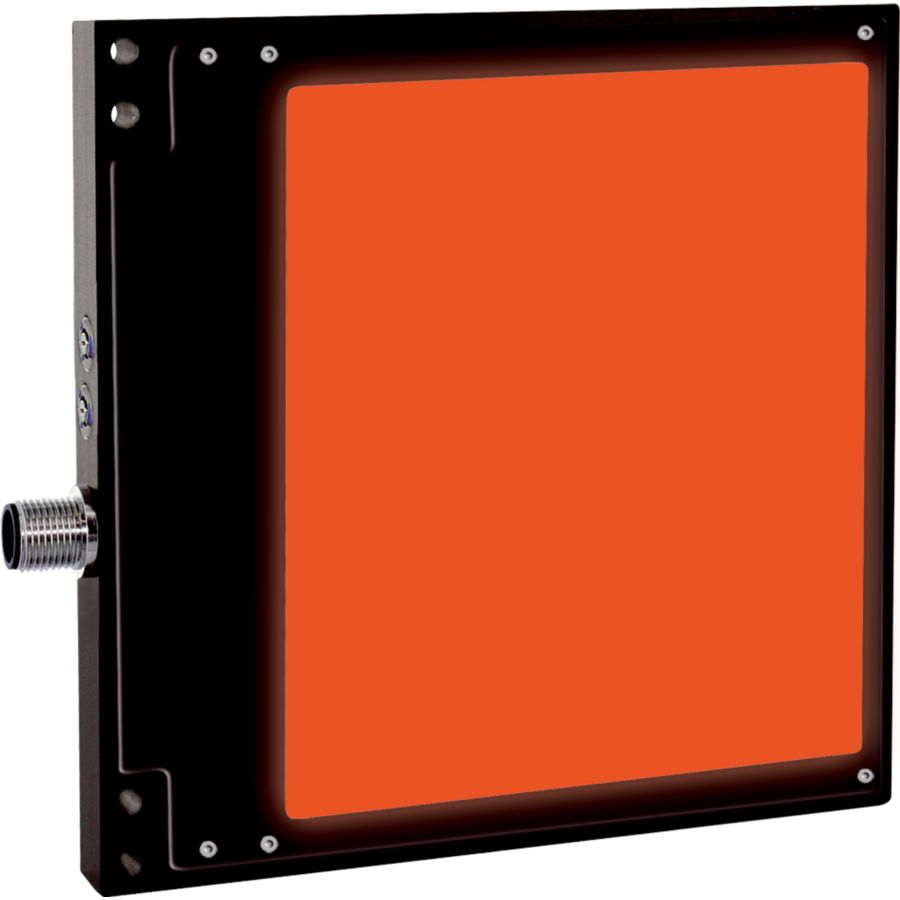

Area Light - BEK-F150/150-G1TI-IBS
Part Number: BEK-F150/150-G1TI-IBS
Article Number: 206713
Technical Details
| Ambient Temperature During Operation | 0.0 ... 40.0°C |
|---|---|
| Characteristics | Trigger input |
| Color | Red |

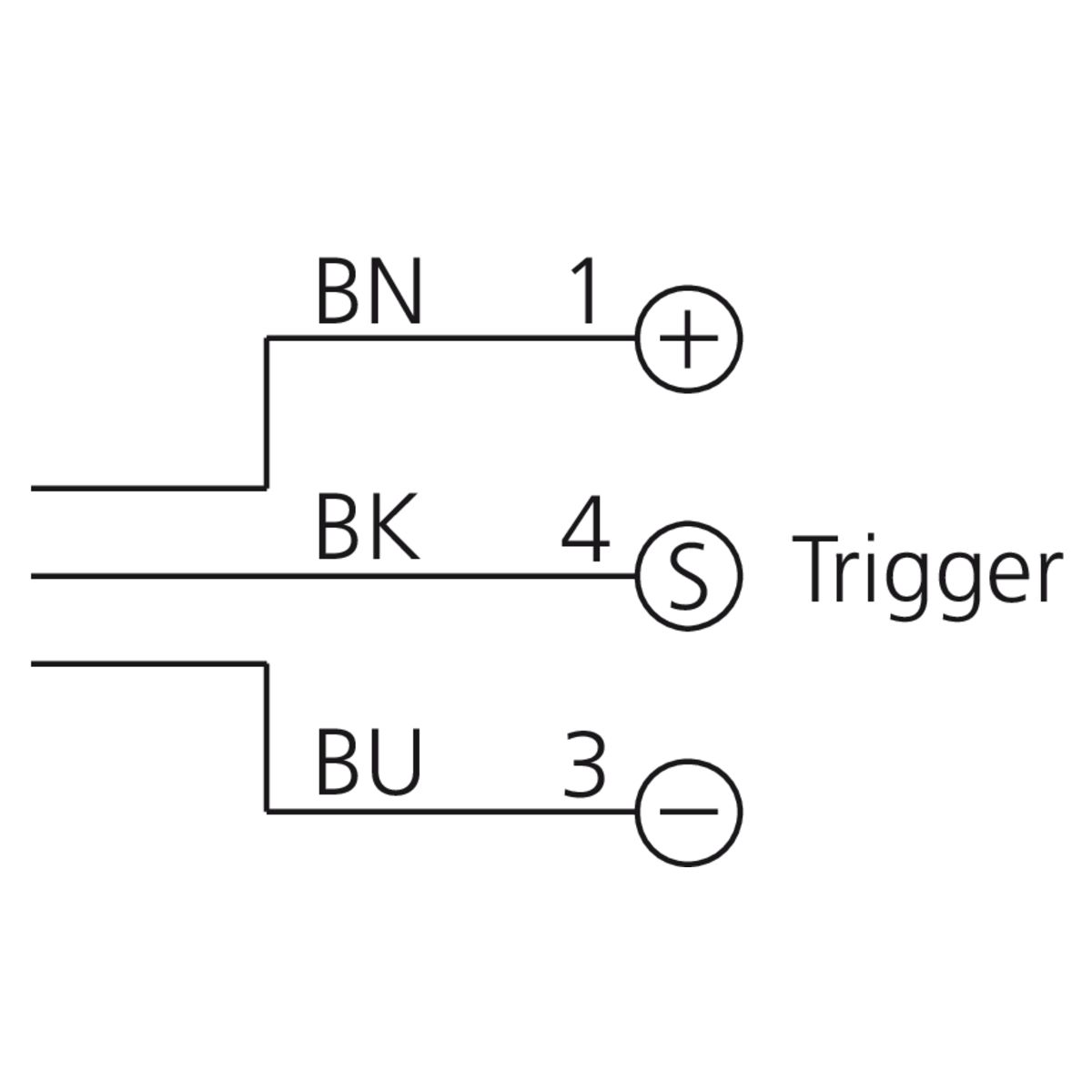

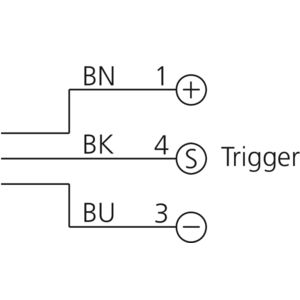

| Connection | Connector M12 3-pin |
| Connection Cable | VK ... |
| Control | Integrated power control |
| Deflection Angle FWHM | 120.0 ° |
| Design | Area light |
| Green | Operating display |

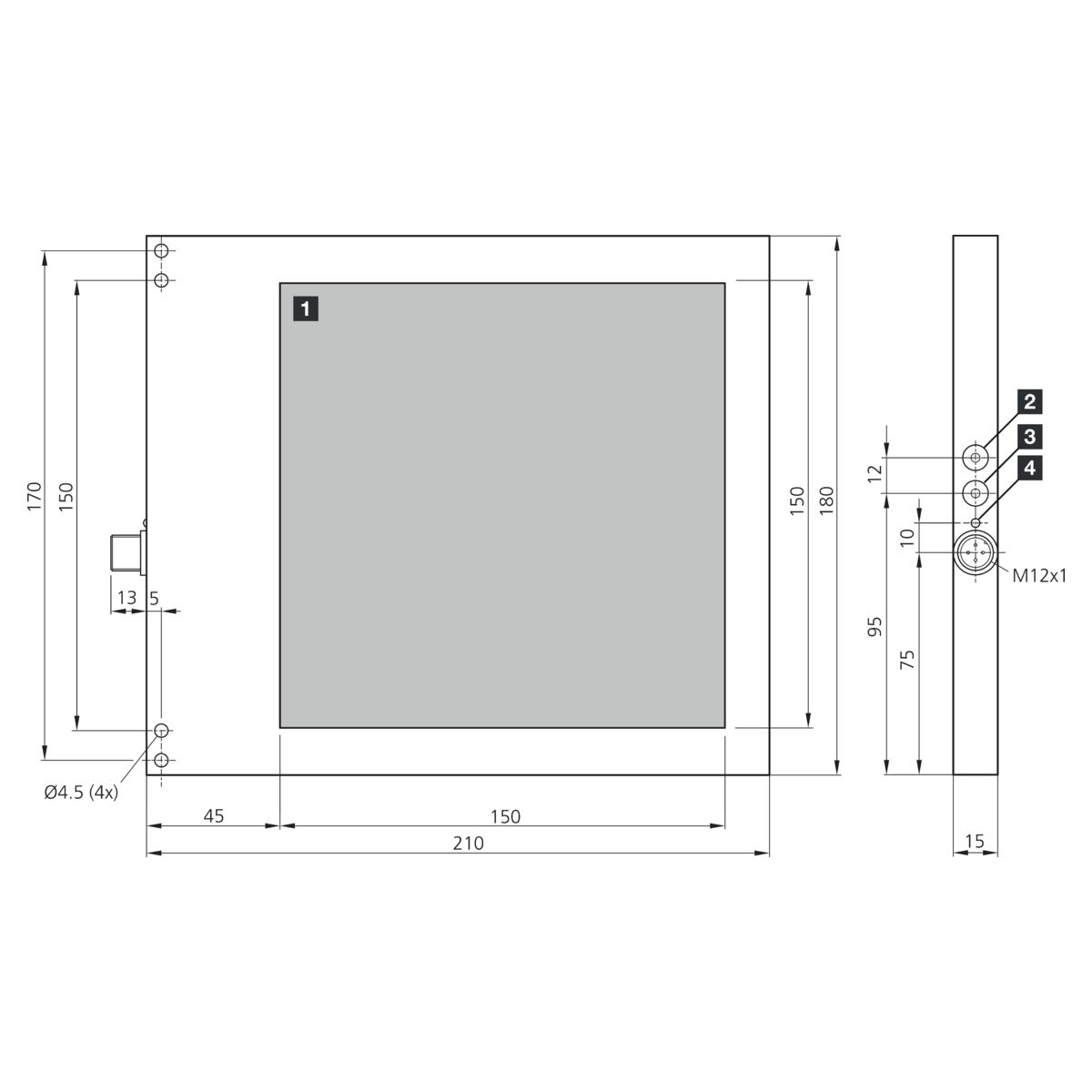

| Housing Dimensions | 180 x 210 x 15 mm |
| Housing Material | Aluminum Black Anodized |
| Illuminated Area | 150.0 mm 150.0 mm |
| Illumination Time Pulse | 1.0 |
| Inverse Polarity Protection | Yes |
| Light Source | LED |
| Material | PC, opal diffuse Protection optics |
| No Load Current (max.) | 350.0 mA 24.0 V DC |
| On Delay Time (Trig.) | 0.5 ms |
| Power | 8.4 W 24.0 V DC |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Risk Group (DIN EN 62471) | Free group |
| Service Voltage | 15 ... 35.0V DC |
| Shock Vibration Load | 30 g, 11 ms / 10 ... 55 Hz, 1.0 mm |
| Switch Off Delay (Trig.) | 0.12 ms |
| Trigger Input High Level | 3.3 V 35.0 V |
| Trigger Input Low Level | 2.8 < V |
| Wavelength | 625.0 nm |
