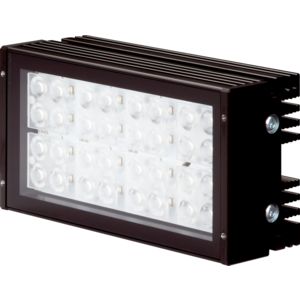

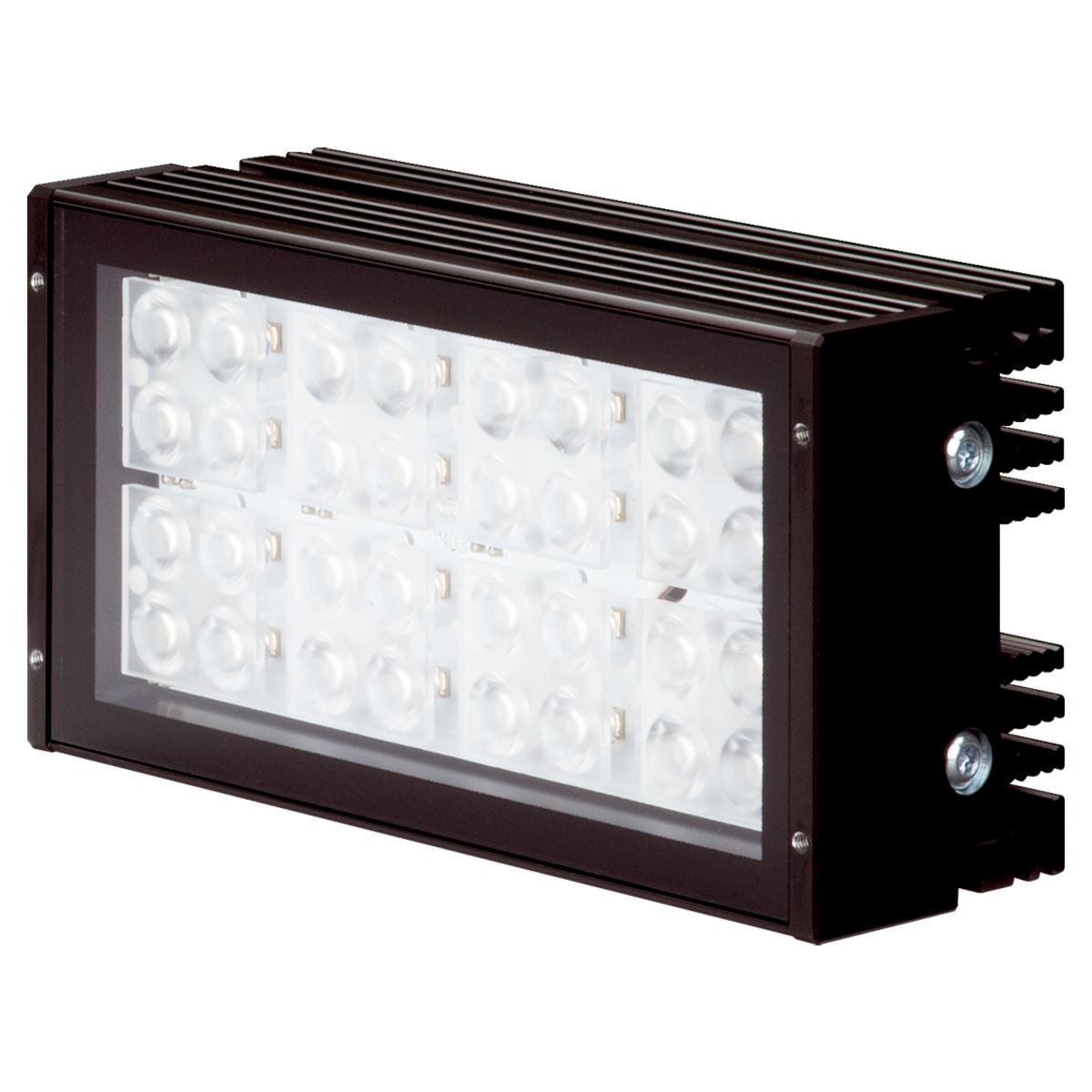

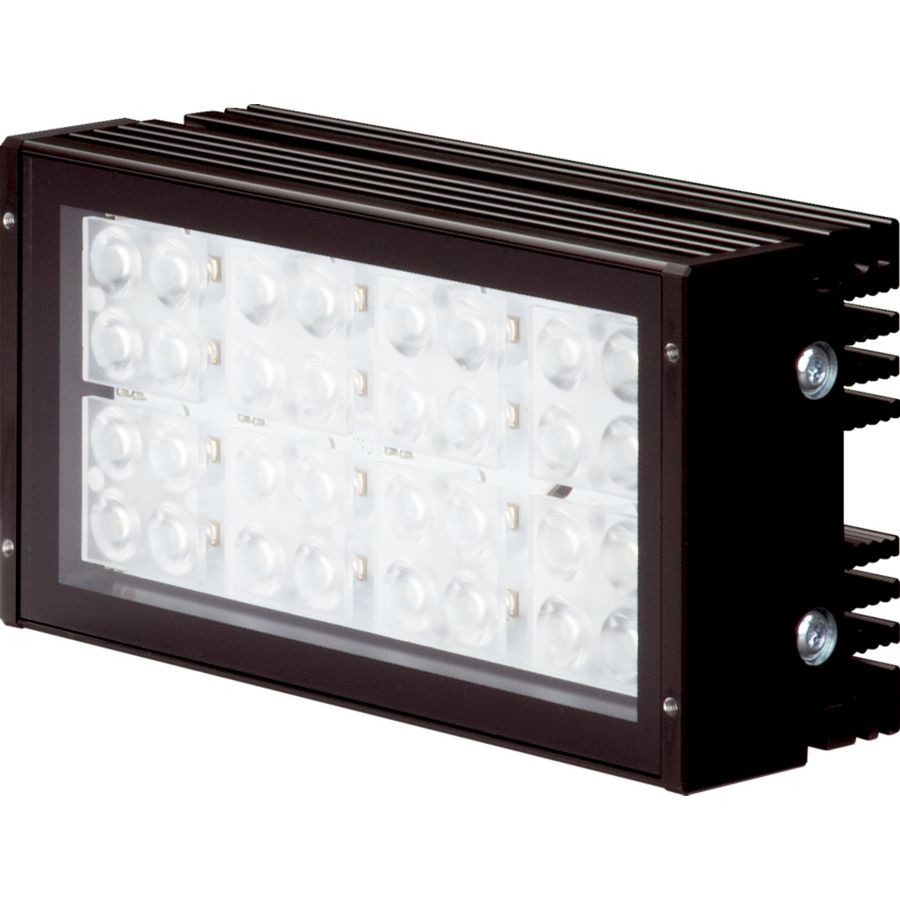

Barlight - BE-A100-F0-K
Part Number: BE-A100-F0-K
Article Number: 208215
Technical Details
| Ambient Temperature During Operation | 0.0 ... 40.0°C |
|---|---|
| Color | Infrared |

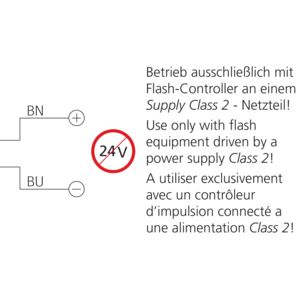

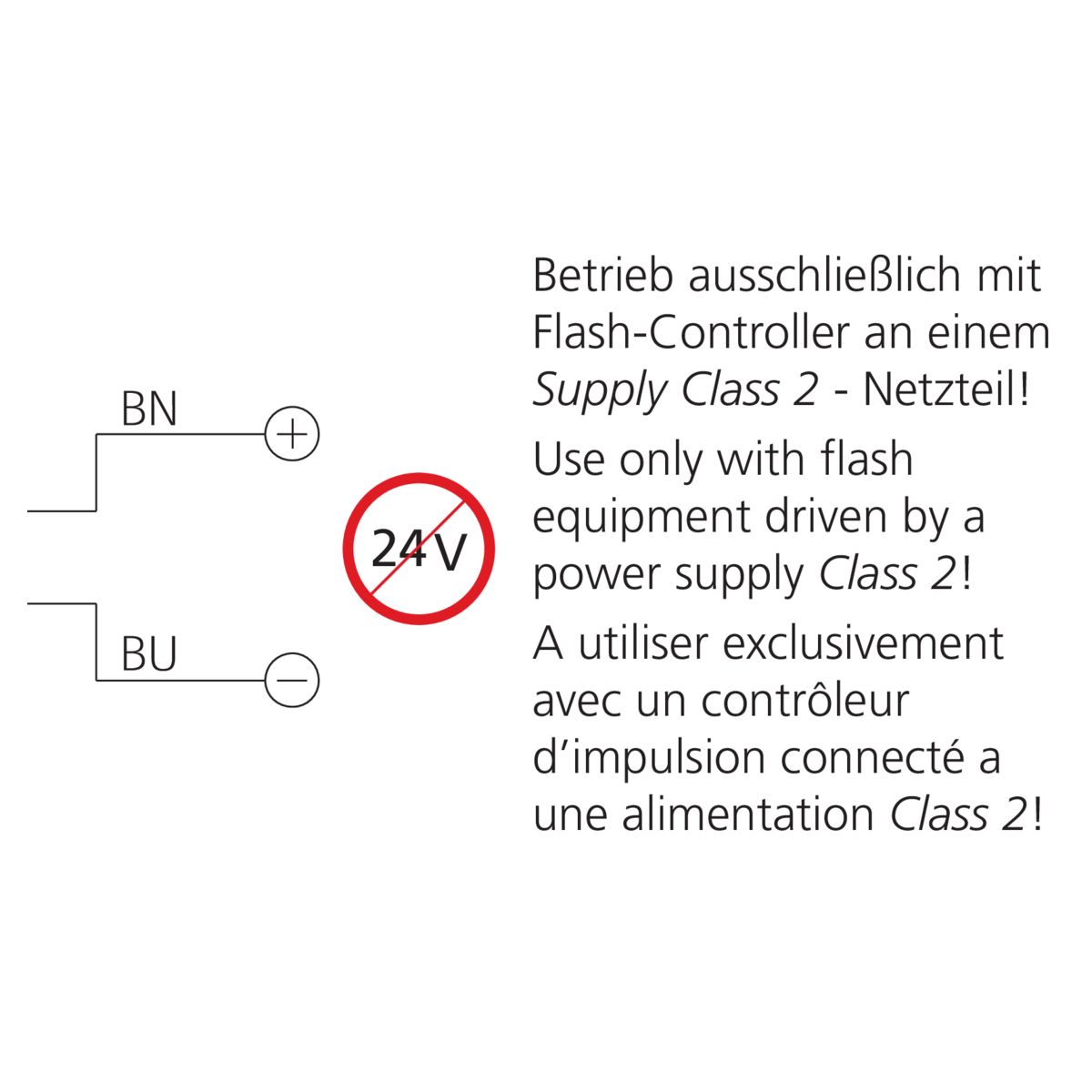

| Connection | Cable 2.5 m flying leads;Use only with flash controller! |
| Control | Flashable by means of flash controller |
| Deflection Angle FWHM | 30.0 ° |
| Design | Barlight |
| Energization (In Pulse / max.) | 20000.0 mA |
| Energization Factor (In Pulse / max.) | 9.33 |
| Housing Material | Aluminum Black Anodized |
| Illuminated Area | 96.0 mm 46.0 mm |
| Illumination Time Pulse | 1.0 |
| Light Intensity | 600000;280000;60000;16000 µW/cm²;µW/cm²;µW/cm²;µW/cm² 100;200;500;1000 mm;mm;mm;mm 1300;1300;1300;1300 %;%;%;% |
| Light Source | LED |
| Material | Polyurethane;PMMA, hardcoated Cable;Protection optics |
| Power Consumption (In Pulse / max.) | 290.0 W |
| Protection Type | IP 67 |
| Risk Group (DIN EN 62471) | Risk group 1 |
| Shock Vibration Load | 30 g, 11 ms / 10 ... 55 Hz, 1.0 mm |
| Wavelength | 850 nm |
| Weight | 450.0 g |
