Barlight - BEK-A100-G2T-K-BS
Part Number: BEK-A100-G2T-K-BS
Article Number: 208175
Technical Details
| Ambient Temperature During Operation | 0.0 ... 40.0°C |
|---|---|
| Color | Green |
| Connection | Pigtail 0.3 m + Connector M12 4-pin |
| Connection Cable | VK ... |
| Control | Integrated power control |
| Deflection Angle FWHM | 30.0 ° |
| Design | Barlight |
| Green | Operating display |

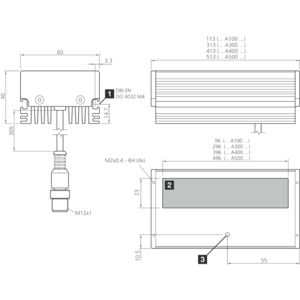

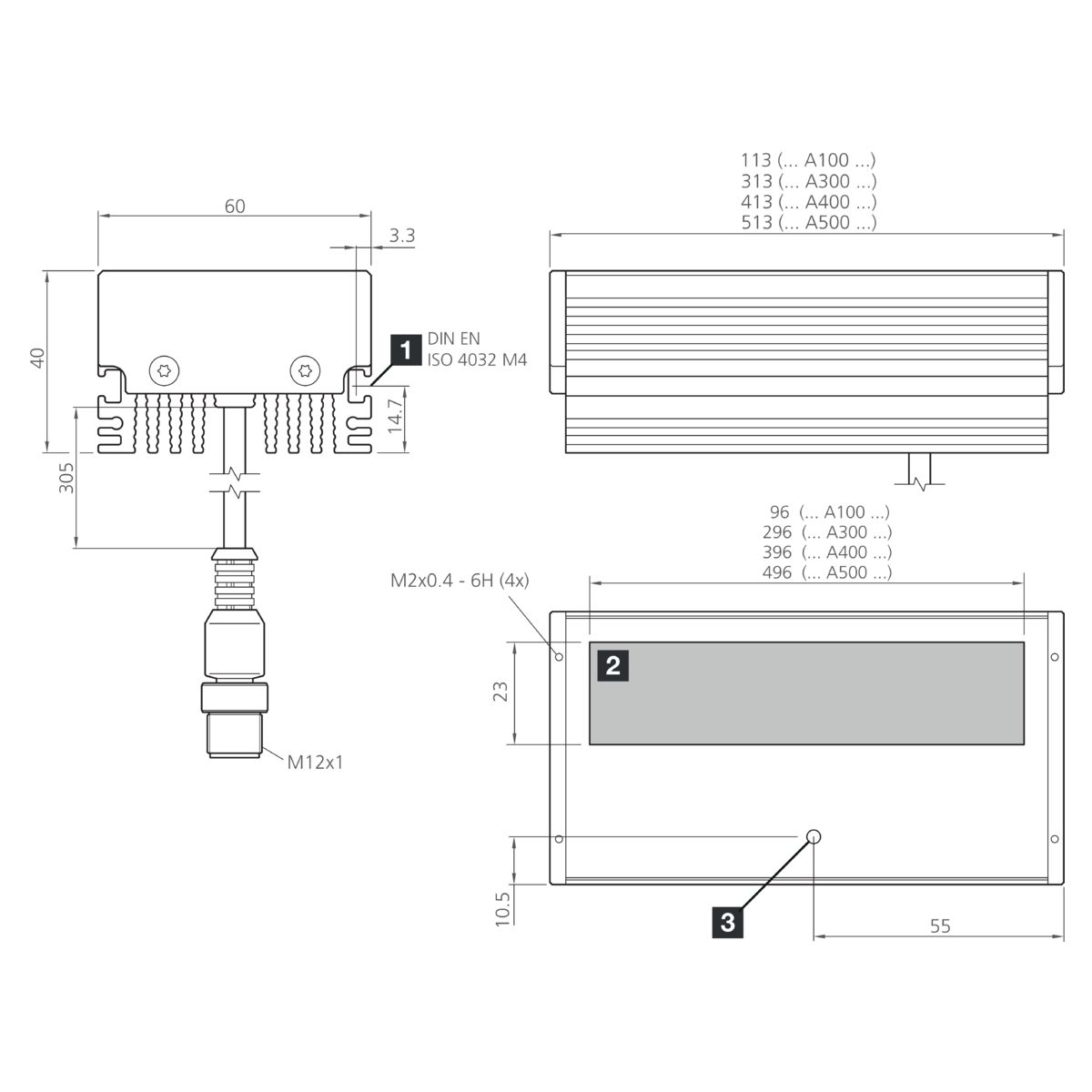

| Housing Dimensions | 40 x 60 x 113 mm |
| Housing Material | Aluminum Black Anodized |
| Illuminated Area | 96.0 mm 23.0 mm |
| Illumination Time Pulse | 1.0 |
| Internal Power Consumption | 550.0 mA 24.0 V DC |
| Inverse Polarity Protection | Yes |
| Light Intensity | 125;58;13 kLx;kLx;kLx 100;200;500 mm;mm;mm |
| Light Source | LED |
| Material | PMMA, hardcoated Safety screen |
| Power | 13.0 W 24.0 V DC |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Risk Group (DIN EN 62471) | Free group |
| Service Voltage | 18.0 ... 30.0V DC |
| Shock Vibration Load | 30 g, 11 ms / 10 ... 55 Hz, 1.0 mm |
| Trigger Input High Level | 3.3 V 30.0 V |
| Trigger Input Low Level | 2.8 < V |
| Wavelength | 528 nm |
| Weight | 470.0 g |
