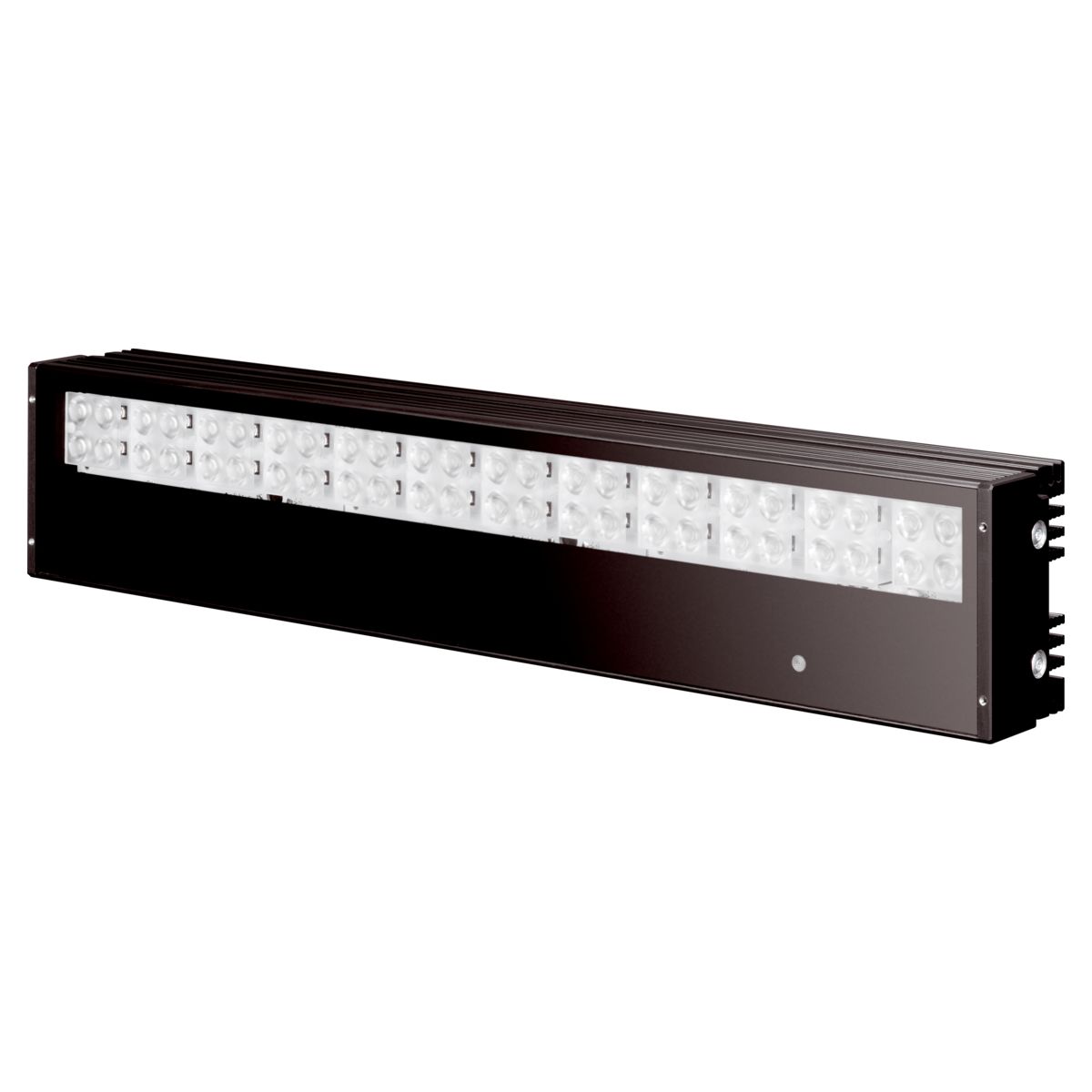

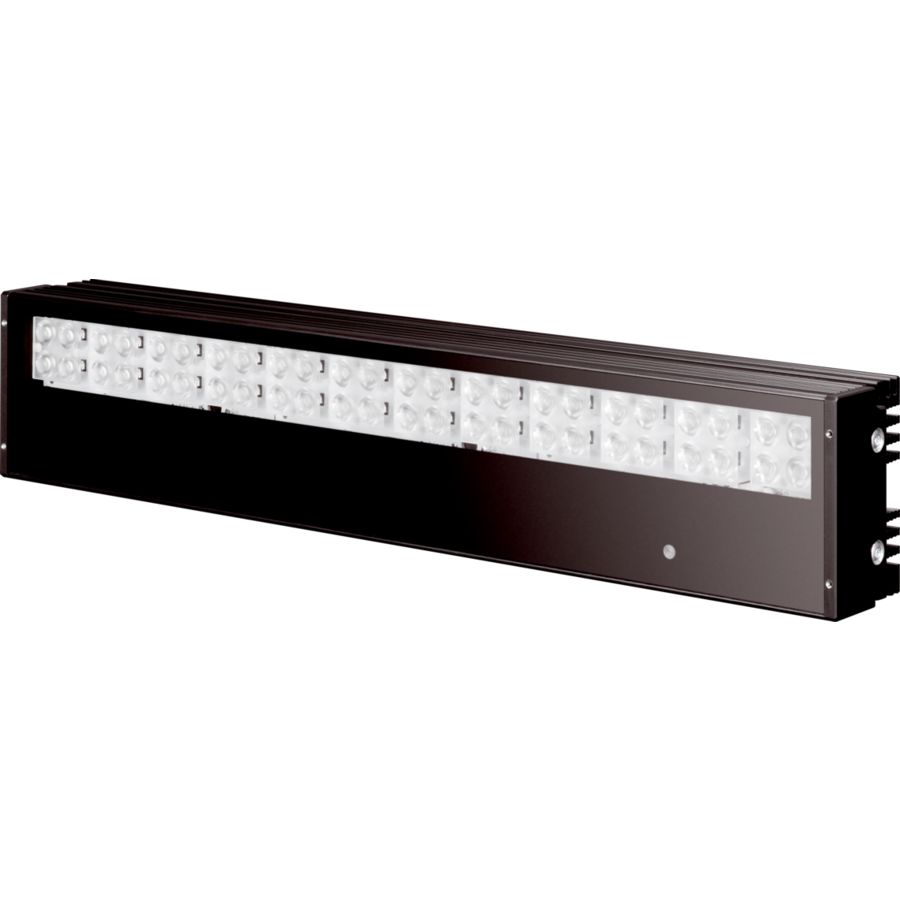

Barlight - BEK-A400-G0T-K-BS

Ambient Temperature During Operation	0.0 ... 40.0°C
Color	Infrared

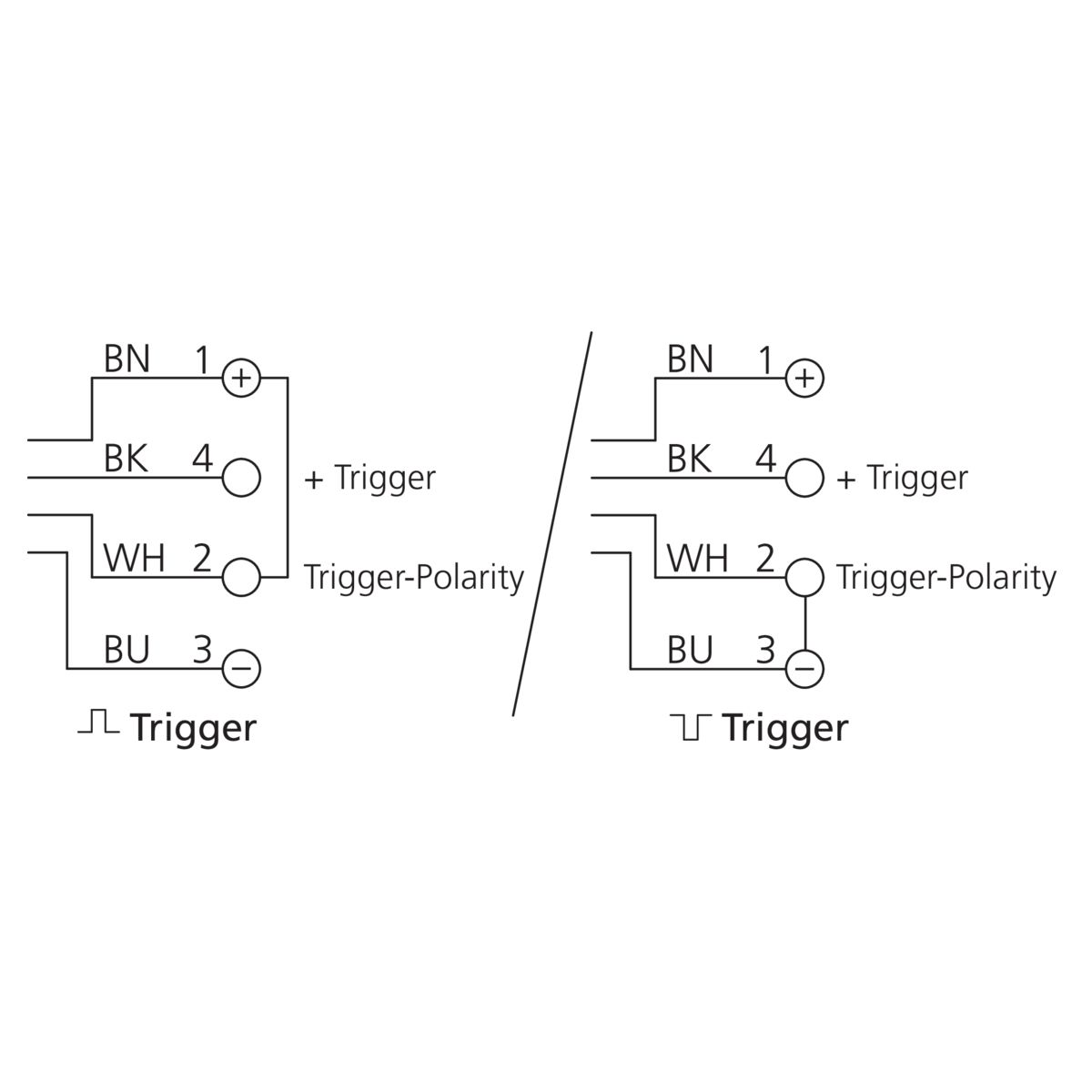

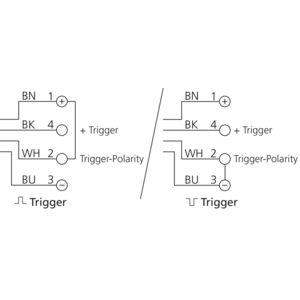

Connection	Pigtail 0.3 m M12 4-pin
Connection Cable	VK ...
Control	Integrated power control
Deflection Angle FWHM	30.0 °
Design	Barlight
Green	Operating display

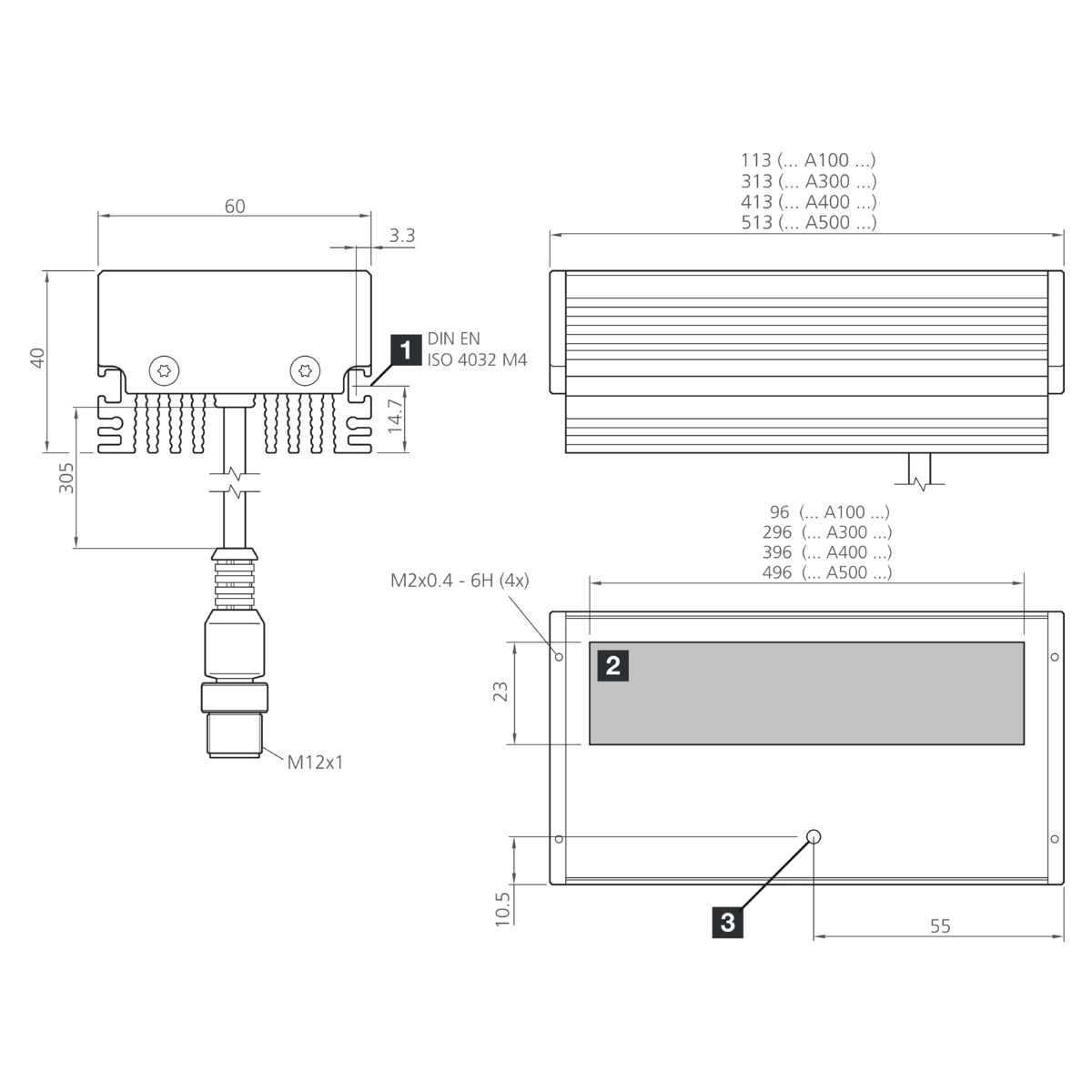

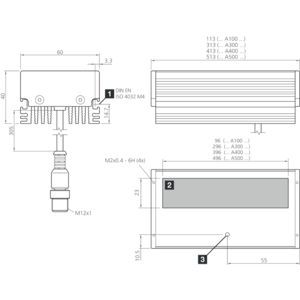

Housing Dimensions	40 x 60 x 413 mm
Housing Material	Aluminum Black Anodized
Illuminated Area	396.0 mm 23.0 mm
Illumination Time Pulse	1.0
Internal Power Consumption	1500.0 mA 24.0 V DC
Inverse Polarity Protection	Yes
Light Intensity	32500;18200;6900 µW/cm²;µW/cm²;µW/cm² 100;200;500 mm;mm;mm
Light Source	LED
Material	PMMA, hardcoated Safety screen
Power	35.0 W 24.0 V DC
Protection Class	III, operation on protective low voltage
Protection Type	IP 67
Risk Group (DIN EN 62471)	Risk group 1
Service Voltage	18.0 ... 30.0V DC
Shock Vibration Load	30 g, 11 ms / 10 ... 55 Hz, 1.0 mm
Trigger Input High Level	3.3 V 30.0 V
Trigger Input Low Level	2.8 < V
Wavelength	850 nm
Weight	1350.0 g
