BE-A65-G0-K-BS
Part Number: BE-A65-G0-K-BS
Article Number: 213568
Technical Details
| Ambient Temperature During Operation | 0.0 ... 40.0°C |
|---|---|
| Color | Infrared |
| Color Selection | No |

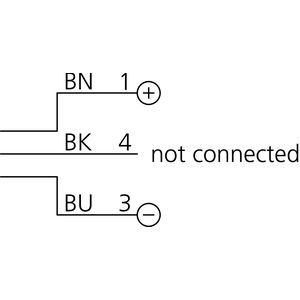

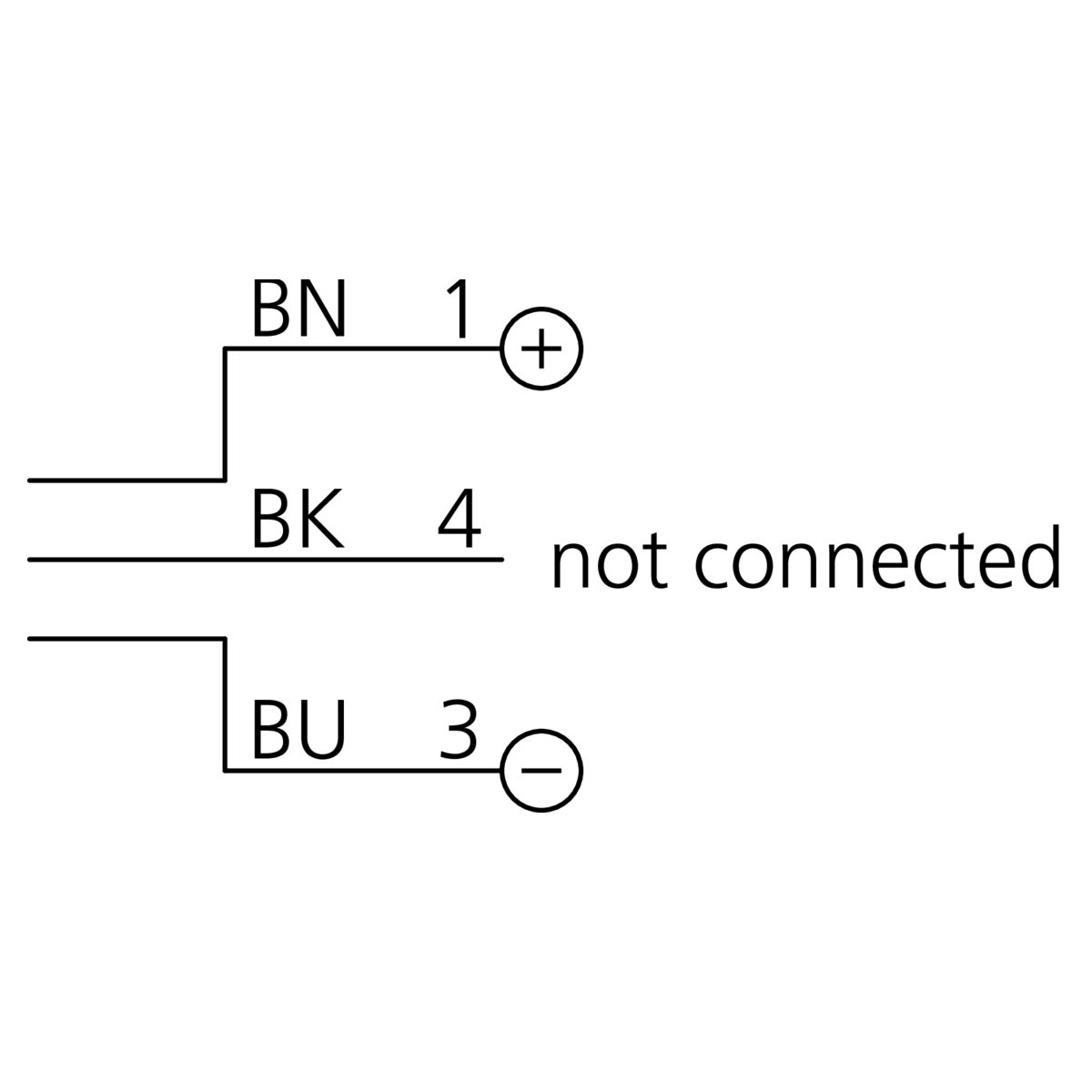

| Connection | Pigtail 0.3 m M12 3-pin |
| Control | without power control |
| Deflection Angle FWHM | 18.0 ° |
| Design | Barlight |
| Housing Material | Aluminum Black Anodized |
| Illuminated Area | 65.0 mm 12.0 mm |
| Illumination Time Pulse | 1.0 |
| Interface | No |
| Internal Power Consumption | 130.0 mA 24.0 V DC |
| Inverse Polarity Protection | Yes |
| Light Intensity Can Be Adjusted | No |
| Light Source | LED |
| Material | PMMA, clear Protection optics |
| Operating Modes | Static |
| Power | 3.1 W 24.0 V |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 40 |
| Risk Group (DIN EN 62471) | Free group |
| Scope Of Delivery | Barlight |
| Service Voltage | 24 |
| Shock Vibration Load | 30 g, 11 ms / 10 ... 55 Hz, 1.0 mm |
| Trigger Input High Level | No trigger |
| Trigger Input Low Level | No trigger |
| Trigger Presets | No trigger |
| Wavelength | 850.0 nm |
| Weight | 70.0 g |
