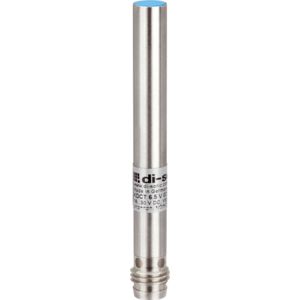

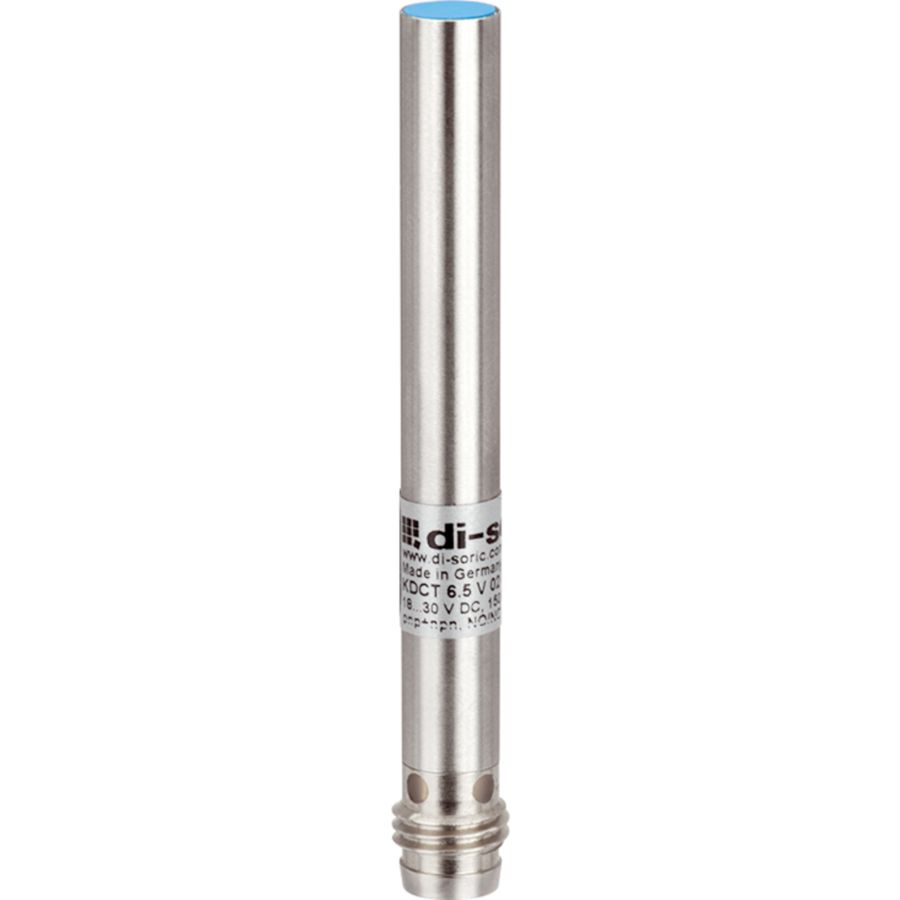

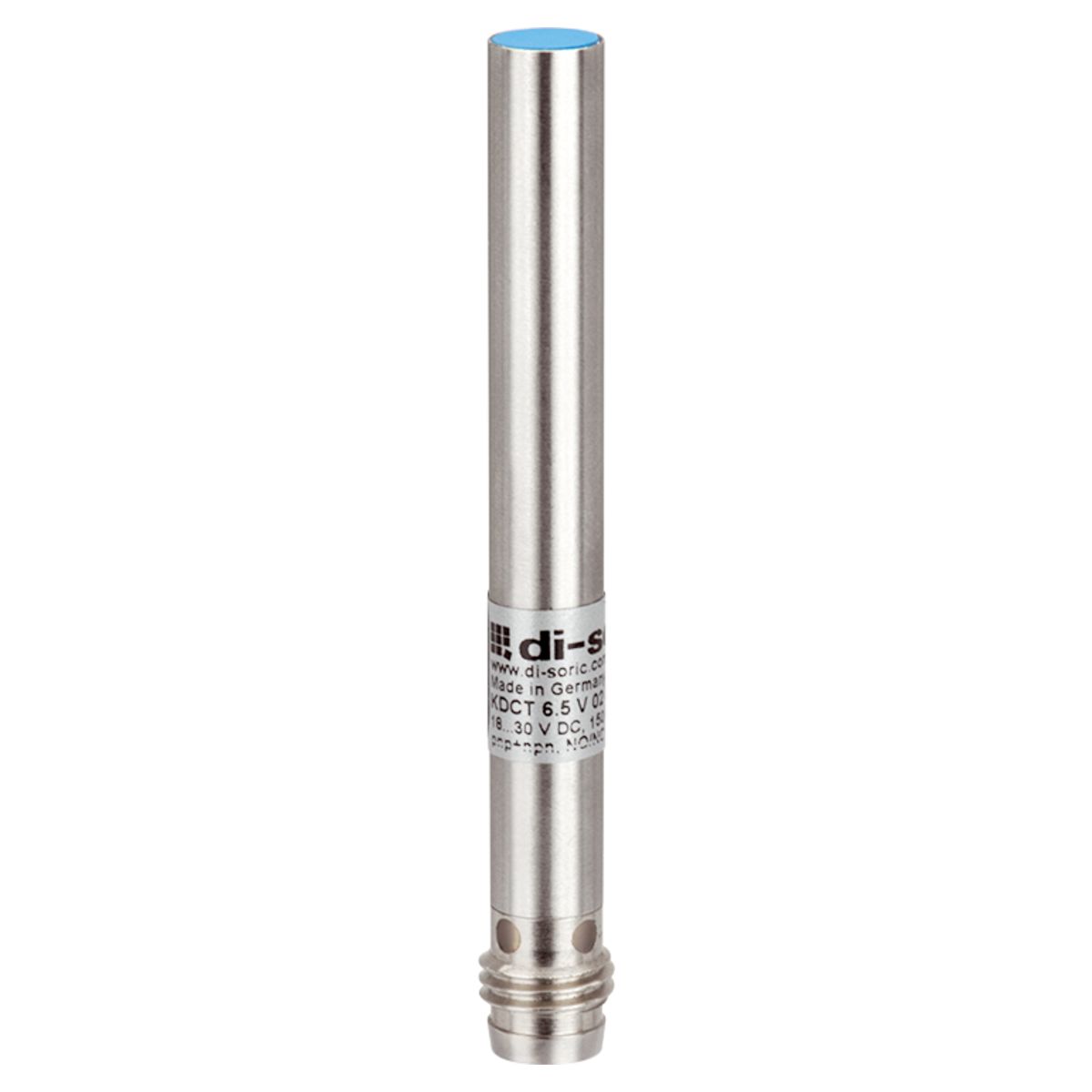

Capacitive Proximity Switch - KDCT 6.5 V 02 G3-T4
Part Number: KDCT 6.5 V 02 G3-T4
Article Number: 208348
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|
| Connection | Connector M8 4-pin |
| Connection Cable | TK ... /4 |
| Design | Cylinder |

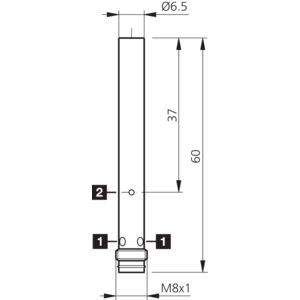

| Diameter | 6.5 mm |
| Evaluation | digital |
| Housing length | 60.0 mm |
| Housing Material | Stainless steel V2A 1.4301 / AISI 304 |
| Illumination Time Pulse | 1.0 |
| Installation Type | Flush |
| Insulation Voltage Endurance | 500.0 V |
| Material | PBT Sensor probe |
| No Load Current (max.) | 20.0 mA |
| Operating Principle | Capacitive |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 65 |
| Sensitivity Adjustment | Remote teach |
| Service Voltage | 18.0 ... 30.0V DC |
| Standardized Measuring Plate | 8 x 8 mm |
| Switching Distance (SN) | 2.0 mm 0.1 to 3 mm adjustable |
| Switching Frequency | 70 Hz |
| Switching Hysteresis (max.) | 10.0 % |

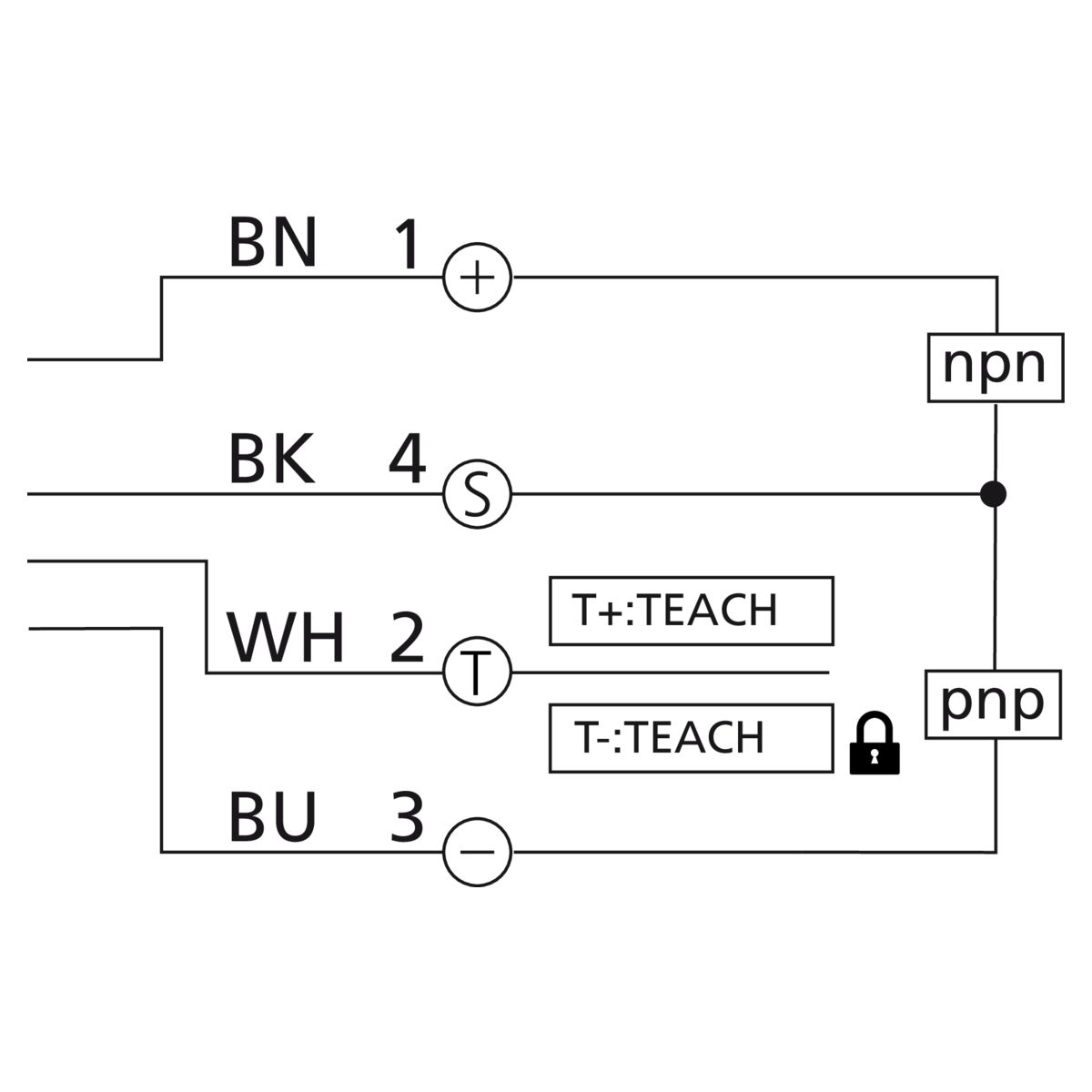

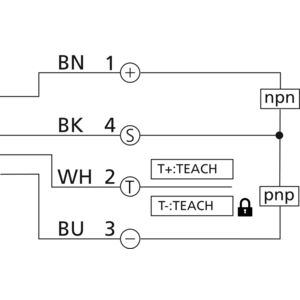

| Switching Output | Push-pull 150.0 mA NO/NC switchable |
| Voltage Drop (max.) | 2.4 V |
| Yellow | Switching output |
