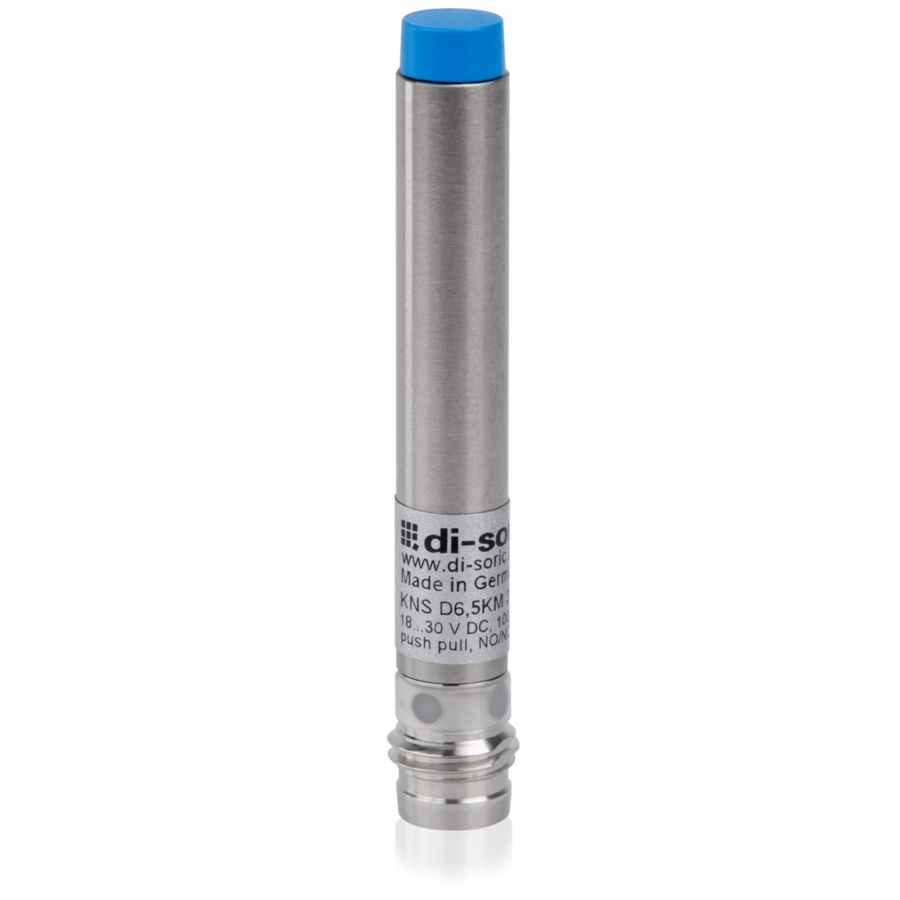

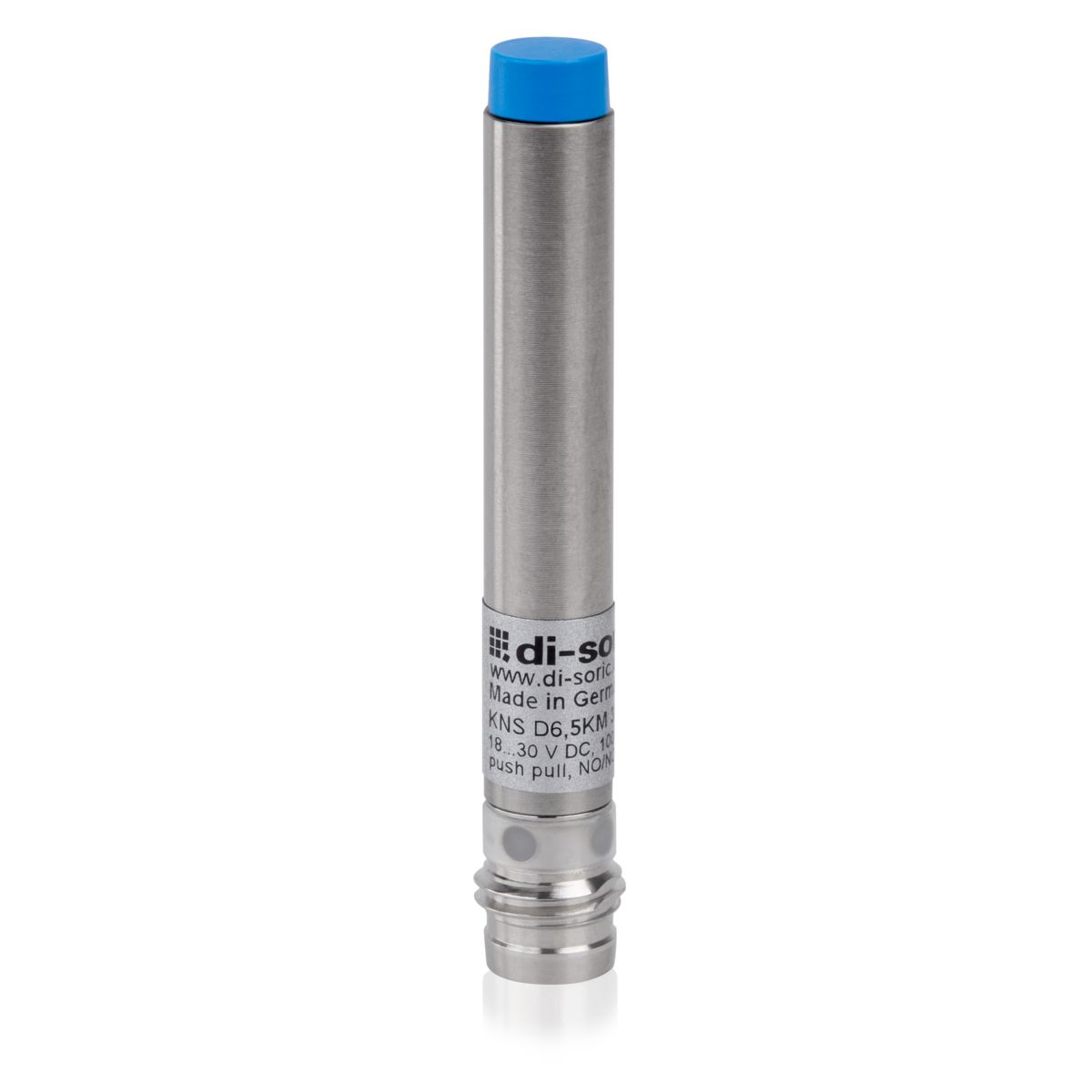

Capacitive Proximity Switch - KNS D6.5KM 3N G3-T3
Part Number: KNS D6.5KM 3N G3-T3
Article Number: 212673
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|
| Connection | Connector M8 3-pin |
| Connection Cable | TK ... |
| Design | Cylinder |

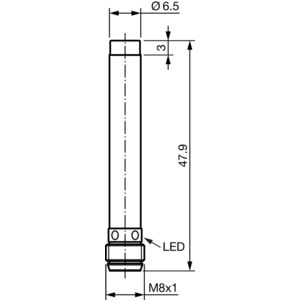

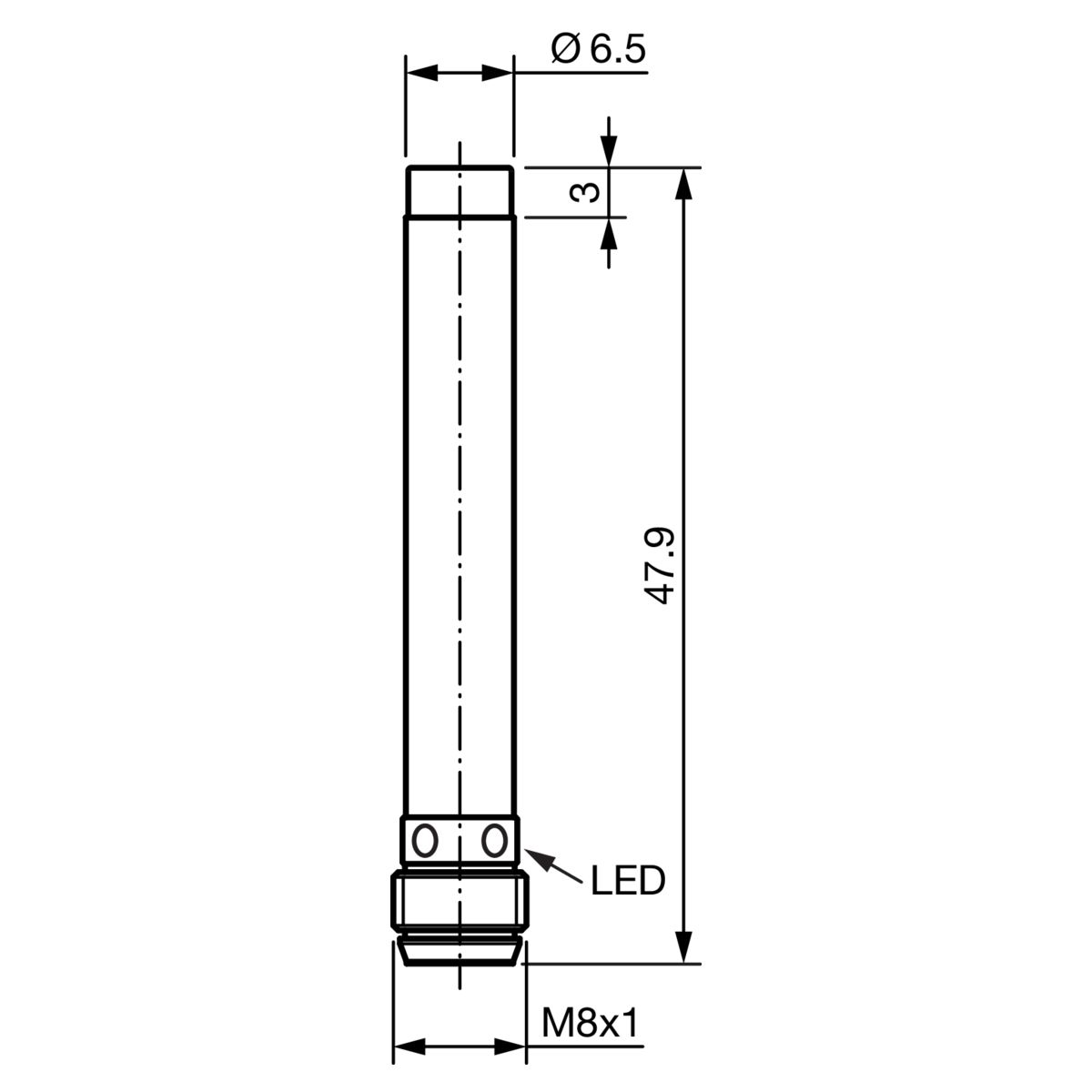

| Diameter | 6.5 mm |
| Housing length | 47.9 mm |
| Housing Material | Brass nickel-plated |
| Illumination Time Pulse | 1.0 |
| Installation Type | non-flush |
| Insulation Voltage Endurance | 500.0 V |
| Interface | IO-Link |
| No Load Current (max.) | 15.0 mA |
| Operating Principle | Capacitive |
| Operation Modes | STANDARD;HIGH RESOLUTION;SPEED |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 65;IP 67 |
| Readiness Delay (max.) | 300.0 ms |
| Sensitivity Adjustment | IO-Link |
| Service Voltage | 18.0 ... 30.0V DC |
| Standardized Measuring Plate | 12 x 12 mm |
| Switching Distance (SN) | 3.0 mm 0.2 to 4 mm adjustable via IO-Link |
| Switching Frequency (Factory Setting) | 100.0 Hz STANDARD |
| Switching Frequency (HIGH RESOLUTION) | 100.0 Hz |
| Switching Frequency (SPEED) | 200.0 Hz |
| Switching Frequency (STANDARD) | 100.0 Hz |
| Switching Hysteresis (max.) | 15.0 < % |

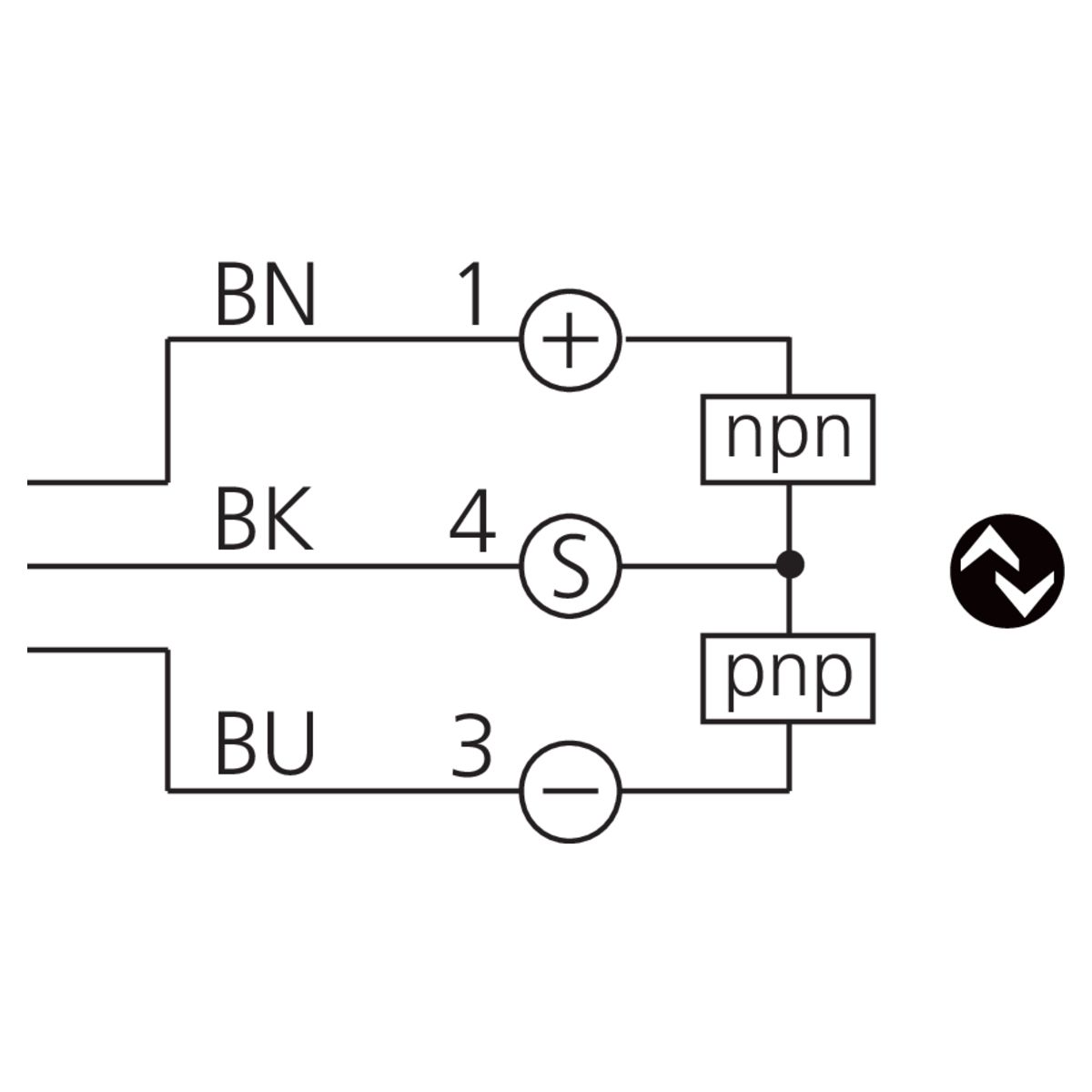

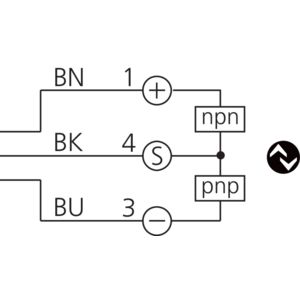

| Switching Output | Push-pull 100.0 mA NO/NC |
| Voltage Drop (max.) | 2.0 V |
| Yellow | Output signal |
