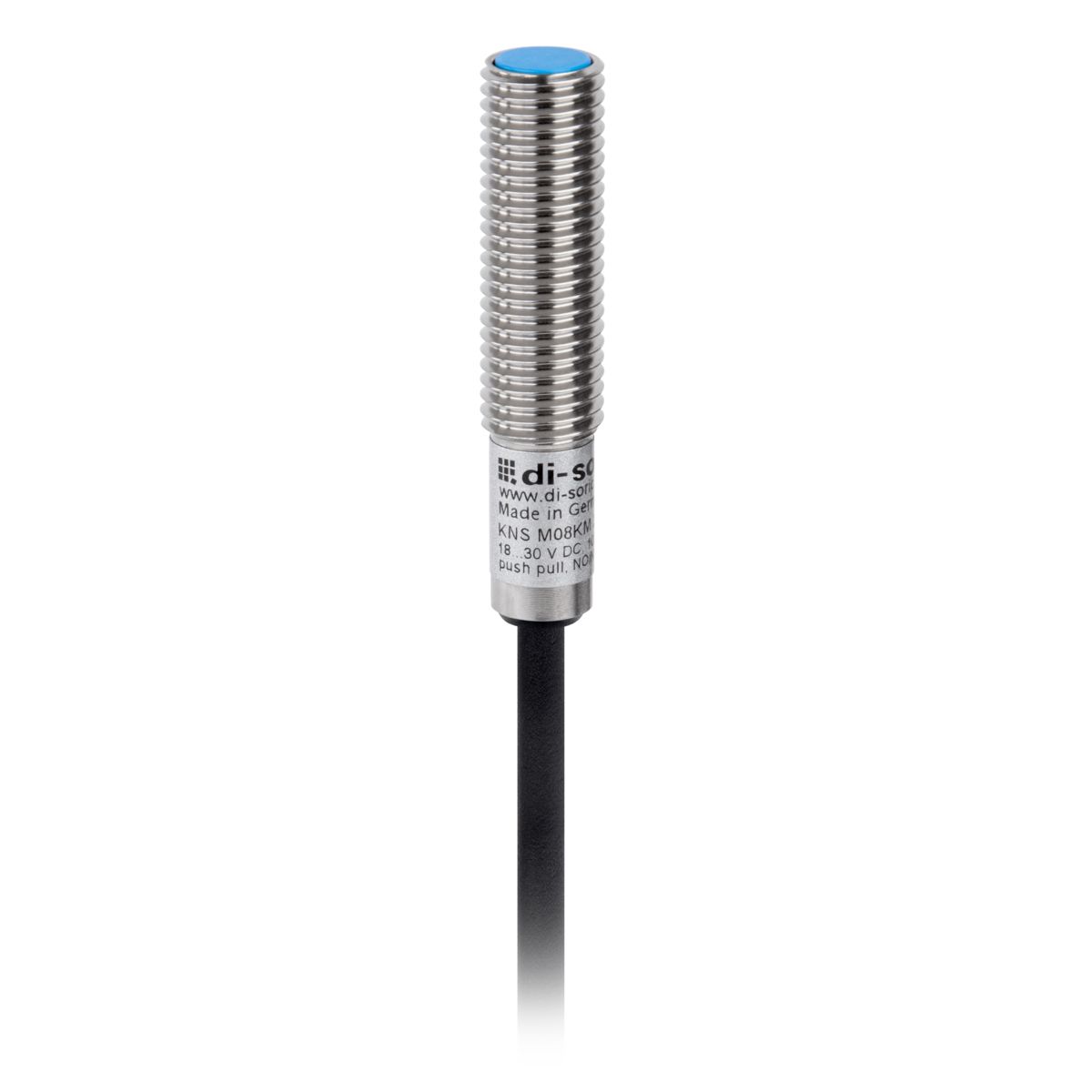

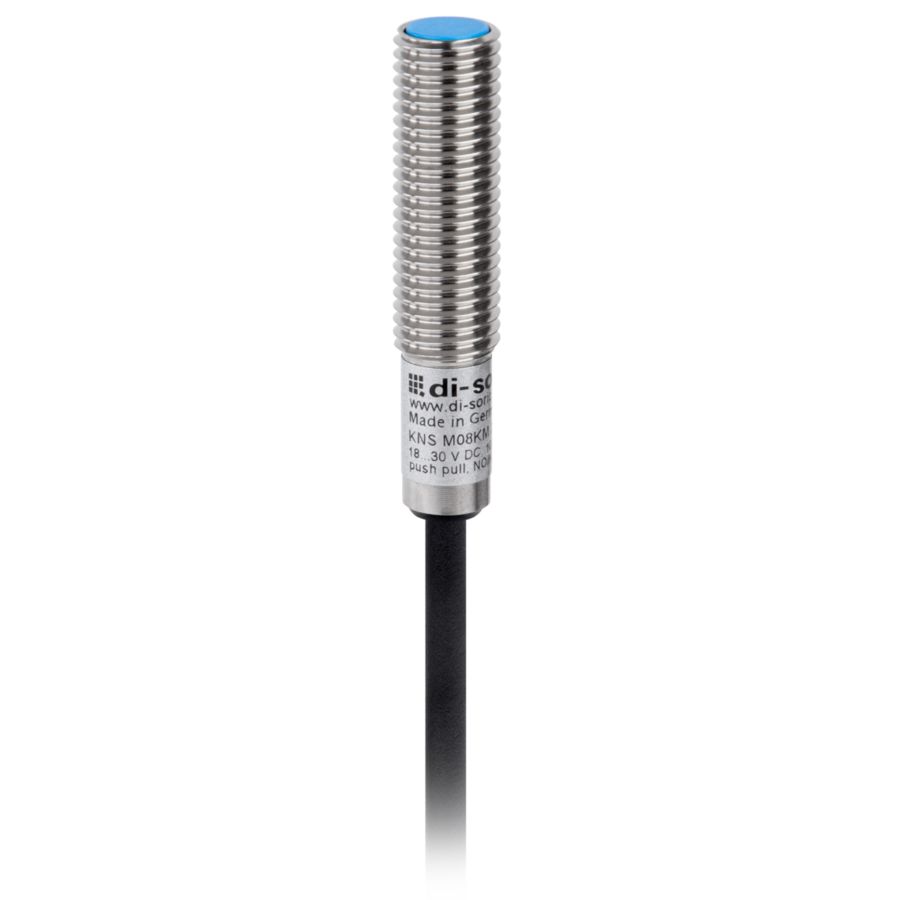

Capacitive Proximity Switch - KNS M08KM 2B G3-2R
Part Number: KNS M08KM 2B G3-2R
Article Number: 212676
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|

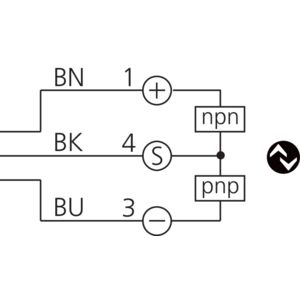

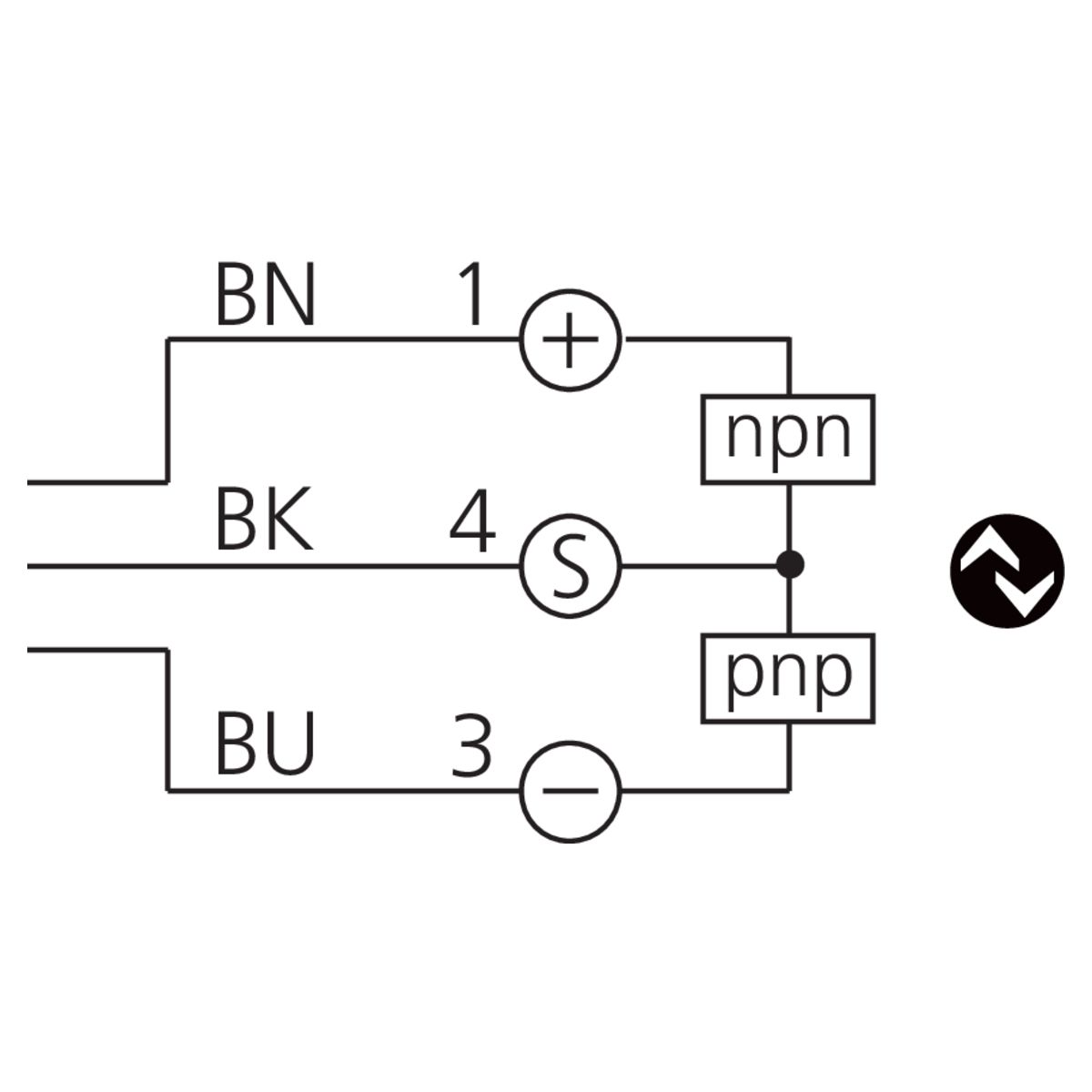

| Connection | Cable 2.0 m 3-pin |
| Design | Thread |

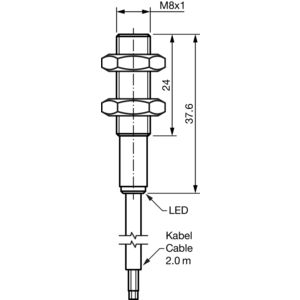

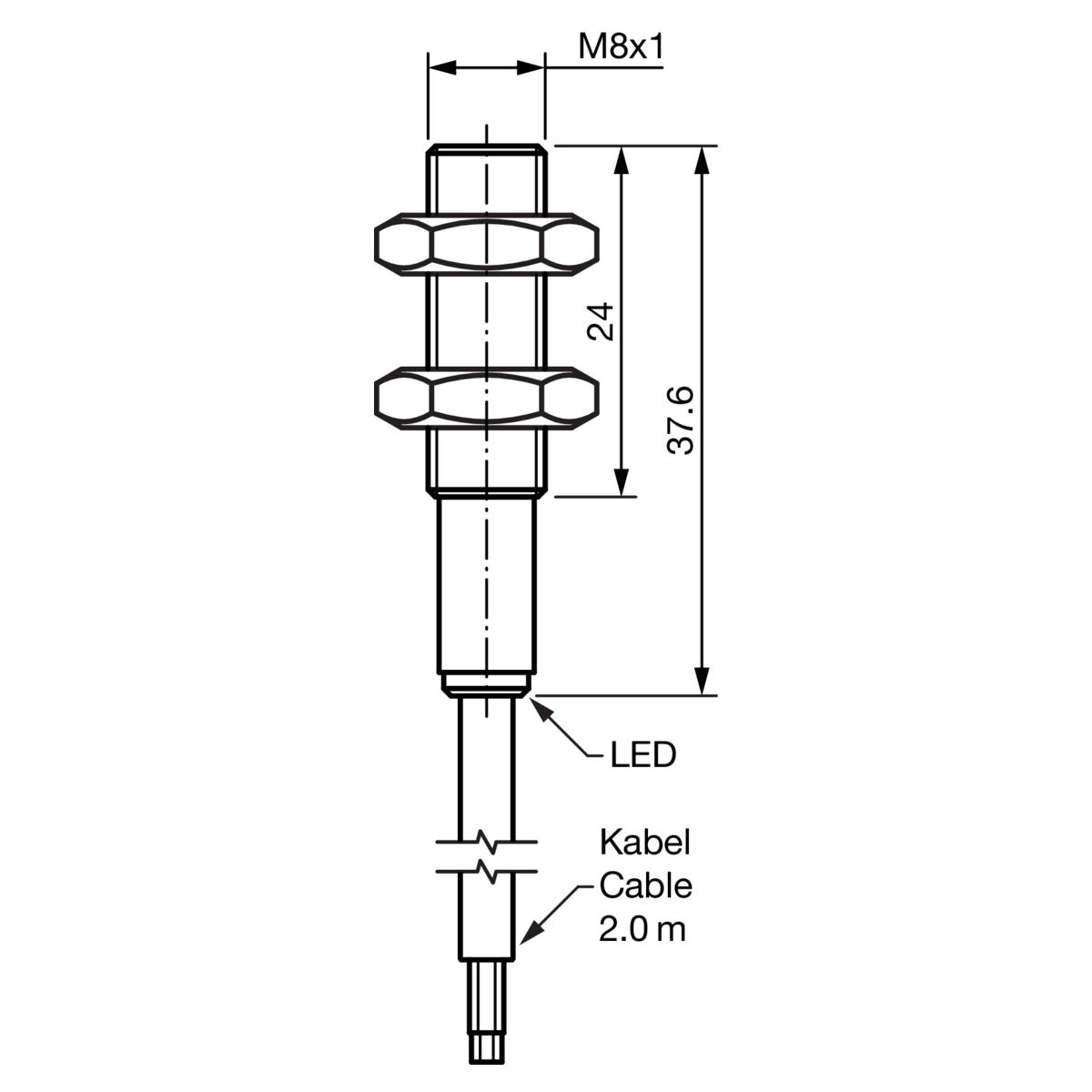

| Housing length | 37.6 mm |
| Housing Material | Brass nickel-plated |
| Illumination Time Pulse | 1.0 |
| Installation Type | Flush |
| Insulation Voltage Endurance | 500.0 V |
| Interface | IO-Link |
| No Load Current (max.) | 15.0 mA |
| Operating Principle | Capacitive |
| Operation Modes | STANDARD;HIGH RESOLUTION;SPEED |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 65;IP 67 |
| Readiness Delay (max.) | 300.0 ms |
| Scope Of Delivery | 2 x M8 nuts |
| Sensitivity Adjustment | IO-Link |
| Service Voltage | 18.0 ... 30.0V DC |
| Shock Vibration Load | 30 g, 10 ... 55 Hz / 0.5 mm |
| Standardized Measuring Plate | 8 x 8 mm |
| Switching Distance (SN) | 2.0 mm 0.2 to 3 mm adjustable via IO-Link |
| Switching Frequency (Factory Setting) | 100.0 Hz STANDARD |
| Switching Frequency (HIGH RESOLUTION) | 10.0 Hz |
| Switching Frequency (SPEED) | 200.0 Hz |
| Switching Frequency (STANDARD) | 100.0 Hz |
| Switching Hysteresis (max.) | 15.0 < % |
| Switching Output | Push-pull 100.0 mA NO/NC switchable via IO-Link |
| Thread | M8 x 1 |
| Voltage Drop (max.) | 2.0 V |
| Weight | 32.0 g |
| Yellow | Output signal |
