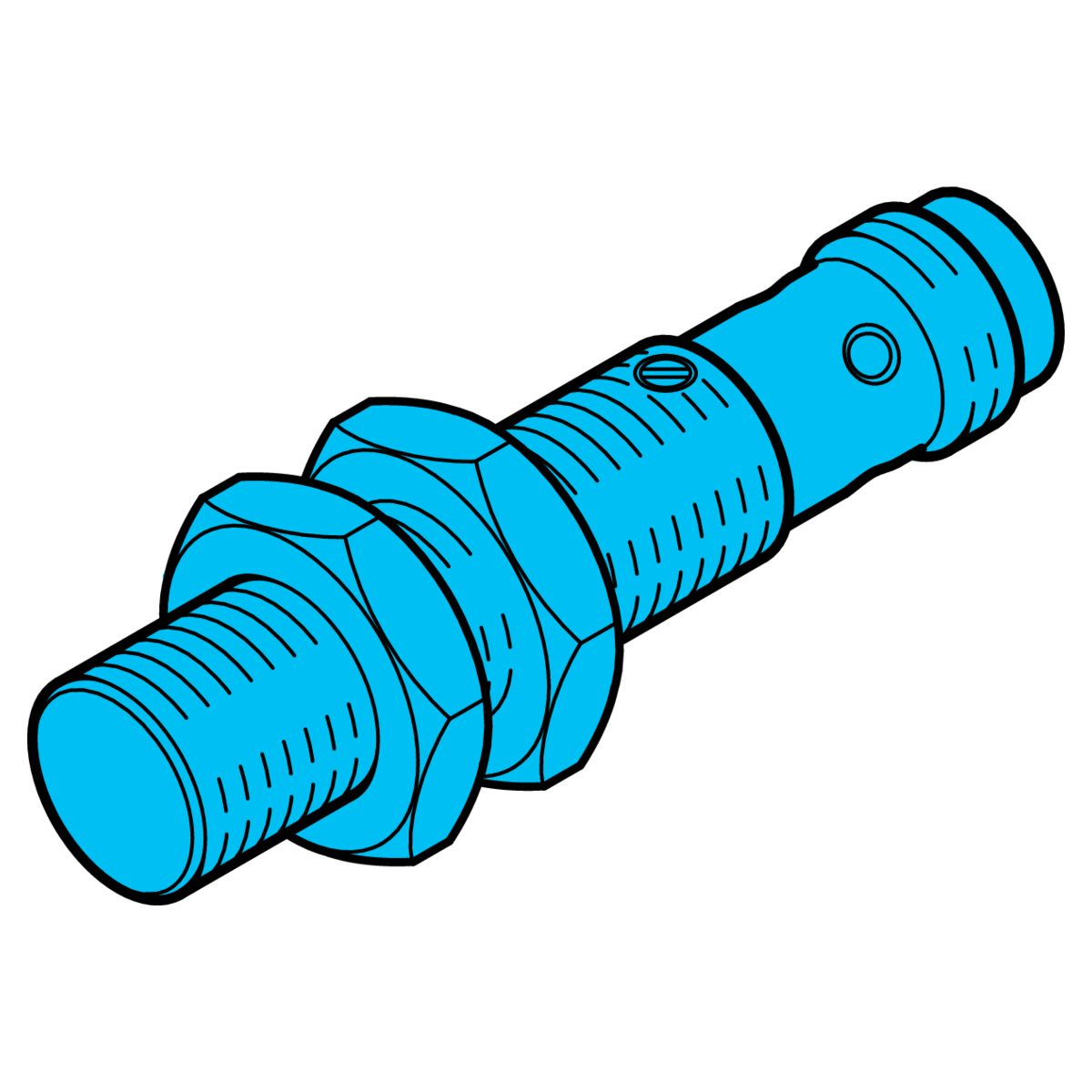

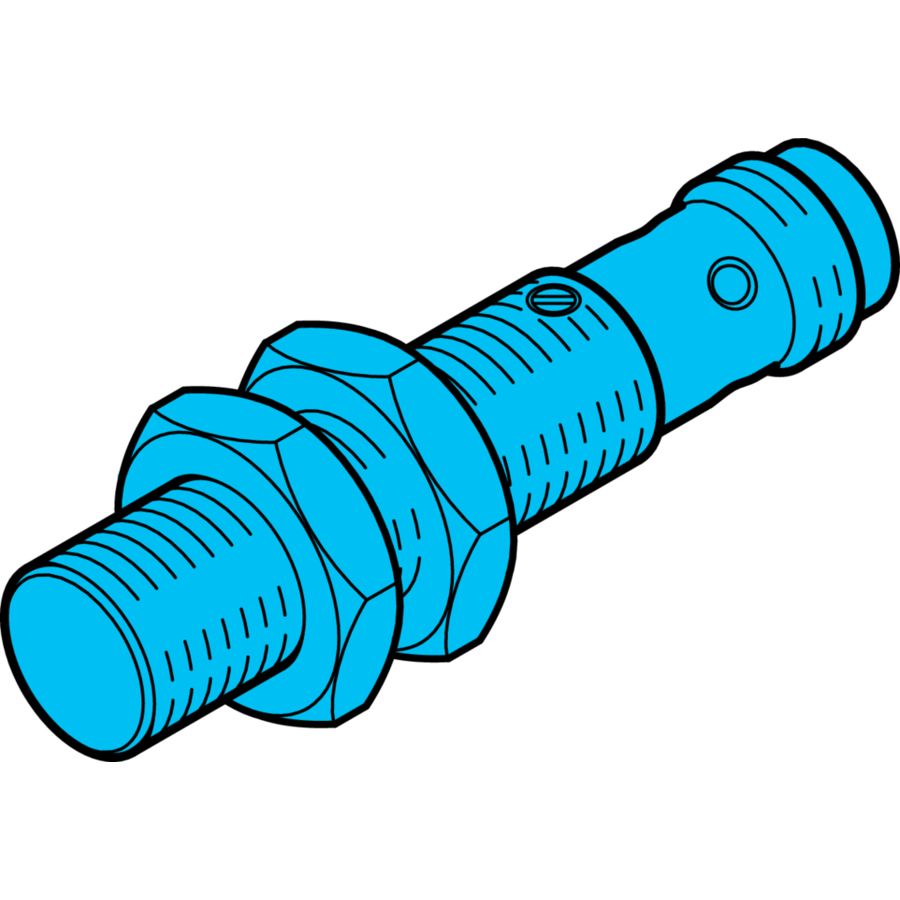

Capacitive Proximity Switch - KNS M12M 04B G3-B3
Part Number: KNS M12M 04B G3-B3
Article Number: 210634
Technical Details
| Ambient Temperature During Operation | -20.0 ... 70.0°C |
|---|---|

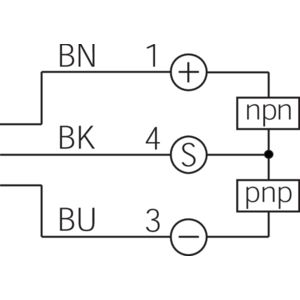

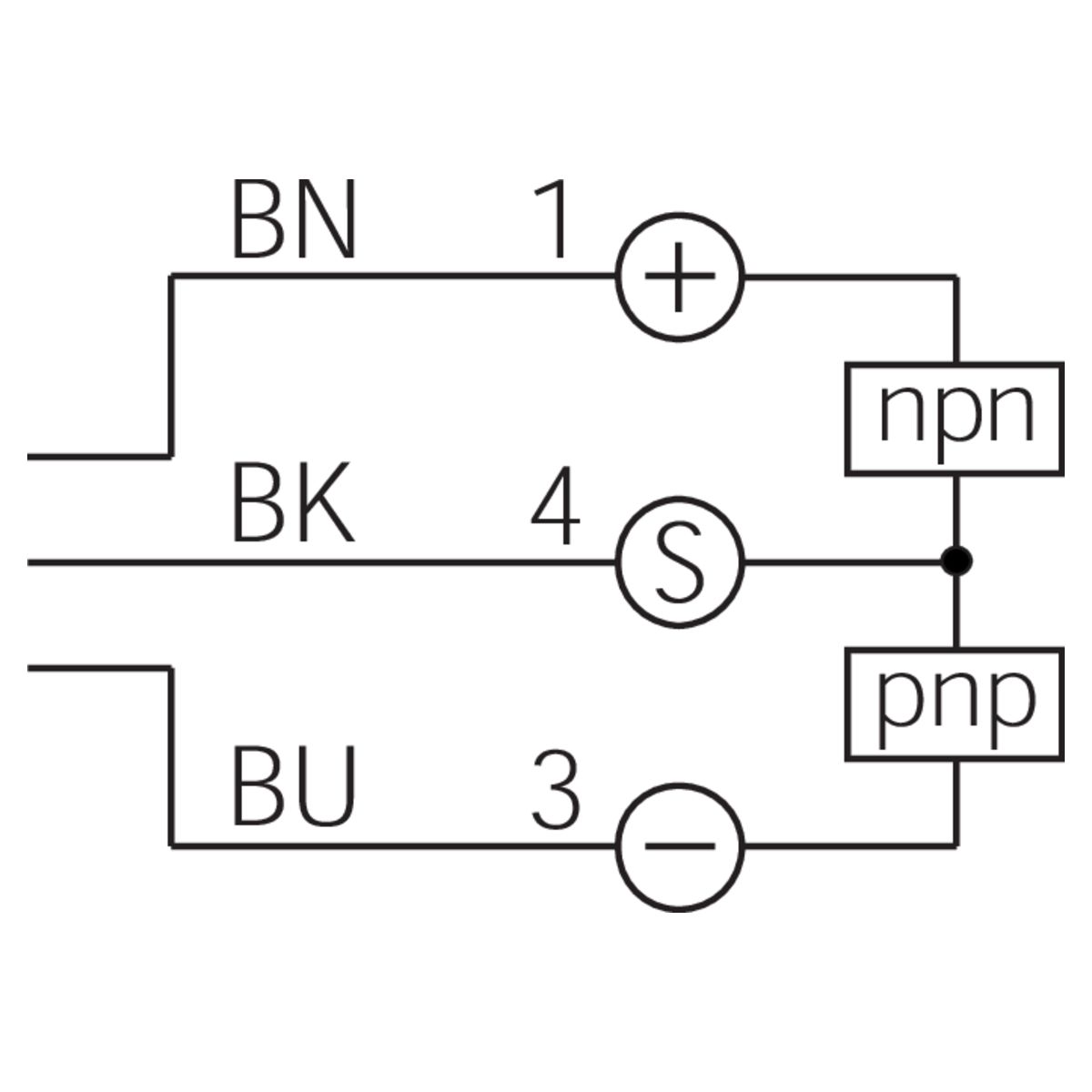

| Connection | Connector M12 3-pin |
| Design | Thread |

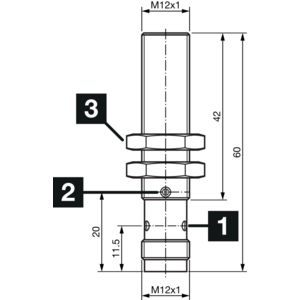

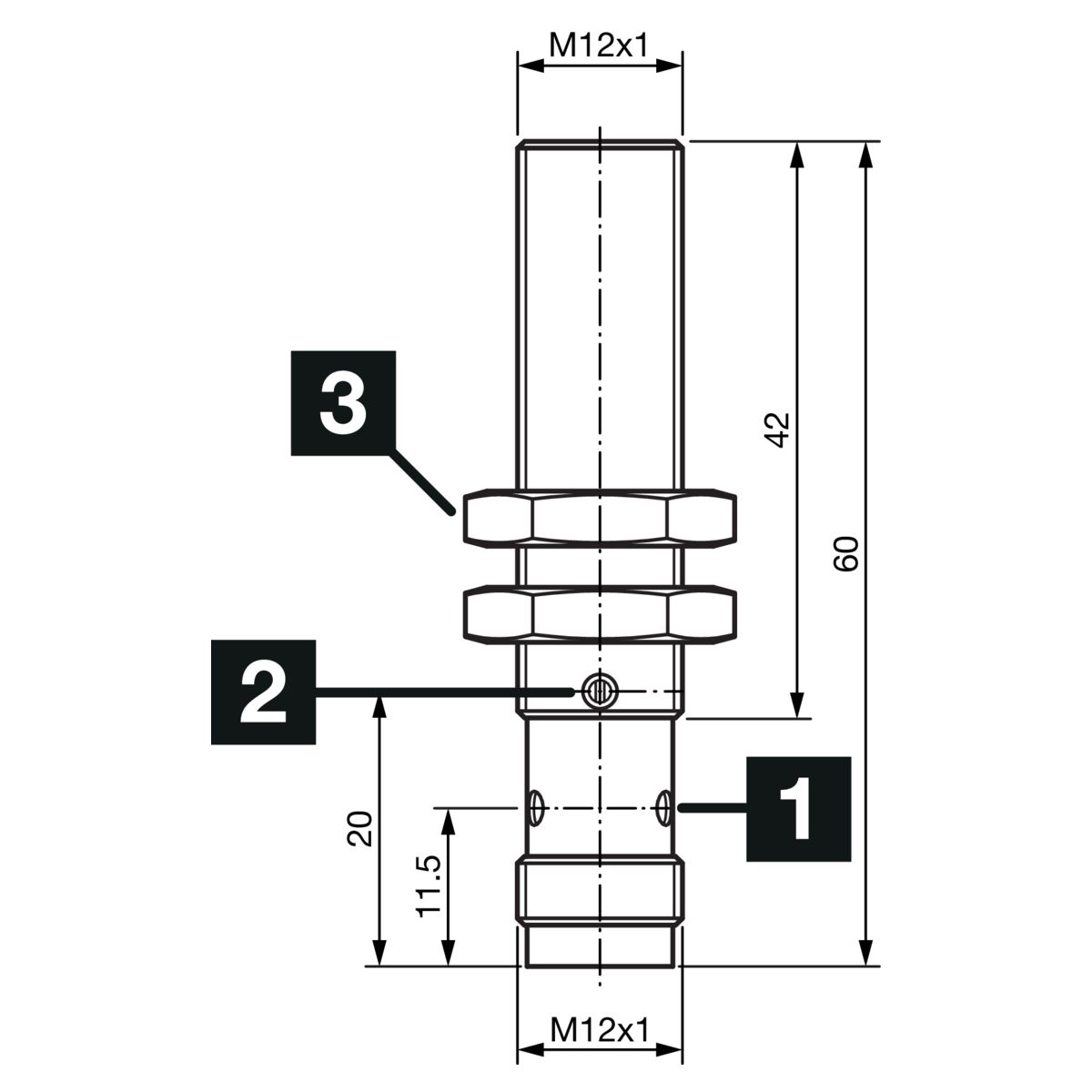

| Housing length | 60.0 mm |
| Housing Material | Stainless steel |
| Illumination Time Pulse | 1.0 |
| Installation Type | Flush |
| Insulation Voltage Endurance | 500.0 V |
| Material | PBT Sensor probe |
| No Load Current (max.) | 15.0 mA 24.0 V DC |
| Operating Principle | Capacitive |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 65;IP 67 |
| Readiness Delay (max.) | 300.0 ms |
| Scope Of Delivery | Setting tool |
| Sensitivity Adjustment | Potentiometer 12-turn |
| Service Voltage | 18.0 ... 30.0V DC |
| Shock Vibration Load | 30 g, 10 ... 55 Hz / 0.5 mm |
| Standardized Measuring Plate | 12 x 12 x 1 mm |
| Switching Distance (SN) | 4.0 mm 0.1 to 8 mm adjustable |
| Switching Frequency | 100 Hz |
| Switching Hysteresis (max.) | 15.0 % |
| Switching Output | Push-pull 100.0 mA NO/NC switchable |
| Thread | M12 x 1 |
| Voltage Drop (max.) | 2.0 V |
| Yellow | Output signal |
