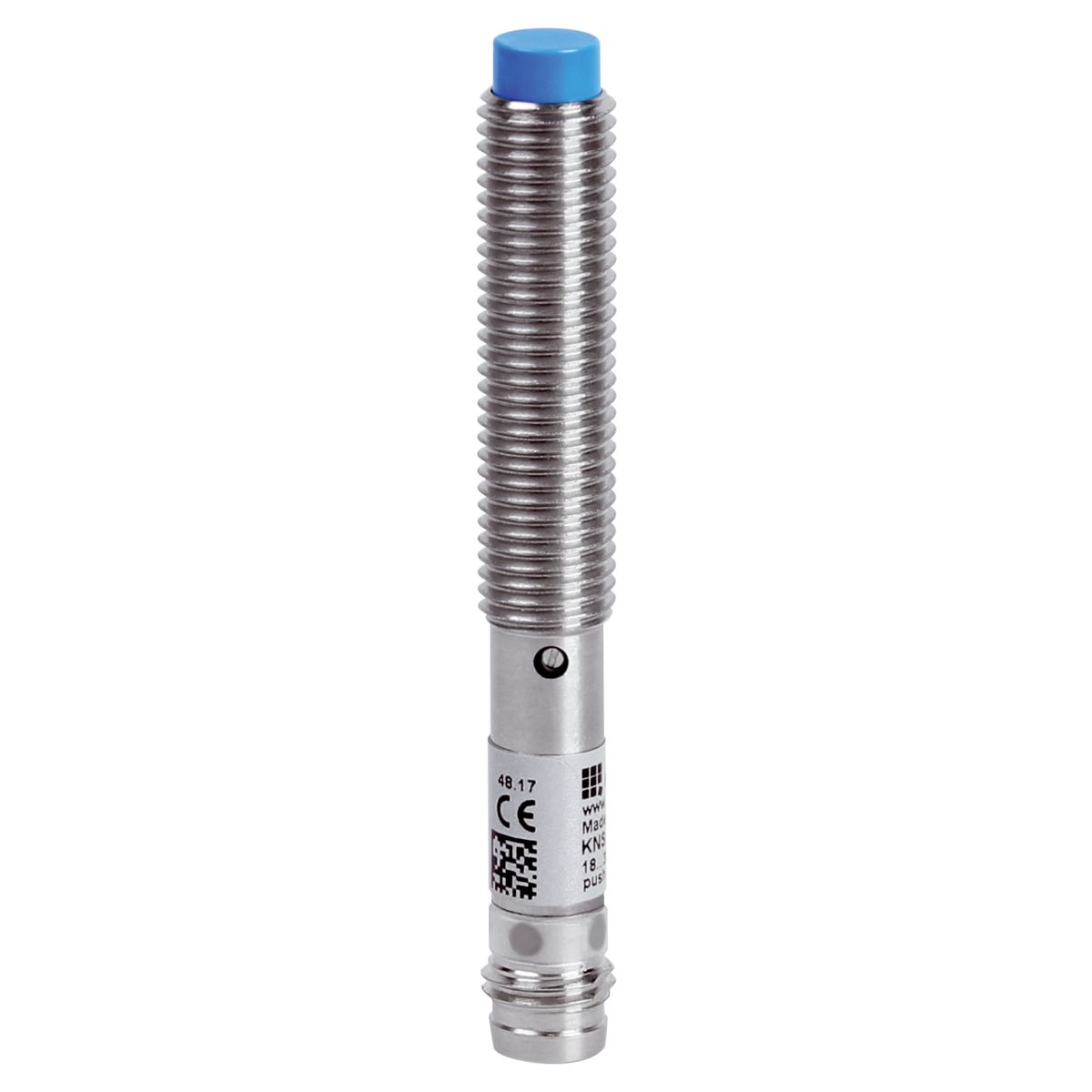

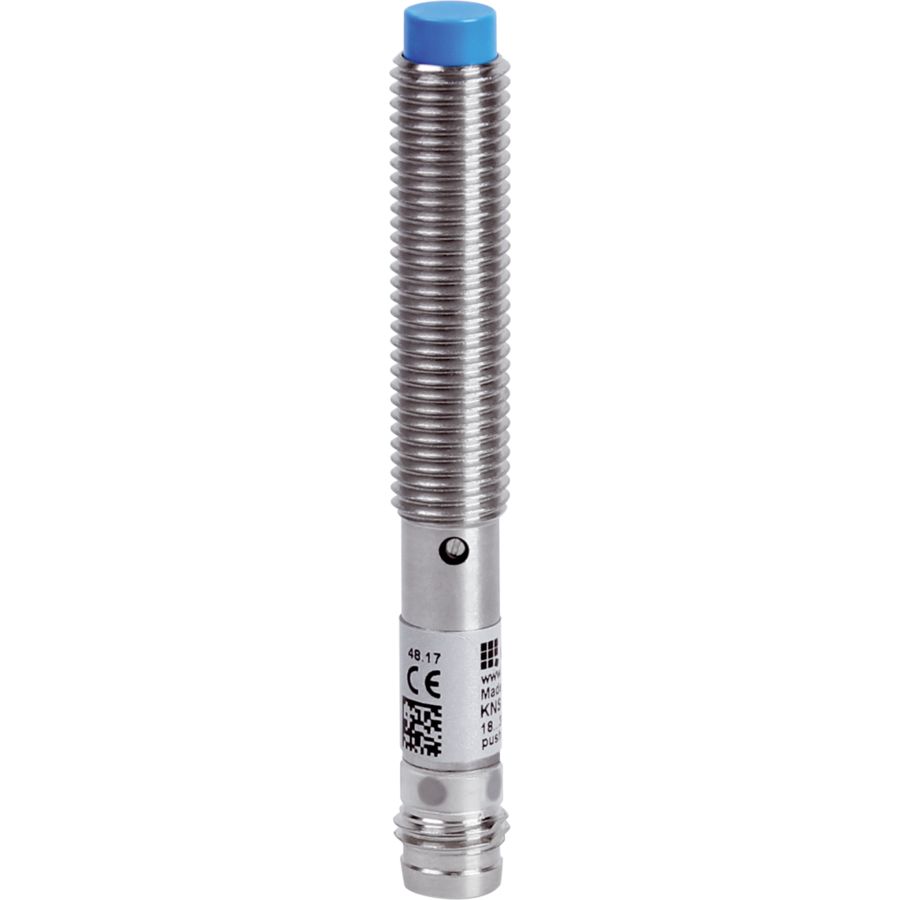

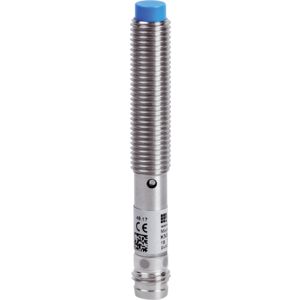

Capacitive Proximity Switch - KNS M8M 03N G3-T3
Part Number: KNS M8M 03N G3-T3
Article Number: 209757
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|
| Connection | Connector M8 3-pin |
| Design | Thread |

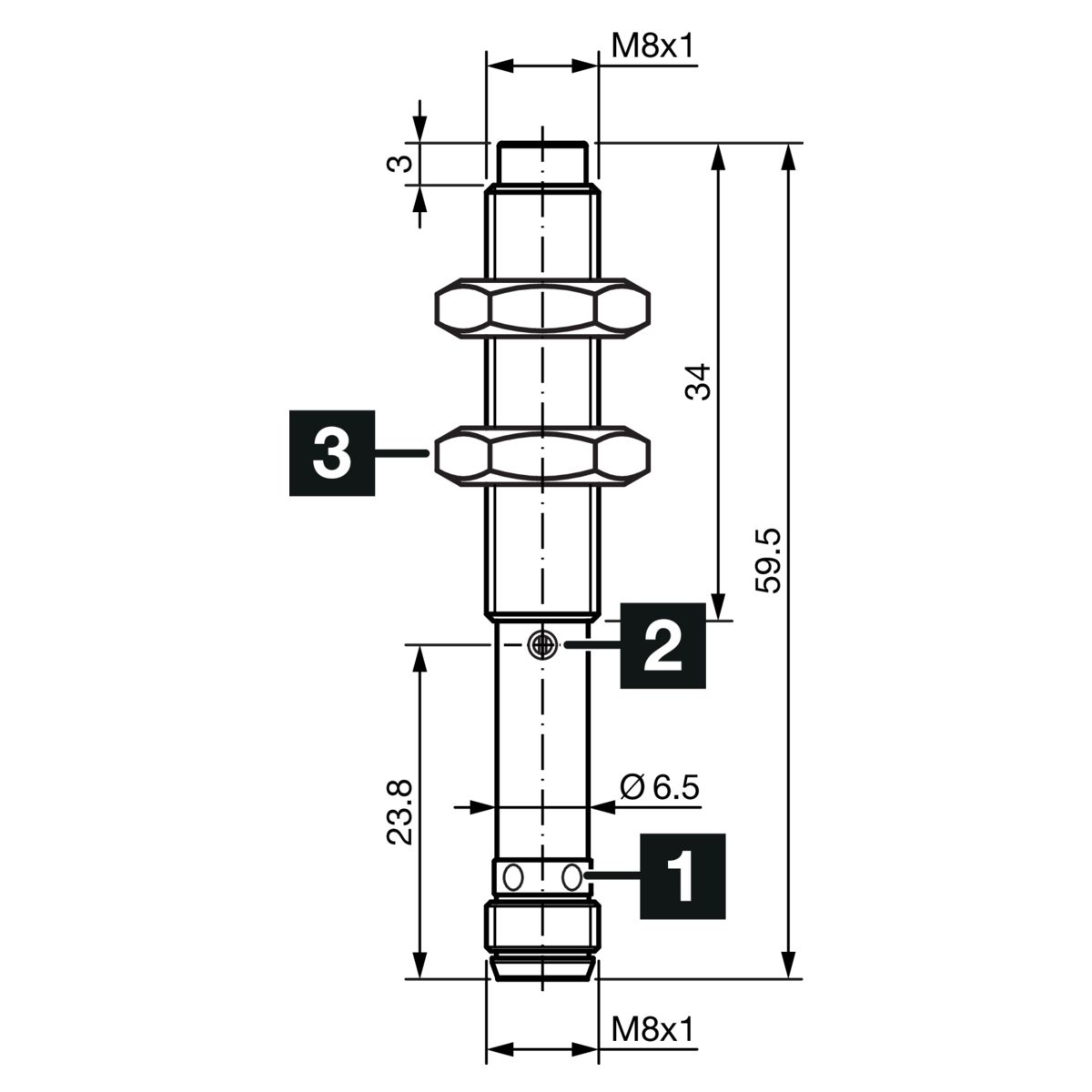

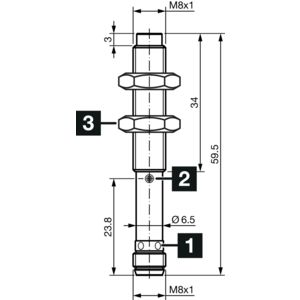

| Housing length | 59.5 mm |
| Housing Material | Stainless steel |
| Illumination Time Pulse | 1.0 |
| Installation Type | non-flush |
| Insulation Voltage Endurance | 500.0 V |
| Material | PPT Sensor probe |
| No Load Current (max.) | 15.0 mA 24.0 V DC |
| Operating Principle | Capacitive |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 65;IP 67 |
| Readiness Delay (max.) | 300.0 ms |
| Scope Of Delivery | Setting tool |
| Sensitivity Adjustment | Potentiometer 11-turn |
| Service Voltage | 18.0 ... 30.0V DC |
| Standardized Measuring Plate | 8 x 8 x 1 mm |
| Switching Distance (SN) | 3.0 mm 0.1 to 4 mm adjustable |
| Switching Frequency | 100 Hz |
| Switching Hysteresis (max.) | 15.0 % |

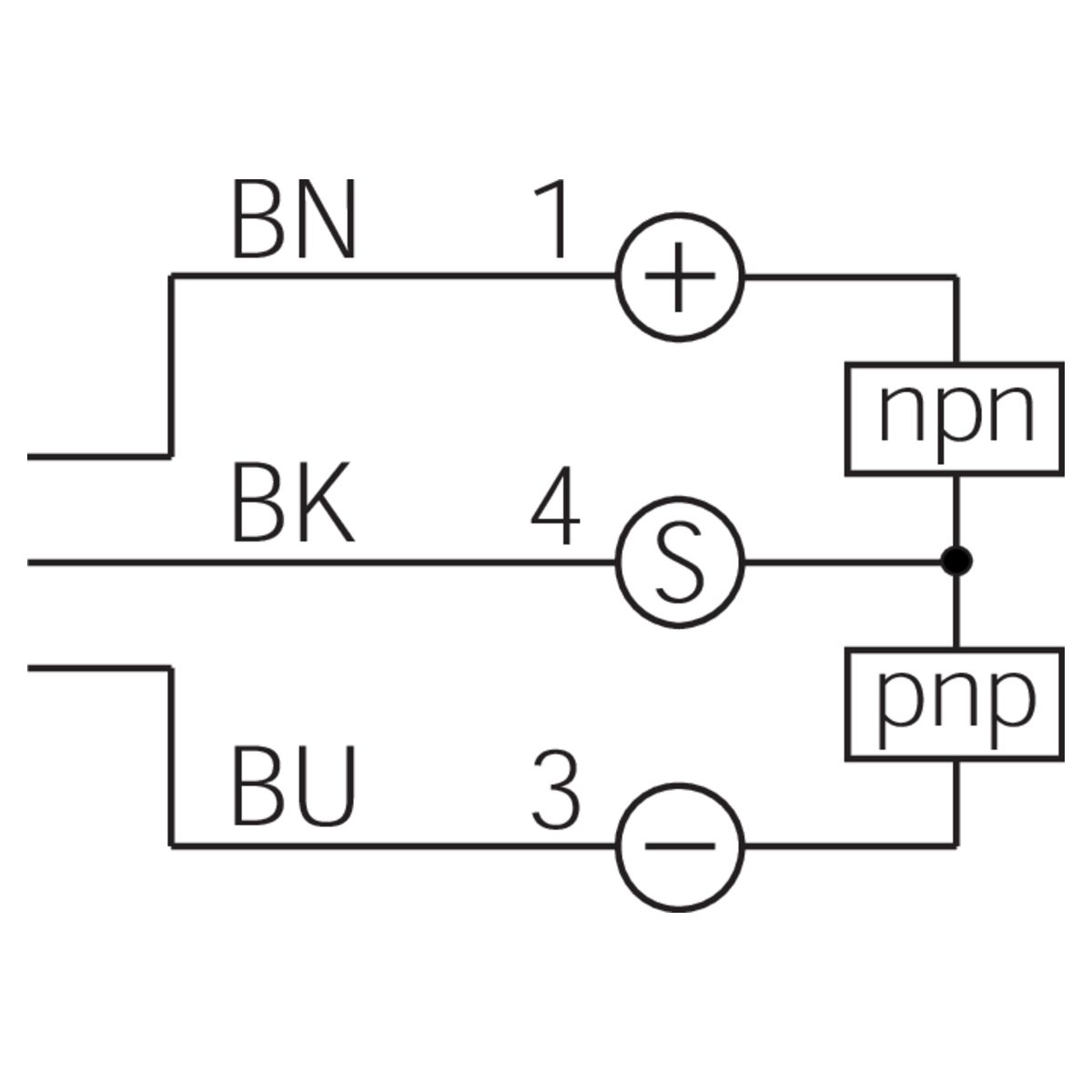

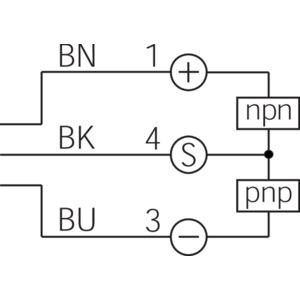

| Switching Output | Push-pull 100.0 mA NO/NC |
| Thread | M8 x 1 |
| Voltage Drop (max.) | 2.4 V |
| Weight | 10.0 g |
| Yellow | Output signal |
