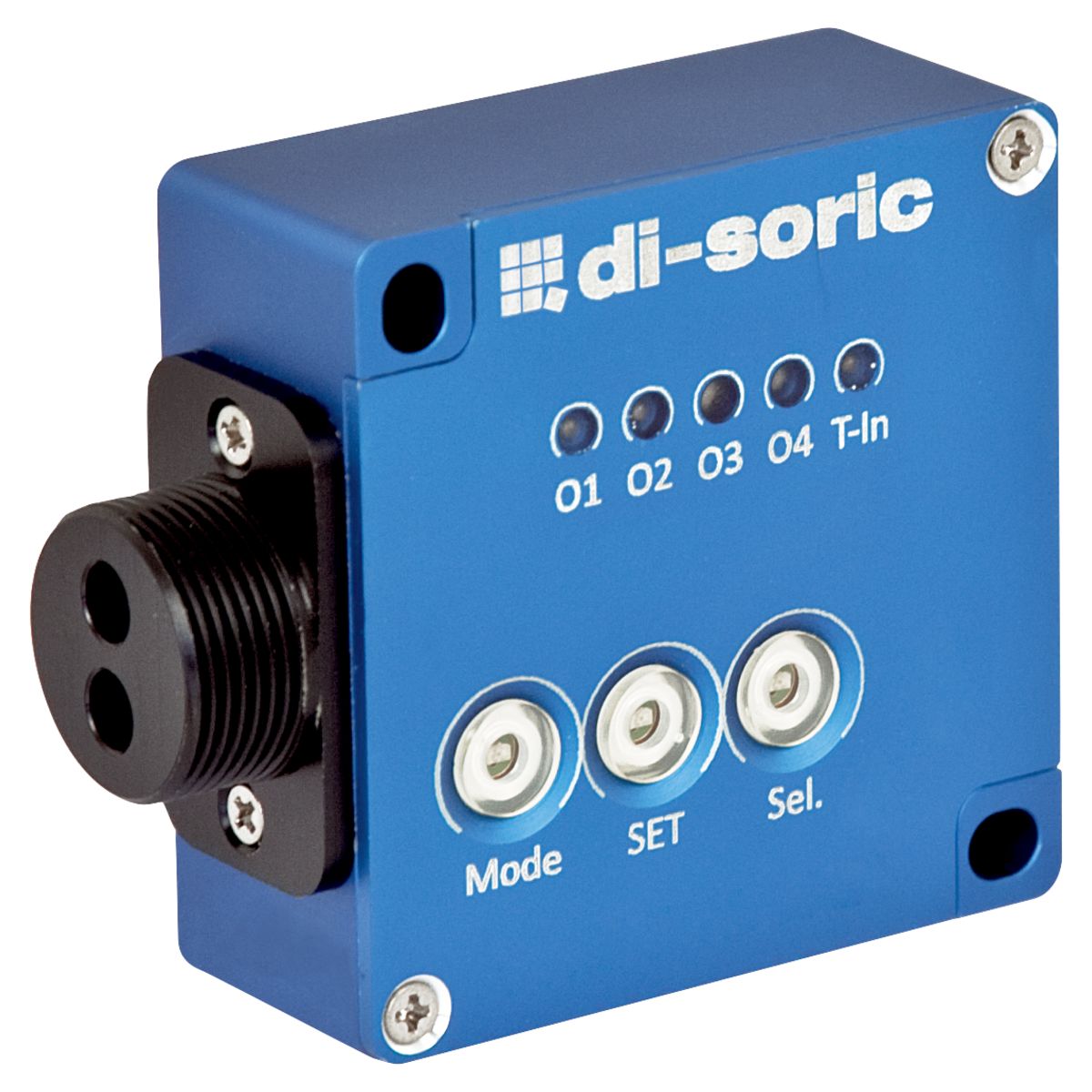

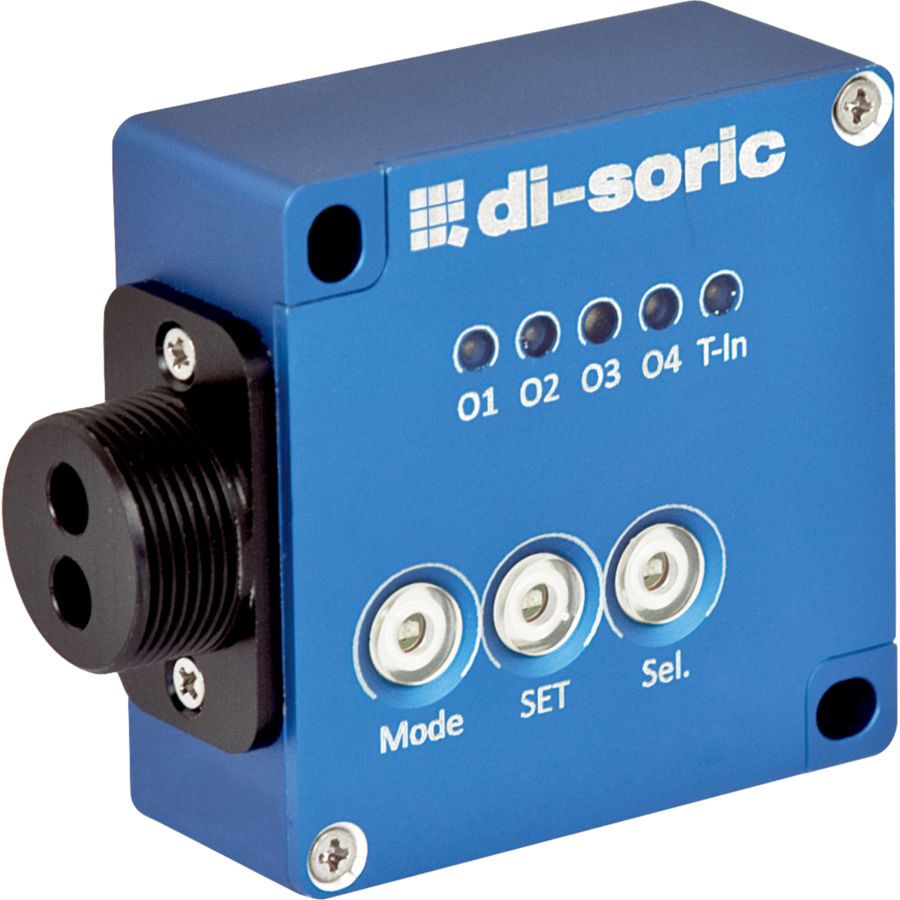

Color Sensor - FSB 50 M G3-B8
Part Number: FSB 50 M G3-B8
Article Number: 207787
Technical Details
| Activation Time Scanning Frequency | 10 ms / 100 Hz or 1 ms / 1,000 Hz;parametrierbar |
|---|---|
| Ambient Light Compensation | dynamic |
| Ambient Temperature During Operation | -10.0 ... 55.0°C |
| Color | White |
| Color Channels Of Sensor | 4 Teachable via keys |
| Color Memory Internal | 4.0 |
| Color Resolution | DE Lab < 1 |
| Color Space Mode | L*a*b* Body colors |

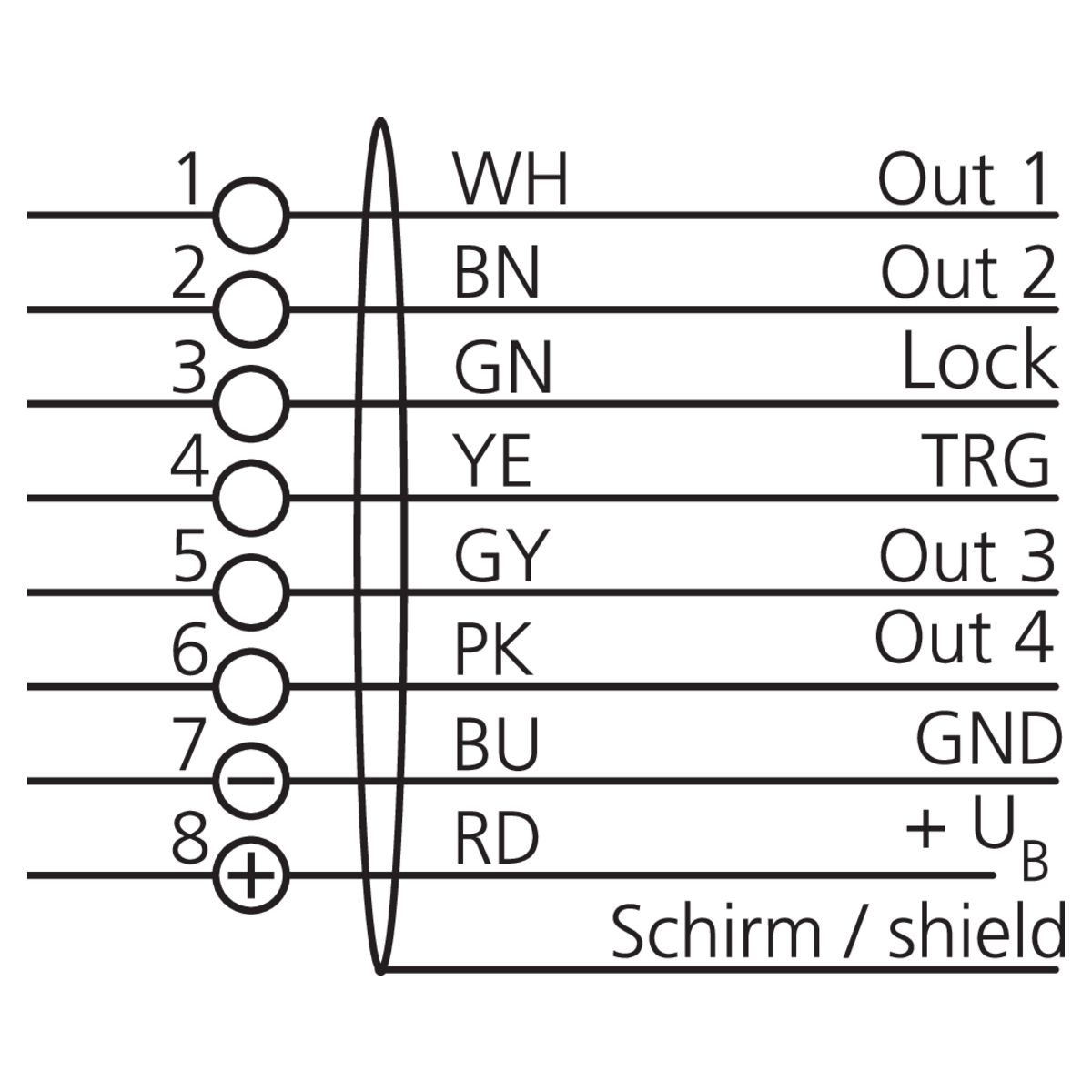

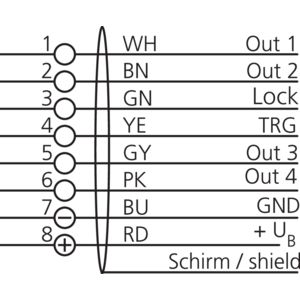

| Connection | Connector M9 8-pin |
| Detection Modes | Minimum spacing;Check sphere Assignment of the measured color to the stored color with the smallest color difference;Check whether the measured color is within a specified tolerance |
| Fiber Optic Cable Connection Fixed Optics | M18 x 1 |

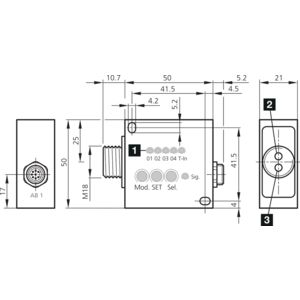

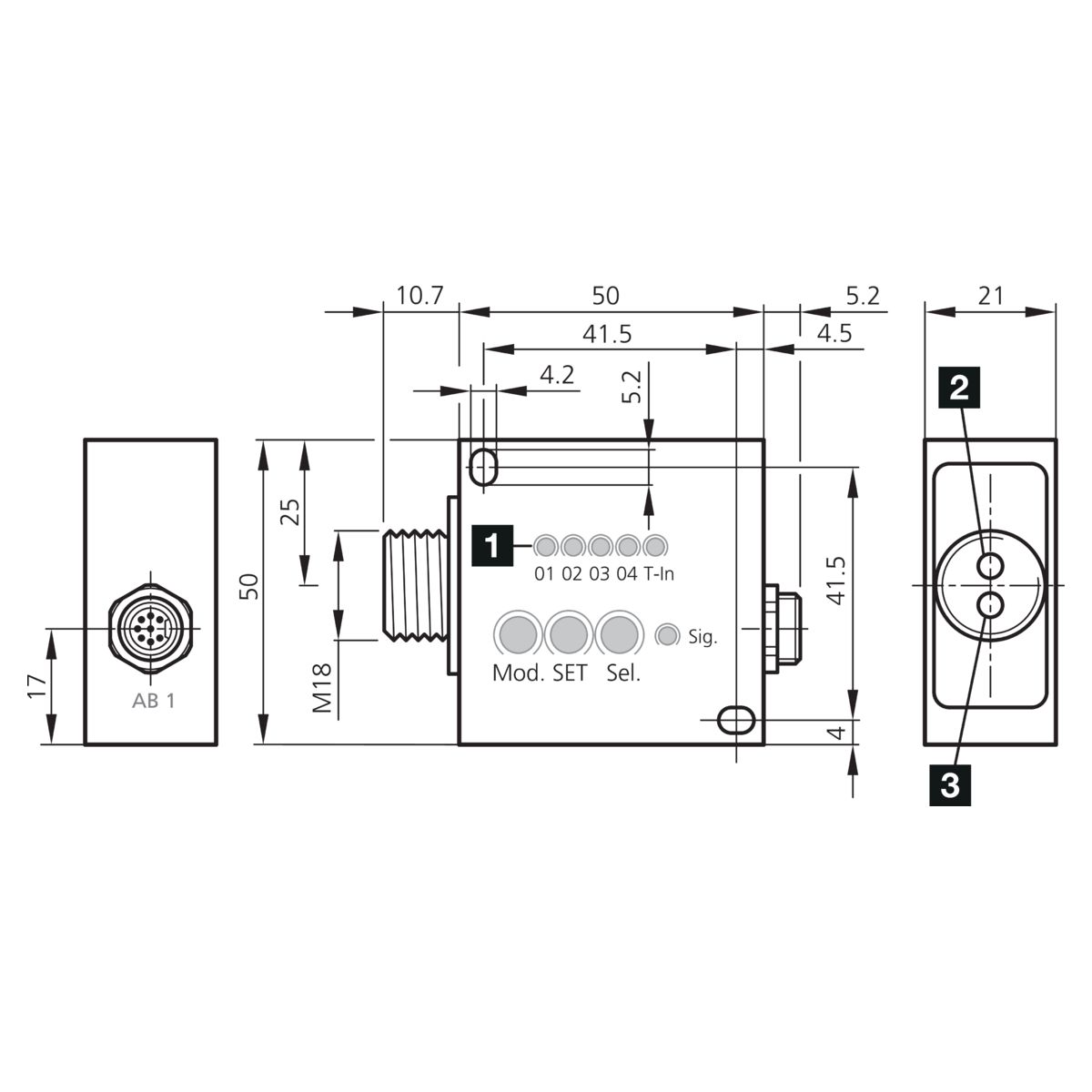

| Housing Dimensions | 50 x 50 x 21 mm |
| Housing length | 21.0 mm |
| Housing Material | Aluminum Anodized |
| Illumination Time Pulse | 1.0 |
| LED | Channel state (4x), programming (5x) |
| Light Source | LED |
| Light Spot Size | Dependent on focus optics |
| No Load Current (max.) | 500.0 mA |
| Number Of Measuring Channels | 1.0 |
| Operating Elements | 3.0 |
| Operating Mode | Continuous;External triggering |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 54 |
| Pulse Stretching | 0.0 ms 50.0 ms selectable |
| Range | (Dependent on fiber-optic cable) |
| Scanning Block | Lock (+24 V DC) |
| Service Voltage | 18.0 ... 28.0V DC |
| Switching Hysteresis (max.) | 10.0 % |
| Switching Output | pnp+npn 4.0 100.0 < mA |
| Tolerance Ranges | 5 selectable by keys |
| Trigger Input | TRG +24 V DC |
| Voltage Drop (max.) | 2.0 V |
