CS60-BP-470-D11.8
Part Number: CS60-BP-470-D11.8
Article Number: 213020
Technical Details
| Angle Of Incidence AOI | 0.0 ° 15.0 ° |
|---|---|
| Color | Blue |
| Component | Bandpass filter |

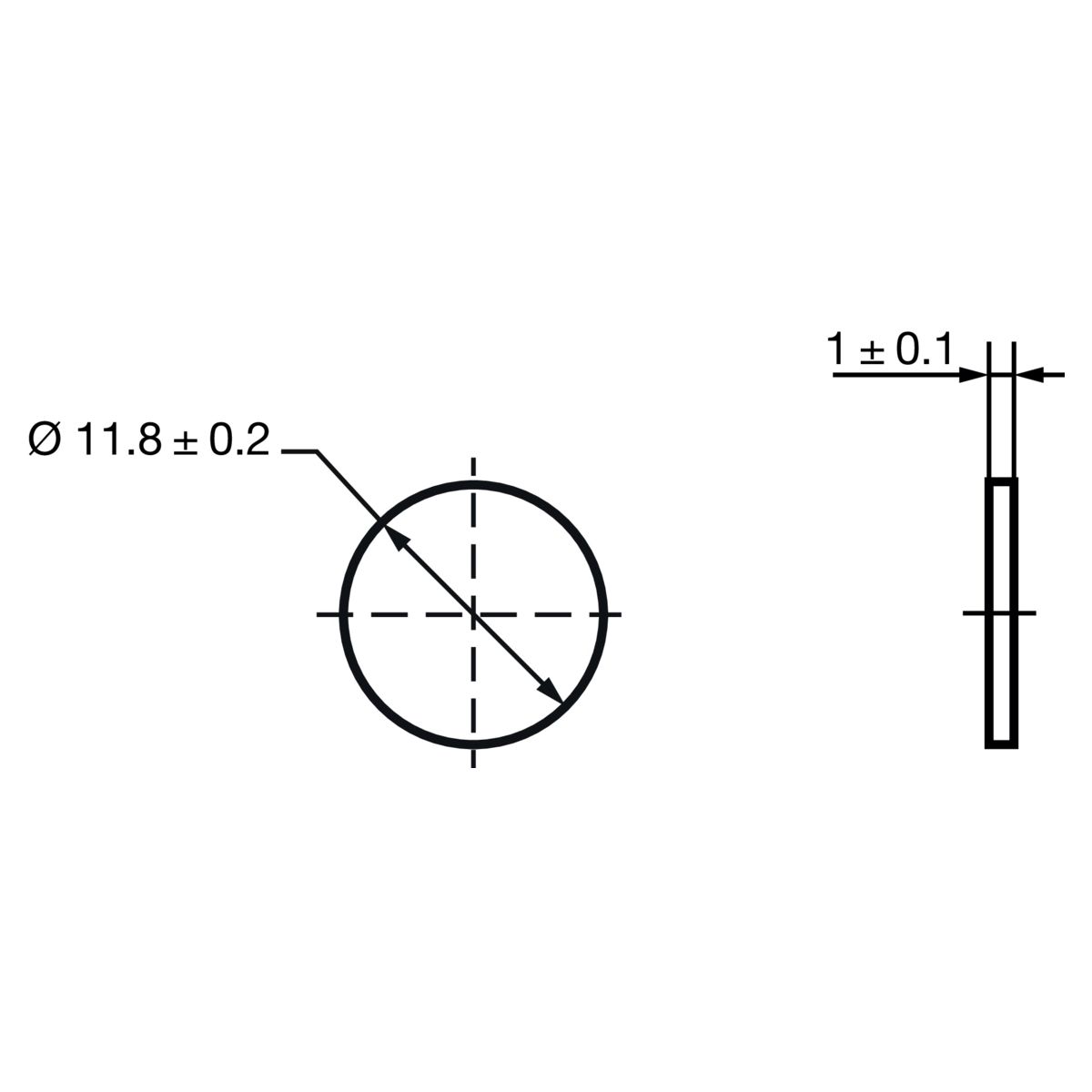

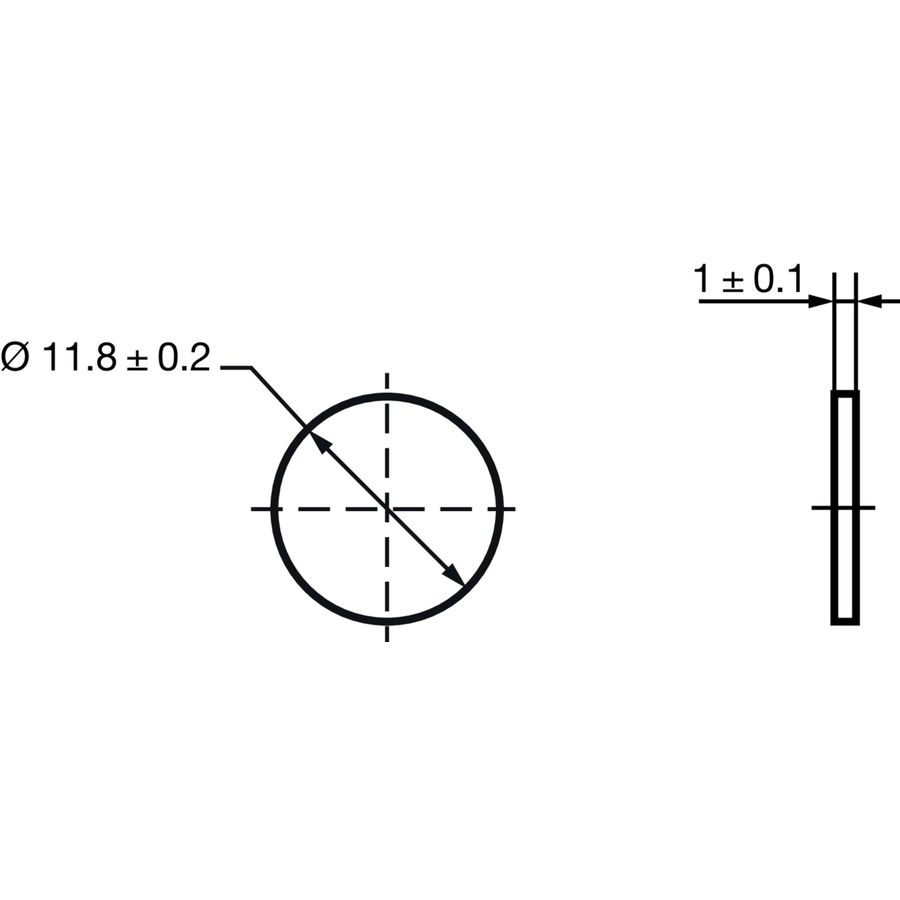

| Diameter | 11.8 mm |
| Housing Material | Borofloat |

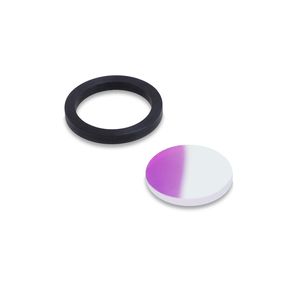

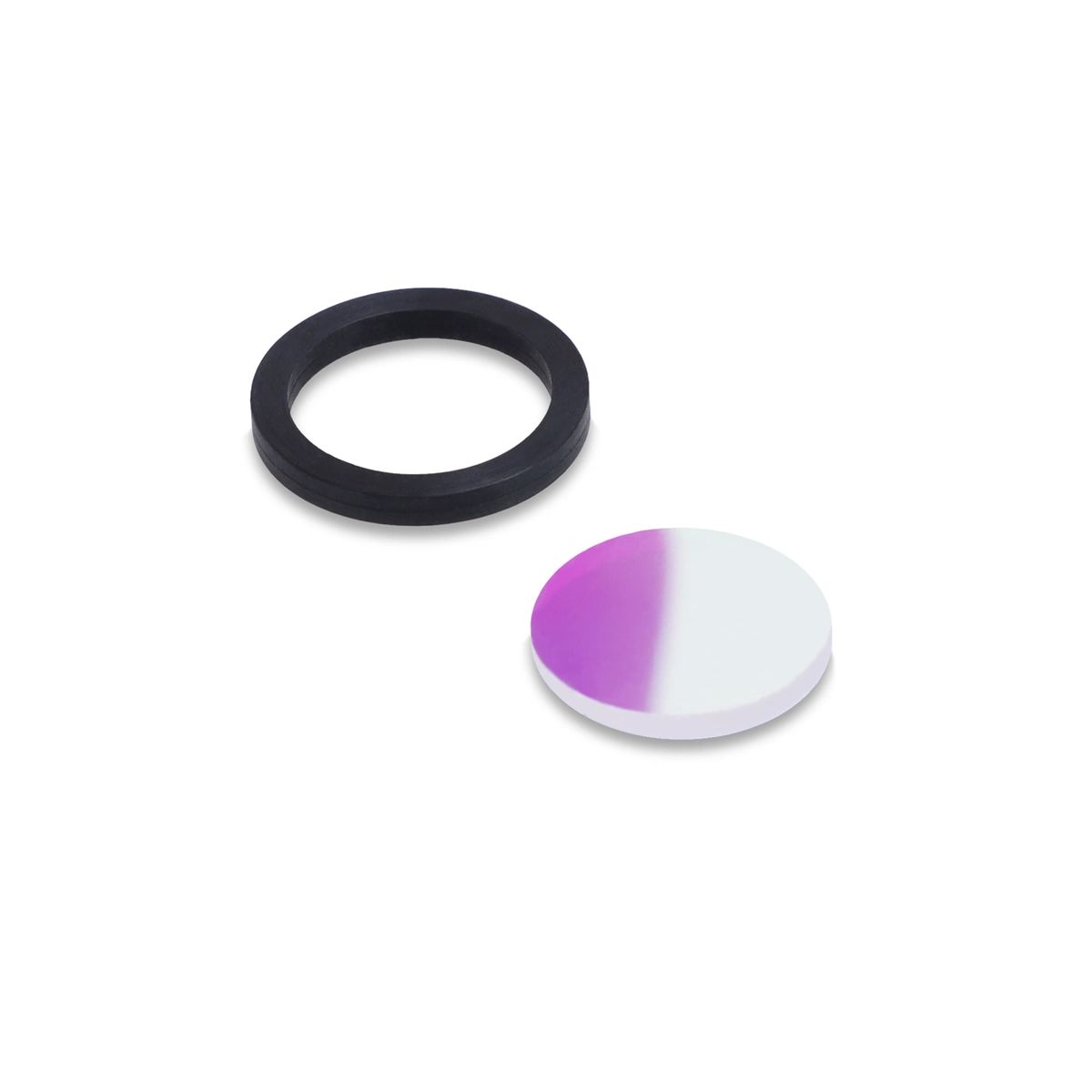

| Scope Of Delivery | Bandpass filter;1 O-ring |
| To Be Used For | CS 60 Vision Sensors |
| Total Height (A) | 1.0 mm |
| Transmission | 435 to 490 nm (> 85%);350 to 400, 550 to 1100 mm (< 3%) |
| Wavelength | 470 nm |
| Weight | 1.0 g |
