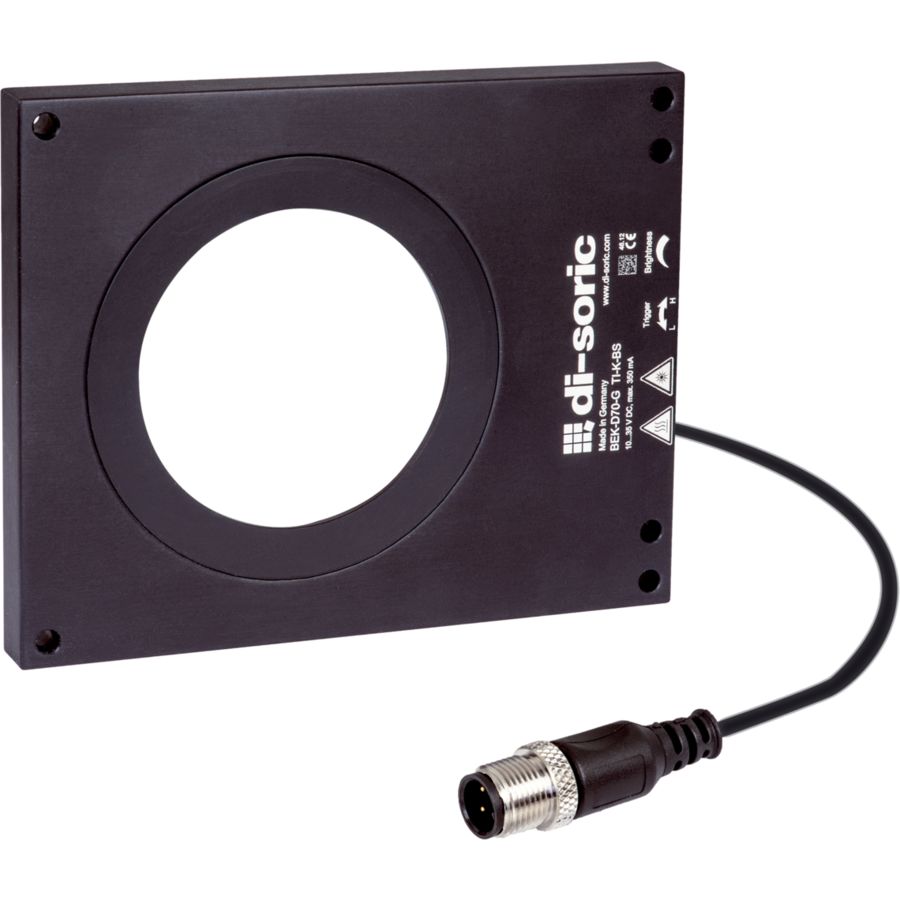

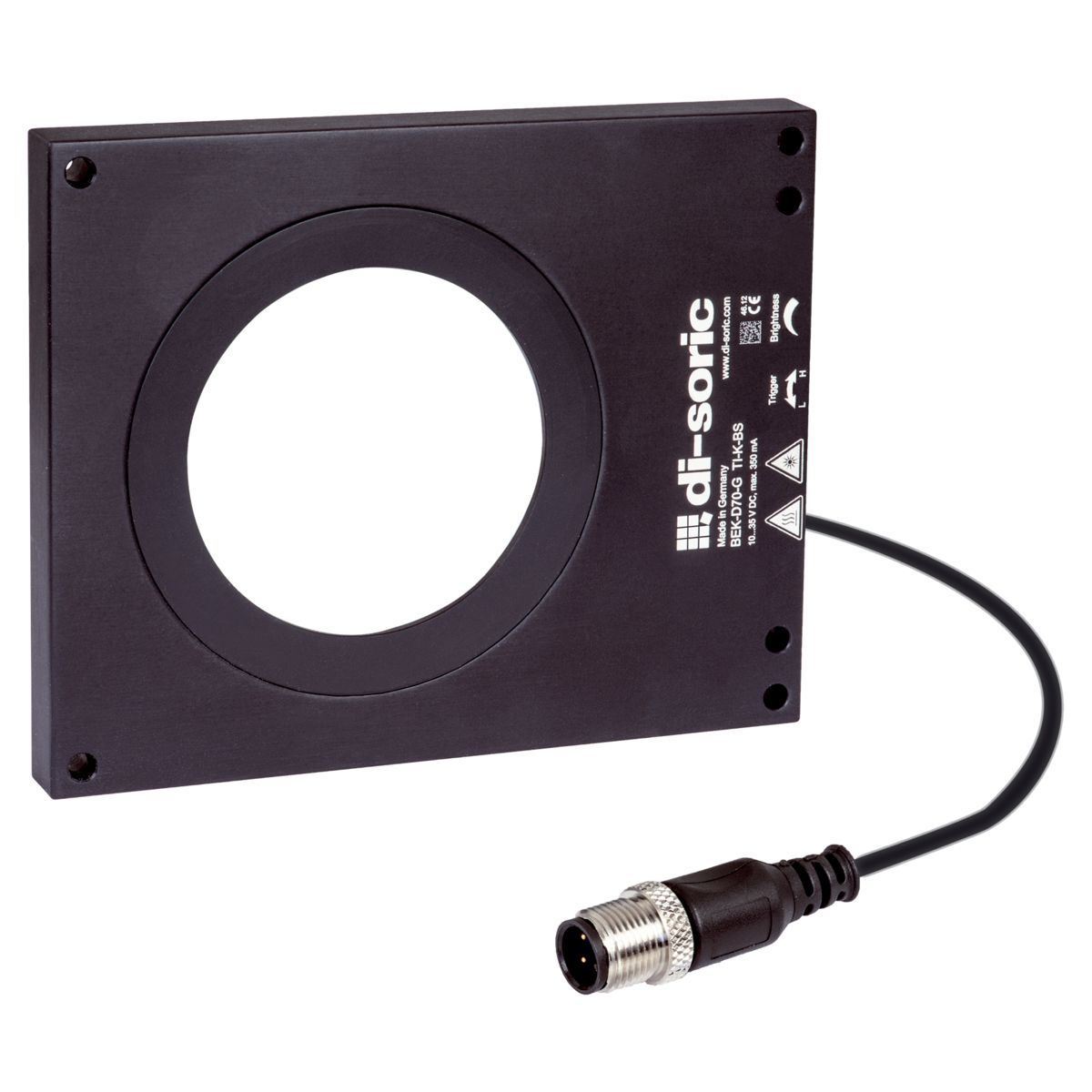

Dark Field Light - BEK-D70-G3TI-K-BS
Part Number: BEK-D70-G3TI-K-BS
Article Number: 207442
Technical Details
| Ambient Temperature During Operation | 0.0 ... 40.0°C |
|---|---|
| Characteristics | Trigger input |
| Color | Blue |

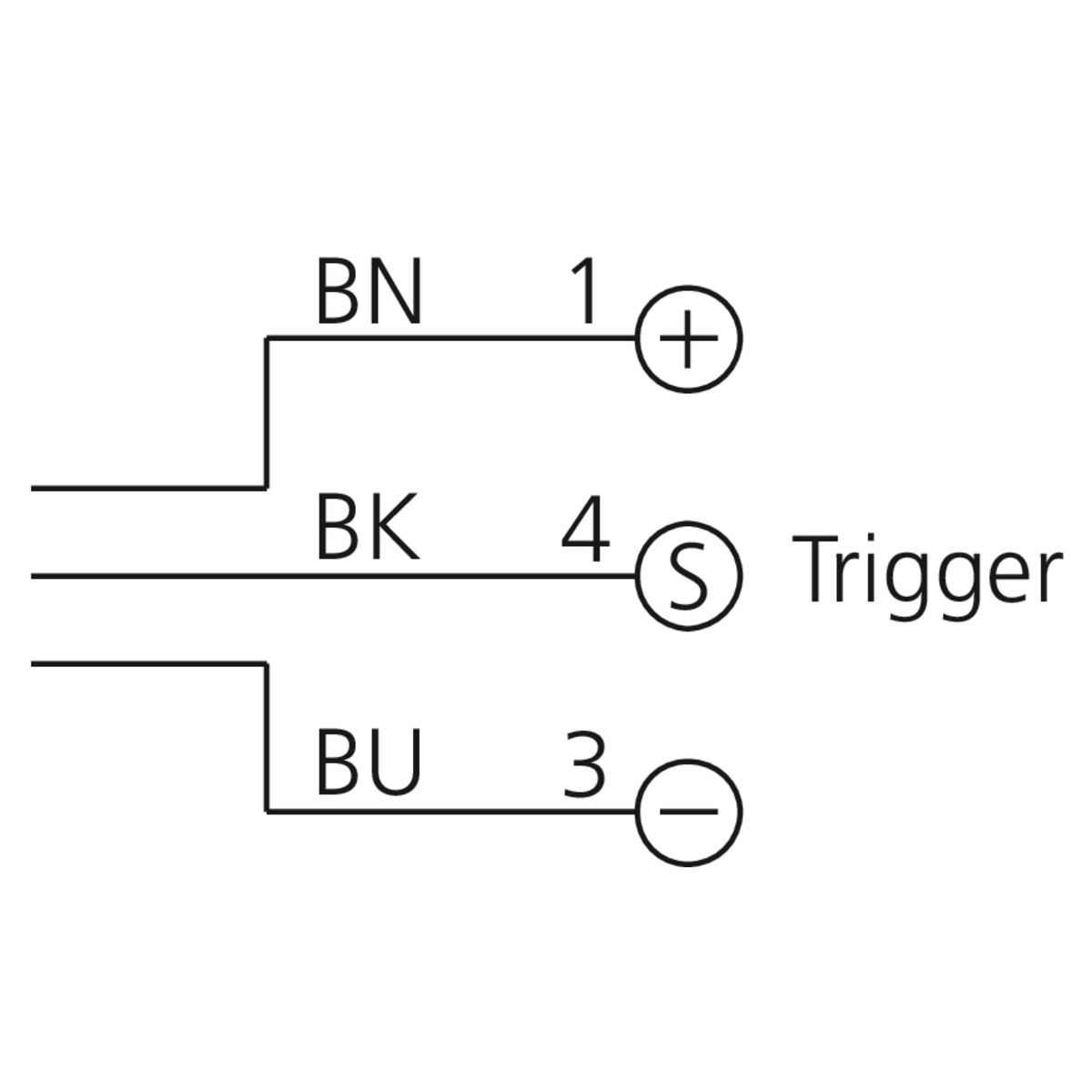

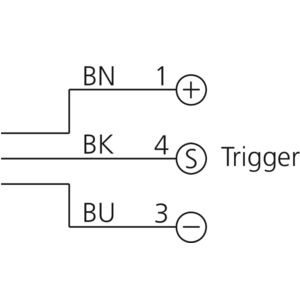

| Connection | Pigtail 0.3 m M12 3-pin |
| Connection Cable | VK ... |
| Control | Integrated power control |
| Deflection Angle FWHM | 30.0 ° |
| Design | Dark field light |
| Diameter | 70 mm |
| Green | Operating display |

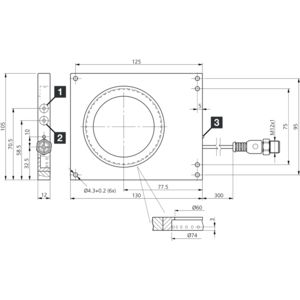

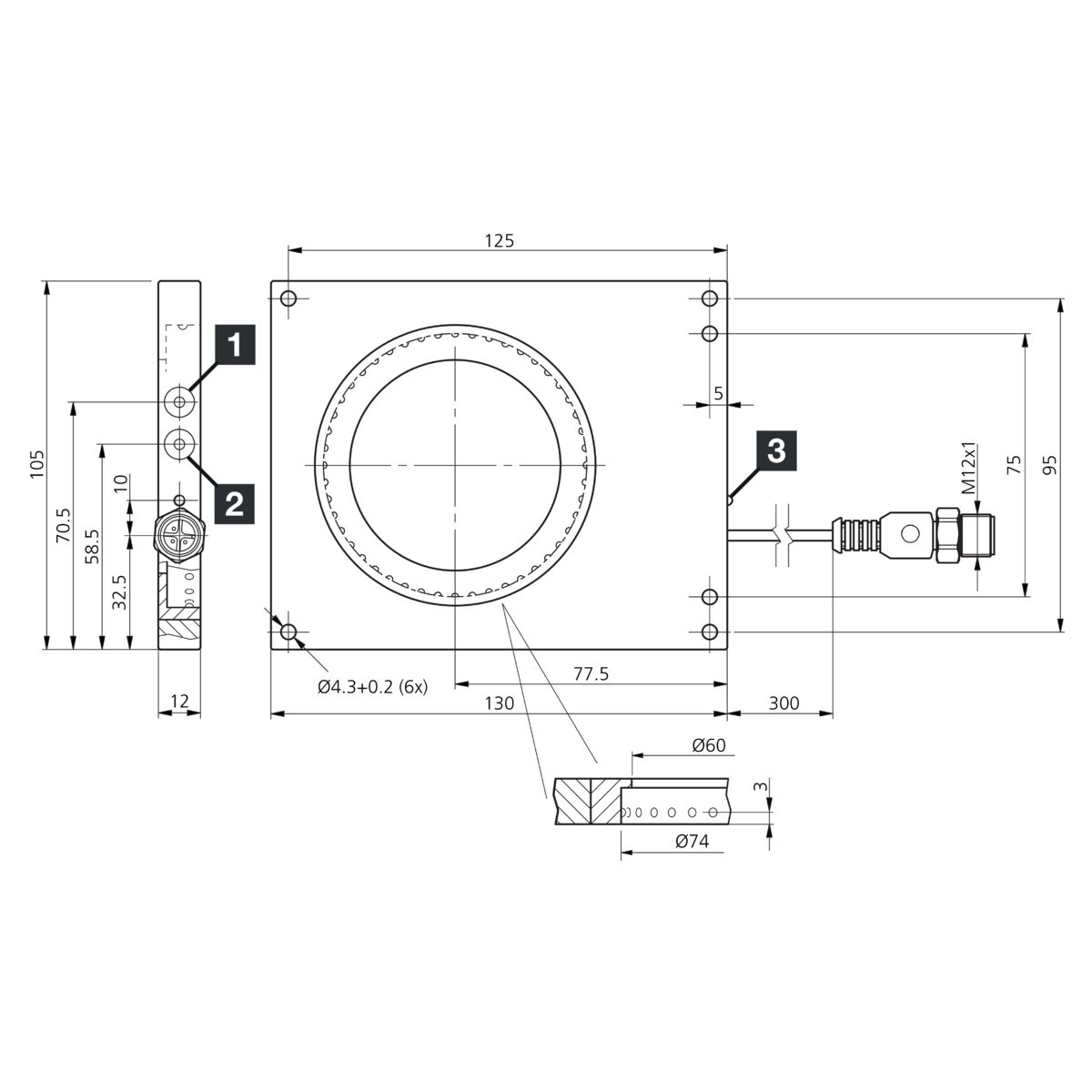

| Housing Dimensions | 105 x 130 x 12 mm |
| Housing Material | Aluminum Black Anodized |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Inverse Polarity Protection | Yes |
| Light Source | LED |
| No Load Current (max.) | 200.0 mA 24.0 V DC |
| On Delay Time (Trig.) | 0.4 ms |
| Power | 5.0 W 24.0 V DC |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Risk Group (DIN EN 62471) | Risk group 1 |
| Service Voltage | 10.0 ... 35.0V DC |
| Shock Vibration Load | 30 g, 11 ms / 10 ... 55 Hz, 1.0 mm |
| Switch Off Delay (Trig.) | 0.12 ms |
| Trigger Input High Level | 3.3 V 35.0 V |
| Trigger Input Low Level | 2.8 < V |
| Wavelength | 465 nm |
