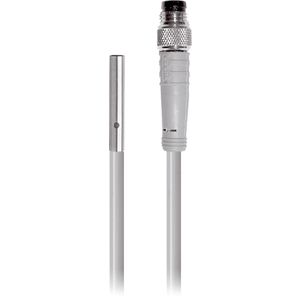

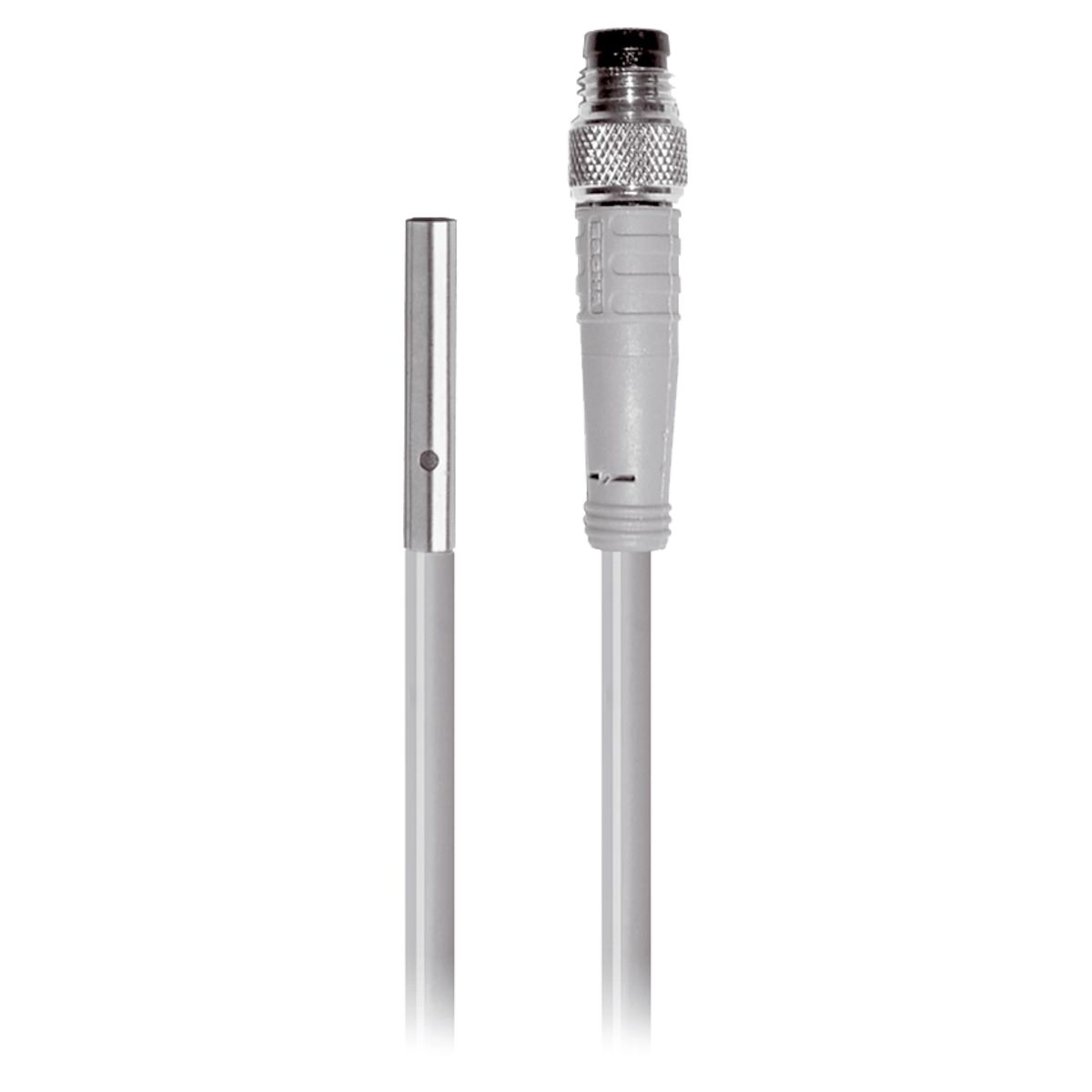

DCC 4.0 V 0.8 PSK-KR-TSL
Part Number: DCC 4.0 V 0.8 PSK-KR-TSL
Article Number: 207811
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|

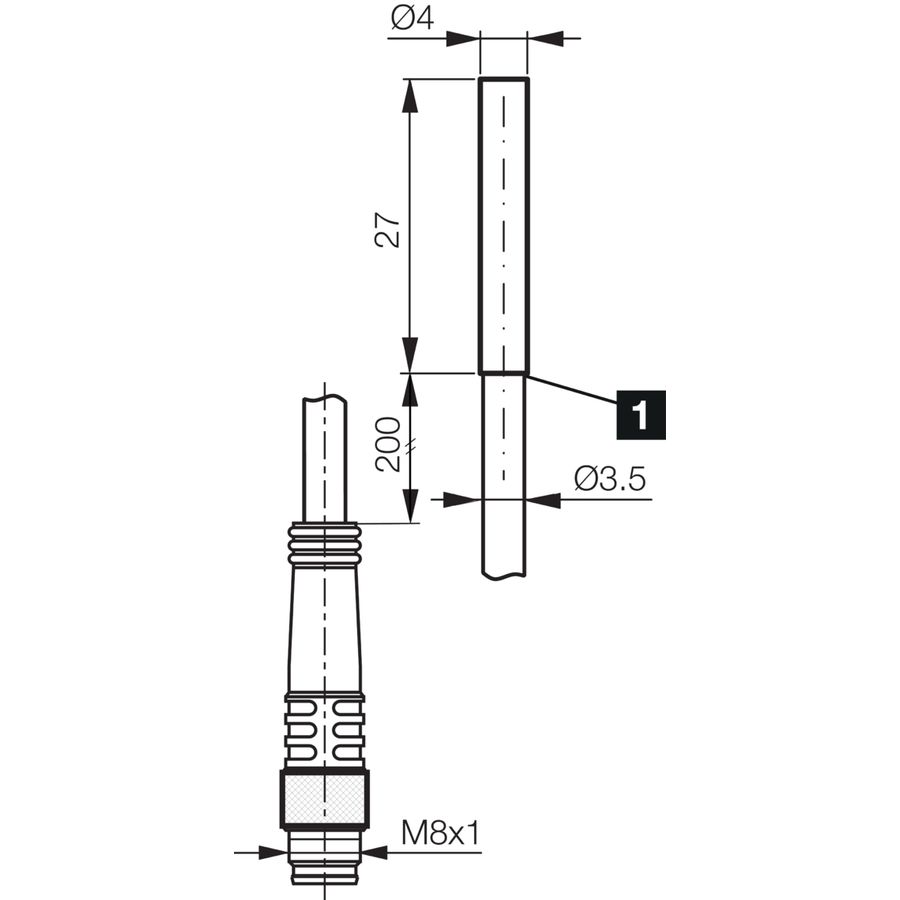

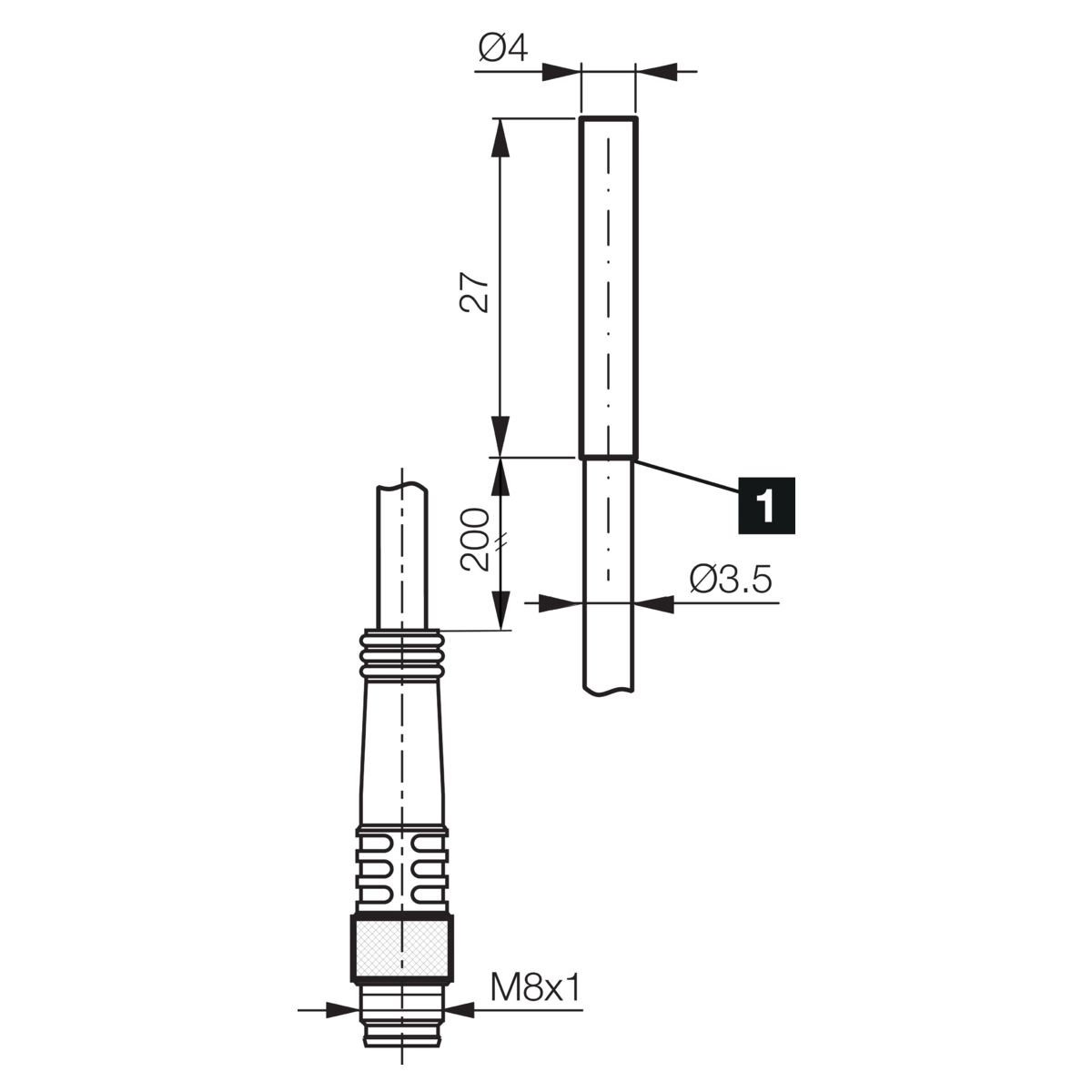

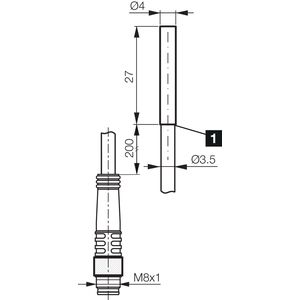

| Connection | Pigtail 0.2 m M8 3-pin |
| Connection Cable | TK ... |
| Design | Cylinder |
| Diameter | 4 mm |
| Evaluation | digital |
| Housing length | 27.0 mm |
| Housing Material | Stainless steel |
| Illumination Time Pulse | 1.0 |
| Installation Type | Flush |
| Insulation Voltage Endurance | 500.0 V |
| Internal Power Consumption | 10 < mA |
| Material Of Cable | PVC |
| Operating Principle | inductive |
| Product Series | INM-100 Miniature |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Service Voltage | 10.0 ... 30.0V DC |
| Standardized Measuring Plate | 4 x 4 x 1 mm |
| Switching Distance (SN) | 0.8 mm |
| Switching Frequency | 2000 Hz |
| Switching Hysteresis (max.) | 15.0 < % |
| Switching Output | pnp 100.0 mA NO |
| Voltage Drop (max.) | 2.4 V |
