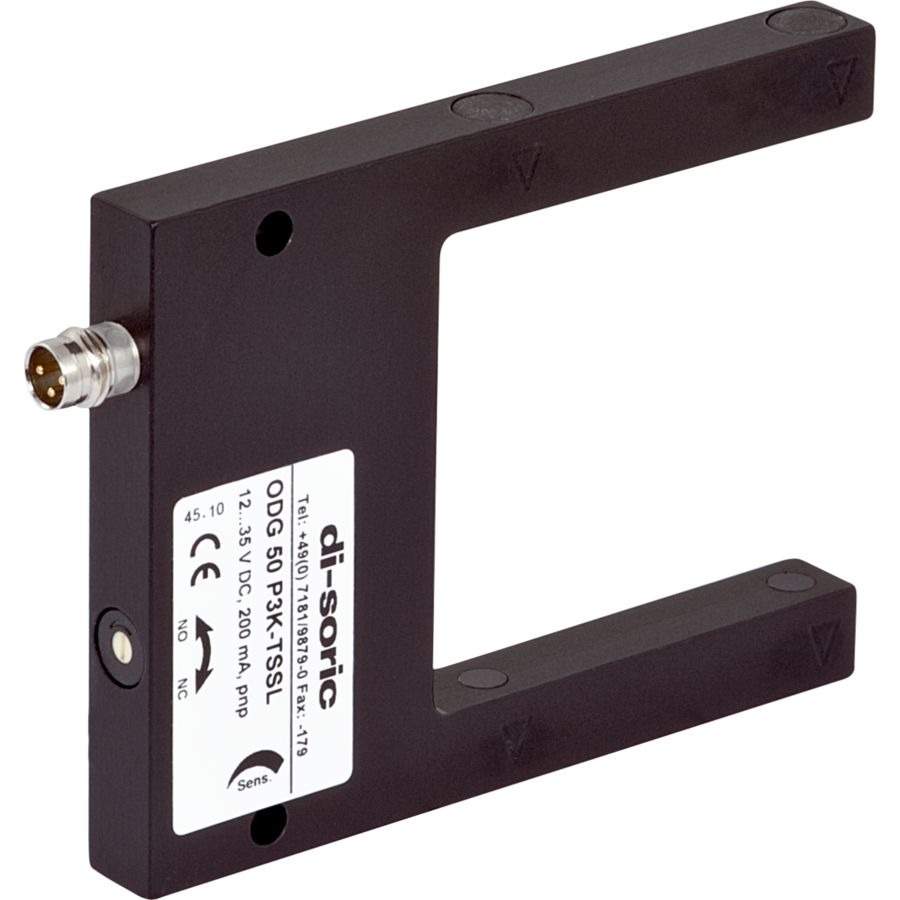

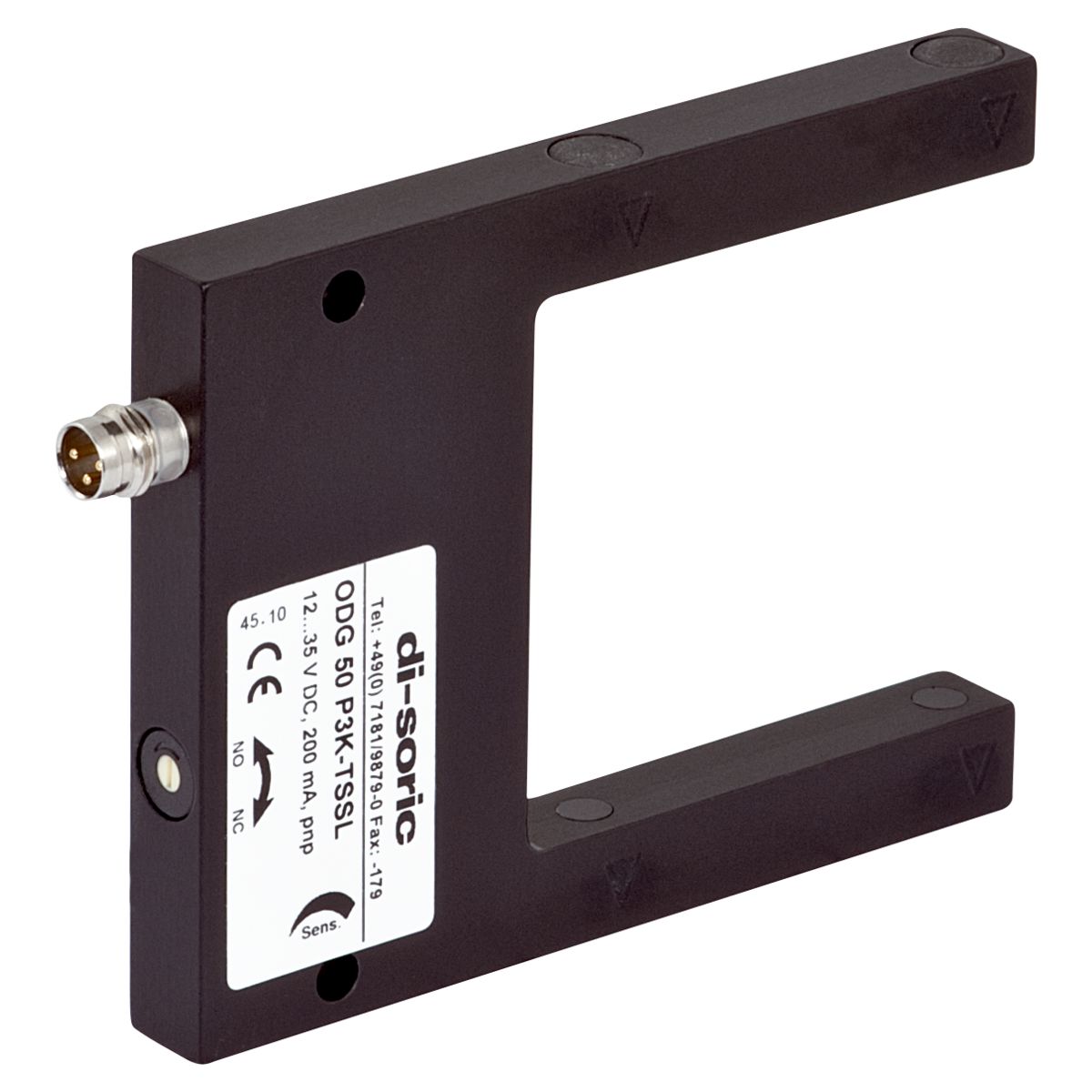

Differential Fork Light Barrier - ODG 50 P3K-TSSL
Part Number: ODG 50 P3K-TSSL
Article Number: 201169
Technical Details
| Ambient Light Immunity | 5 kLx |
|---|---|
| Ambient Temperature During Operation | 0.0 ... 60.0°C |
| Color | Infrared |
| Connection | Connector M8 3-pin |
| Connection Cable | TK ... |
| Design | Fork |
| Evaluation | digital;differential |
| Fork Opening | 50.0 mm |

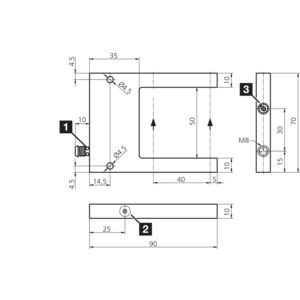

| Housing Dimensions | 70 x 90 x 10 mm |
| Housing length | 90.0 mm |
| Housing Material | Aluminum Black Anodized |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Leg Length Internal | 55 mm |
| Light Source | LED |
| Modulation | non-clocked |
| No Load Current (max.) | 35.0 mA |
| Operating Principle | Optical |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Reproducibility | 0.01 mm |
| Resolution | 0.1 mm |
| Sensitivity Adjustment | Potentiometer |
| Service Voltage | 12 ... 35.0V DC |
| Switching Frequency | 5000.0 Hz |
| Switching Hysteresis (max.) | 0.2 mm |
| Switching Output | pnp 200.0 mA NO/NC switchable |
| Voltage Drop (max.) | 2.5 V |
