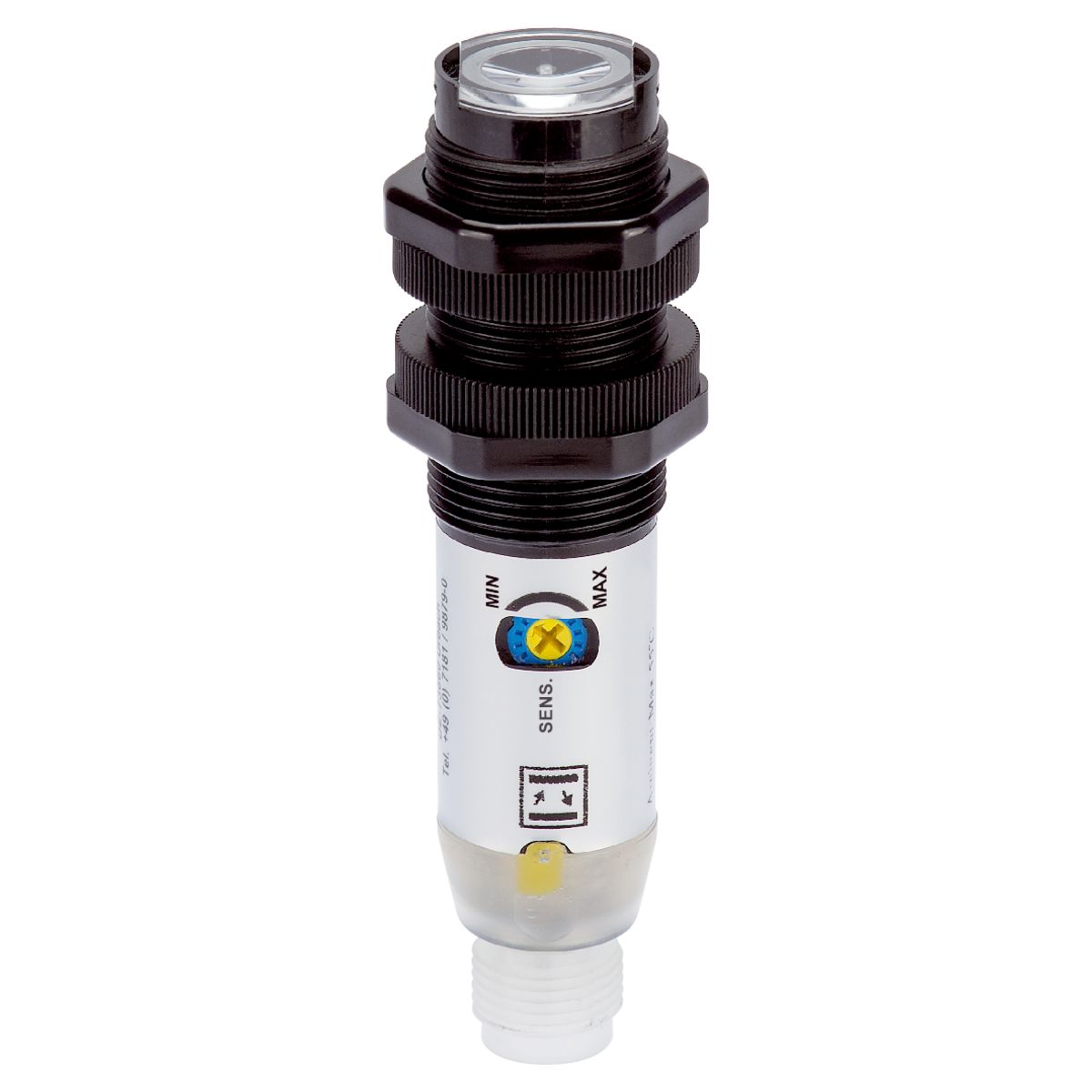

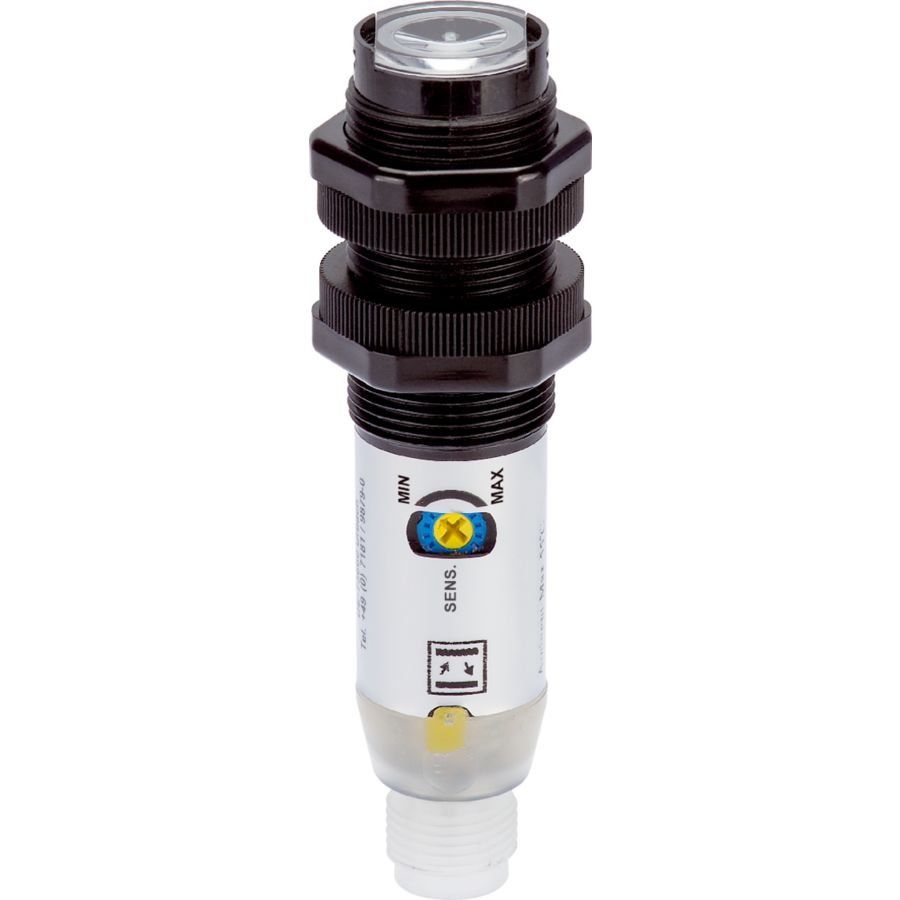

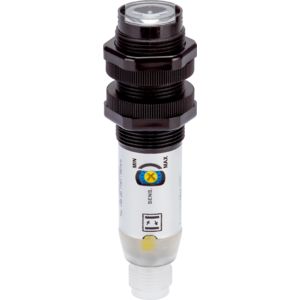

Diffuse Sensor - OT 18-1 K 30 P3-B4
Part Number: OT 18-1 K 30 P3-B4
Article Number: 210026
Technical Details
| Activation Time | 2.0 ms |
|---|---|
| Ambient Light Immunity | 10 kLx |
| Ambient Temperature During Operation | -25.0 ... 55.0°C |
| Background Suppression | 1.0 |
| Color | Red |

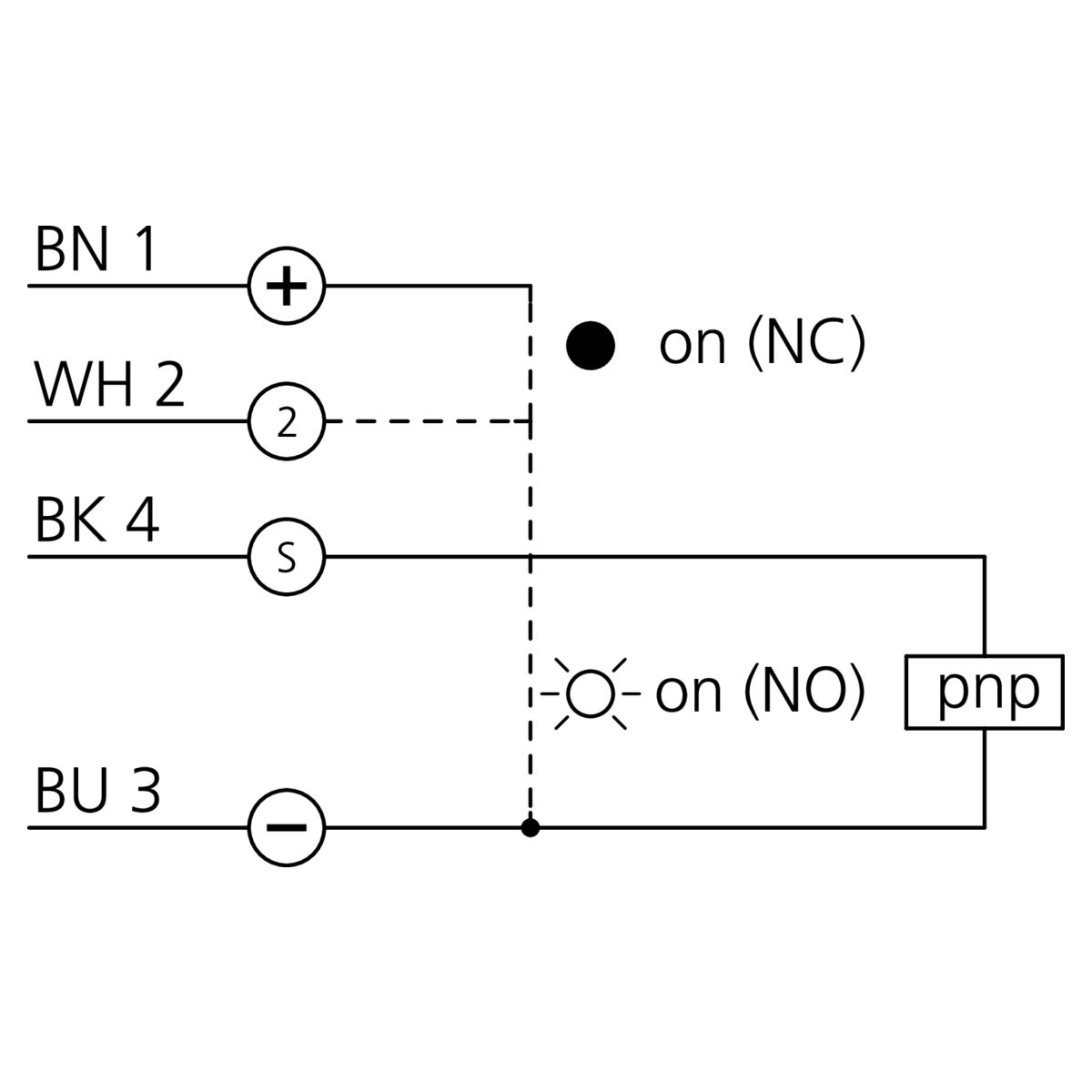

| Connection | Connector M12 4-pin |
| Design | Thread |
| Evaluation | digital |

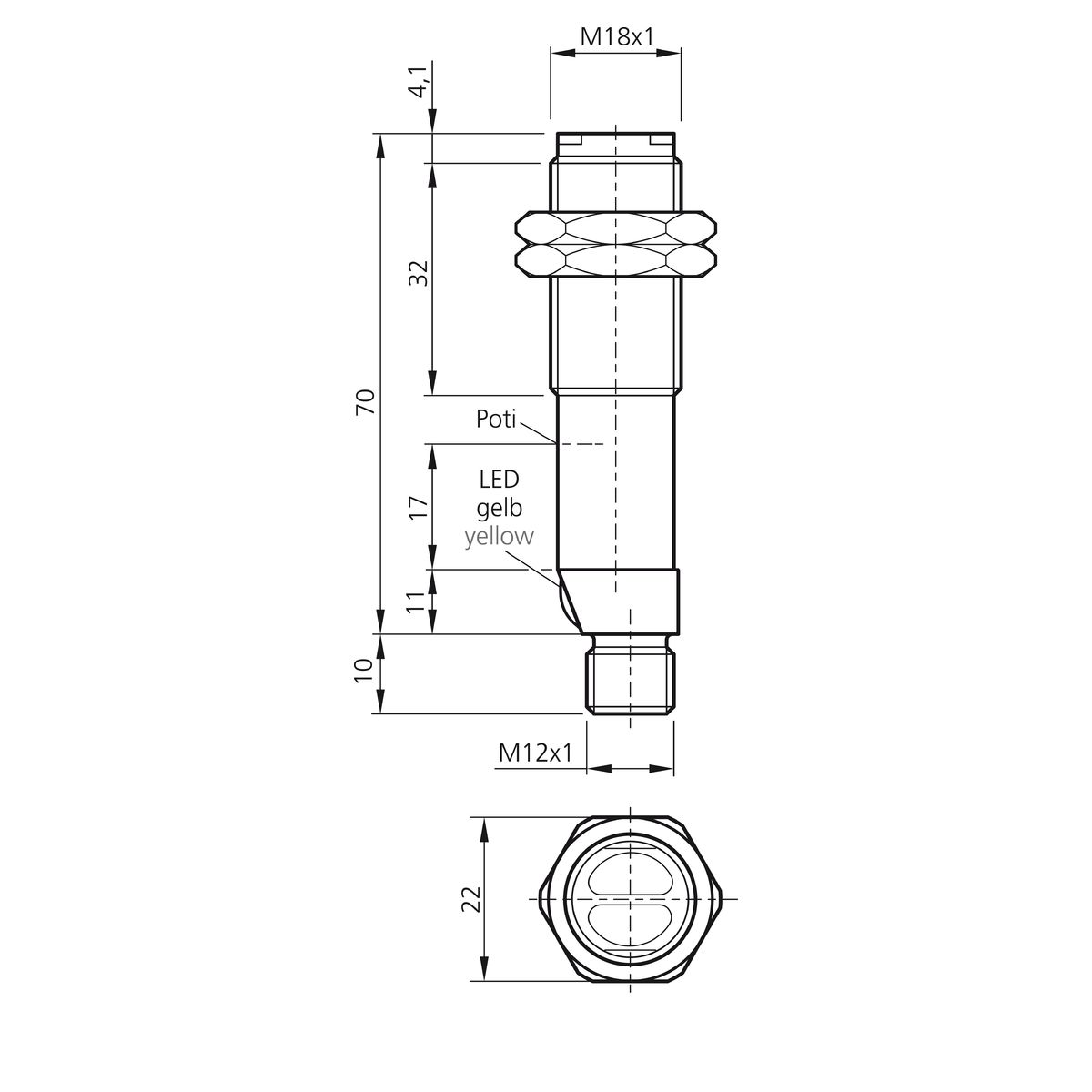

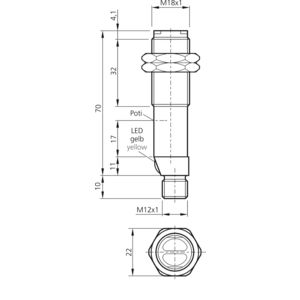

| Housing length | 80.0 mm |
| Housing Material | Plastic |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 1000.0 V |
| Light Source | LED |
| Material | PMMA Window |
| No Load Current (max.) | 30.0 mA |
| Operating Principle | Retroreflective diffuse sensor |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 66 |
| Release Time | 2.0 ms |
| Scanning Range | 10.0 mm 30.0 mm adjustable |
| Sensitivity Adjustment | Potentiometer |
| Service Voltage | 10.0 ... 30.0V DC |
| Standardized Measuring Plate | 200 x 200 mm white |
| Switching Frequency | 300 Hz |
| Switching Output | pnp 100.0 mA NO/NC programmable |
| Thread | M18 x 1 |
| Wavelength | 635 nm |
