Diffuse Sensor - OT 18 FKR 600 N3-B4
Part Number: OT 18 FKR 600 N3-B4
Article Number: 207951
Technical Details
| Activation Time | 0.5 ms |
|---|---|
| Ambient Light Immunity | 3;10 kLx;kLx Clocked light;Sunlight |
| Ambient Temperature During Operation | -25.0 ... 55.0°C |
| Color | Infrared |

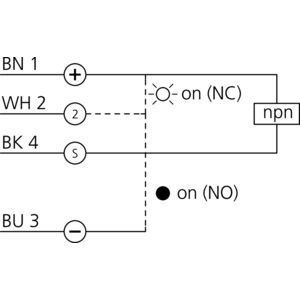

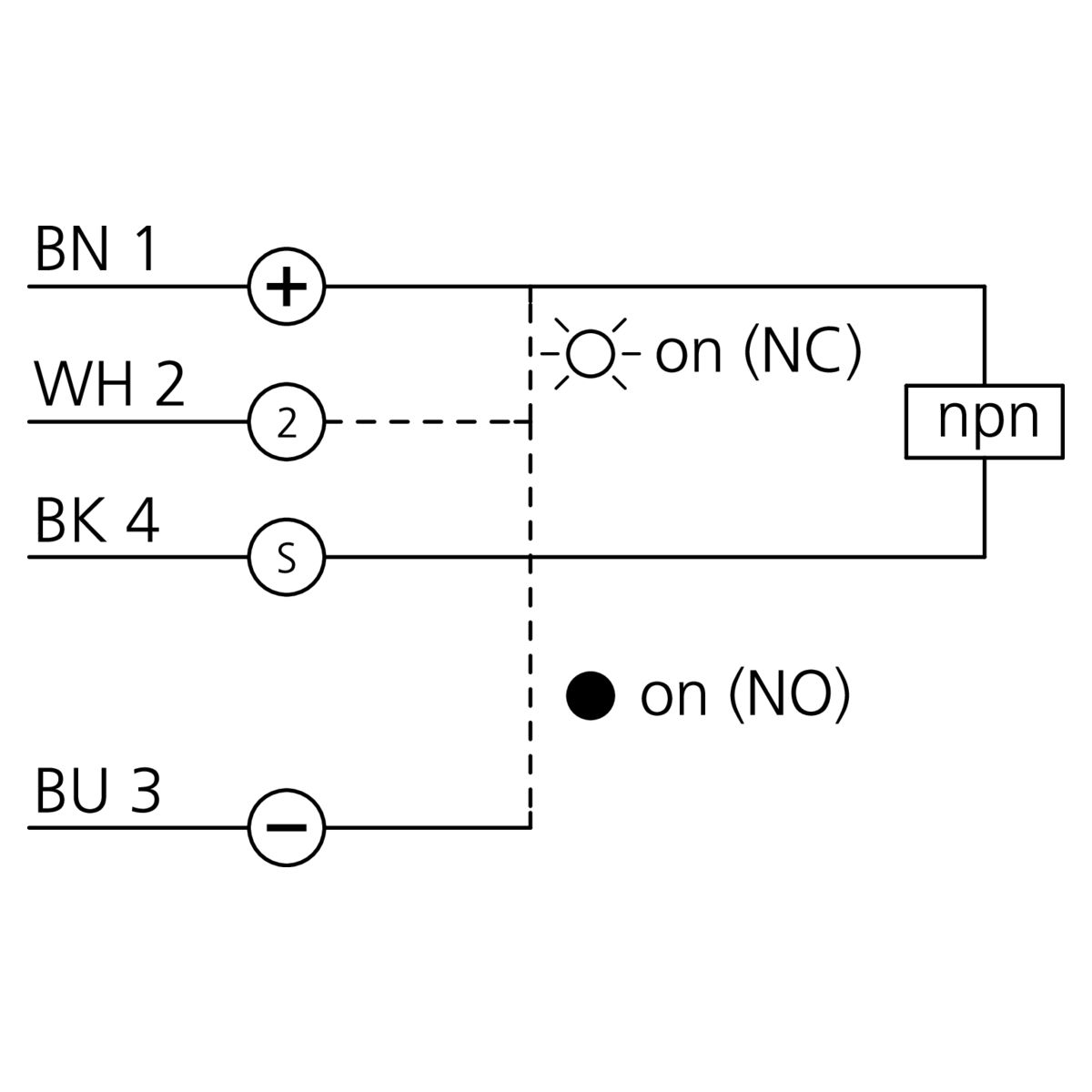

| Connection | Connector M12 4-pin |
| Design | Thread |
| Evaluation | digital |
| Housing length | 67.5 mm |
| Housing Material | Plastic ABS |
| Illumination Time Pulse | 1.0 |
| Light Source | LED |
| Material | PMMA Window |
| Modulation | Clocked |
| No Load Current (max.) | 30.0 mA |
| Operating Principle | Retroreflective diffuse sensor |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Release Time | 0.5 ms |
| Scanning Range | 600.0 mm |
| Sensitivity Adjustment | Potentiometer |
| Service Voltage | 10.0 ... 30.0V DC |
| Standardized Measuring Plate | 200 x 200 mm |
| Switching Frequency | 1000 Hz |
| Switching Output | npn 100.0 mA NO/NC |
| Thread | M18 x 1 |
| Wavelength | 880 nm |
