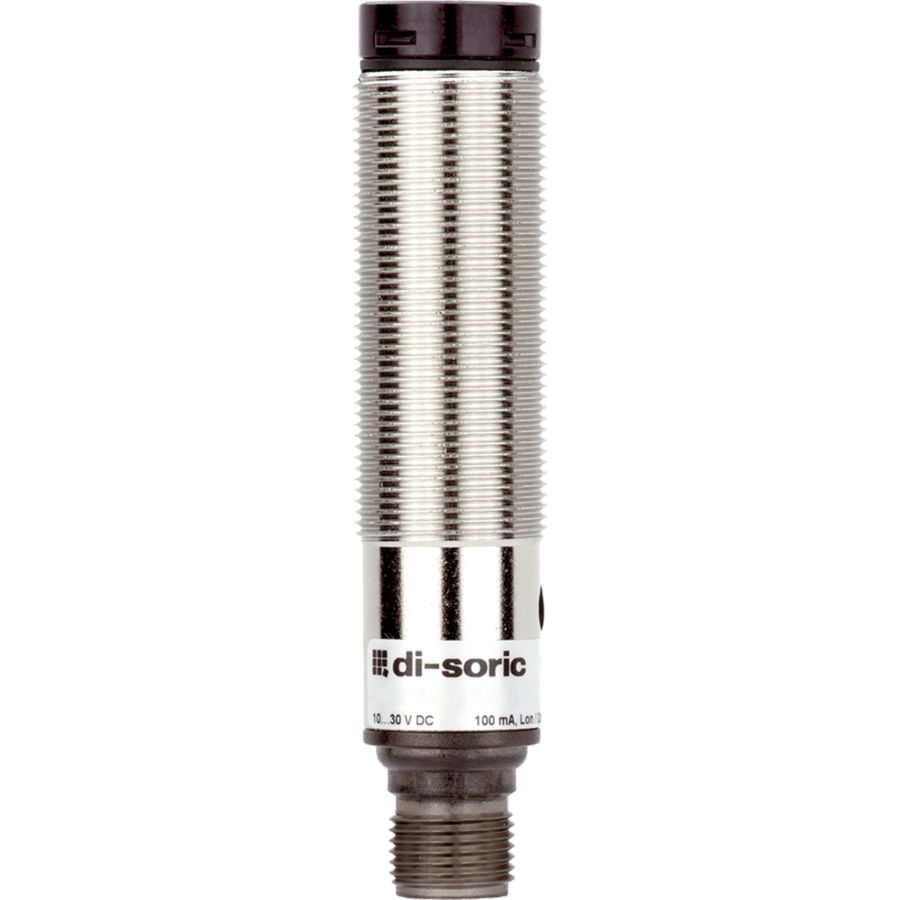

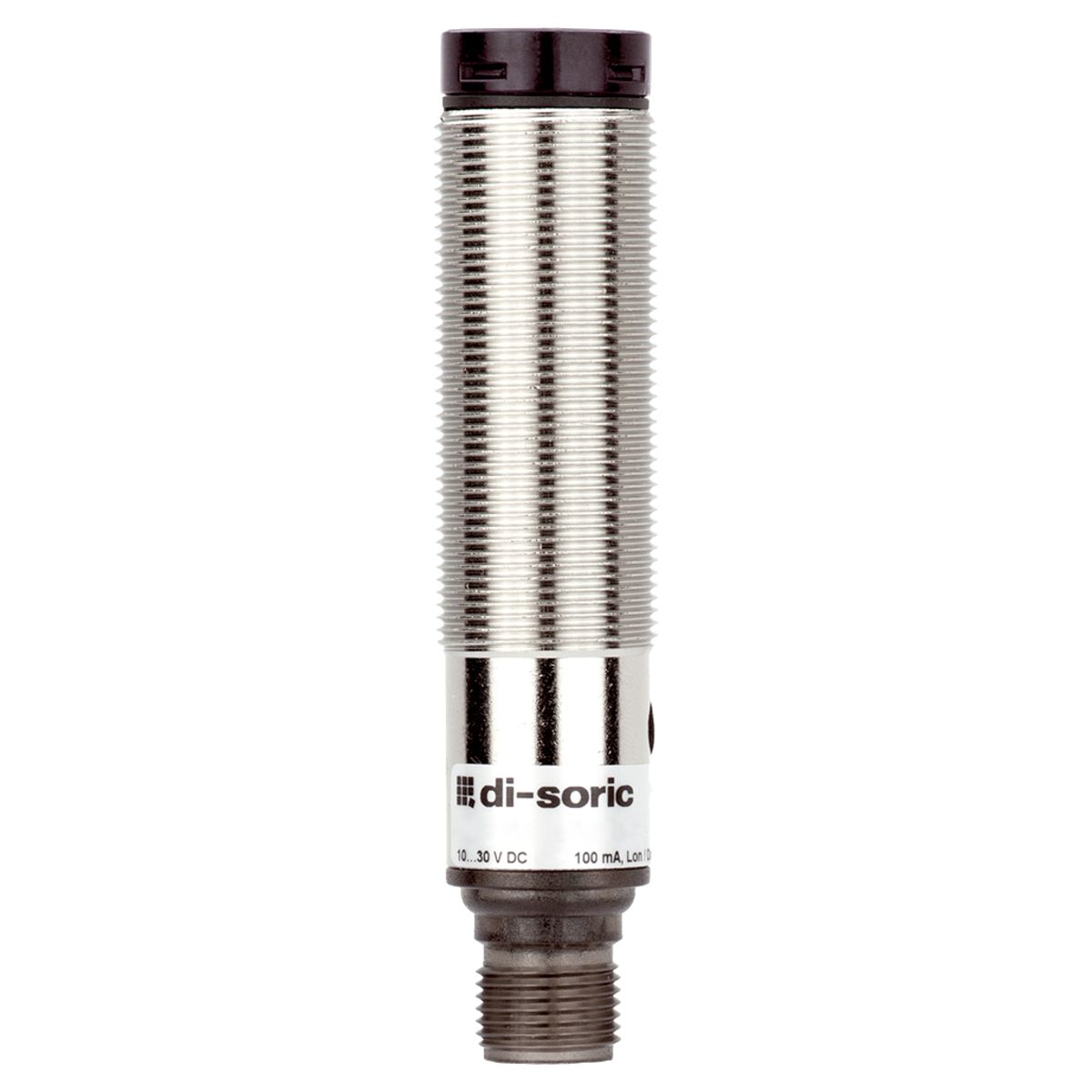

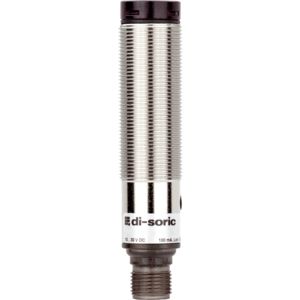

Diffuse Sensor - OT 18 M 1000 N4-B4
Part Number: OT 18 M 1000 N4-B4
Article Number: 208329
Technical Details
| Activation Time | 2.0 ms |
|---|---|
| Ambient Light Immunity | 5;10 kLx;kLx Halogen light;Sunlight |
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
| Color | Infrared |
| Connection | Connector M12 4-pin |
| Design | Thread |
| Evaluation | digital |

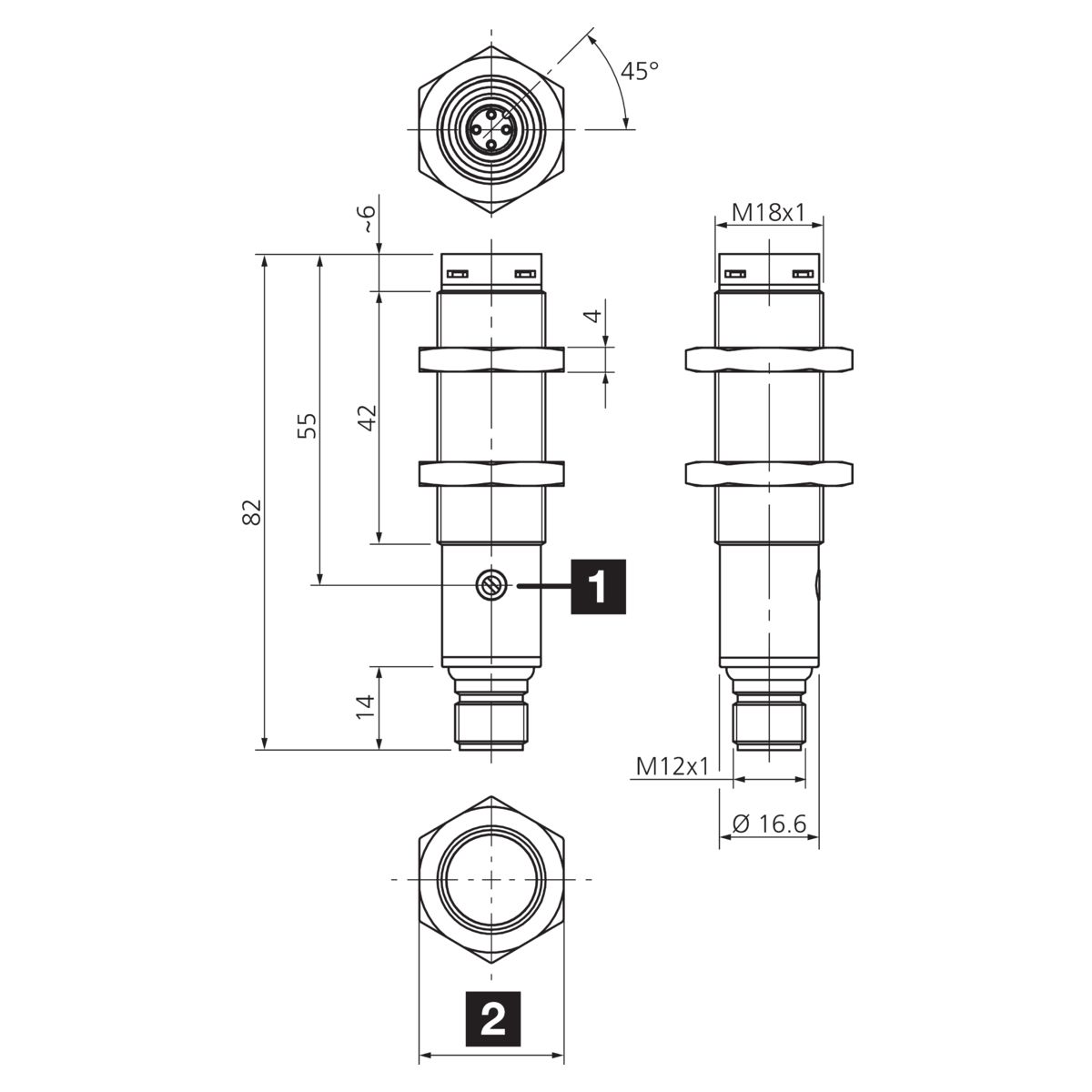

| Housing length | 82.0 mm |
| Housing Material | Brass CuZn nickel-plated |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Light Source | LED |
| Material | Polycarbonate Window |
| Modulation | Clocked |
| No Load Current (max.) | 30.0 mA |
| Operating Principle | Retroreflective diffuse sensor |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Release Time | 2.0 ms |
| Scanning Range | 1000.0 mm |
| Sensitivity Adjustment | Potentiometer |
| Service Voltage | 10.0 ... 30.0V DC |
| Standardized Measuring Plate | 400 x 400 mm white |
| Switching Frequency | 250 Hz |
| Switching Hysteresis (max.) | 10.0 % |

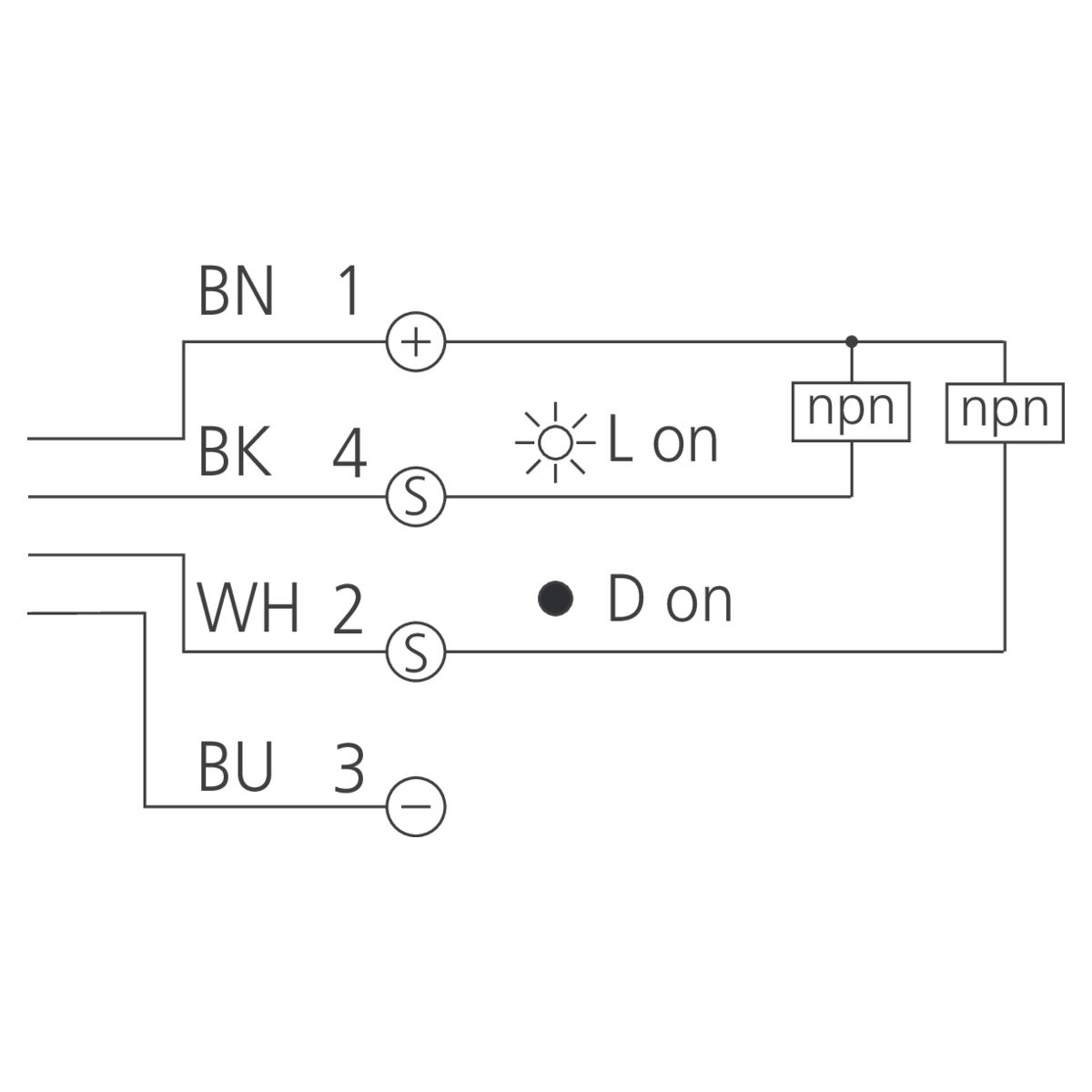

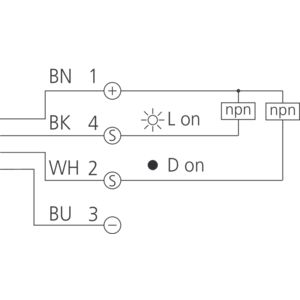

| Switching Output | npn 100.0 mA antivalent |
| Temperature Drift | 1.0 mm/K |
| Thread | M18 x 1 |
| Voltage Drop (max.) | 2.0 V |
| Wavelength | 880 nm |
