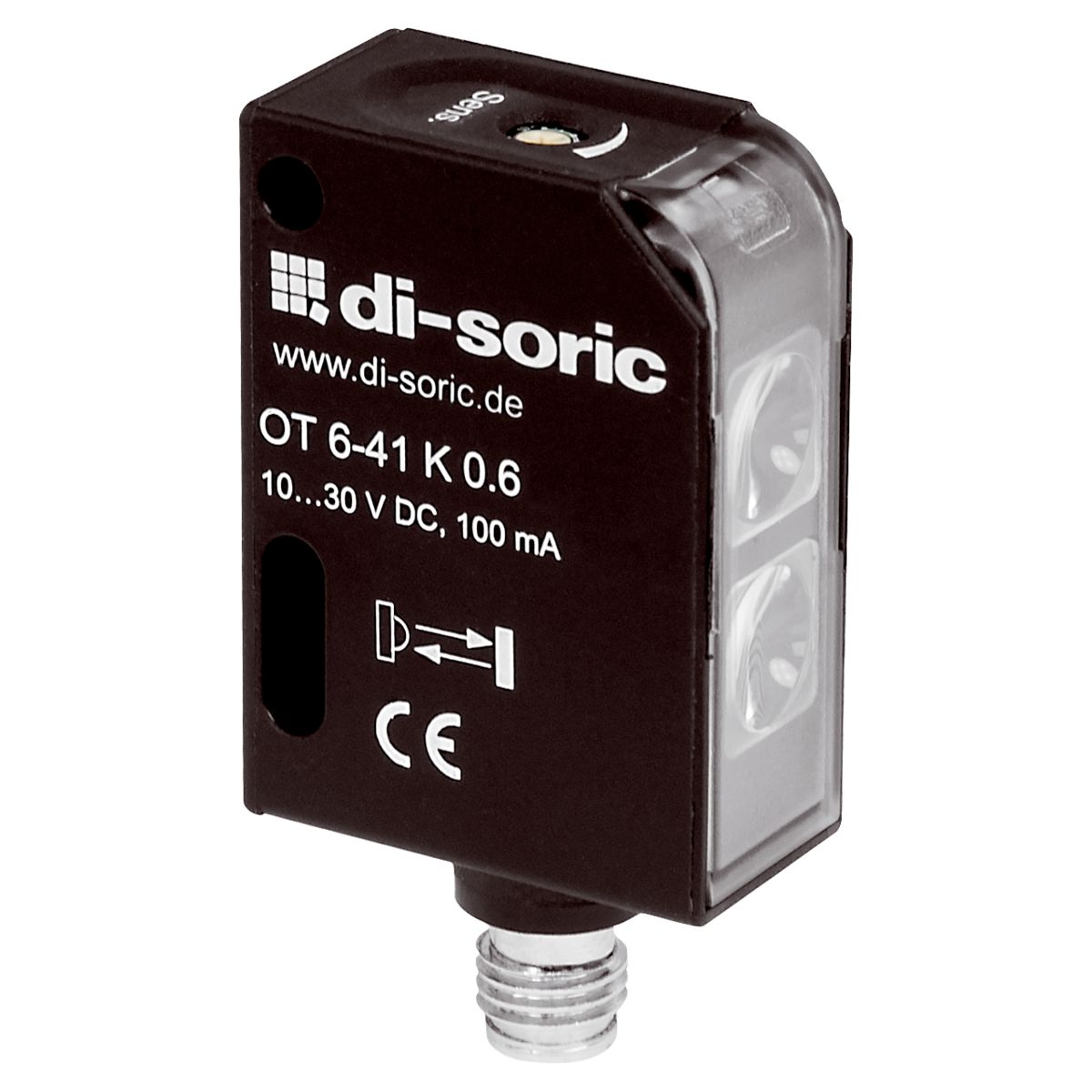

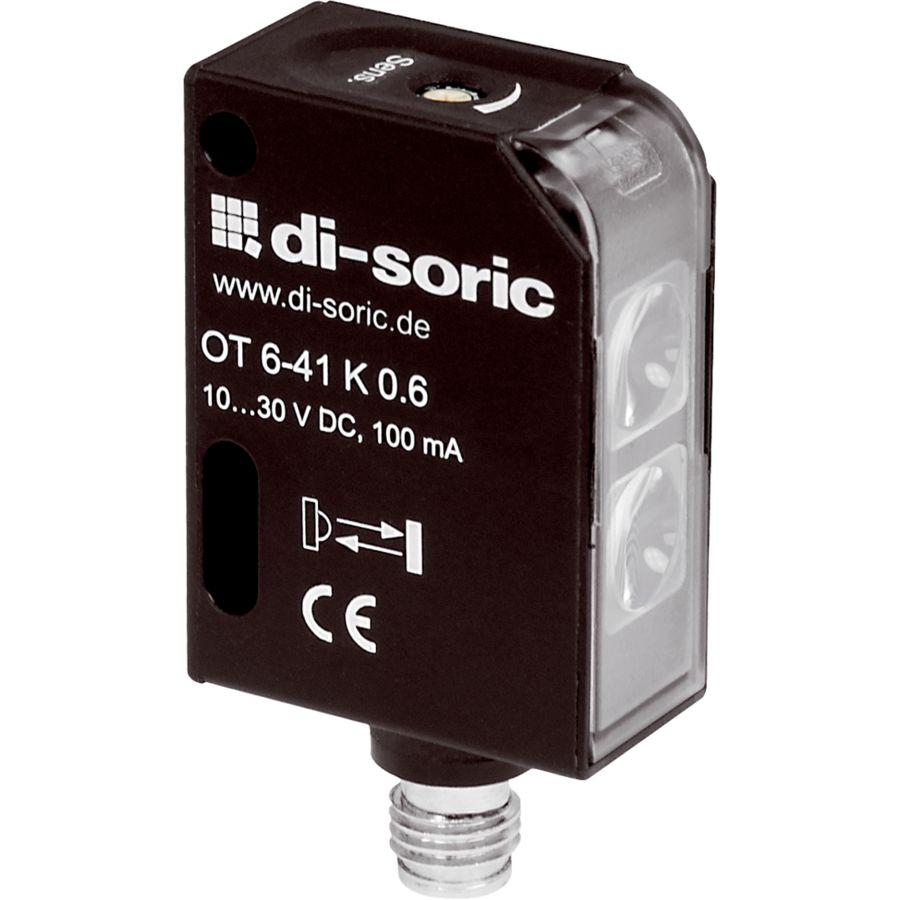

Diffuse Sensor - OT 6-41 K 0.6 P1-T3
Part Number: OT 6-41 K 0.6 P1-T3
Article Number: 206161
Technical Details
| Ambient Light Immunity | 5 kLx |
|---|---|
| Ambient Temperature During Operation | -25.0 ... 60.0°C |
| Color | Red |
| Connection | Connector M8 3-pin |
| Connection Cable | TK ... |
| Design | Cuboid design |
| Evaluation | digital |

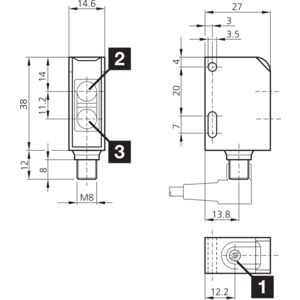

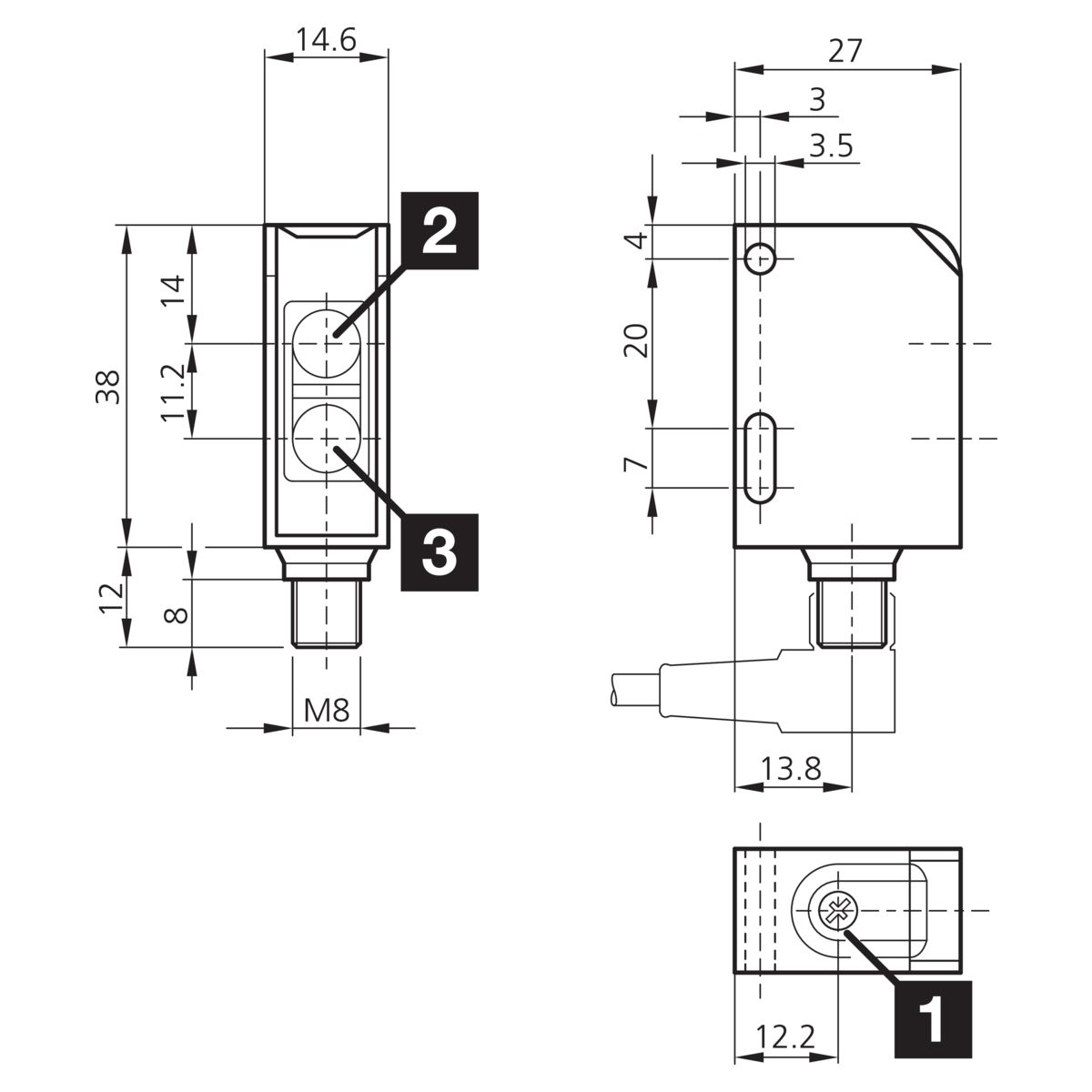

| Housing Dimensions | 38 x 27 x 15 mm |
| Housing length | 27.0 mm |
| Housing Material | Plastic |
| Illumination Time Pulse | 1.0 |
| Light Source | LED |
| Modulation | Clocked |
| No Load Current (max.) | 25.0 mA |
| Operating Principle | Retroreflective diffuse sensor |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Reproducibility | 0.1 mm |
| Scanning Range | 0.0 mm 600.0 mm |
| Sensitivity Adjustment | Potentiometer |
| Service Voltage | 10 ... 30.0V DC |
| Standardized Measuring Plate | 200 x 200 mm white |
| Switching Frequency | 500.0 Hz |
| Switching Hysteresis (max.) | 10.0 % |

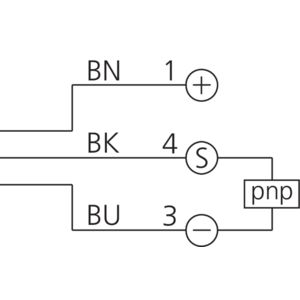

| Switching Output | pnp 100.0 mA NO |
| Wavelength | 630.0 nm 670.0 nm |
