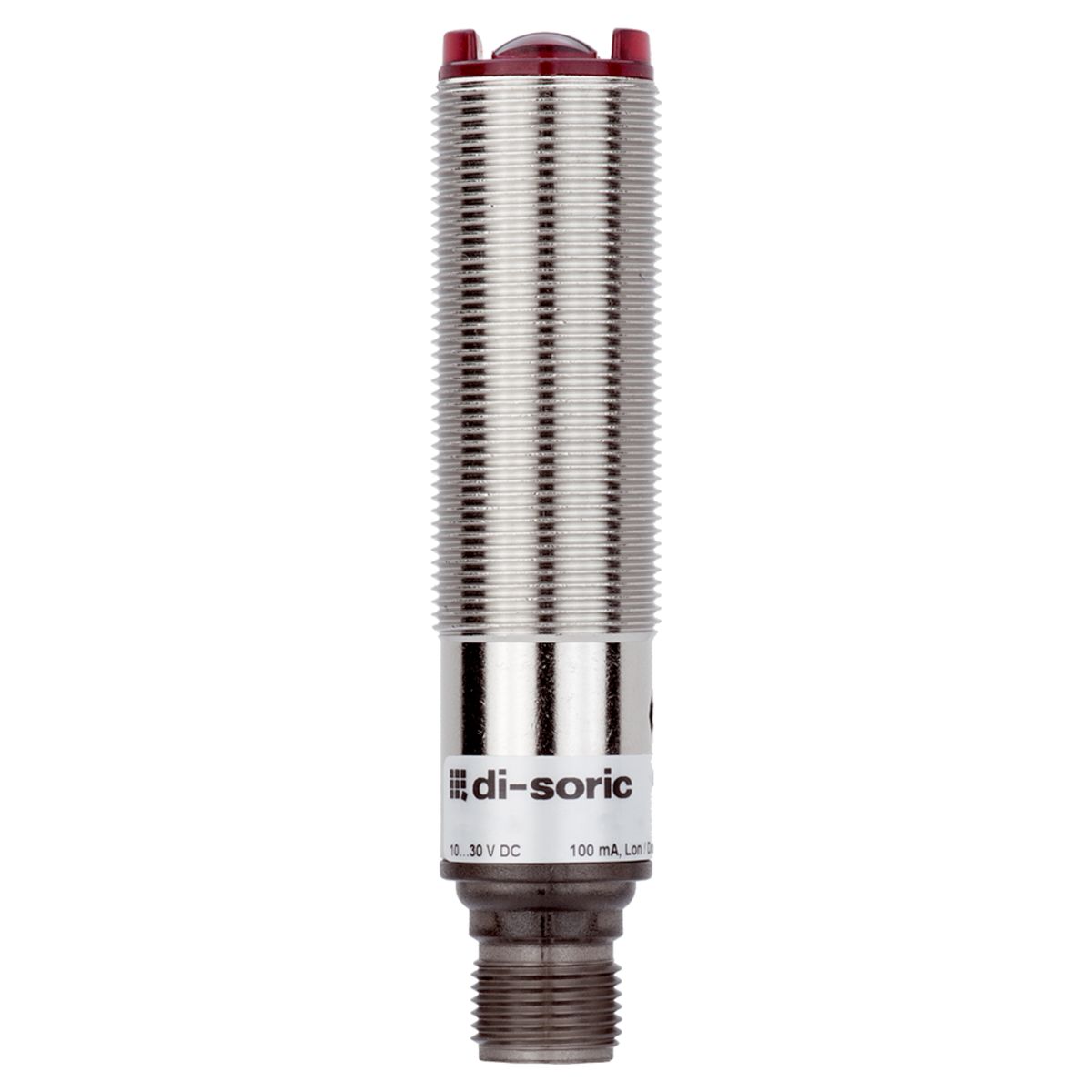

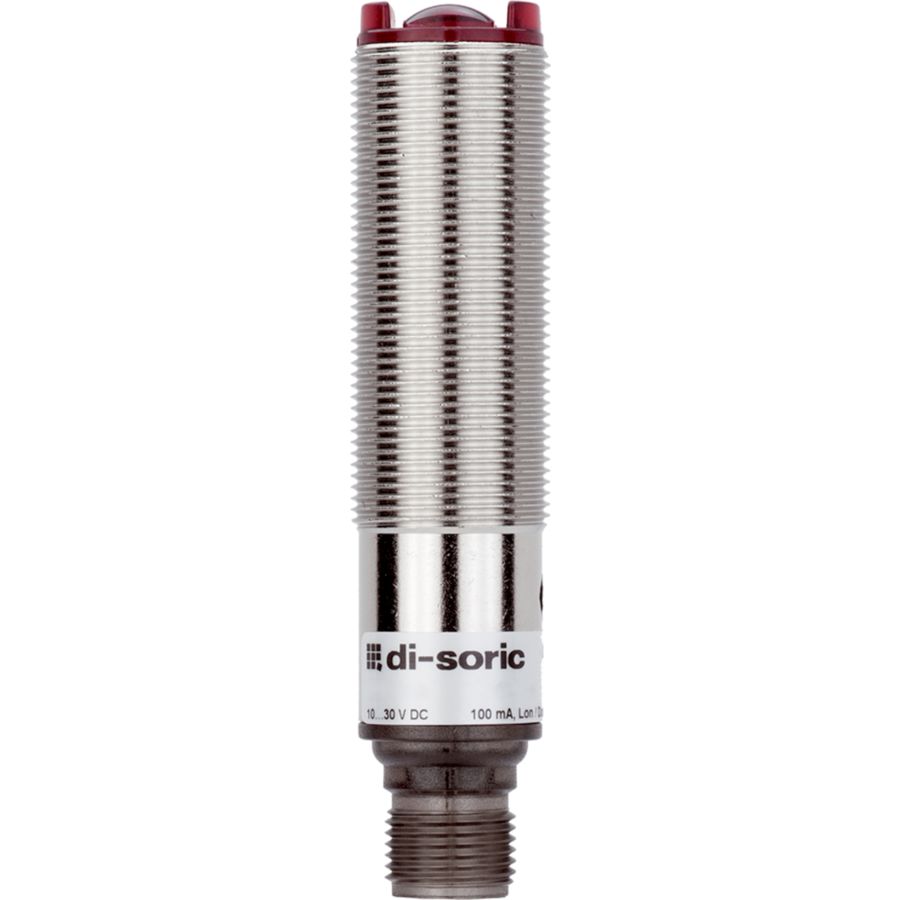

Diffuse Sensor With Background Suppression - OH 18-1 M 130 P4-B4
Part Number: OH 18-1 M 130 P4-B4
Article Number: 208300
Technical Details
| Activation Time | 0.5 ms |
|---|---|
| Ambient Light Immunity | 5;10 kLx;kLx Halogen light;Sunlight |
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
| Background Suppression | 1.0 |
| Color | Red |
| Connection | Connector M12 4-pin |
| Design | Thread |
| Evaluation | digital |

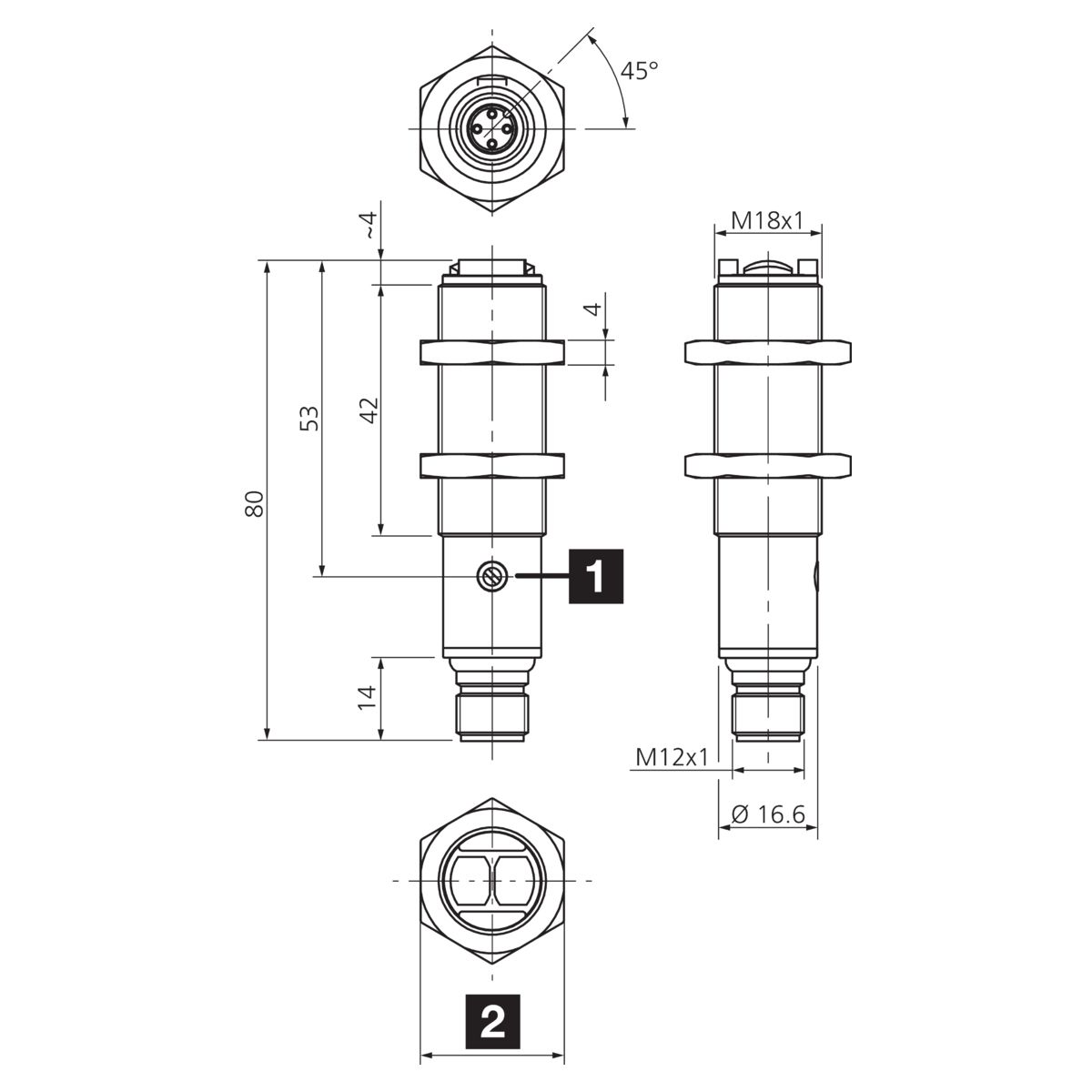

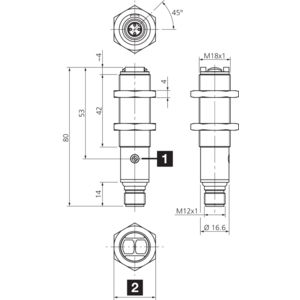

| Housing length | 80.0 mm |
| Housing Material | Brass CuZn nickel-plated |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Light Source | LED |
| Material | PMMA Window |
| Modulation | Clocked |
| No Load Current (max.) | 25.0 mA |
| Operating Principle | Diffuse sensor with background suppression |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Release Time | 0.5 ms |
| Scanning Range | 30.0 mm 130.0 mm |
| Sensitivity Adjustment | Potentiometer |
| Service Voltage | 10.0 ... 30.0V DC |
| Standardized Measuring Plate | 100 x 100 mm white |
| Switching Frequency | 1000 Hz |
| Switching Hysteresis (max.) | 10.0 % |

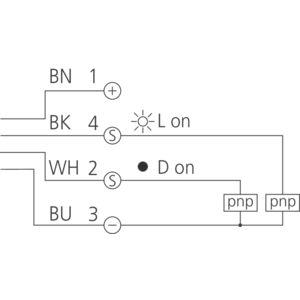

| Switching Output | pnp 100.0 mA antivalent |
| Temperature Drift | 0.13 mm/K 0.04 mm/K with 60 to 110 mm |
| Thread | M18 x 1 |
| Voltage Drop (max.) | 2.0 V |
| Wavelength | 660 nm |
