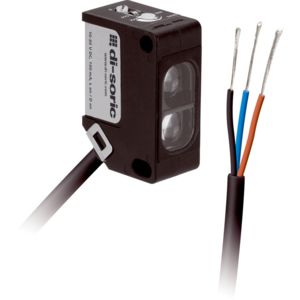

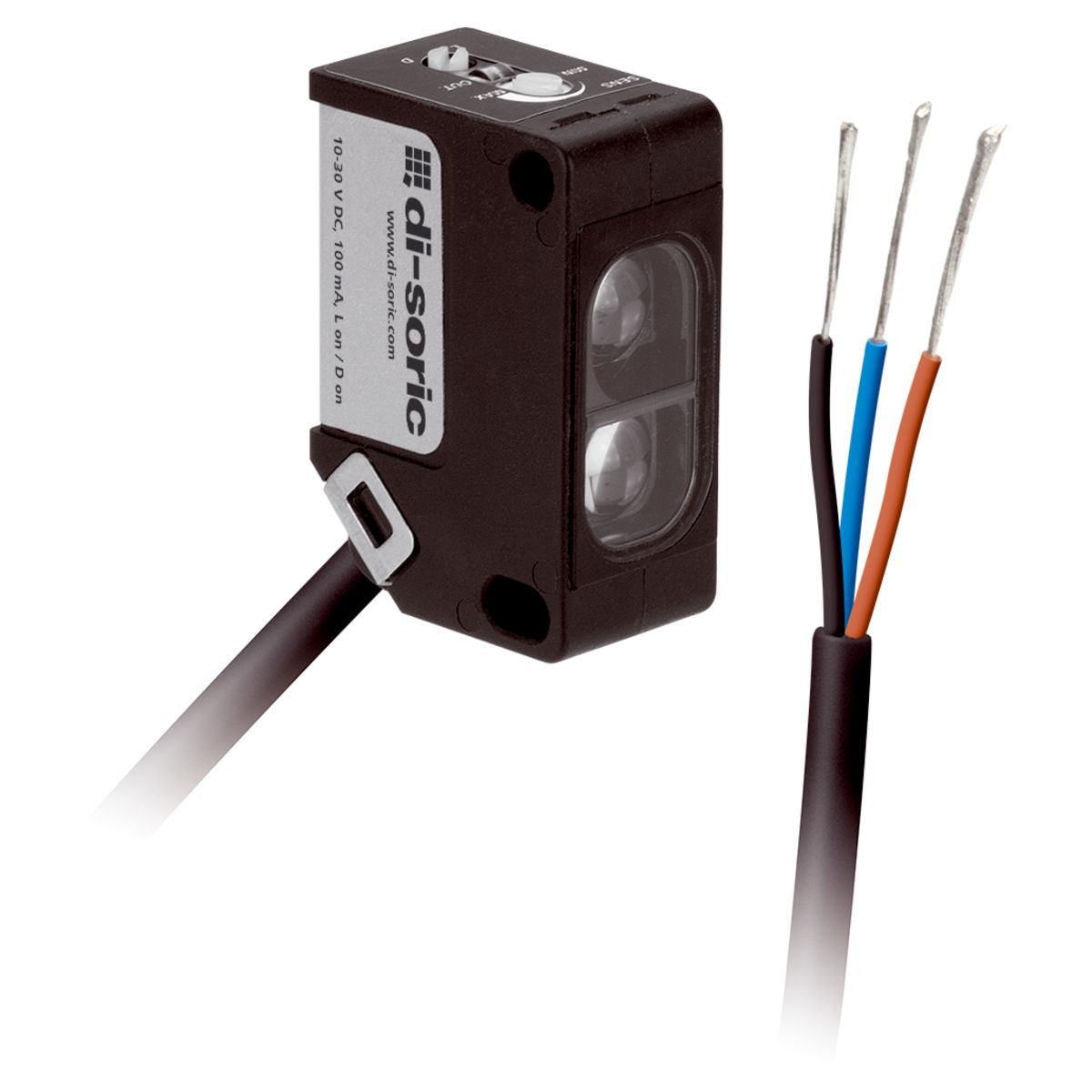

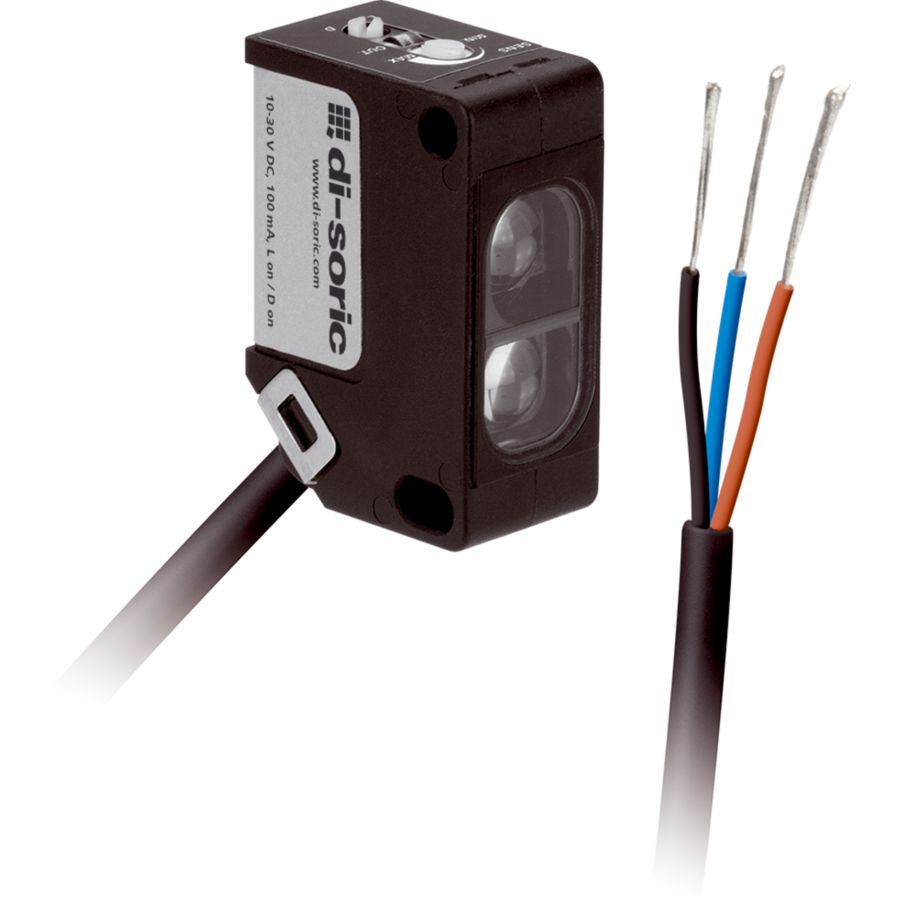

Diffuse Sensor With Background Suppression - OH 30 K 400 N3-3
Part Number: OH 30 K 400 N3-3
Article Number: 209229
Technical Details
| Activation Time | 0.5 ms |
|---|---|
| Ambient Light Immunity | 3;10 kLx;kLx Halogen light;Sunlight |
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
| Background Suppression | 1.0 |
| Color | Infrared |
| Connection | Cable 2.0 m 3-pin flying leads |
| Design | Cuboid design |
| Evaluation | digital |

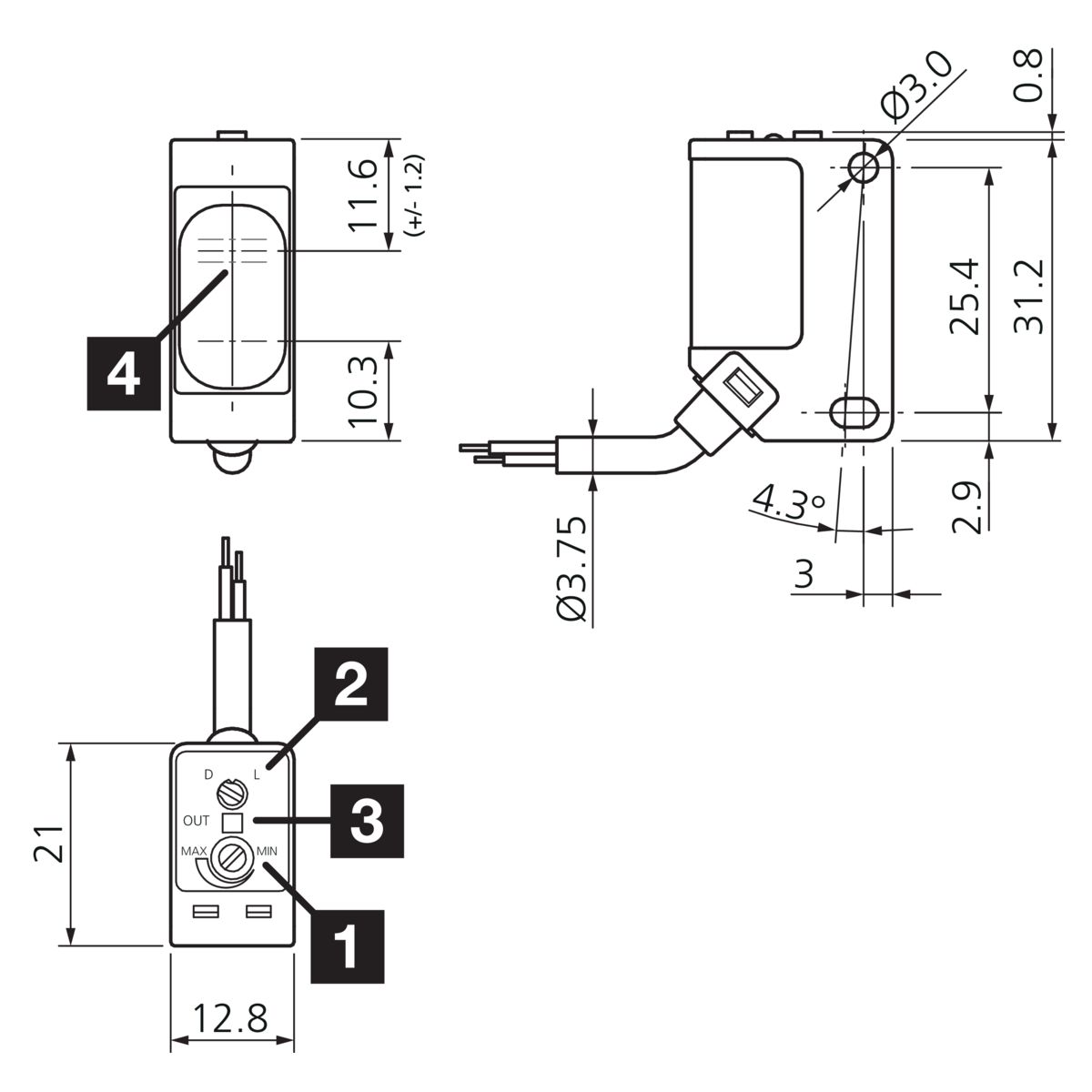

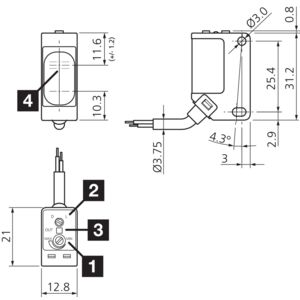

| Housing Dimensions | 31.2 x 21 x 12.8 mm |
| Housing length | 21.0 mm |
| Housing Material | Plastic PA 6.6 |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 1000.0 V |
| Light Source | LED |
| Material | PMMA Window |
| Modulation | Clocked |
| No Load Current (max.) | 45.0 mA |
| Operating Principle | Diffuse sensor with background suppression |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Release Time | 0.5 ms |
| Scanning Range | 30.0 mm 400.0 mm |
| Sensitivity Adjustment | Potentiometer |
| Service Voltage | 10.0 ... 30.0V DC |
| Standardized Measuring Plate | 200 x 200 mm white |
| Switching Distance | adjustable |
| Switching Frequency | 1000 Hz |
| Switching Hysteresis (max.) | 10.0 % |

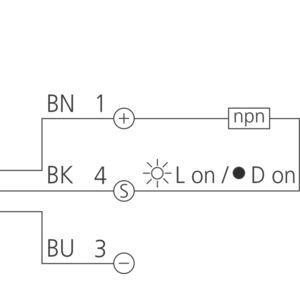

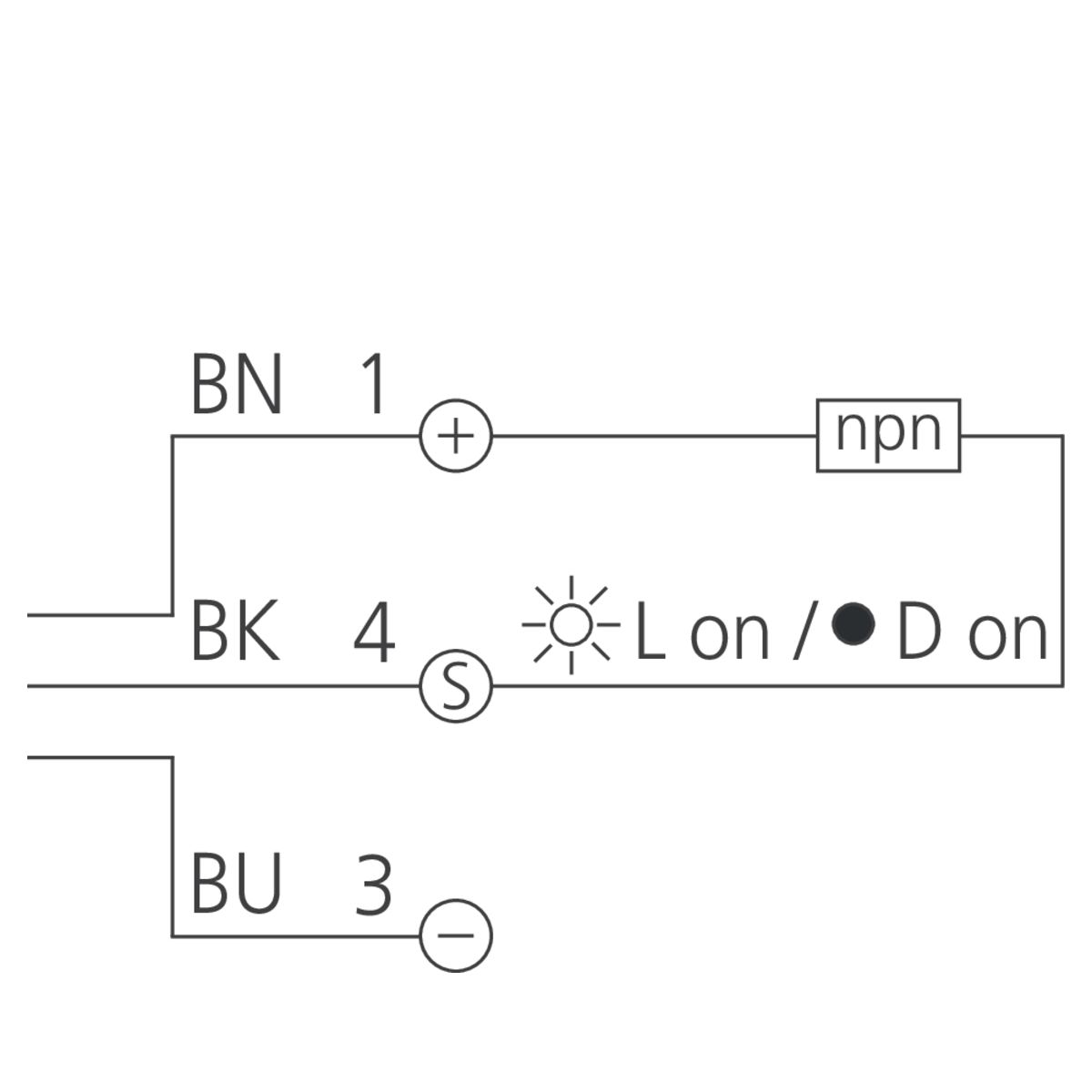

| Switching Output | npn 100.0 mA NO/NC switchable |
| Temperature Drift | 0.4 mm/K |
| Voltage Drop (max.) | 2.0 V |
| Wavelength | 850 nm |
