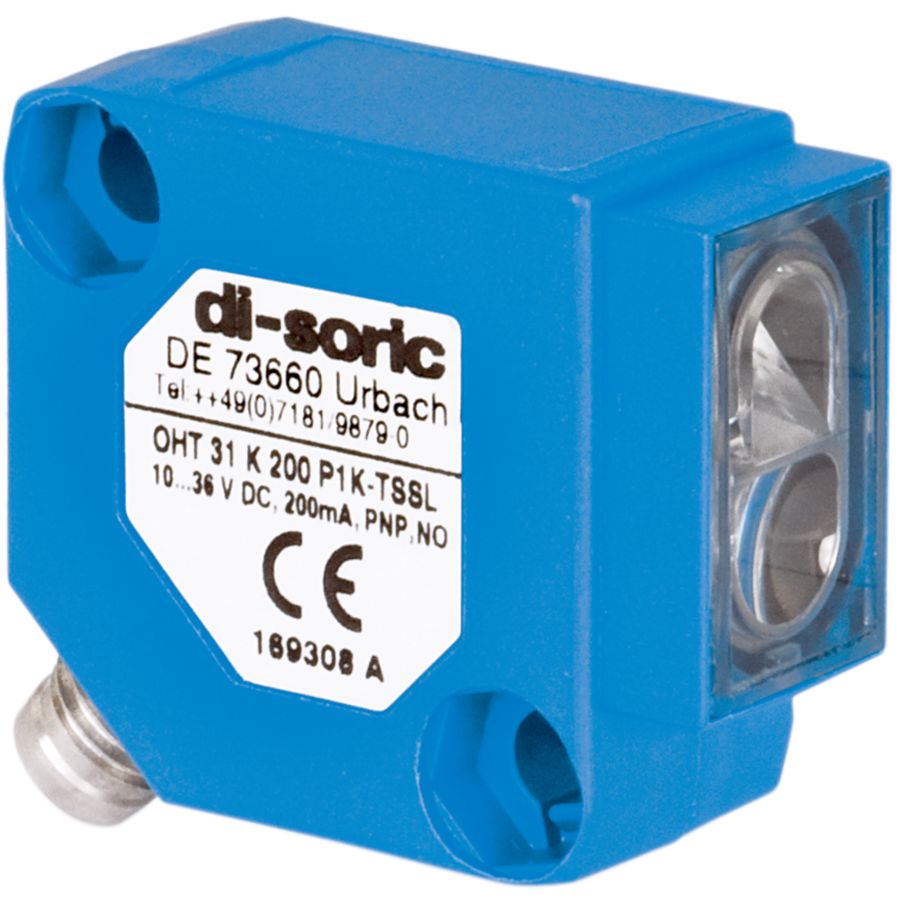

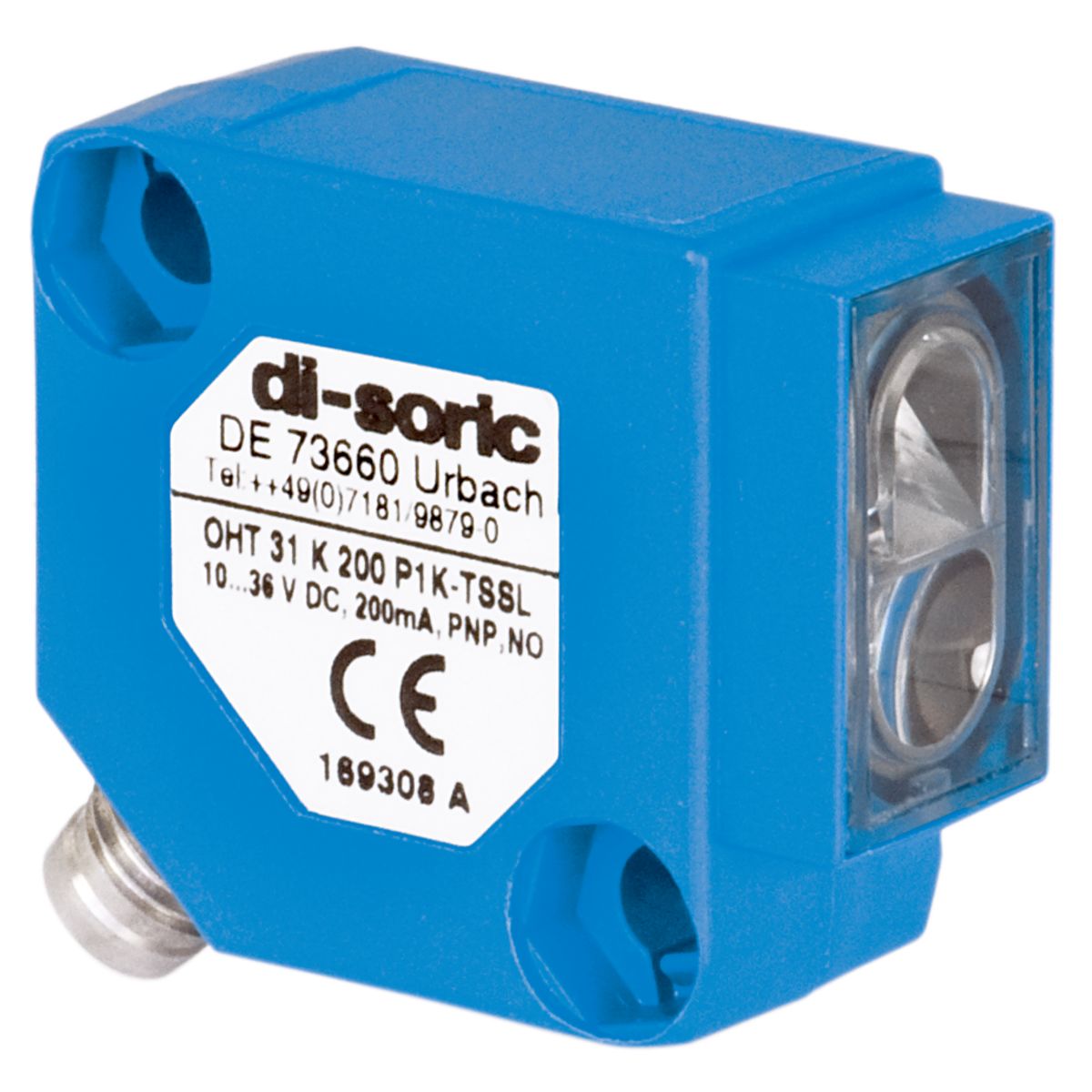

Diffuse Sensor With Background Suppression - OHT 31 K 200 P1K-TSSL
Part Number: OHT 31 K 200 P1K-TSSL
Article Number: 205665
Technical Details
| Activation Time | 1.0 ms |
|---|---|
| Ambient Light Immunity | 10 kLx |
| Ambient Temperature During Operation | -25.0 ... 55.0°C |
| Background Suppression | 1.0 |
| Color | Red |
| Connection | Connector M8 3-pin |
| Connection Cable | TK ... |
| Design | Cuboid design |
| Evaluation | digital |

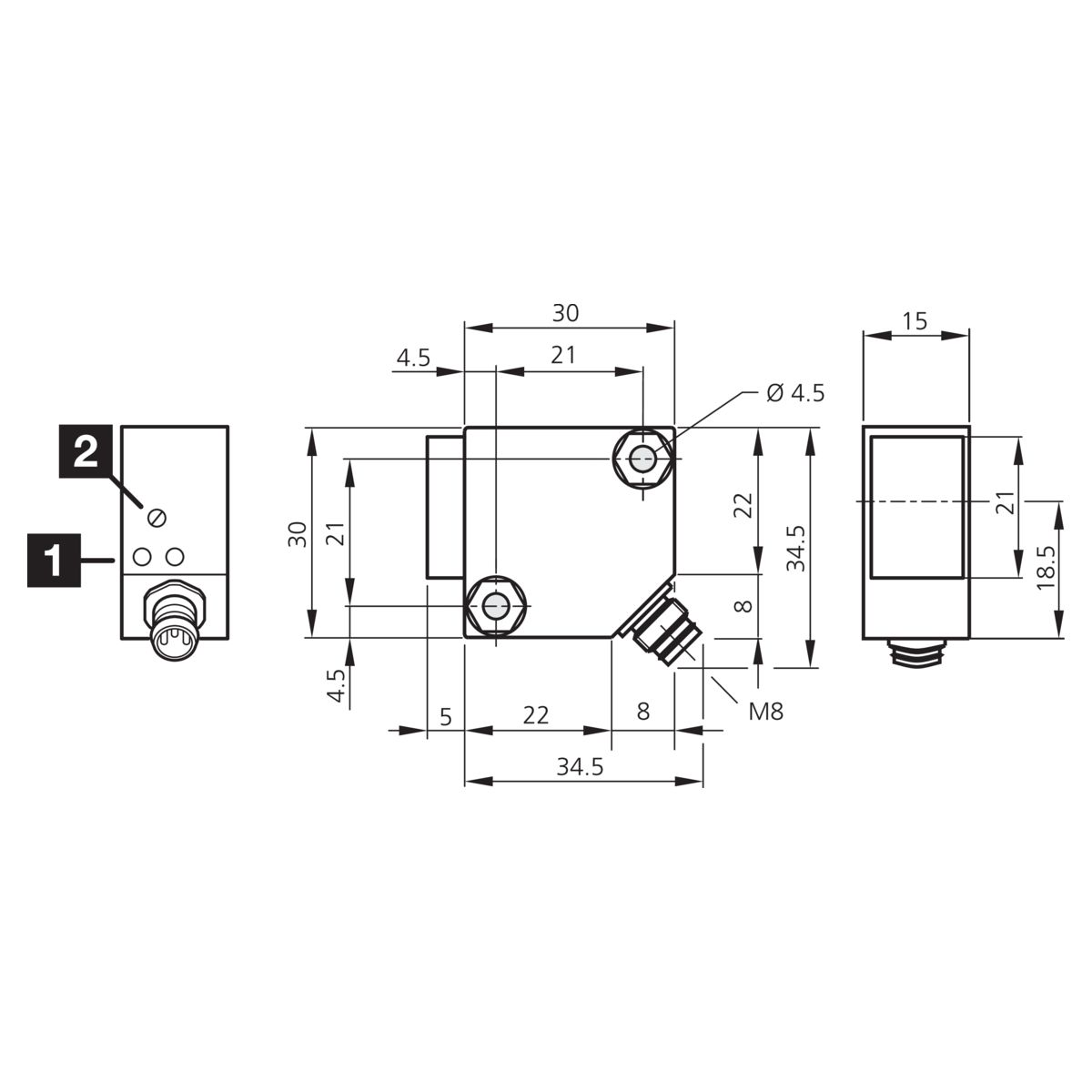

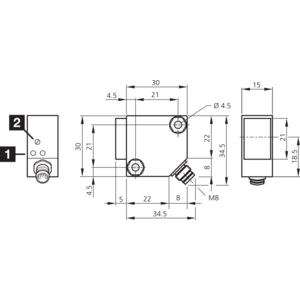

| Housing Dimensions | 30 x 30 x 15 mm |
| Housing length | 30.0 mm |
| Housing Material | Plastic PBT |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 1000.0 V |
| Light Source | LED |
| Material | Glass Window |
| Modulation | Clocked |
| No Load Current (max.) | 25.0 mA |
| Operating Principle | Diffuse sensor with background suppression |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Release Time | 1.0 ms |
| Scanning Range | 200.0 mm |
| Sensitivity Adjustment | Potentiometer 12-turn |
| Service Voltage | 10 ... 36.0V DC |
| Standardized Measuring Plate | 100 x 100 mm white |
| Switching Distance | adjustable |
| Switching Frequency | 500.0 Hz |
| Switching Hysteresis (max.) | 5.0 % |
| Switching Output | pnp 200.0 mA NO |
| Temperature Drift | 0.3 %/K |
| Voltage Drop (max.) | 2.0 V |
| Wavelength | 660.0 nm |
