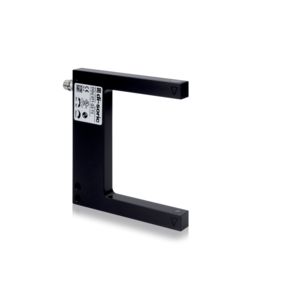

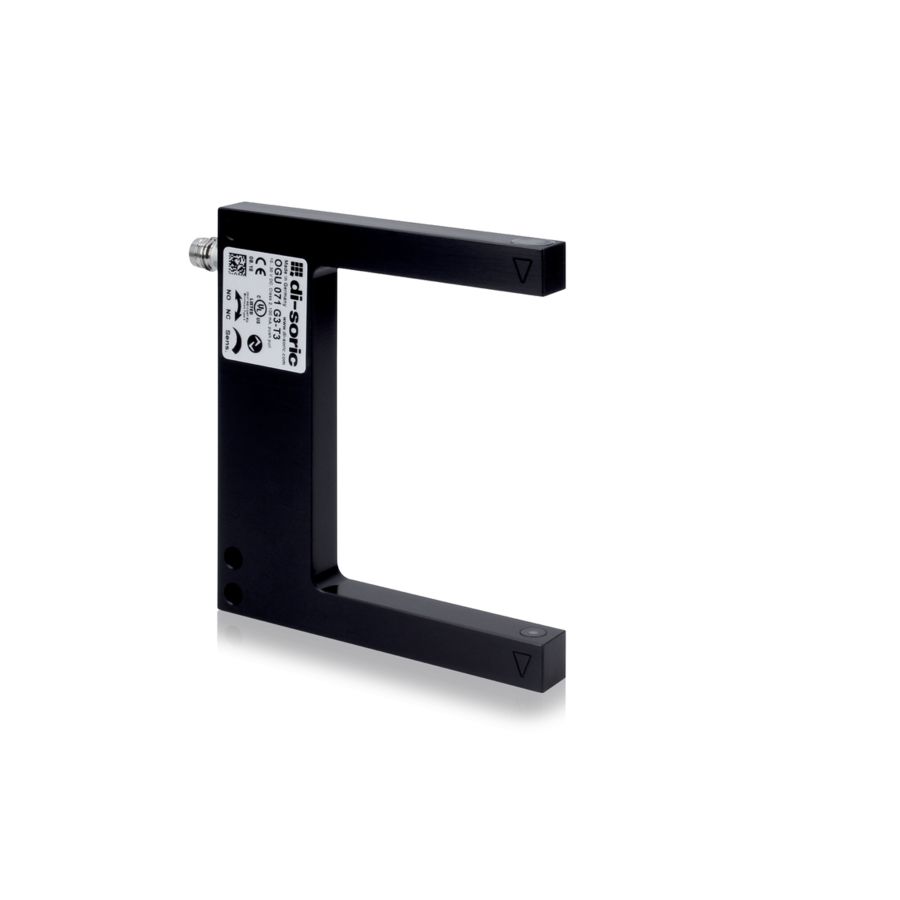

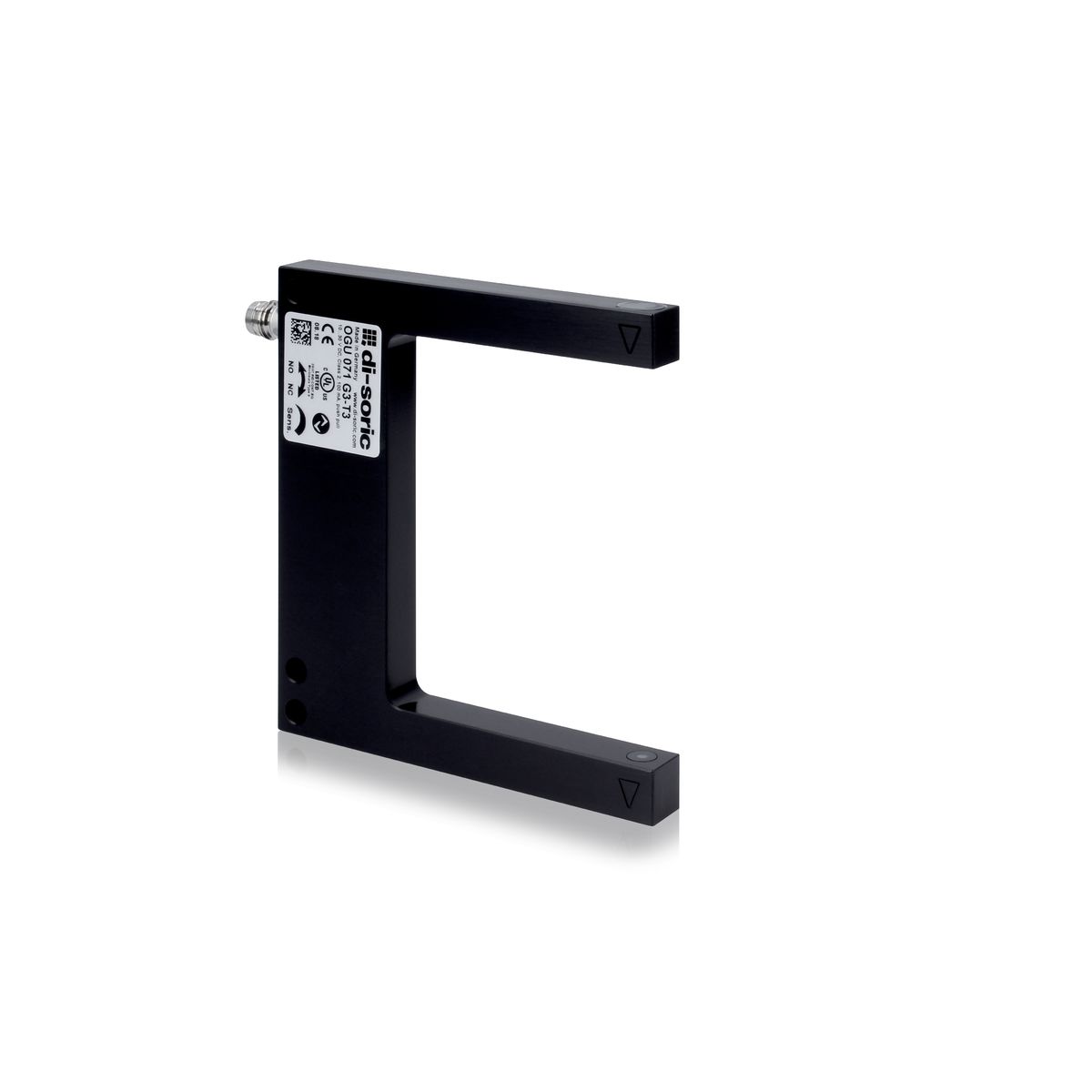

Fork Light Barrier - OGU 071 G3-T3
Part Number: OGU 071 G3-T3
Article Number: 210910
Technical Details
| Ambient Temperature During Operation | -25.0 ... 60.0°C |
|---|---|
| Color | Red |

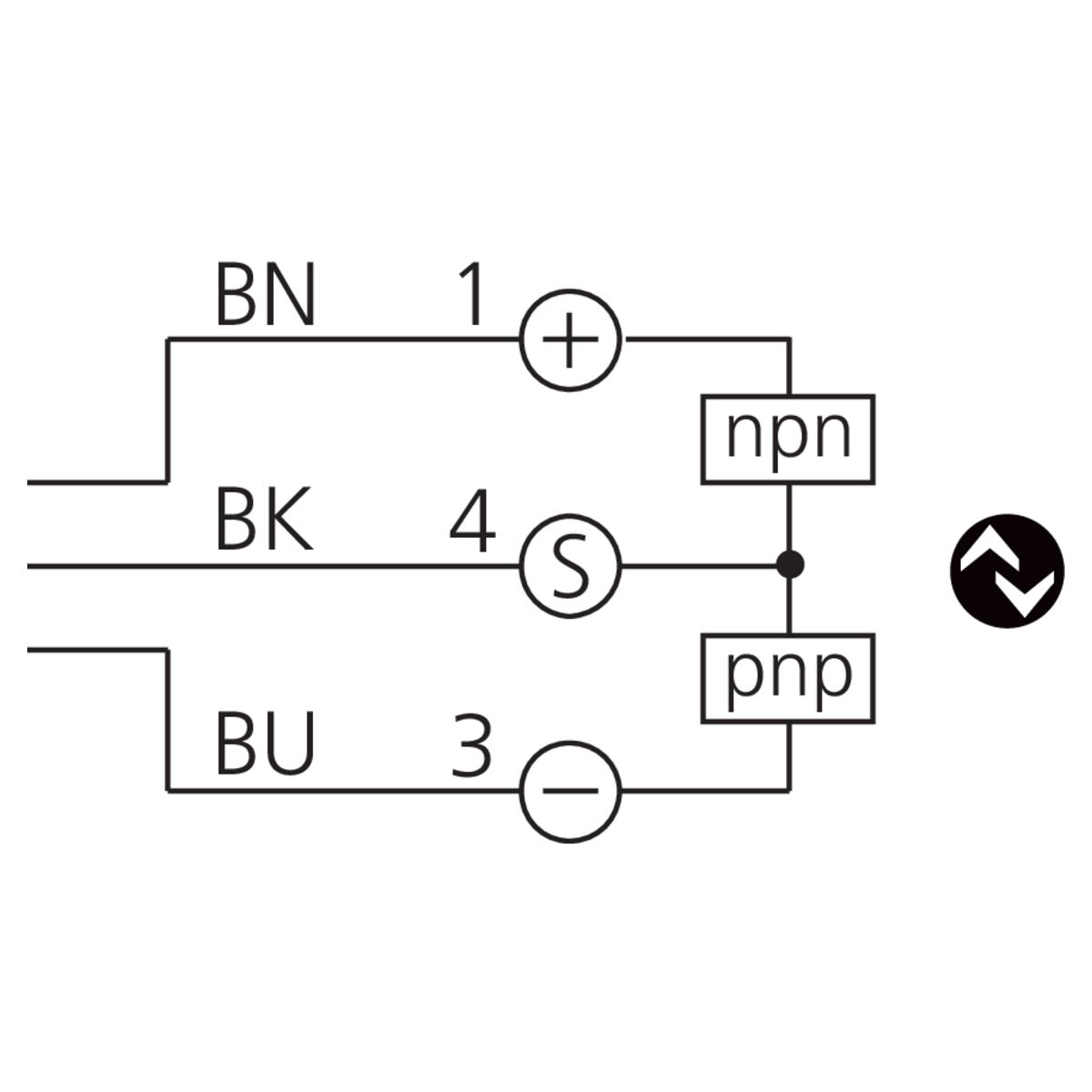

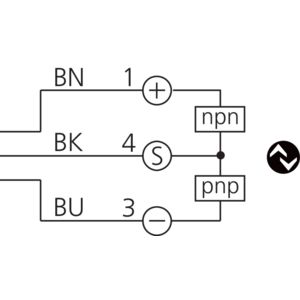

| Connection | Connector M8 3-pin |
| Connection Cable | TK ... |
| Design | Fork |
| Evaluation | digital |
| Fork Opening | 70.0 mm |

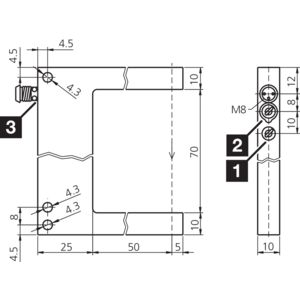

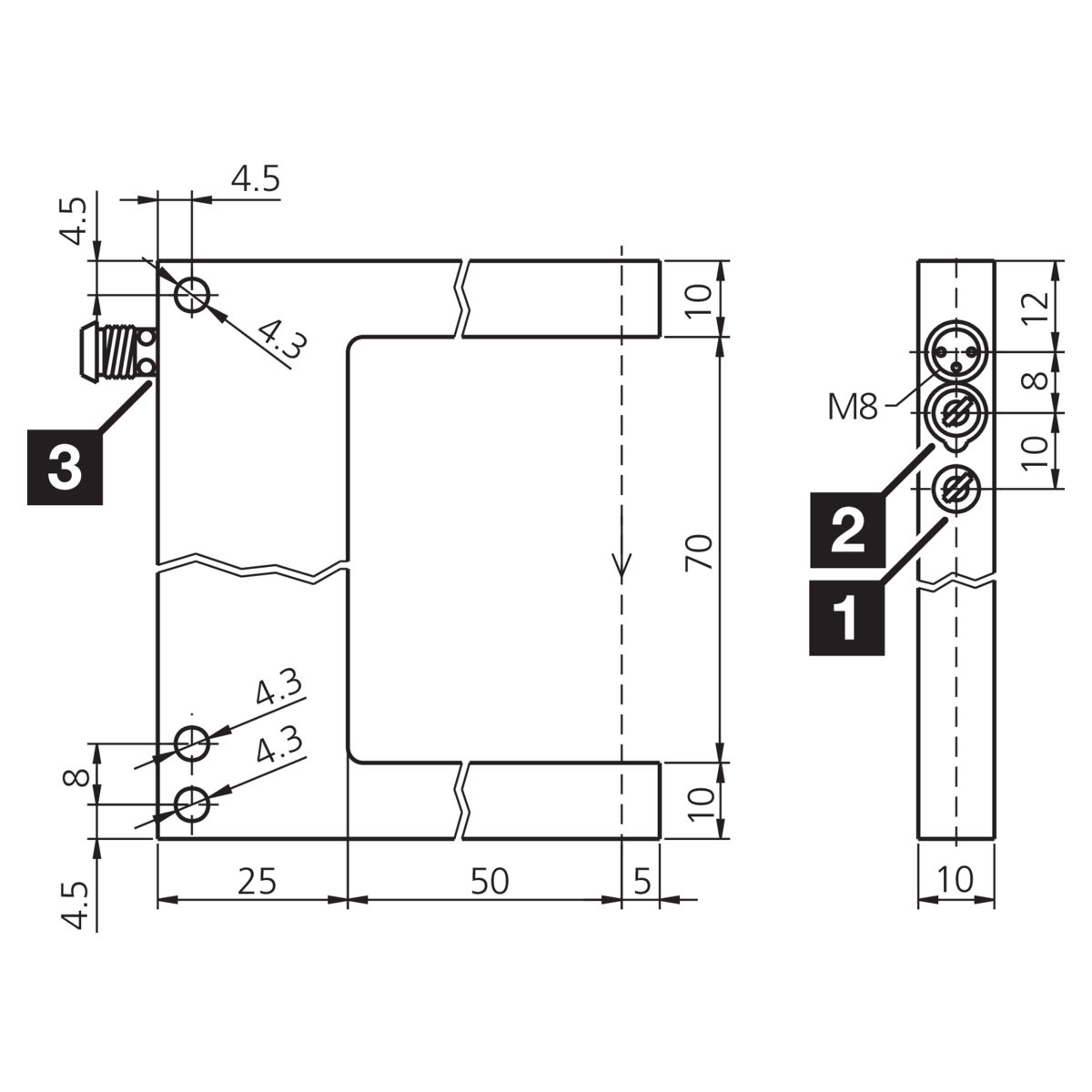

| Housing Dimensions | 90 x 80 x 10 mm |
| Housing length | 80.0 mm |
| Housing Material | Aluminum Black Anodized |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Interface | IO-Link V1.1, COM2 38.4 kBd, Smart Sensor Profile |
| Leg Length Internal | 55 mm |
| Light Source | LED |
| Modulation | Clocked |
| No Load Current (max.) | 30.0 mA |
| Operating Principle | Optical |
| Operation Modes | STANDARD;HIGH RESOLUTION;POWER;SPEED |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Reproducibility (Factory Setting) | 0.02 mm STANDARD |
| Reproducibility (HIGH RESOLUTION) | 0.02 mm |
| Reproducibility (POWER) | 0.02 mm |
| Reproducibility (SPEED) | 0.02 mm |
| Reproducibility (STANDARD) | 0.02 mm |
| Resolution (Factory Setting) | 0.3 mm STANDARD |
| Resolution (HIGH RESOLUTION) | 0.2 mm |
| Resolution (POWER) | 1.0 mm |
| Resolution (SPEED) | 0.3 mm |
| Resolution (STANDARD) | 0.3 mm |
| Sensitivity Adjustment | Potentiometer or IO-Link |
| Service Voltage | 10.0 ... 30.0V DC |
| Switching Frequency (Factory Setting) | 5000.0 Hz STANDARD |
| Switching Frequency (HIGH RESOLUTION) | 1500.0 Hz |
| Switching Frequency (POWER) | 250.0 Hz |
| Switching Frequency (SPEED) | 8000.0 Hz |
| Switching Frequency (STANDARD) | 5000.0 Hz |
| Switching Output | Push-pull 100.0 mA NO/NC switchable |
