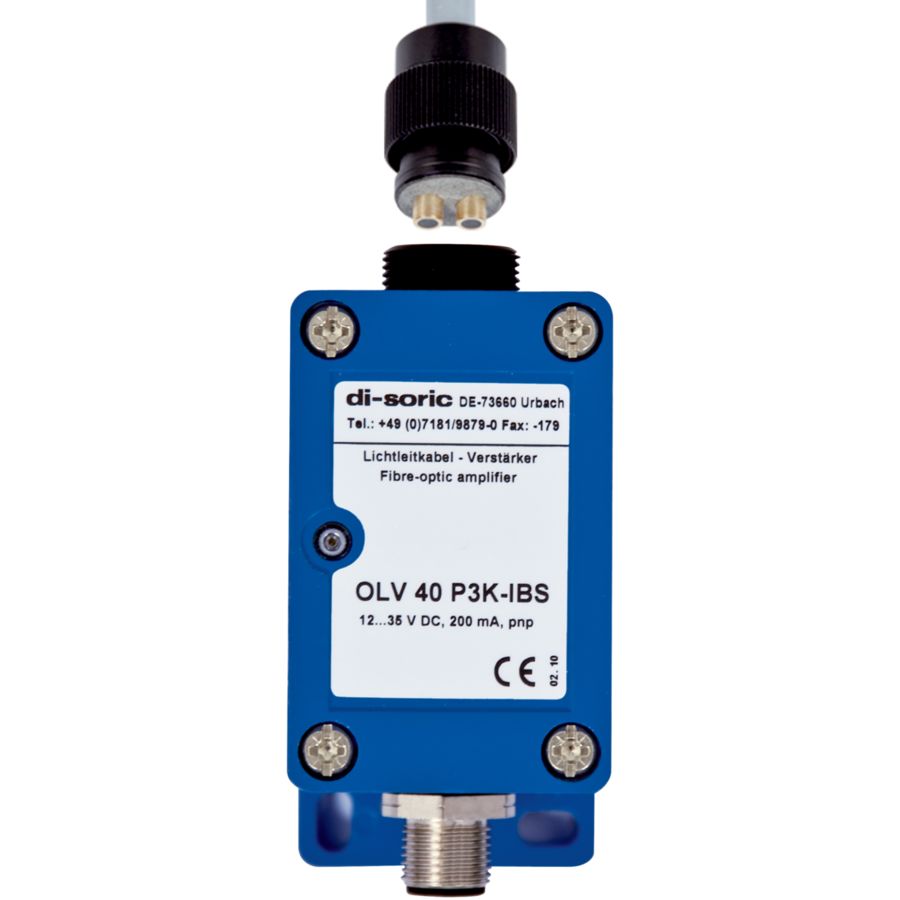

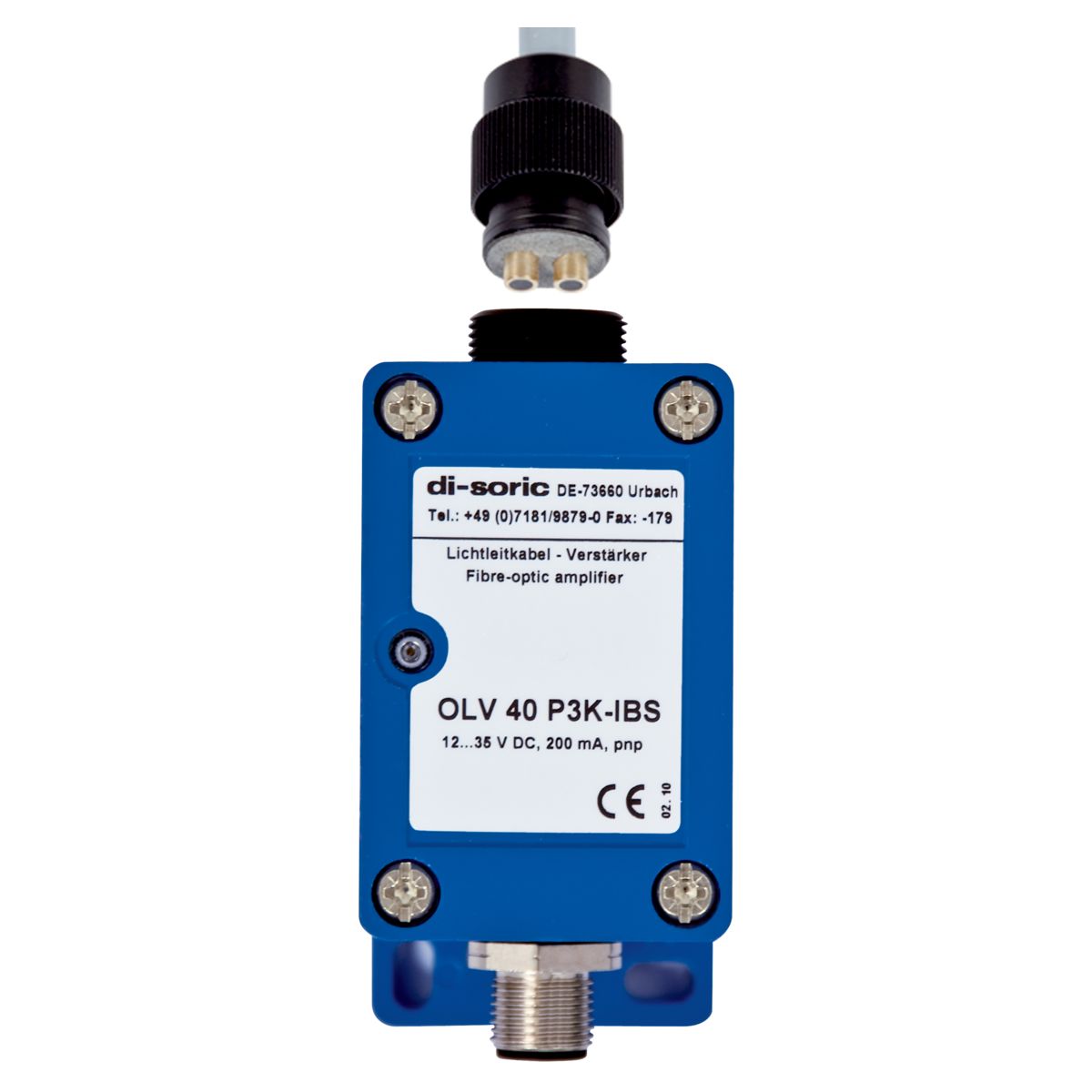

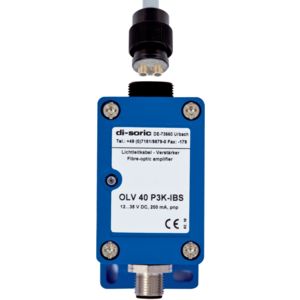

Glass Fiber-optic Amplifier - OLV 40 P3K-IBS
Part Number: OLV 40 P3K-IBS
Article Number: 201446
Technical Details
| Activation Time | 0.33 ms |
|---|---|
| Ambient Light Immunity | 20 kLx |
| Ambient Temperature During Operation | -10.0 ... 60.0°C |
| Amplifier For | Glass fiber optics M18 |
| Color | Infrared |
| Connection | Connector M12 3-pin |
| Design | Cuboid design |
| Evaluation | digital |

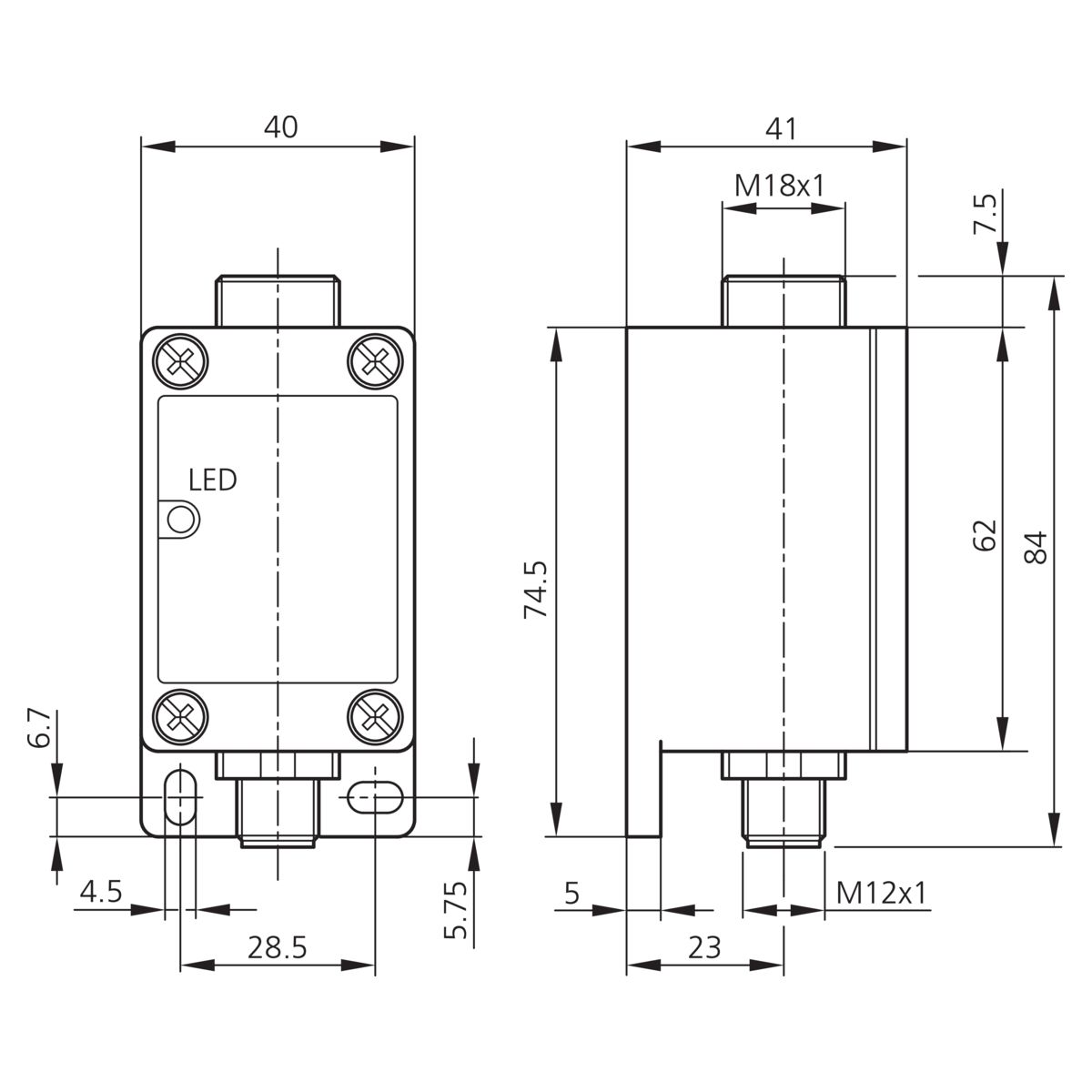

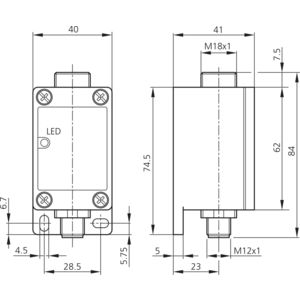

| Housing length | 74.5 mm |
| Housing Material | Die-cast zinc painted |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Light Source | LED |
| Modulation | Clocked |
| No Load Current (max.) | 55.0 mA |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 65 |
| Range | (Dependent on fiber-optic cable) |
| Release Time | 0.33 ms |
| Reproducibility | < 2 % |
| Sensitivity Adjustment | Potentiometer |
| Service Voltage | 12 ... 35.0V DC |
| Switching Frequency | 1500.0 Hz |
| Switching Hysteresis (max.) | 10.0 % |
| Switching Output | pnp 200.0 mA NO/NC programmable |
| Temperature Drift | 0.3 %/K |
| Wavelength | 880.0 nm |
