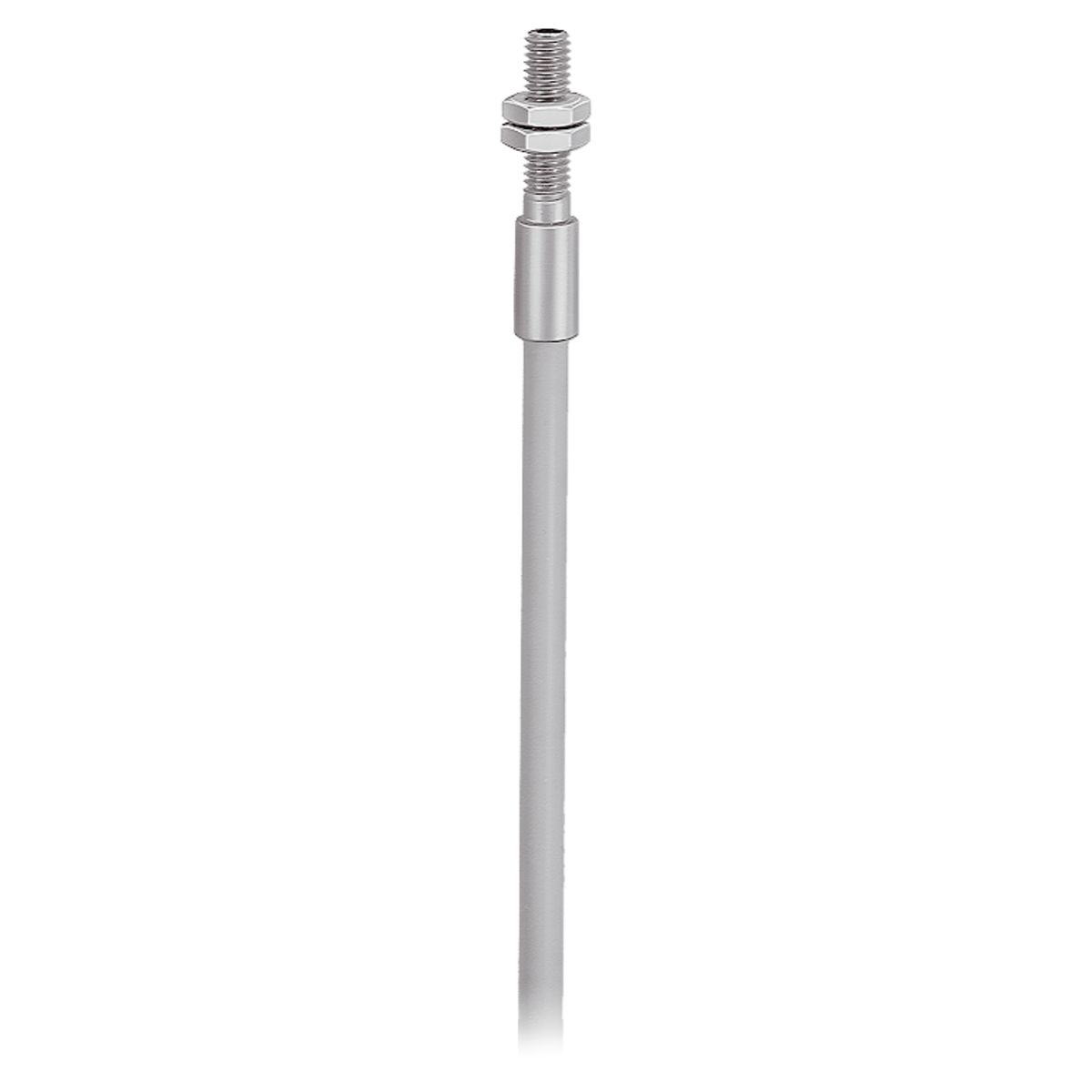

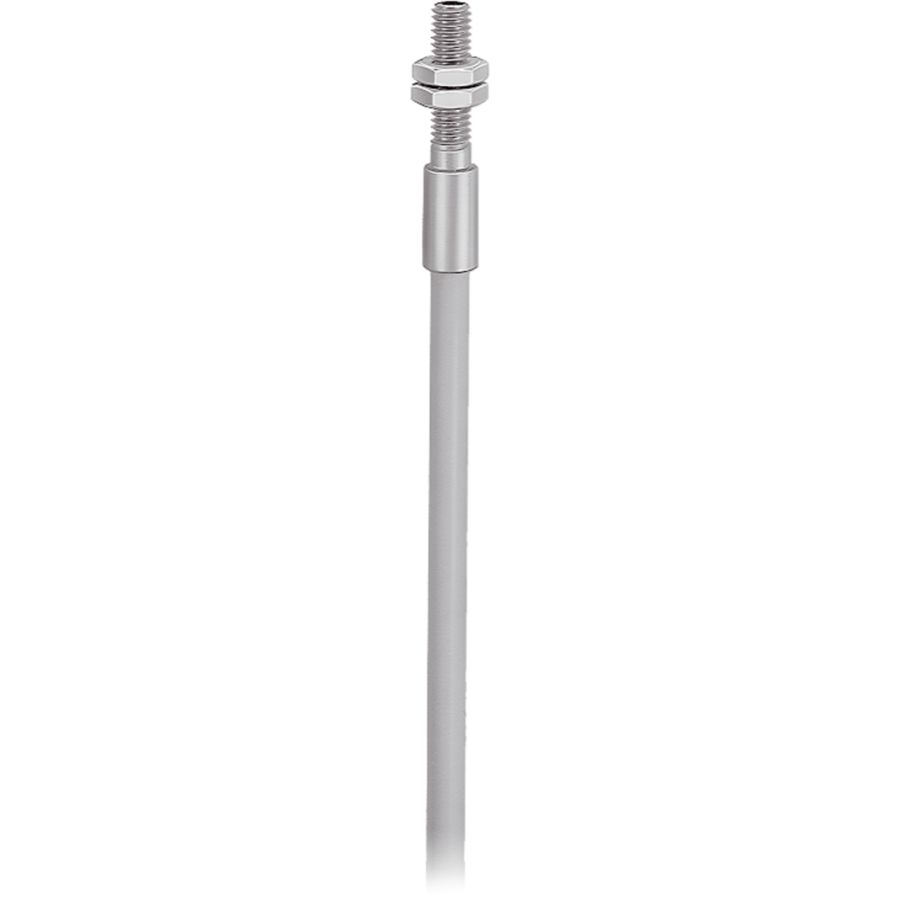

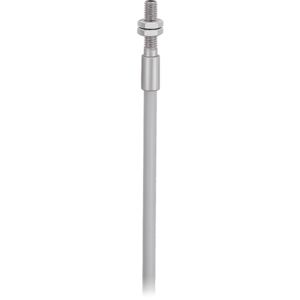

Glass Fiber Optic - WRB 120 P-SG-M6x30-2.5
Part Number: WRB 120 P-SG-M6x30-2.5
Article Number: 210903
Technical Details
| Component | Glass fiber optics |
|---|---|
| Design | Thread |
| Dimension Fiber Bundle | 2.5 mm |
| For FSB 10 M G1 B8 | To be used |
| Length | 600.0 mm |
| Light Aperture | axial |
| Material | Stainless steel;PVC Sensor probe;Coating |
| Opening Angle | 68° |
| Operating Principle | Diffuse sensor |
| Operation With | VO-M6/35-M6x30-2.5;VO-M6/50-M6x30-2.5 |
| Protection Type | IP 67 |
| Single Fiber | 0.05 mm |
| Temperature Resistance | 80.0 °C temporarily up to +250 °C |
| To Be Used For | For operating color sensors with fiber optic connection |
