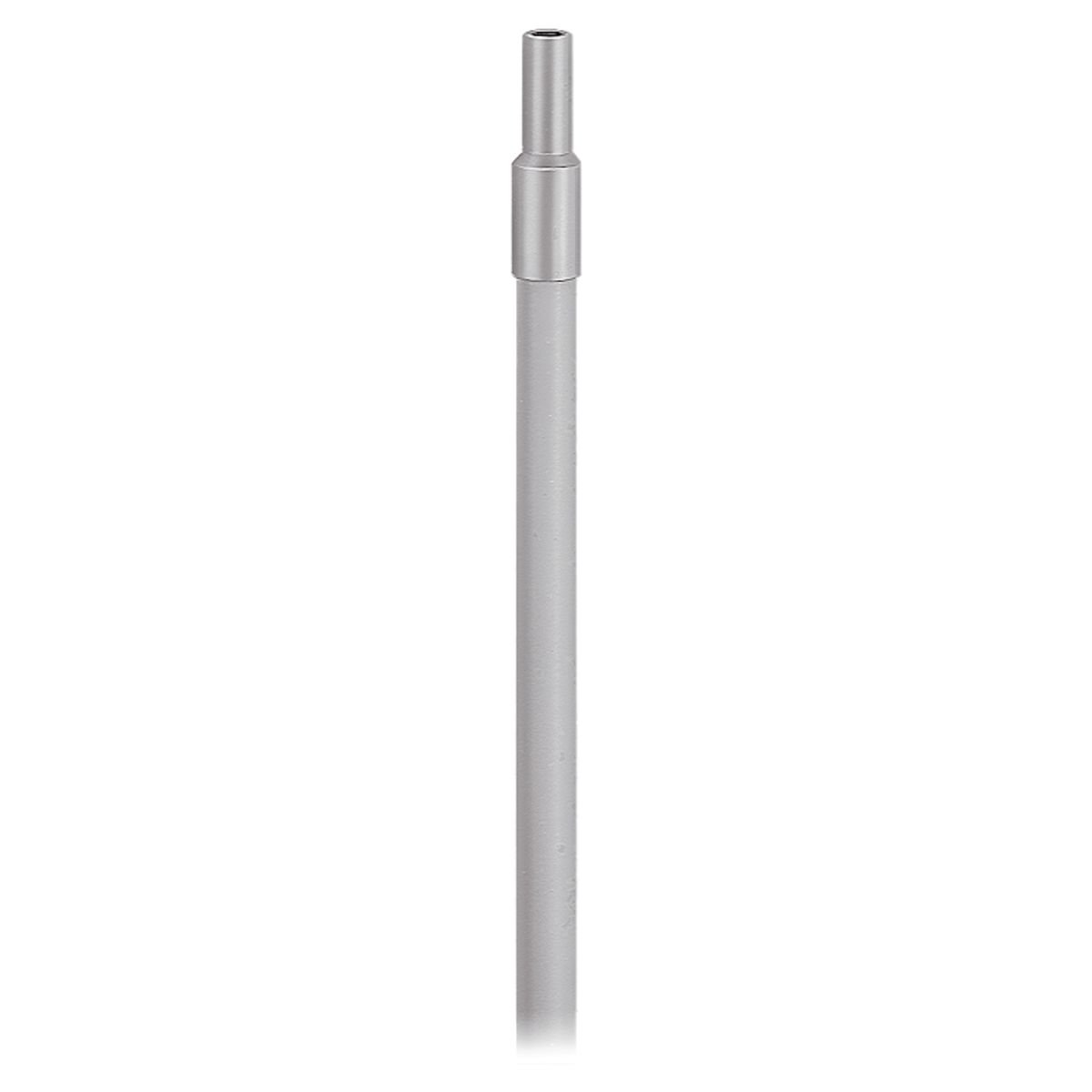

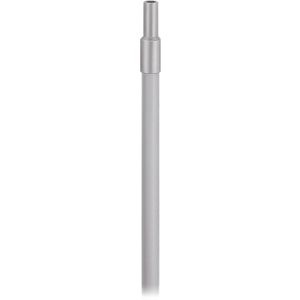

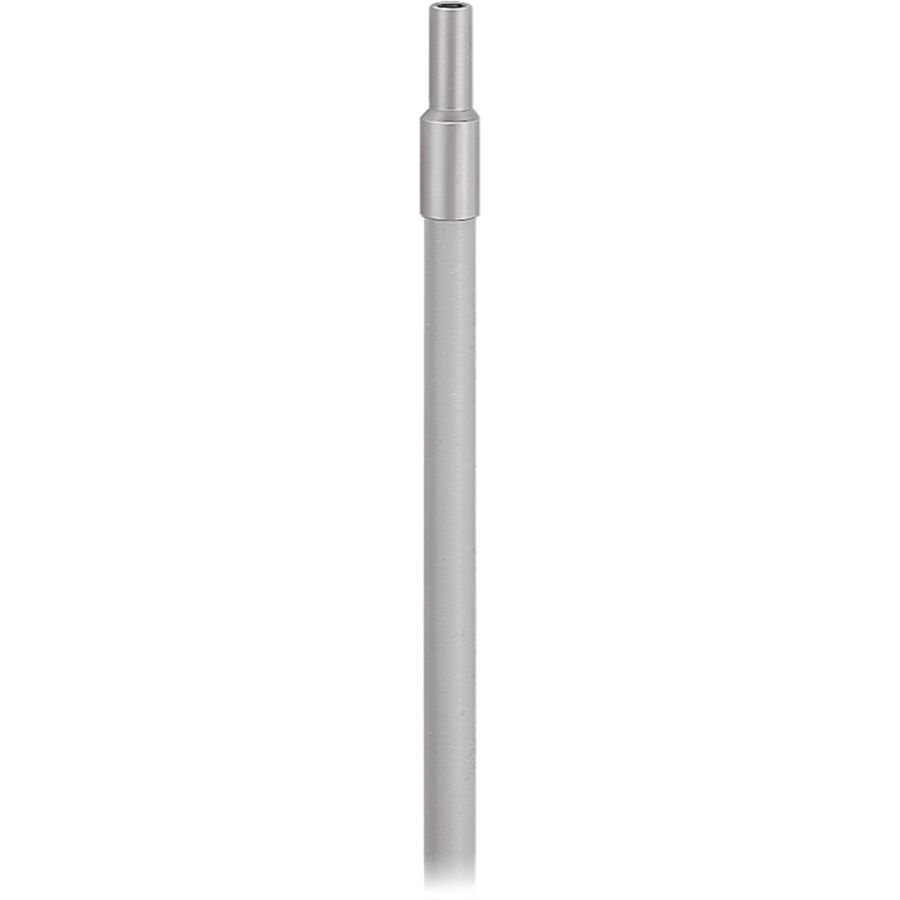

Glass Fiber Optic - WRB 120 S-SG-4.5-2.5
Part Number: WRB 120 S-SG-4.5-2.5
Article Number: 203615
Technical Details
| Bending Radius | 3.0 > x Schlauch-Ø |
|---|---|
| Component | Glass fiber optics |
| Design | Cylinder |
| Dimension Fiber Bundle | 2.5 mm |
| For FS 12 100 1 M G3 B8 | To be used |
| For FS 12 100 1 M G3 B8 E | To be used |
| For FS 12 100 2 M G3 B8 | To be used |
| For FS 50 M G3 B8 | To be used |
| For FSB 50 M 60 G3 B8 | To be used |

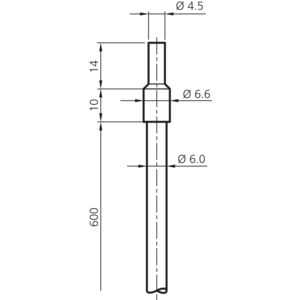

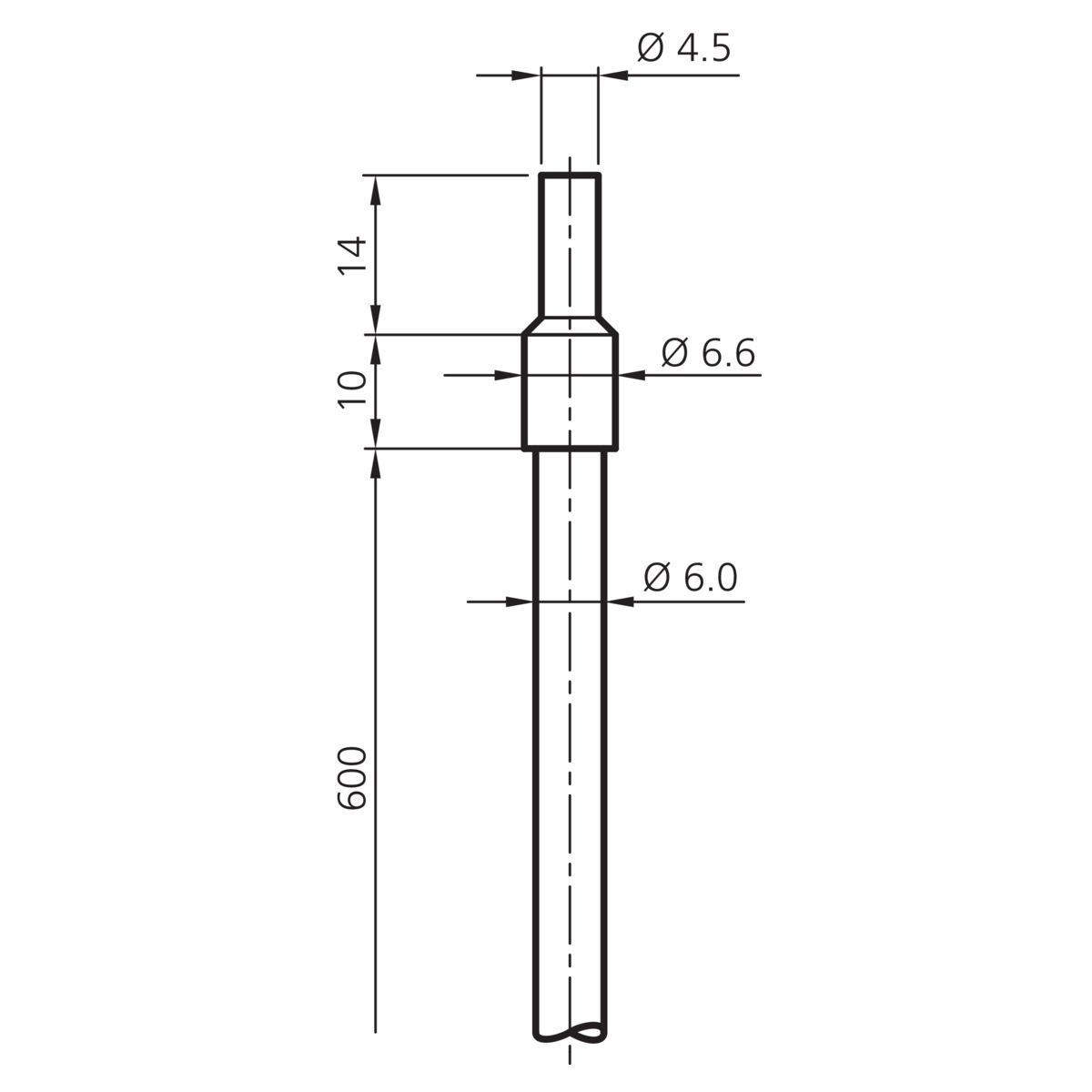

| Length | 600.0 mm Fiber optics |
| Light Aperture | axial |
| Material | Stainless steel;Silicone-metal sleeve Sensor probe;Coating |
| Mounting Diameter | 4.5 mm |
| Opening Angle | 67° |
| Operating Principle | Diffuse sensor |

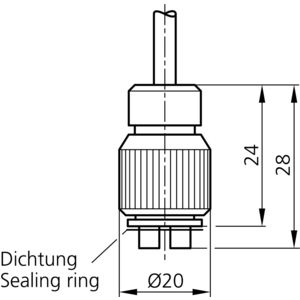

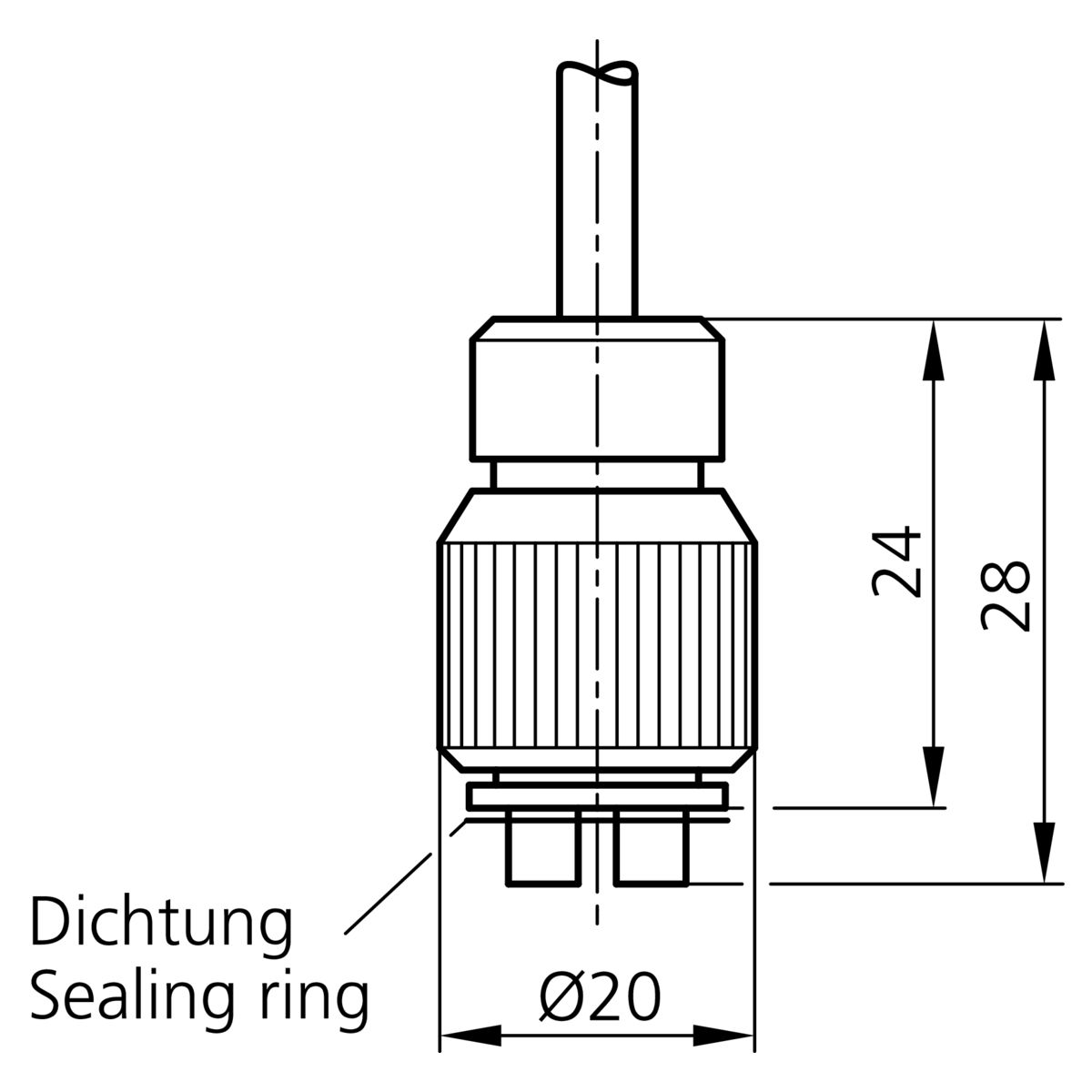

| Operation With | VO-M12/10-4.5-2.5 |
| Protection Type | IP 67 |
| Single Fiber | 0.05 mm |
| Temperature Resistance | -40.0 °C 180.0 °C temporarily up to +250 °C |
| To Be Used For | For operating color sensors with fiber optic connection |
