Glass Fiber Optic - WRB 220 S-4.5-2.5
Part Number: WRB 220 S-4.5-2.5
Article Number: 203657
Technical Details
| Bending Radius | 3.0 > x Schlauch-Ø |
|---|---|
| Component | Glass fiber optics |
| Design | Cylinder |
| For FS 12 100 1 M G3 B8 | To be used |
| For FS 12 100 1 M G3 B8 E | To be used |
| For FS 12 100 2 M G3 B8 | To be used |
| For FS 50 M G3 B8 | To be used |
| For FSB 50 M 60 G3 B8 | To be used |

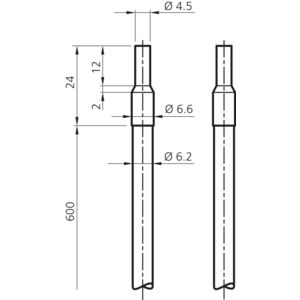

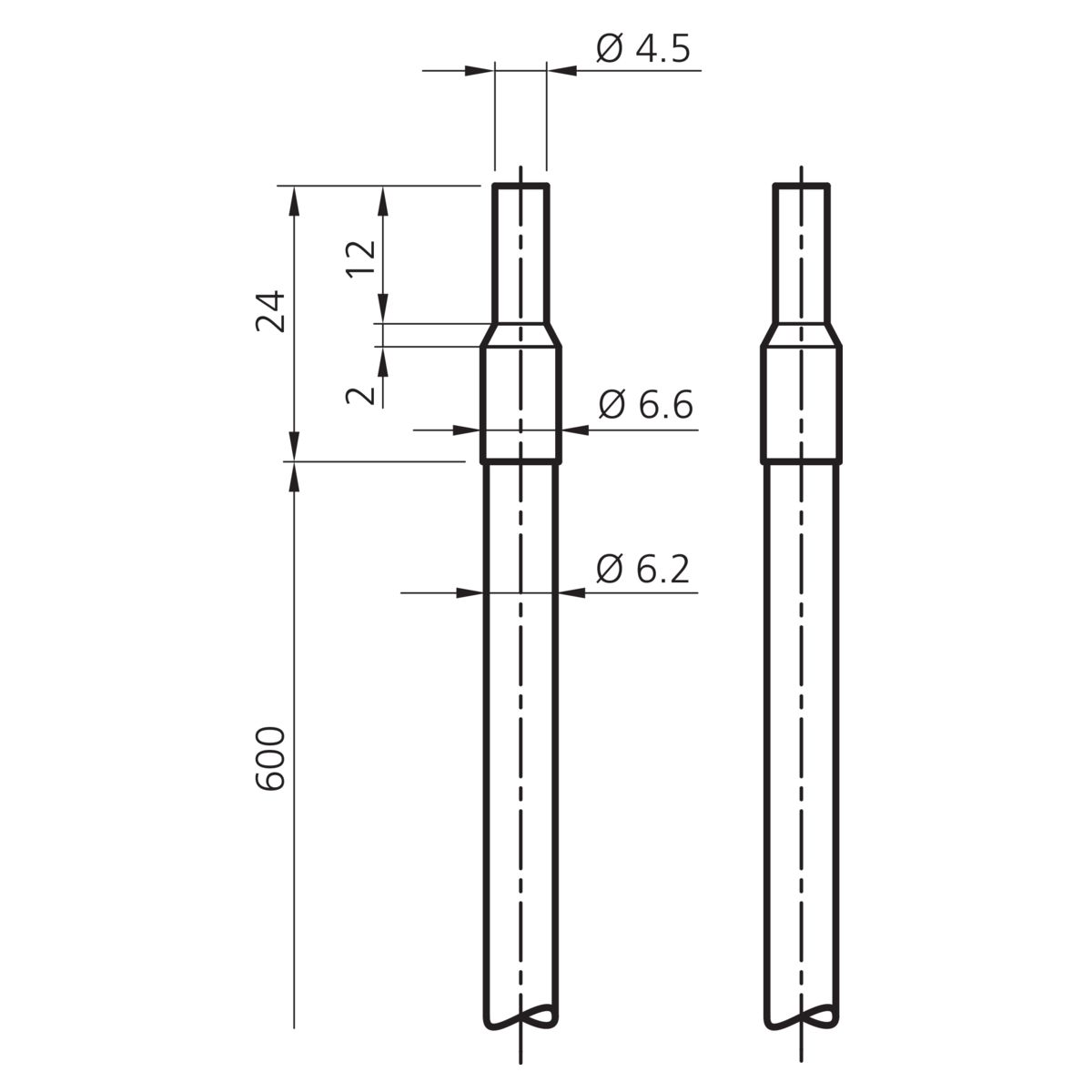

| Length | 600.0 mm |
| Light Aperture | axial |
| Material | Silicone-metal sleeve Coating |
| Opening Angle | 67° |
| Operating Principle | Through-beam sensor |
| Operation With | VO-F/90-4.5-2.5;VO-F/200-4.5-2.5 |
| Protection Type | IP 67 |
| Single Fiber | 0.05 mm |
| Temperature Resistance | -40.0 °C 180.0 °C temporarily up to +250 °C |
| To Be Used For | For operating color sensors with fiber optic connection |
