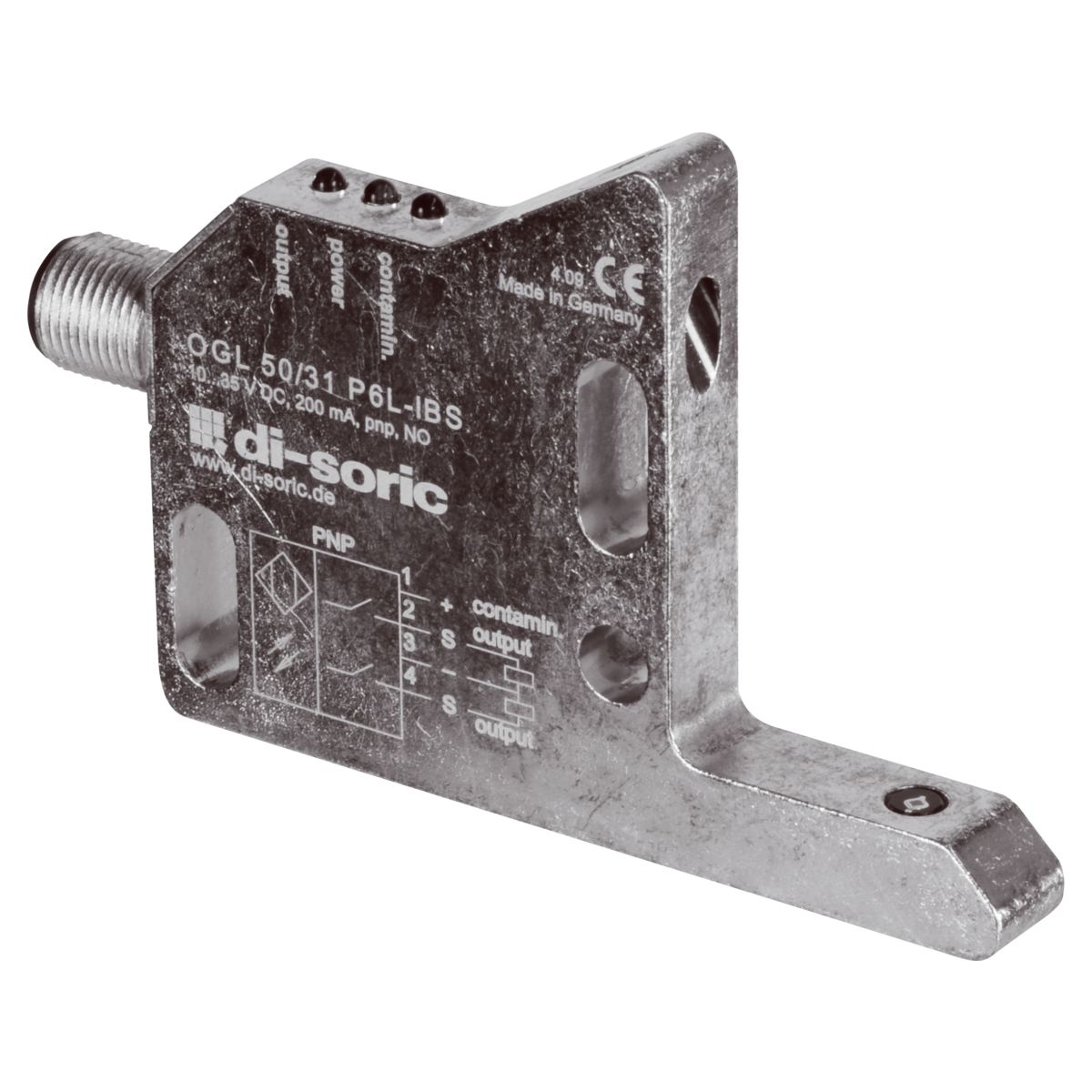

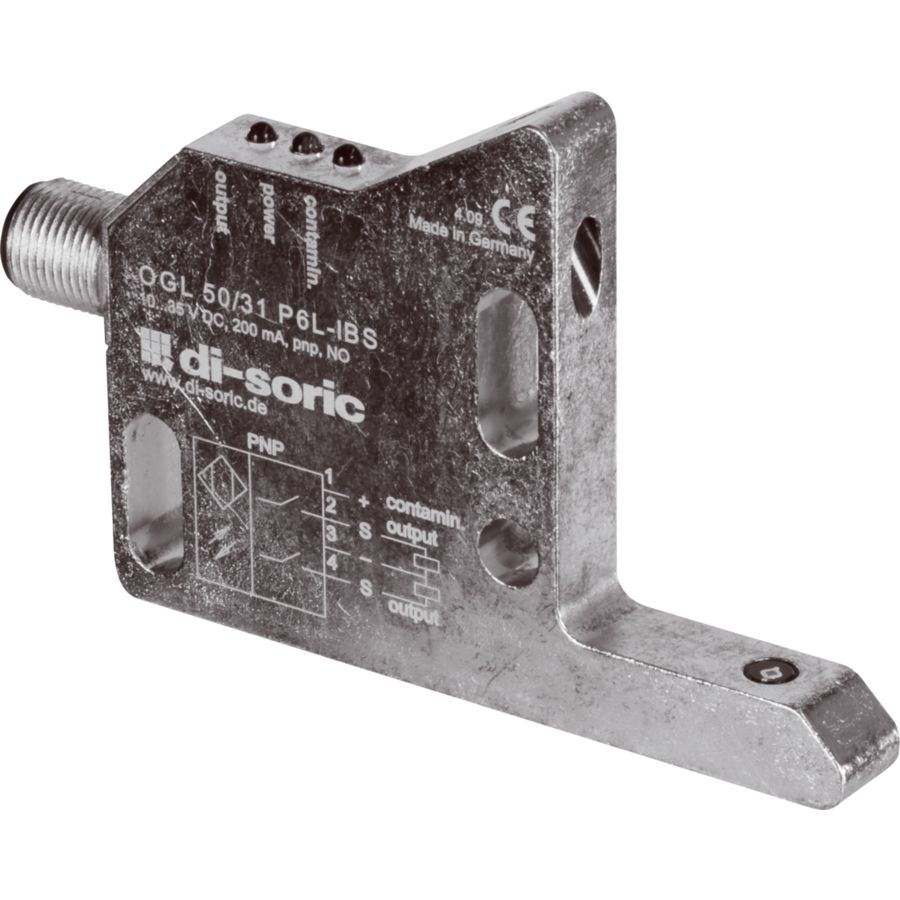

High-performance Angled Light Barrier - OGL 50/31 P6L-IBS
Part Number: OGL 50/31 P6L-IBS
Article Number: 204196
Technical Details
| Ambient Light Immunity | 5 kLx |
|---|---|
| Ambient Temperature During Operation | -10.0 ... 60.0°C |
| Characteristics | High transmit power and dirt penetration |
| Color | Red |

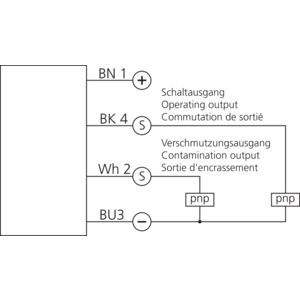

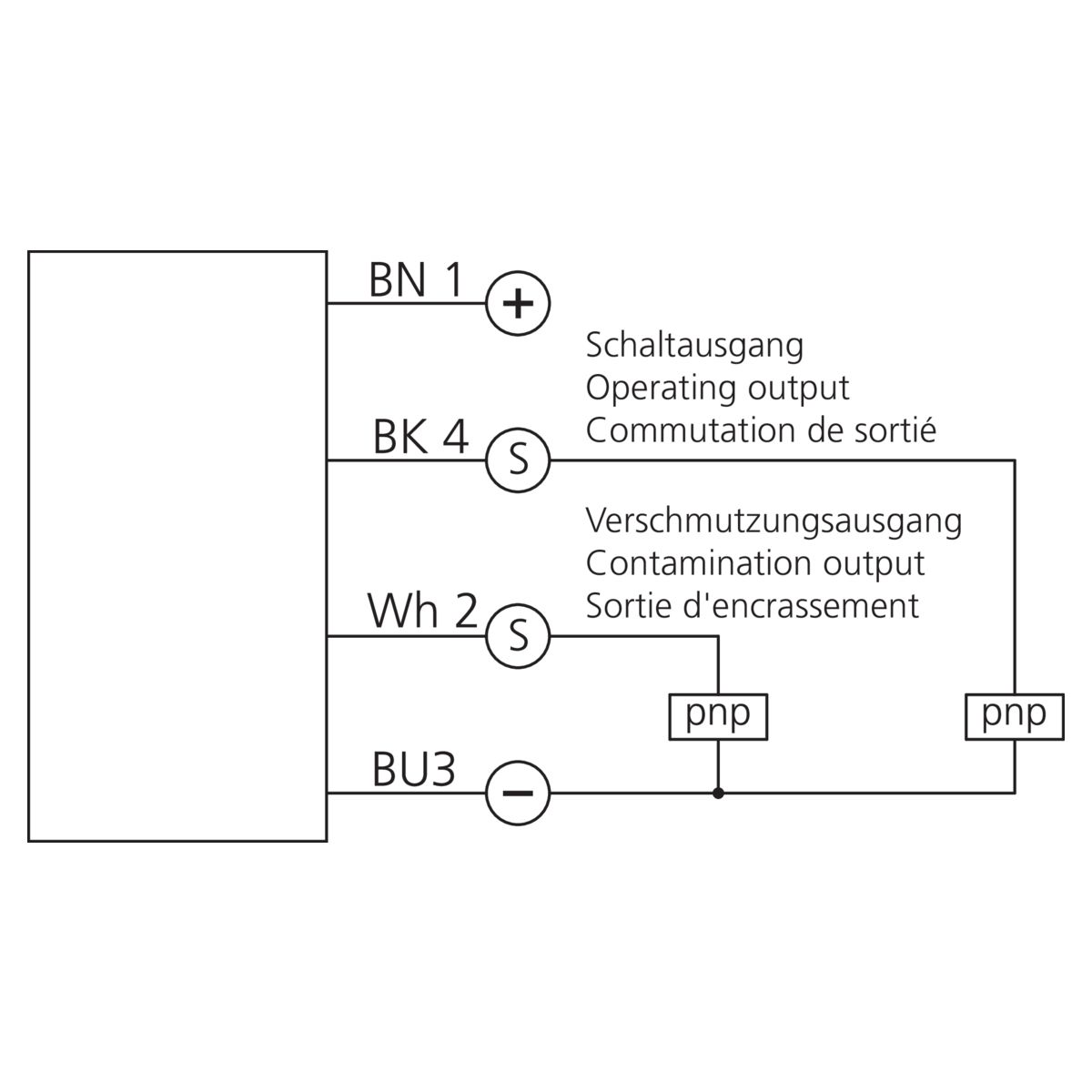

| Connection | Connector M12 4-pin |
| Connection Cable | VK ... |
| Contamination Output | pnp 200.0 mA |
| Design | Angle |
| Evaluation | digital |

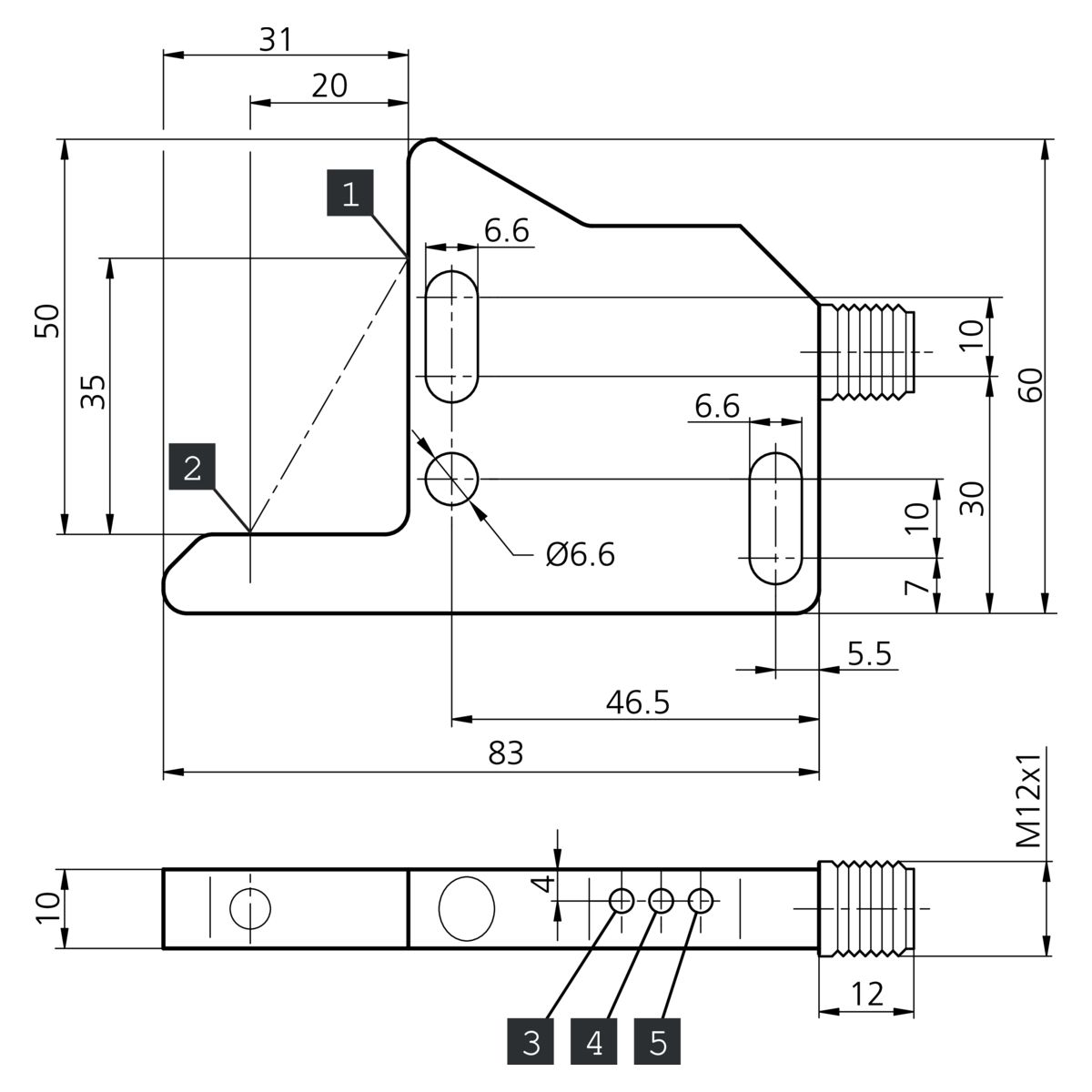

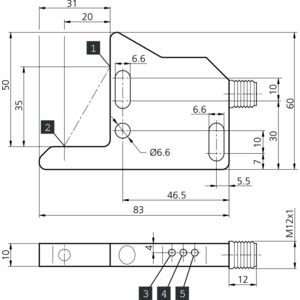

| Housing Dimensions | 60 x 83 x 10 mm |
| Housing length | 83.0 mm |
| Housing Material | Die-cast zinc |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Leg Length Internal | 50;31 mm;mm |
| Light Source | LED |
| Modulation | Clocked |
| No Load Current (max.) | 45.0 mA |
| Operating Principle | Optical |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Range | 40.0mm (optical axis) |
| Sensitivity Adjustment | no setting elements |
| Service Voltage | 10 ... 35.0V DC |
| Switching Frequency | 200.0 Hz |
| Switching Output | pnp 200.0 mA NO |
| Voltage Drop (max.) | 2.0 V |
| Wavelength | 660.0 nm |
