High Power Barlight - BE-A30/30-G5-K-BS
Part Number: BE-A30/30-G5-K-BS
Article Number: 209742
Technical Details
| Ambient Temperature During Operation | 0.0 ... 40.0°C |
|---|---|
| Color | White |

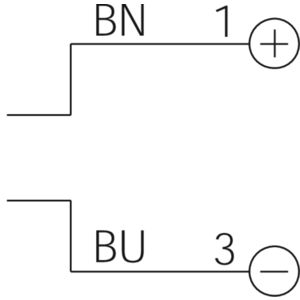

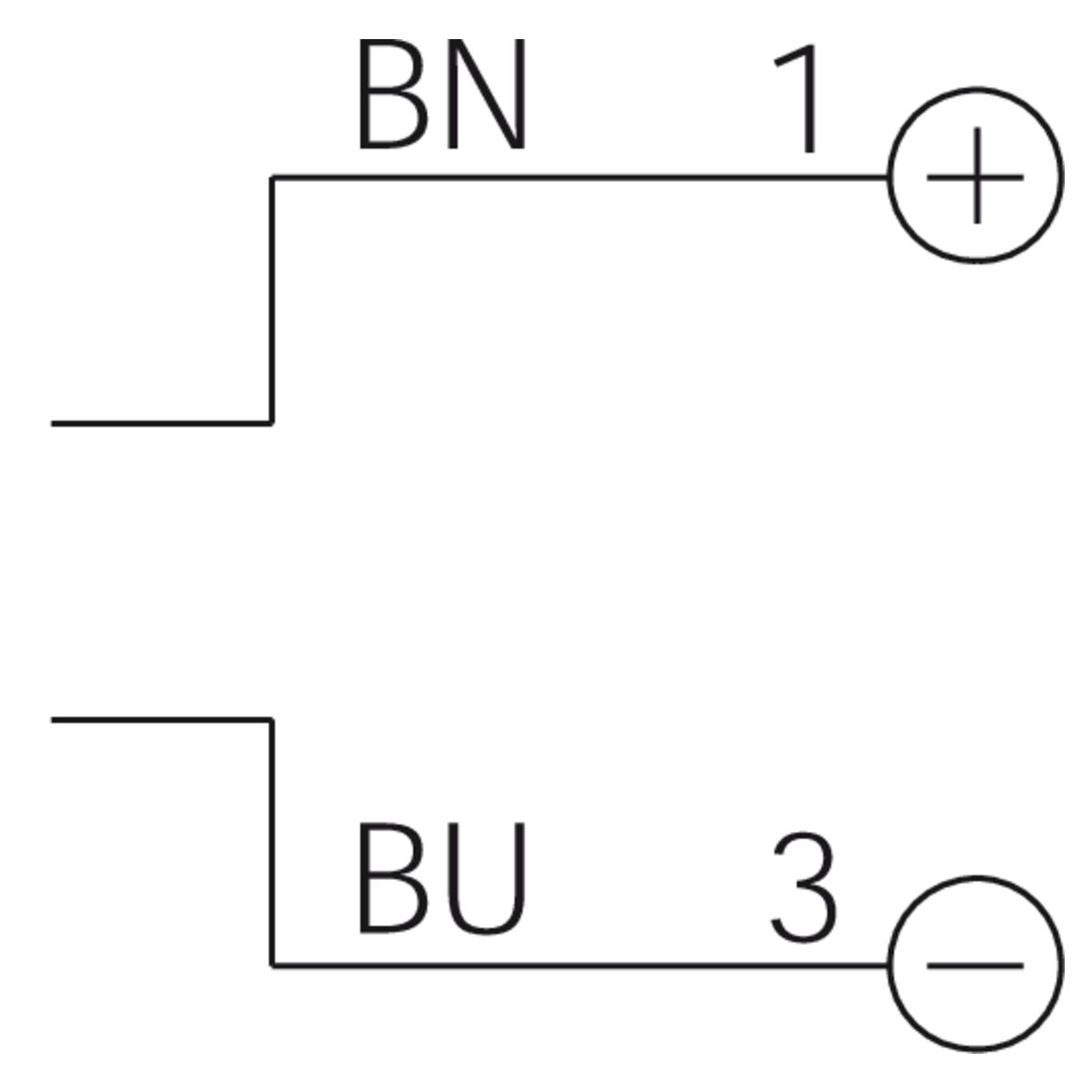

| Connection | Pigtail 0.3 m M12 3-pin |
| Connection Cable | VK ... |
| Control | without power control |
| Deflection Angle FWHM | 130.0 ° |
| Design | Barlight |

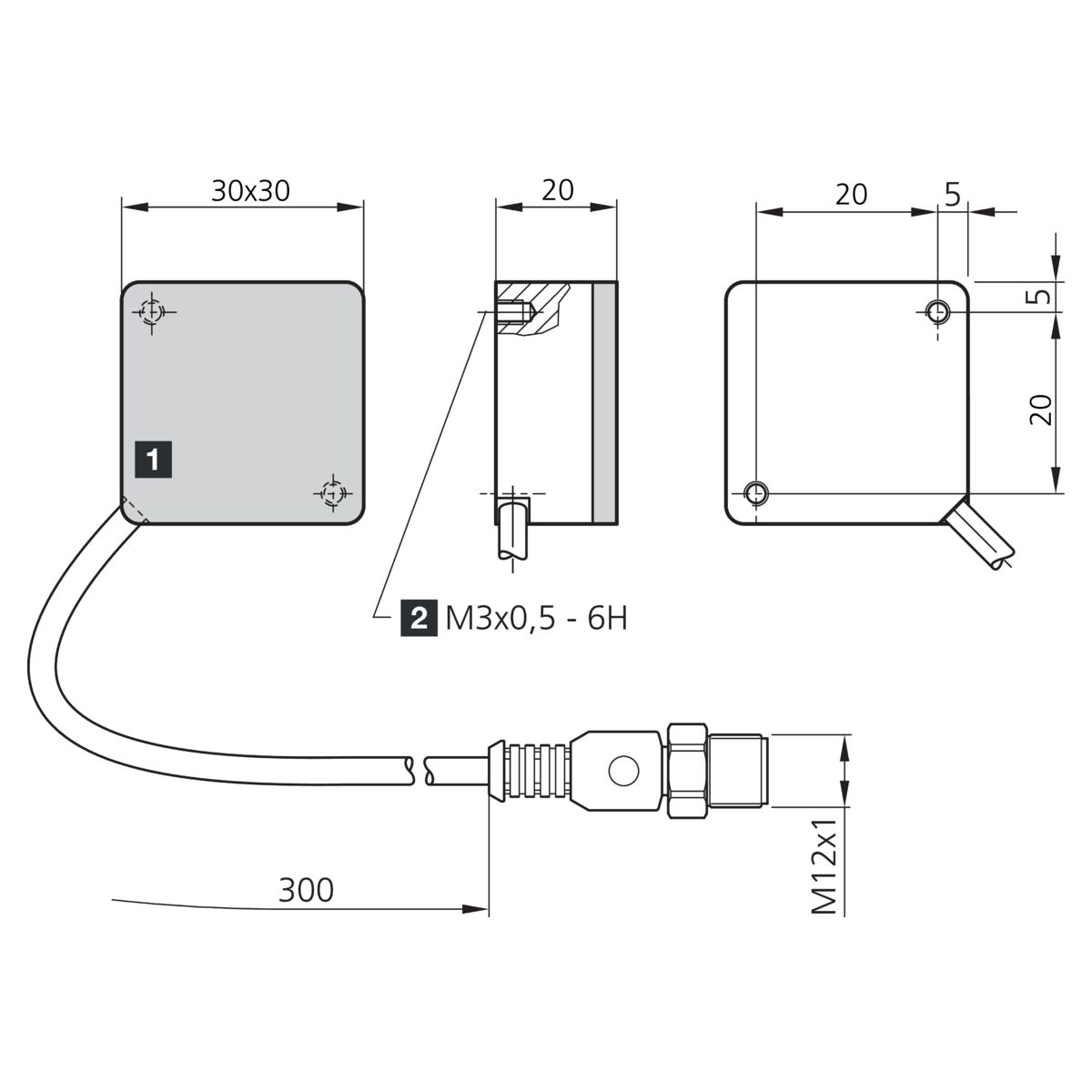

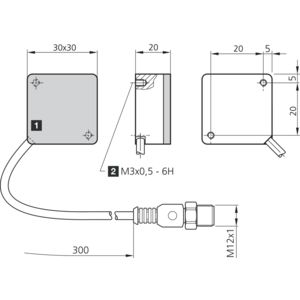

| Housing Dimensions | 30 x 30 x 20 mm |
| Housing Material | Aluminum Black Anodized |
| Illuminated Area | 30.0 mm 30.0 mm |
| Illumination Time Pulse | 1.0 |
| Internal Power Consumption | 46.0 mA 24.0 V DC |
| Inverse Polarity Protection | no |
| Light Intensity | 2.1;6;3 kLx;kLx;kLx 100;200;300 mm;mm;mm |
| Light Source | LED |
| Material | PMMA, clear Protection optics |
| Power | 1.1 W 24.0 V DC |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Risk Group (DIN EN 62471) | Free group |
| Service Voltage | 24.0 |
| Shock Vibration Load | 30 g, 11 ms / 10 ... 55 Hz, 1.0 mm |
| Wavelength | 5000 K |
| Weight | 45.0 g |
