ID-80-IM3-2-U
Part Number: ID-80-IM3-2-U
Article Number: 210542
Technical Details
| Ambient Temperature During Operation | -20.0 ... 55.0°C |
|---|---|
| Code Type 1D Codes (Barcodes) | Codabar;Code 128;Code 39;Code 11;Code 32;Pharmacode;GSI DataBar;Hong Kong 2 of 5;IATA 2 of 5;Interleaved 2 of 5;Matrix 2 of 5;MSI Plessey;NEC 2 of 5;Plessey;Straight 2 of 5;Telepen;Trioptic;UPC / EAN / JAN |
| Code Type 2D Codes | Aztec Code;Data Matrix;QR code;Micro QR Code;QR Model 1;GoCode® (protected - additional license required);Data Matrix Rectangular Extension |
| Connection | USB RJ 50 |
| Design | Handgerät |

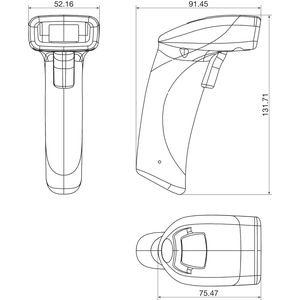

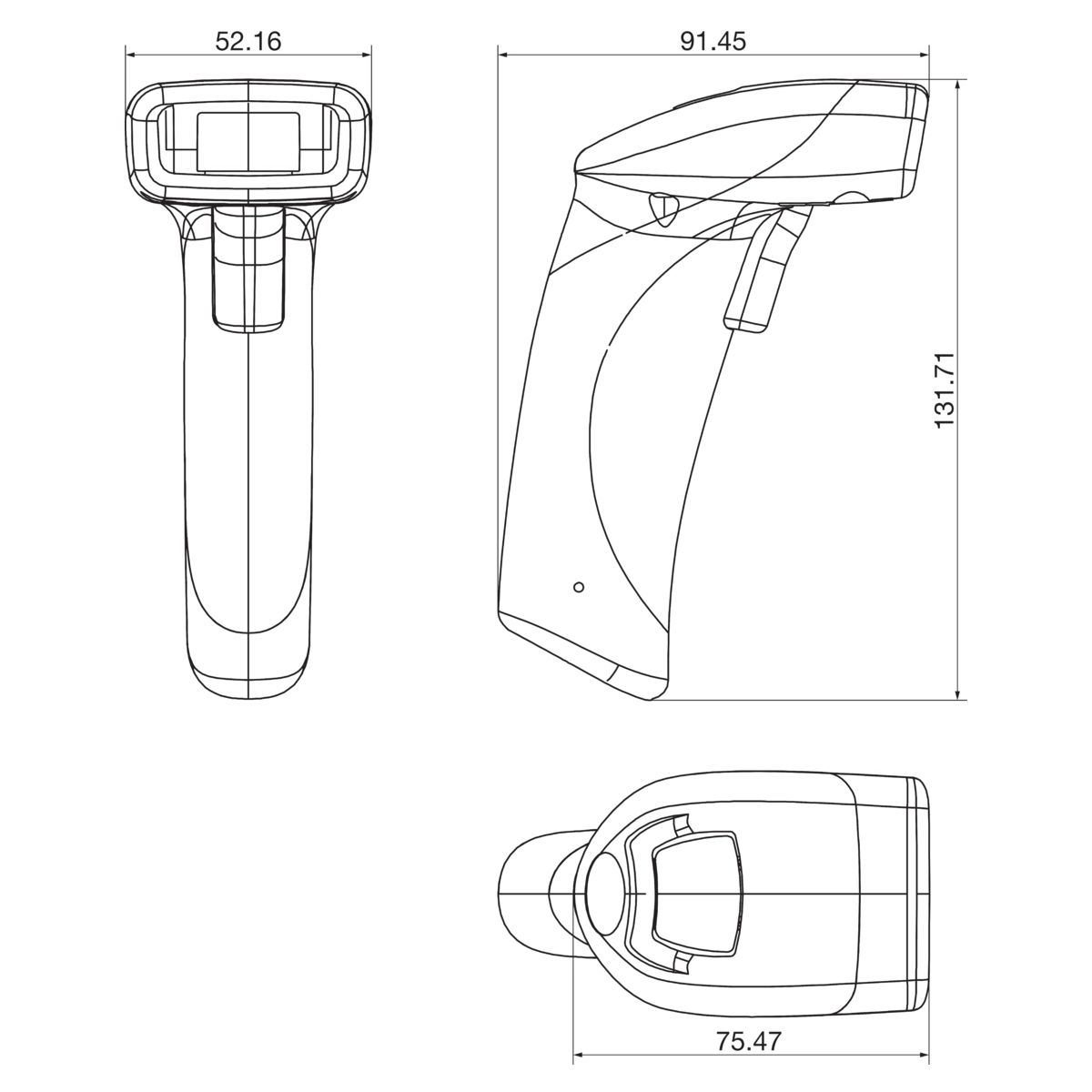

| Housing Dimensions | 132 x 52 x 91 mm |
| Illumination Time Pulse | 1.0 |

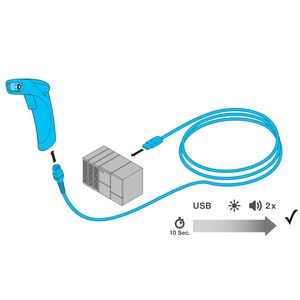

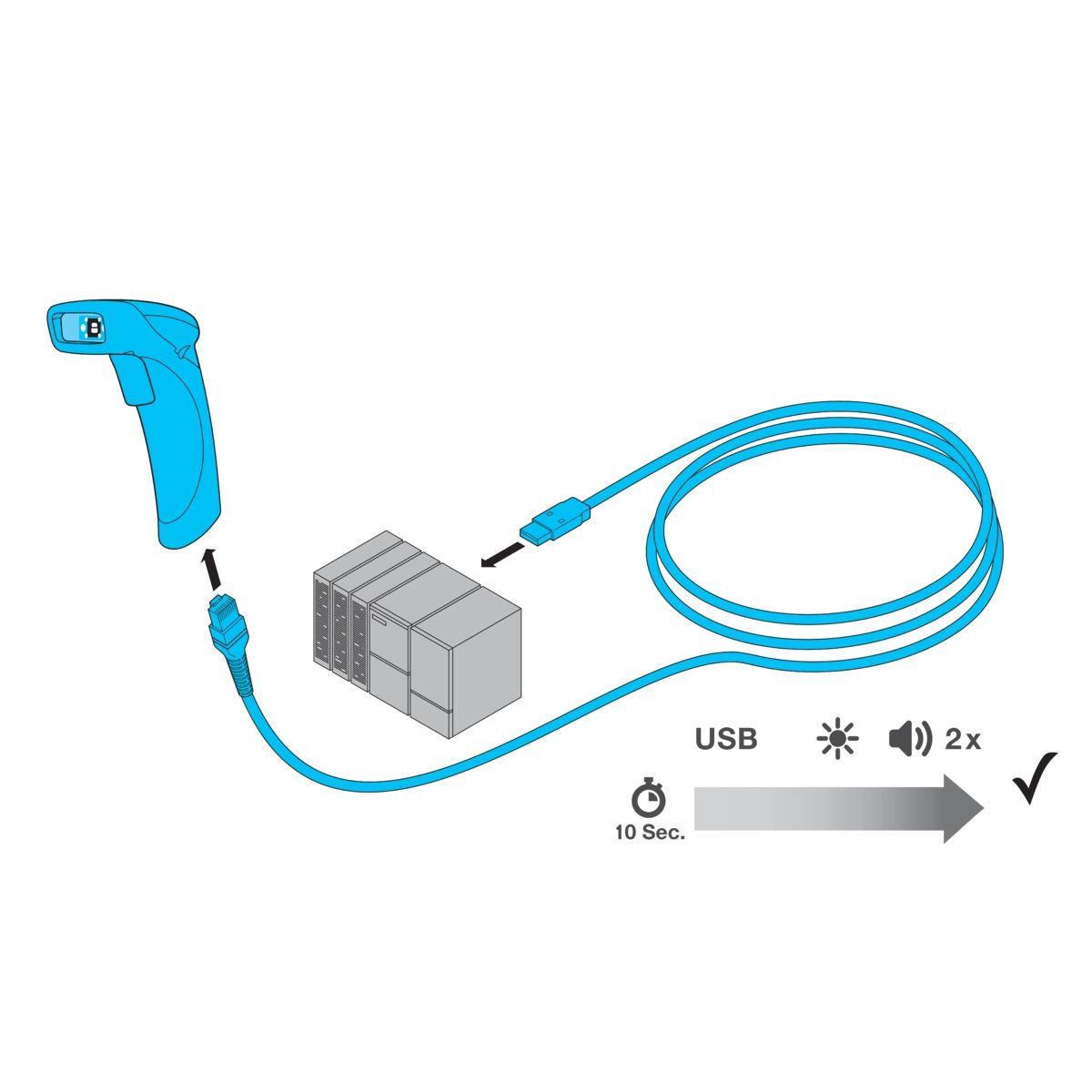

| Interface | USB Type A operation with ID-K-RJ50/U-2 |
| No Load Current (max.) | 300.0 mA |
| Note | Additional components are required for operation |
| Resolution | 1280.0 Pixel 960.0 Pixel |
| Service Voltage | 5.0 |
