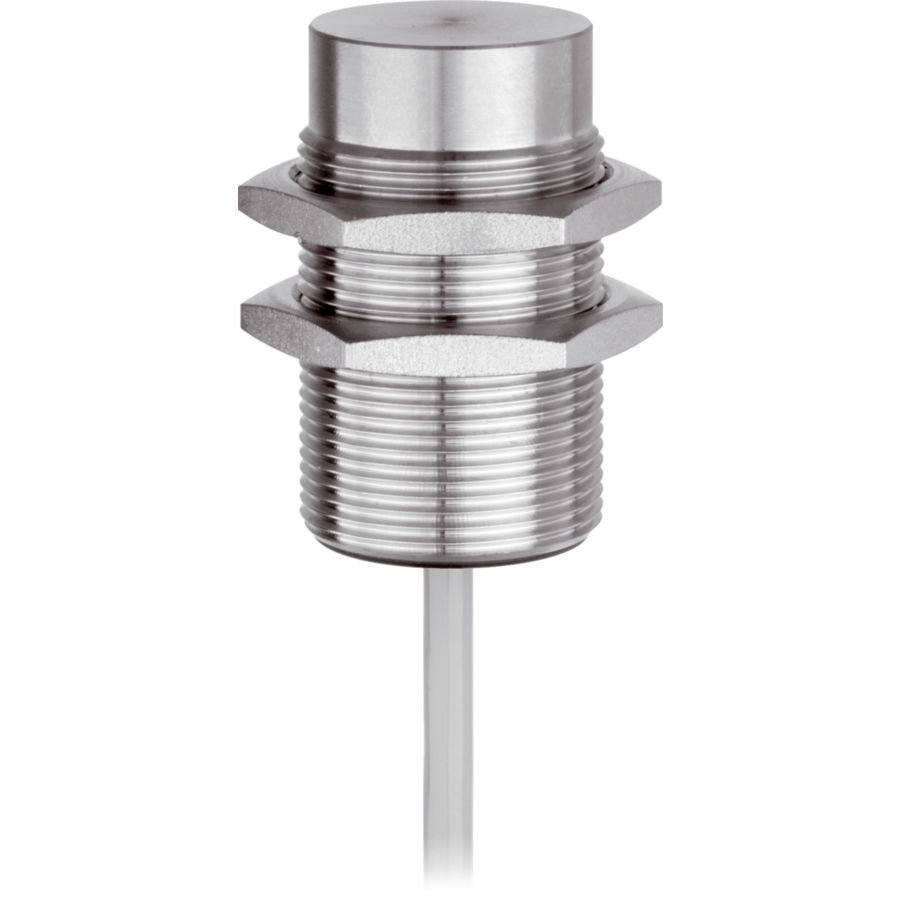

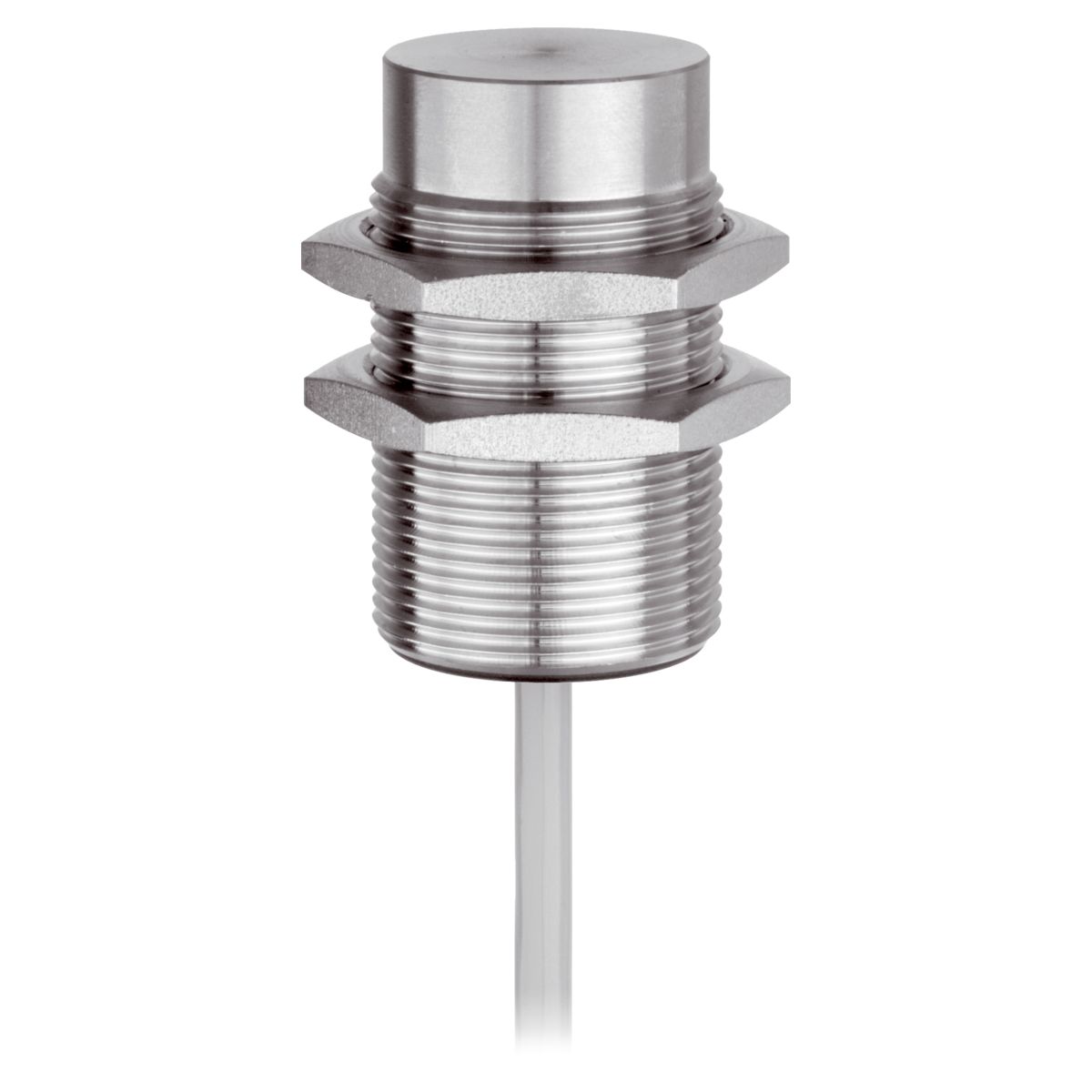

Inductive Proximity Sensor - D7C 30 V 40 POLK
Part Number: D7C 30 V 40 POLK
Article Number: 202346
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|
| Characteristics | extremely high operating distance 40 < bar Full-metal casing closed |
| Connection | Cable 2.0 m flying leads |
| Design | Thread |
| Evaluation | digital |

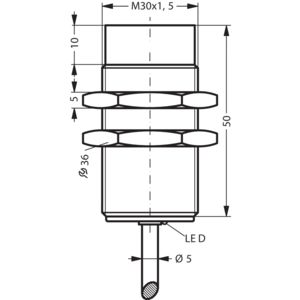

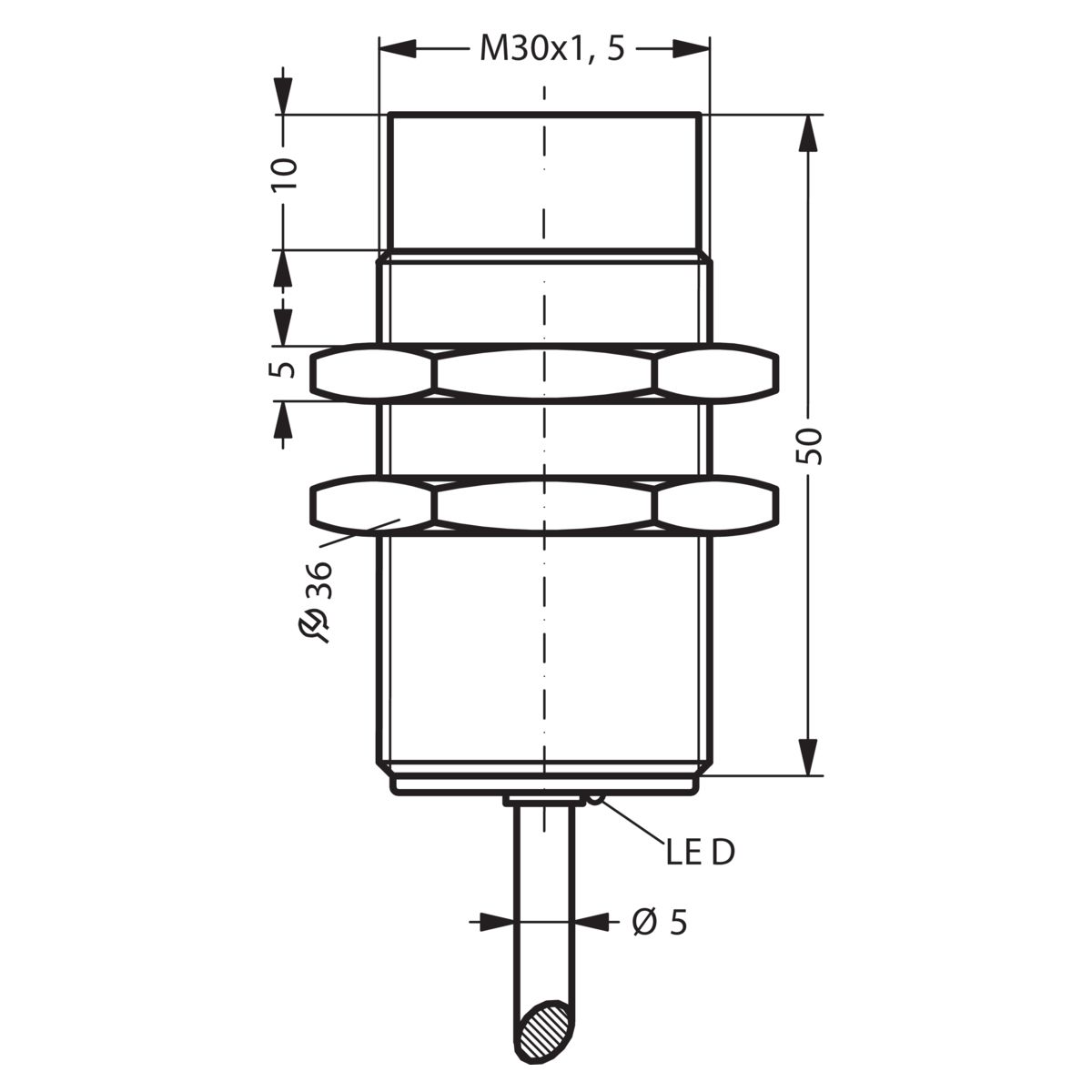

| Housing length | 51.0 mm |
| Housing Material | Stainless steel |
| Illumination Time Pulse | 1.0 |
| Installation Type | non-flush |
| Insulation Voltage Endurance | According to IEC 60947-5-2 (7.2.3.1) |
| Internal Power Consumption | 12 < mA |
| Material Of Cable | Polyurethane |
| Operating Principle | inductive |
| Product Series | INW-300 Full metal extended |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 69K |
| Screw In Length MAX UNIT | mm |
| Service Voltage | 10 ... 30.0V DC |
| Standardized Measuring Plate | 120 x 120 x 1 mm |
| Switching Distance (SN) | 40.0 mm |
| Switching Frequency | 100.0 Hz |
| Switching Hysteresis (max.) | 15.0 % 5 % typ. |
| Switching Output | pnp 200.0 mA NC |
| Thread | M30 x 1.5 |
| Tightening Torque (max.) | 150.0 Nm |
| Voltage Drop (max.) | 2.0 V |
