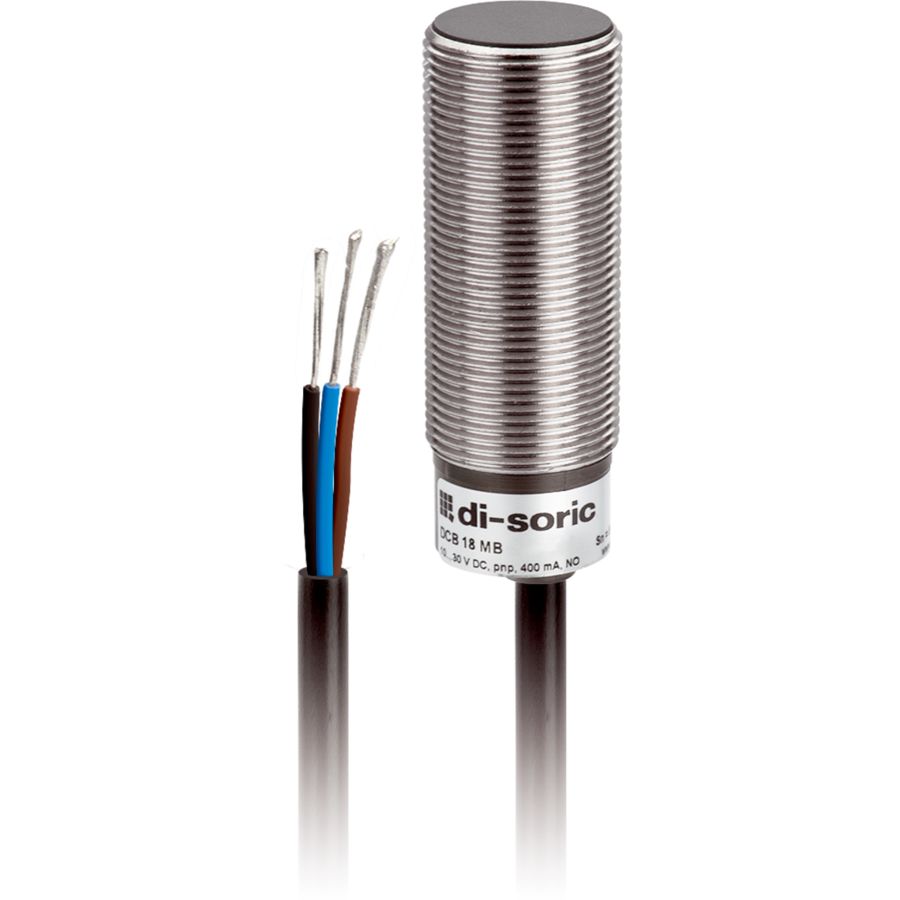

Inductive Proximity Sensor - DCB 18 MB 08 PS-3
Part Number: DCB 18 MB 08 PS-3
Article Number: 209363
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|
| Characteristics | increased operating distance |
| Connection | Cable 2.0 m flying leads |
| Design | Thread |
| Evaluation | digital |
| Housing length | 50.0 mm |
| Housing Material | Brass nickel-plated |
| Illumination Time Pulse | 1.0 |
| Installation Type | Flush |
| Insulation Voltage Endurance | 500.0 V |
| Internal Power Consumption | 20 < mA |
| Material | PBT Sensor probe |
| Material Of Cable | PVC |
| Operating Principle | inductive |
| Product Series | INE Extended |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Sensitivity Adjustment | Yes |
| Service Voltage | 10.0 ... 30.0V DC |
| Standardized Measuring Plate | 24 x 24 x 1 mm |
| Switching Distance (SN) | 8.0 mm |
| Switching Frequency | 300 Hz |
| Switching Hysteresis (max.) | 1.0 % 20.0 % |
| Switching Output | pnp 400.0 mA NO |
| Thread | M18 x 1 |
| Voltage Drop (max.) | 1.0 V 400 mA |
