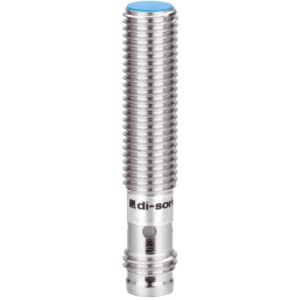

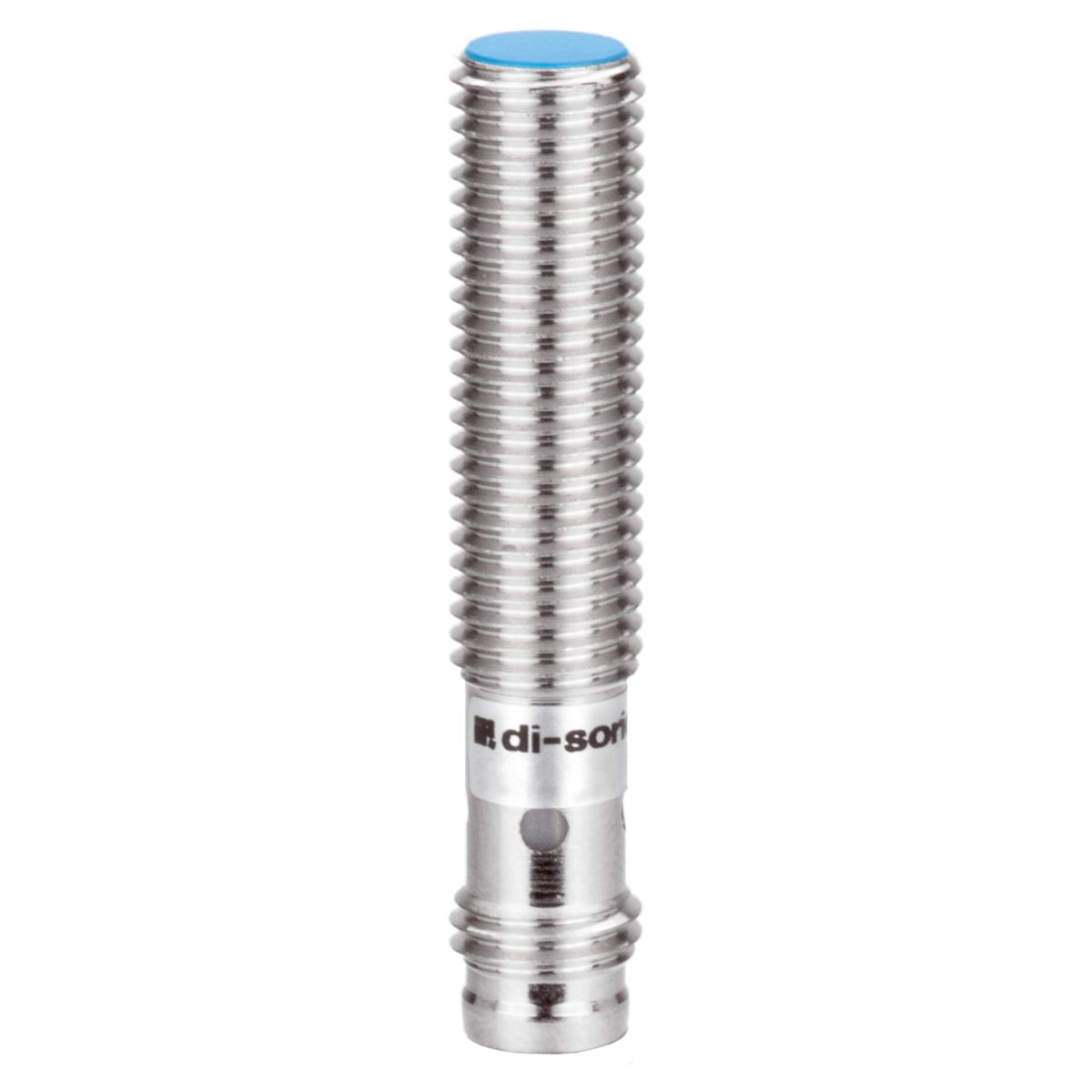

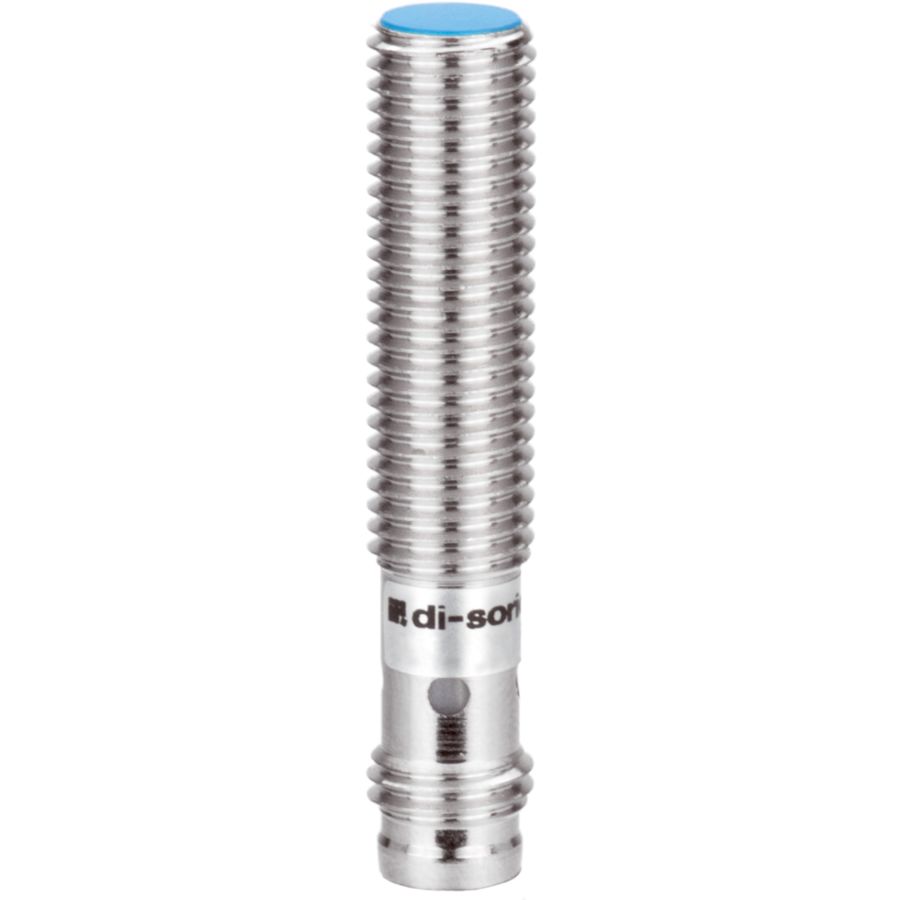

Inductive Proximity Sensor - DCBK 08 MB 1.5 PS-T3
Part Number: DCBK 08 MB 1.5 PS-T3
Article Number: 209309
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|
| Connection | Connector M8 3-pin |
| Connection Cable | TK ... |
| Design | Thread |
| Evaluation | digital |

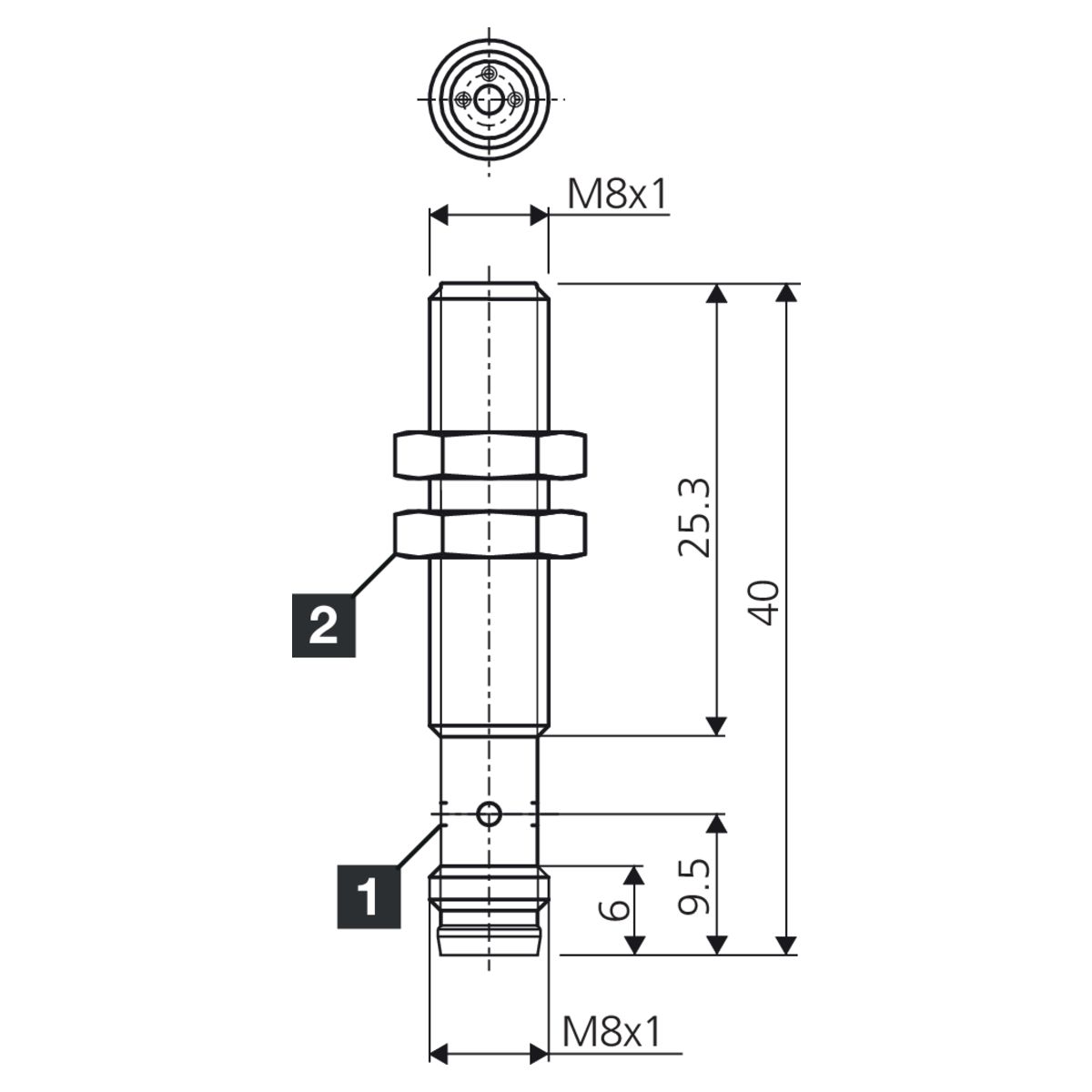

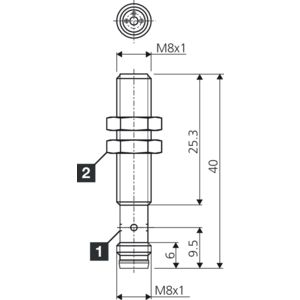

| Housing length | 40.0 mm |
| Housing Material | Brass nickel-plated |
| Illumination Time Pulse | 1.0 |
| Installation Type | Flush |
| Insulation Voltage Endurance | 500.0 V |
| Internal Power Consumption | 10 < mA |
| Material | PBT Sensor probe |
| Operating Principle | inductive |
| Product Series | IND-100 Short design |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Sensitivity Adjustment | Yes |
| Service Voltage | 10.0 ... 30.0V DC |
| Standardized Measuring Plate | 8 x 8 x 1 mm |
| Switching Distance (SN) | 1.5 mm |
| Switching Frequency | 5000 Hz |
| Switching Hysteresis (max.) | 1.0 % 20.0 % |
| Switching Output | pnp 200.0 mA NO |
| Thread | M8 x 1 |
| Voltage Drop (max.) | 1.8 V 200 mA |
