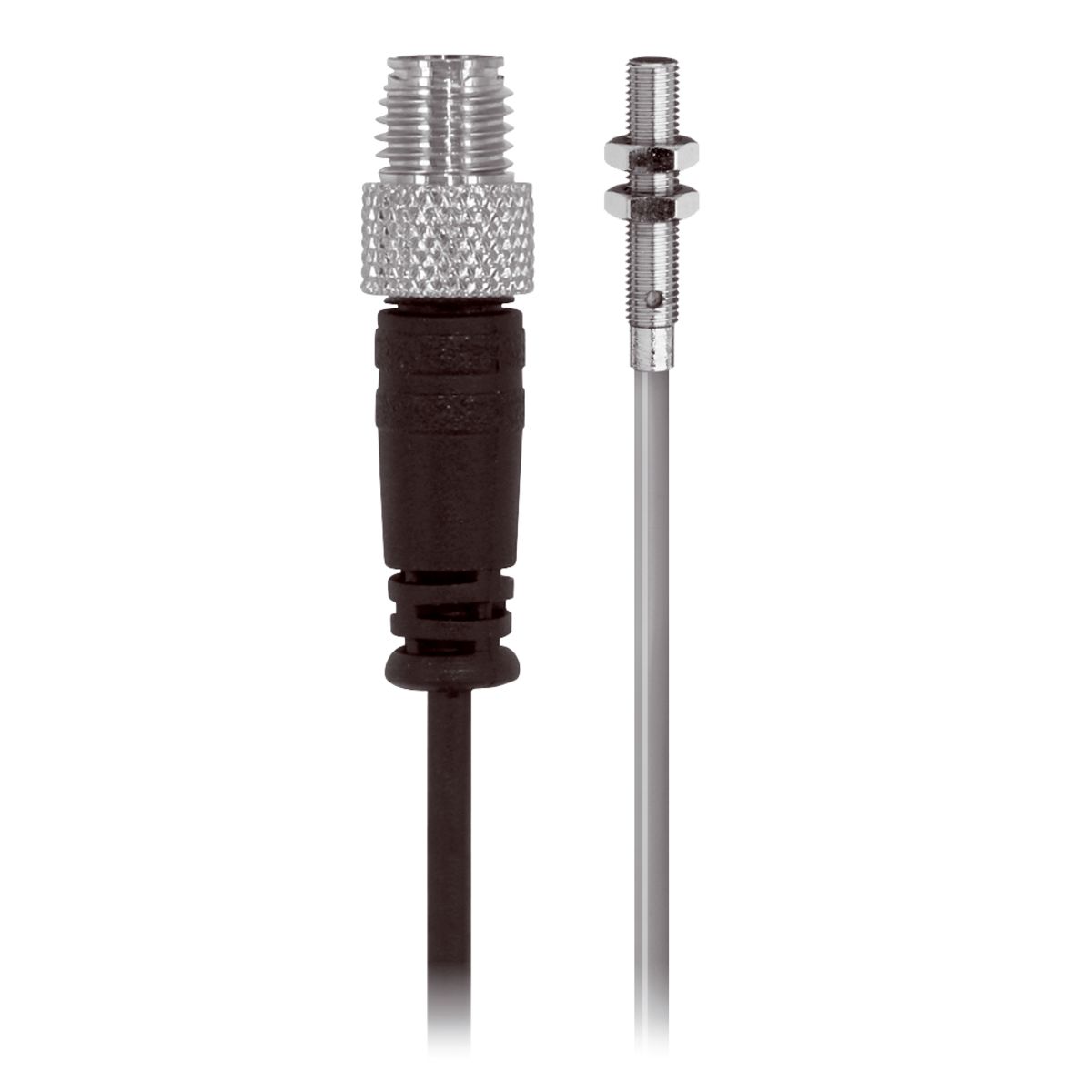

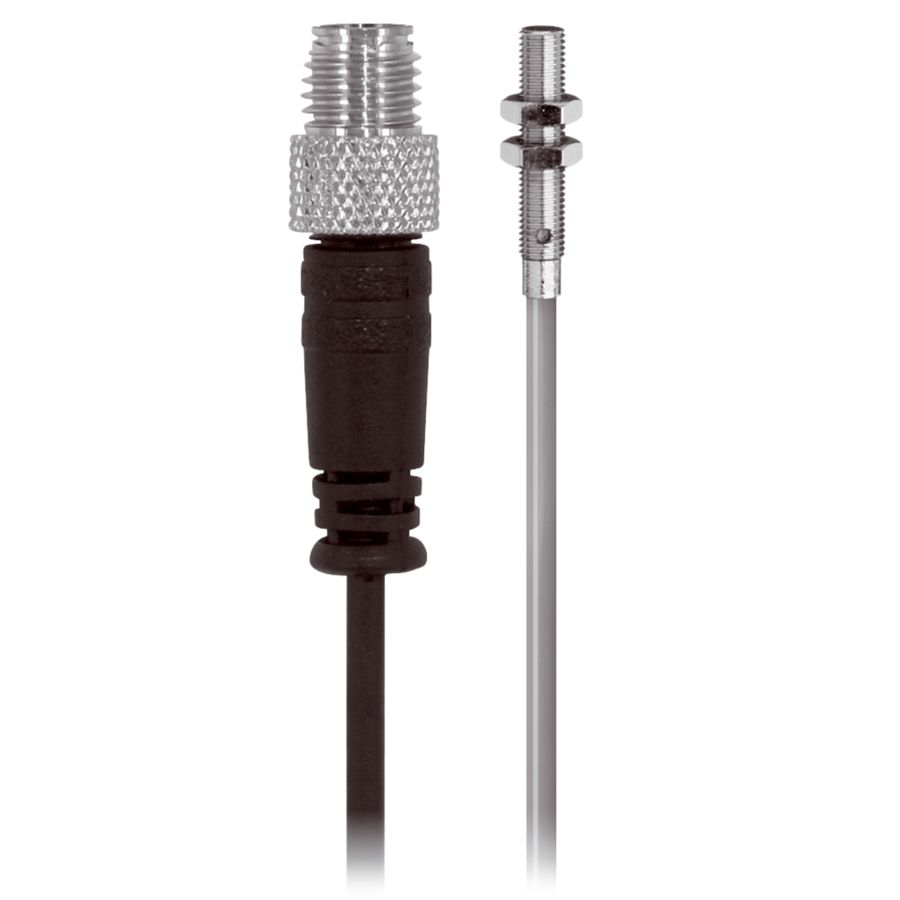

Inductive Proximity Sensor - DCC 04 V 1.0 NSK-K-TSL
Part Number: DCC 04 V 1.0 NSK-K-TSL
Article Number: 203925
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|
| Characteristics | increased operating distance |
| Connection | Pigtail 0.15 m M8 3-pin |
| Connection Cable | TK ... |
| Design | Thread |
| Evaluation | digital |

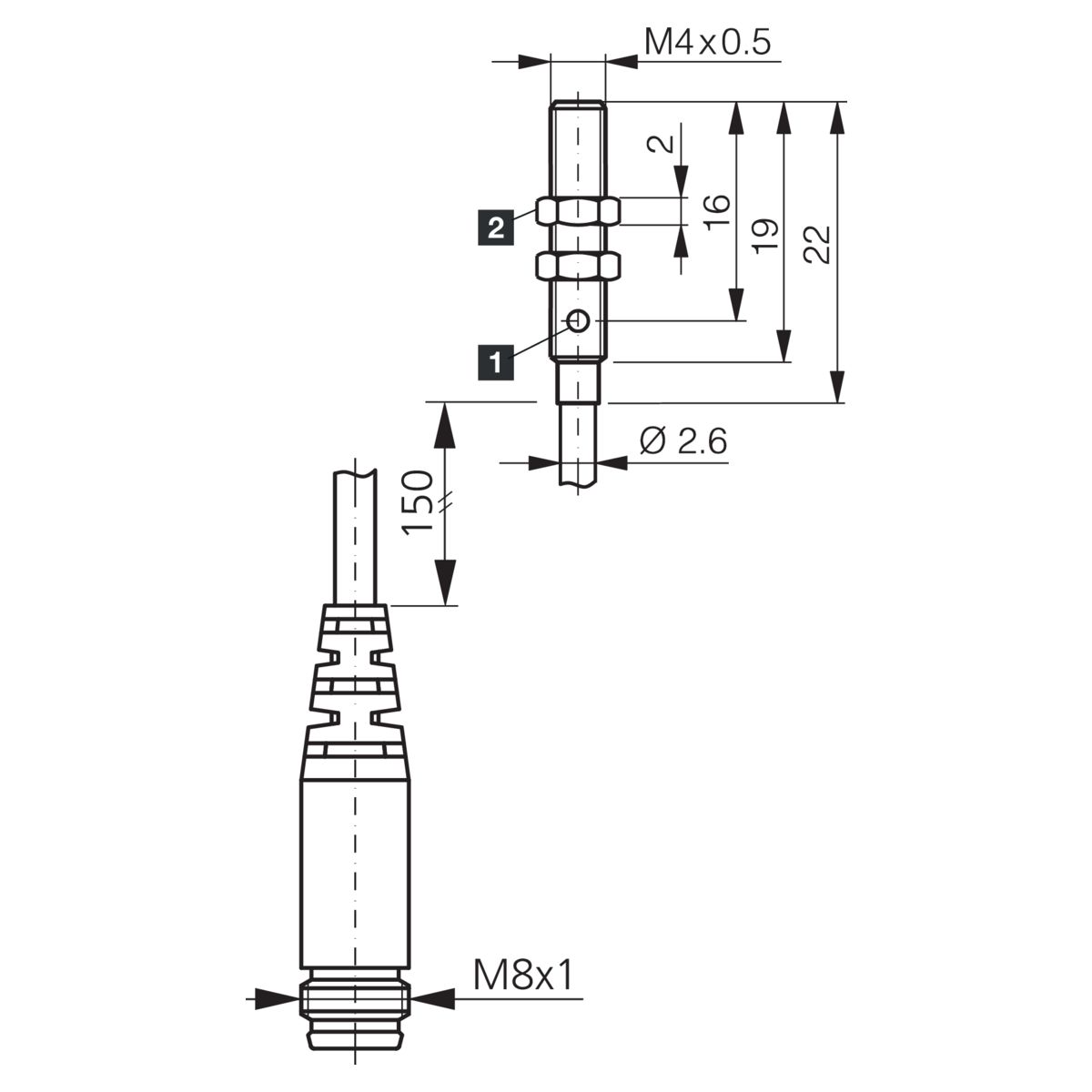

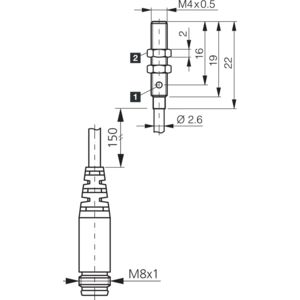

| Housing length | 22.0 mm |
| Housing Material | Stainless steel V2A |
| Illumination Time Pulse | 1.0 |
| Installation Type | Flush |
| Insulation Voltage Endurance | According to IEC 60947-5-2 (7.2.3.1) |
| Internal Power Consumption | 10 < mA |
| Operating Principle | inductive |
| Product Series | INM-300 Miniature Extended |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Screw In Length MAX UNIT | mm |
| Service Voltage | 10 ... 30.0V DC |
| Standardized Measuring Plate | 4 x 4 x 1 mm |
| Switching Distance (SN) | 1.0 mm |
| Switching Frequency | 3000.0 Hz |
| Switching Hysteresis (max.) | 10.0 < % |

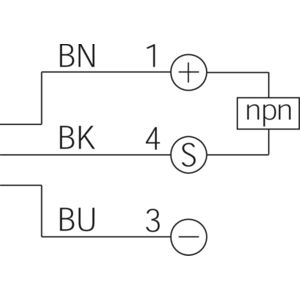

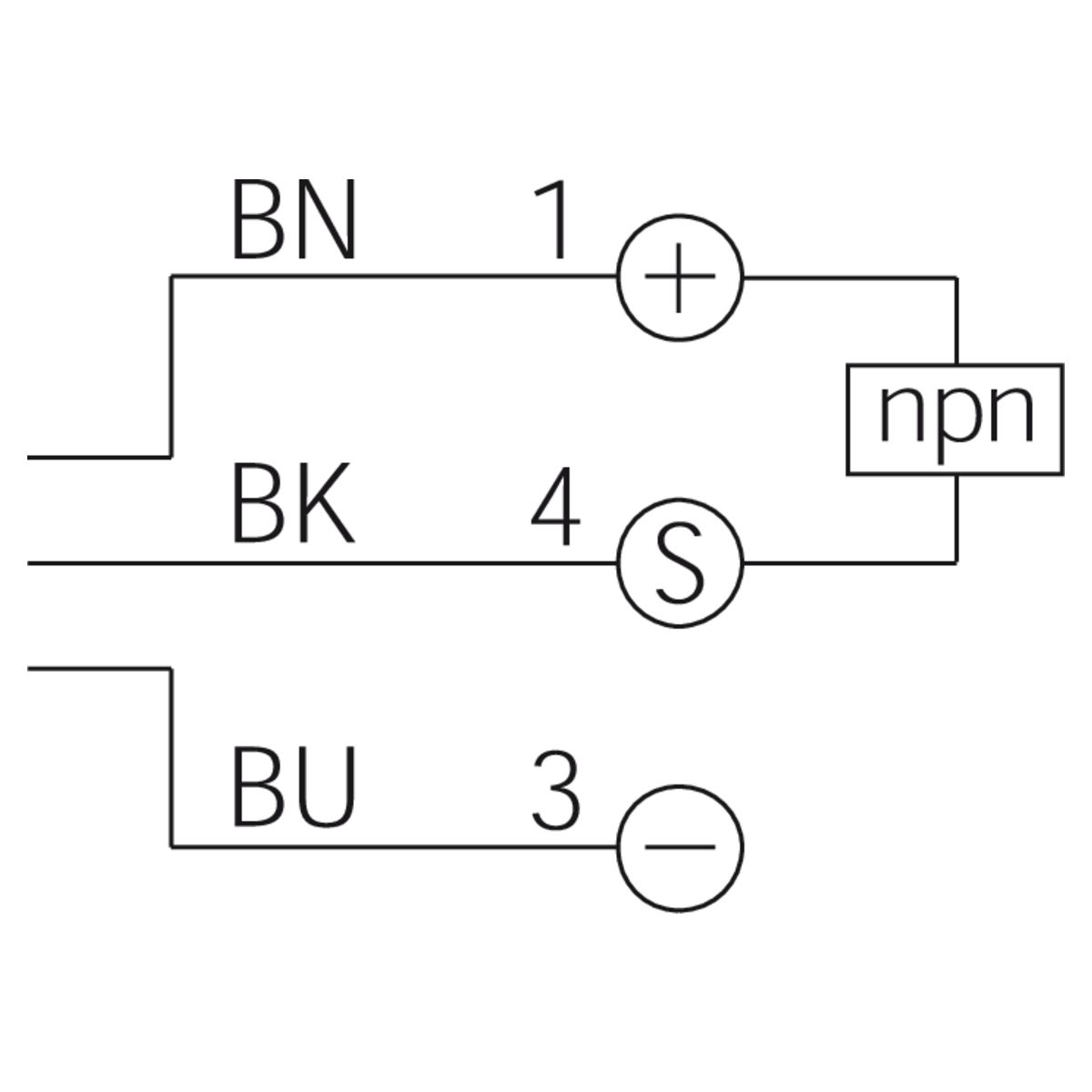

| Switching Output | npn 100.0 mA NO |
| Thread | M4 x 0.5 |
| Tightening Torque (max.) | 0.8 Nm |
| Voltage Drop (max.) | 2.0 V 100 mA |
