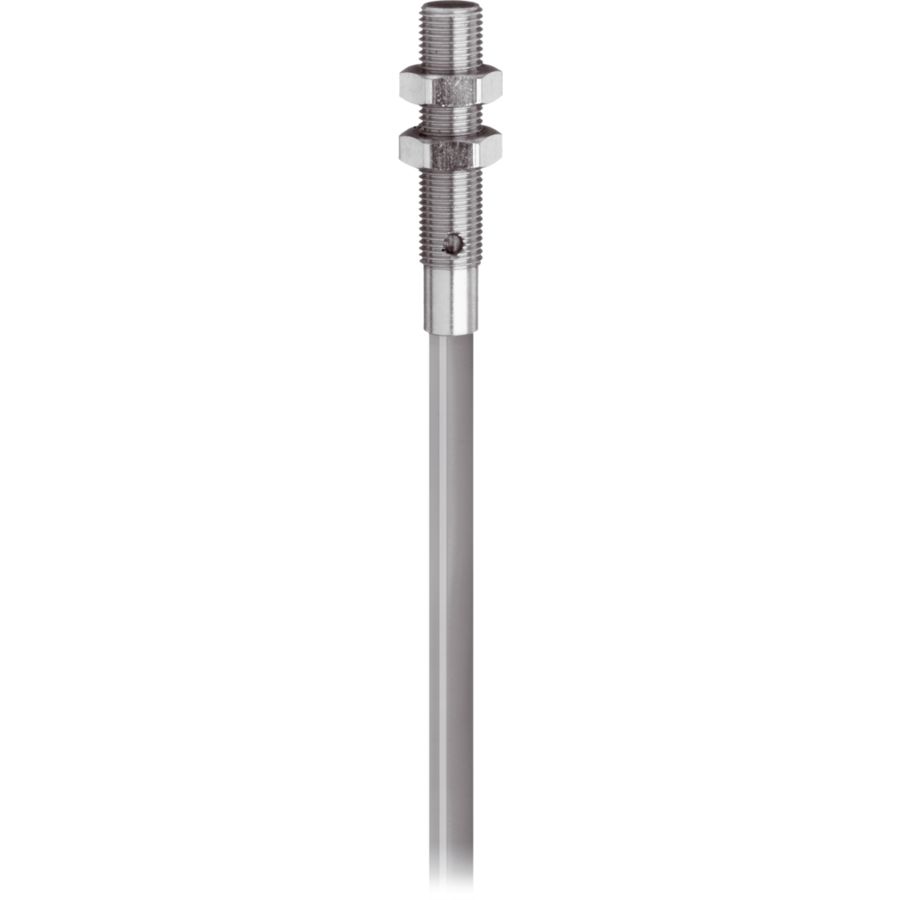

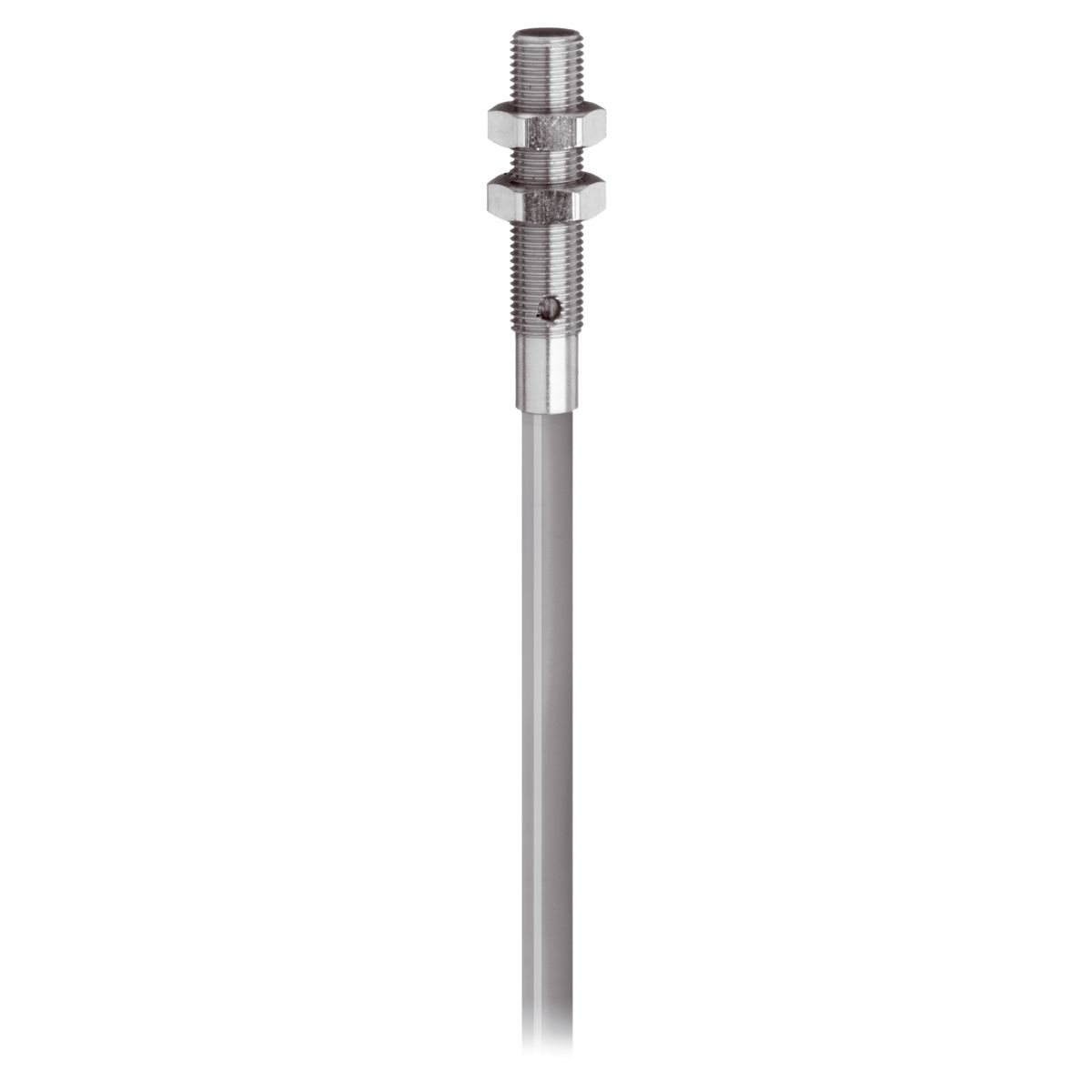

Inductive Proximity Sensor - DCC 05 V 2.5 PSLK
Part Number: DCC 05 V 2.5 PSLK
Article Number: 204292
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|
| Characteristics | extremely high operating distance |
| Connection | Cable 2.0 m flying leads |
| Design | Thread |
| Evaluation | digital |

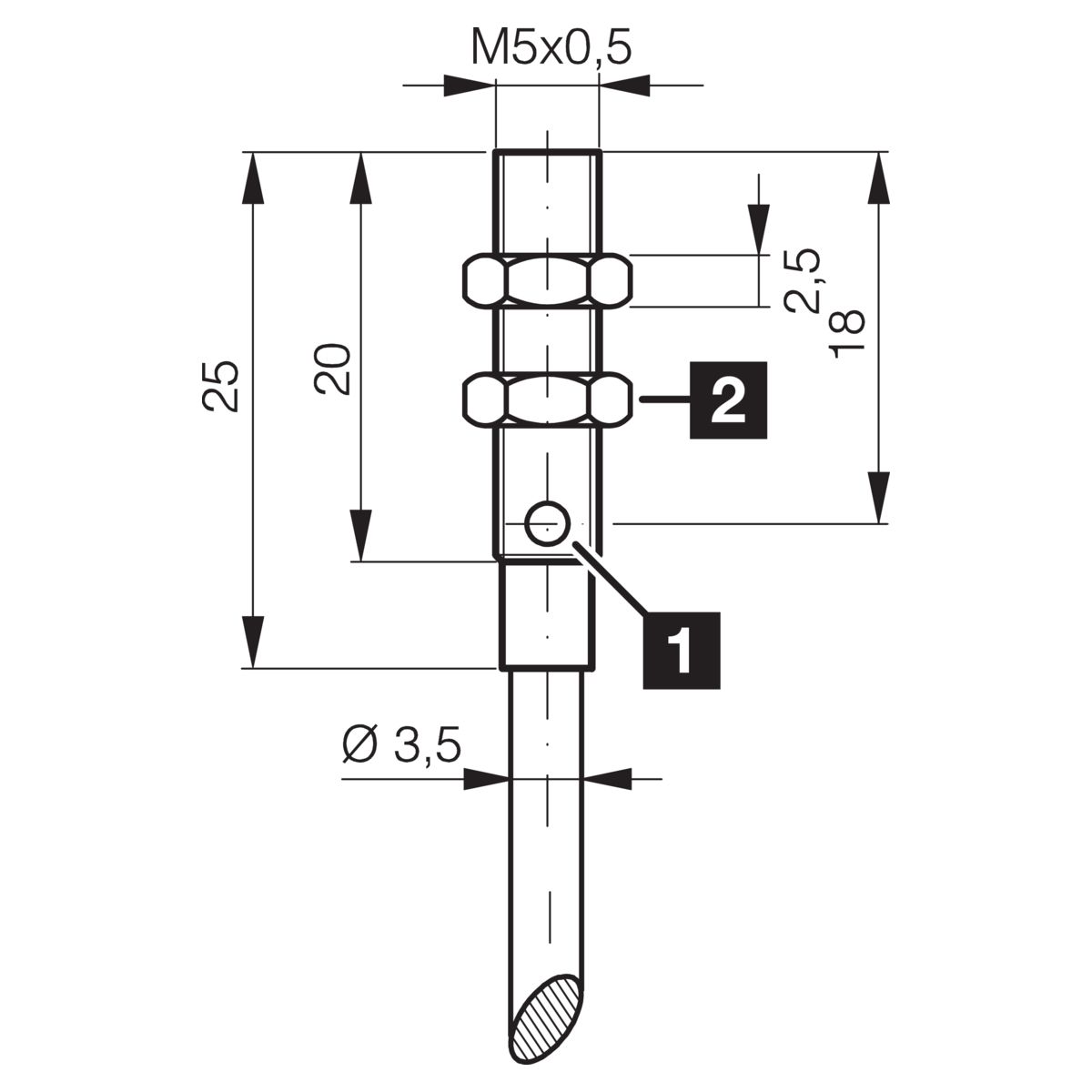

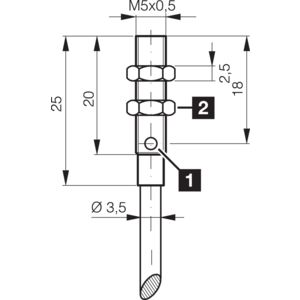

| Housing length | 25.0 mm |
| Housing Material | Nickel-silver chromium-plated |
| Illumination Time Pulse | 1.0 |
| Installation Type | Flush |
| Insulation Voltage Endurance | According to IEC 60947-5-2 (7.2.3.1) |
| Internal Power Consumption | 10 < mA |
| Material Of Cable | PVC |
| Operating Principle | inductive |
| Product Series | INM-300 Miniature Extended |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Screw In Length MAX UNIT | mm |
| Service Voltage | 10 ... 30.0V DC |
| Standardized Measuring Plate | 7.5 x 7.5 x 1 mm |
| Switching Distance (SN) | 2.5 mm |
| Switching Frequency | 800.0 Hz |
| Switching Hysteresis (max.) | 3.0 % 15.0 % |
| Switching Output | pnp 200.0 mA NO |
| Thread | M5 x 0.5 |
| Tightening Torque (max.) | 1.5 Nm |
| Voltage Drop (max.) | 2.0 V 200 mA |
