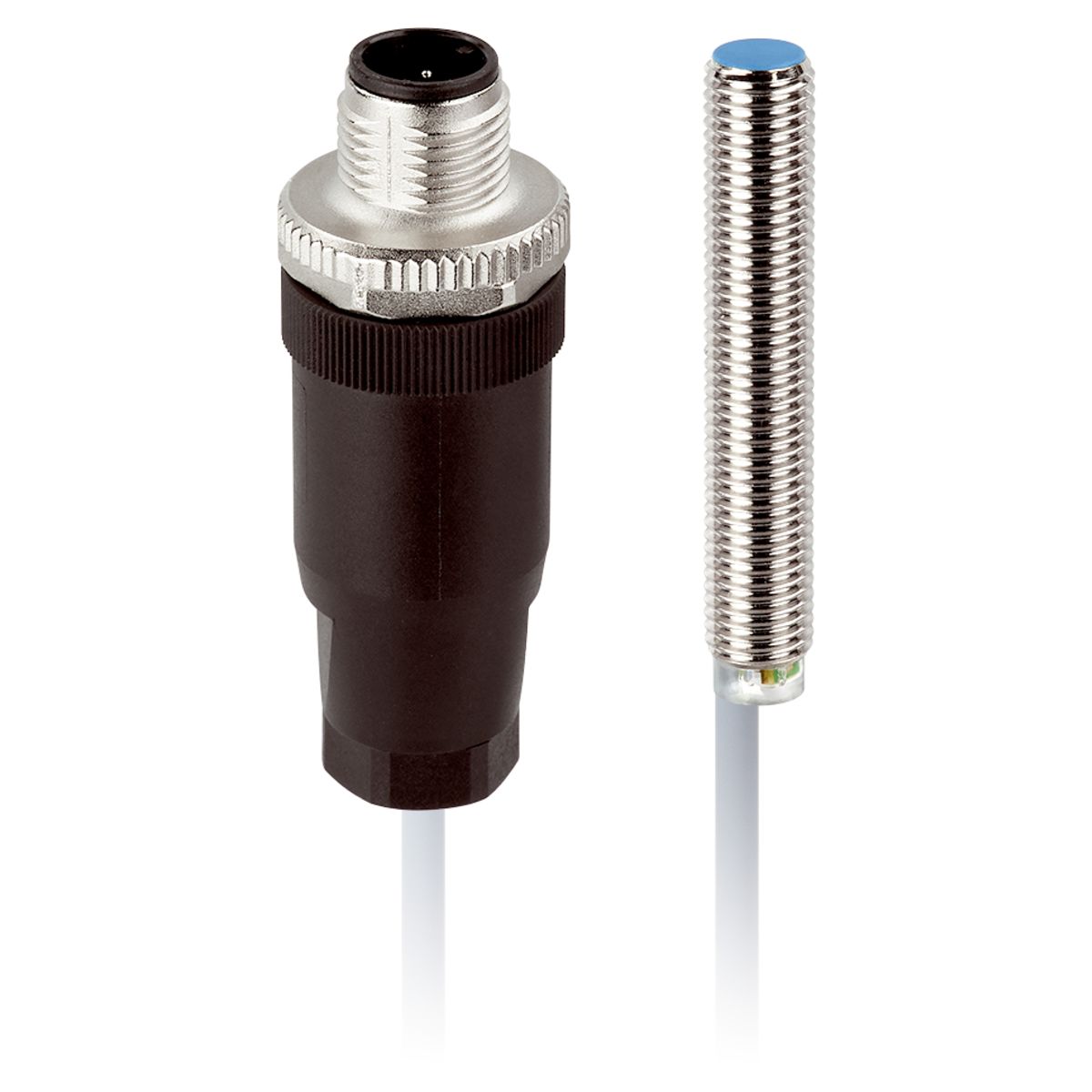

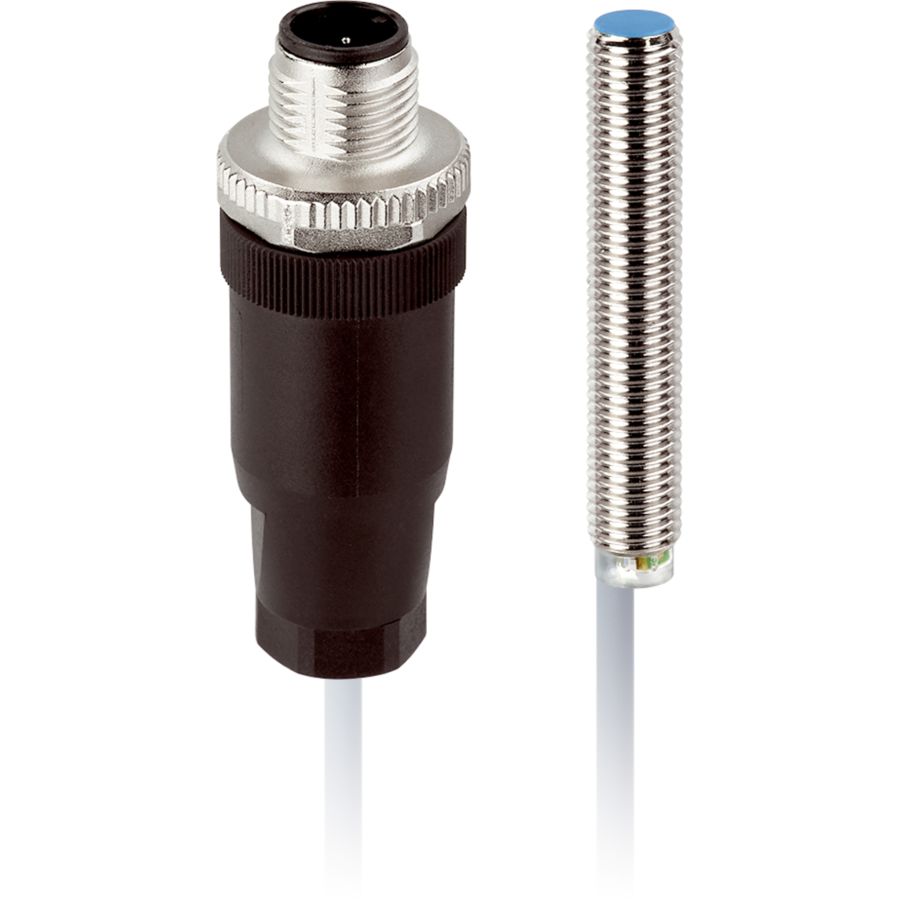

Inductive Proximity Sensor - DCC 08 M 03 PSK-K2.0-IBSL
Part Number: DCC 08 M 03 PSK-K2.0-IBSL
Article Number: 210072
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|
| Characteristics | extremely high operating distance |
| Connection | Pigtail 2.0 m M12 3-pin |
| Connection Cable | VK ... |
| Design | Thread |
| Evaluation | digital |

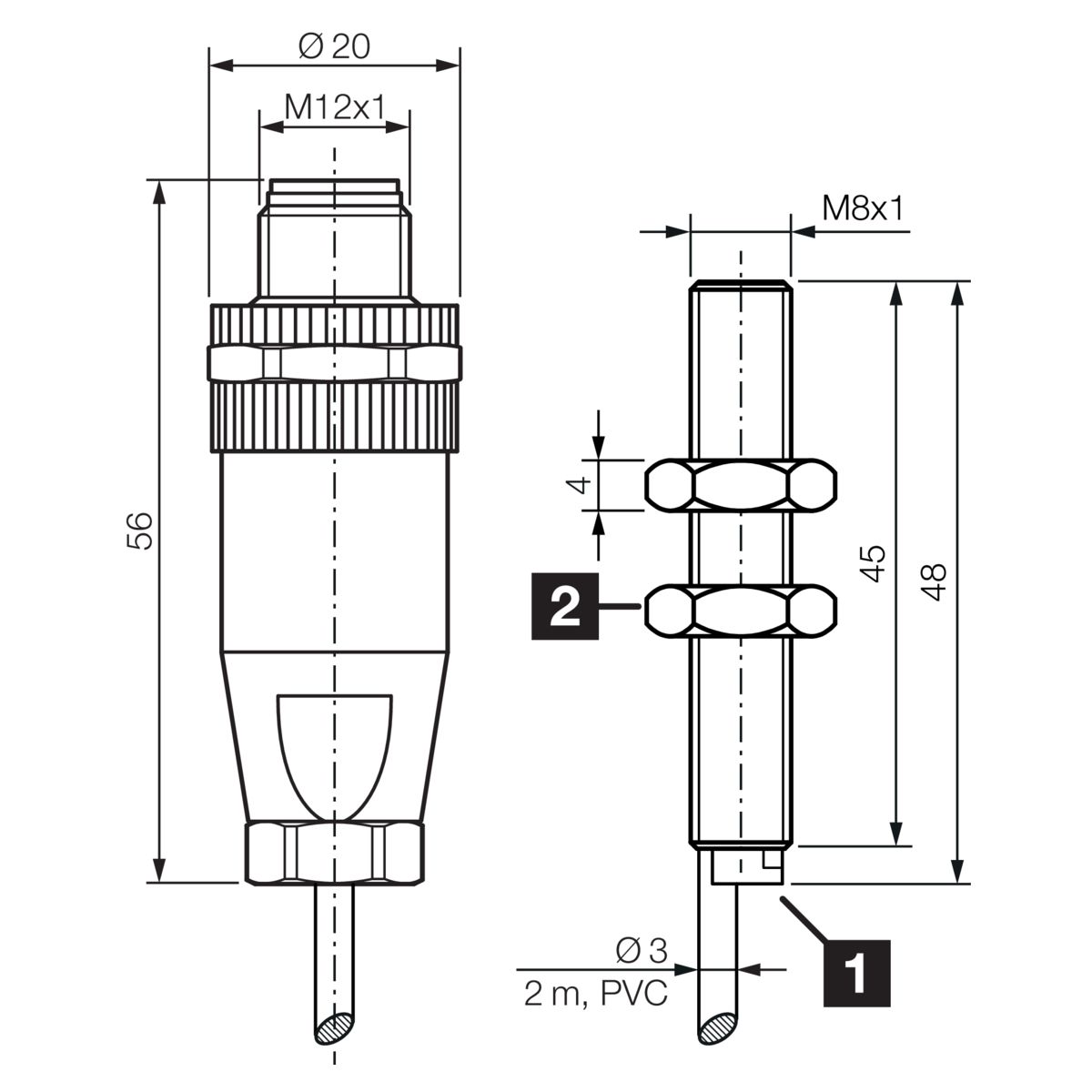

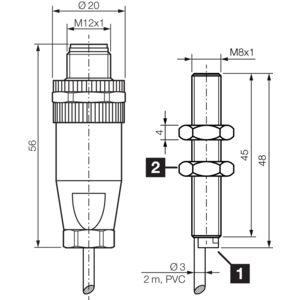

| Housing length | 45.0 mm |
| Housing Material | Brass |
| Illumination Time Pulse | 1.0 |
| Installation Type | Flush |
| Insulation Voltage Endurance | 500.0 V |
| Internal Power Consumption | 10 < mA |
| Material Of Cable | PVC |
| Operating Principle | inductive |
| Product Series | INE Extended |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Service Voltage | 10.0 ... 30.0V DC |
| Standardized Measuring Plate | 9 x 9 x 1 mm |
| Switching Distance (SN) | 3.0 mm |
| Switching Frequency | 1000 Hz |
| Switching Hysteresis (max.) | 15.0 < % |
| Switching Output | pnp 200.0 mA NO |
| Thread | M8 x 1 |
| Voltage Drop (max.) | 2.0 V |
