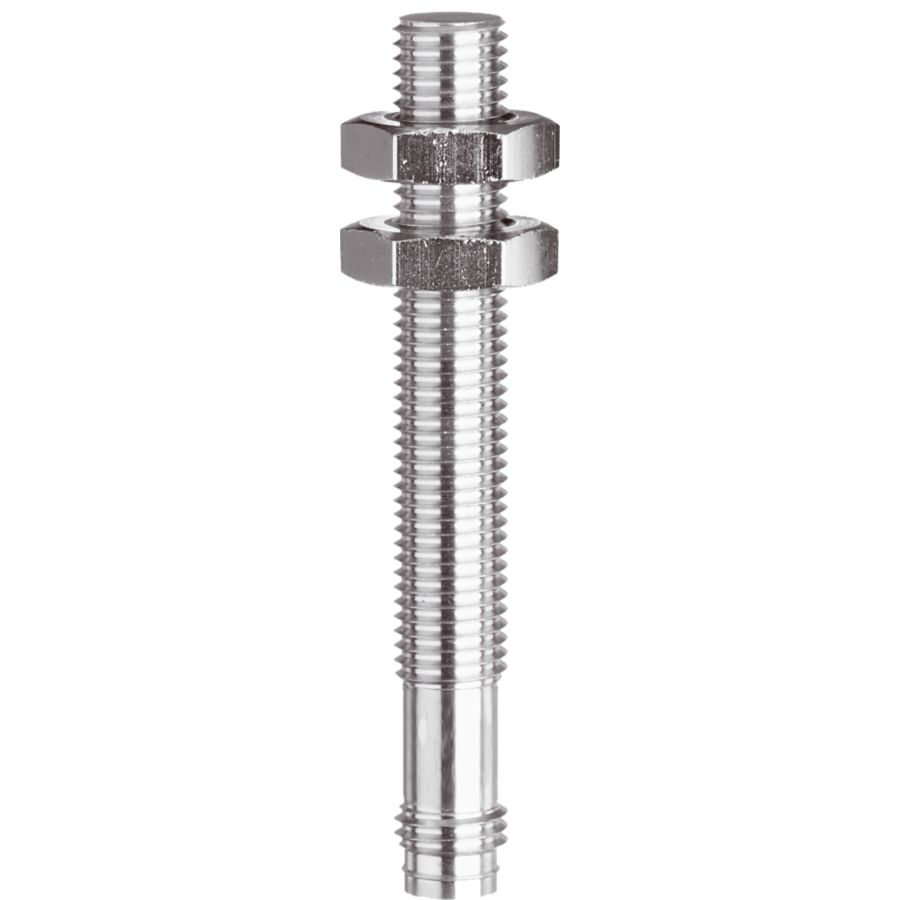

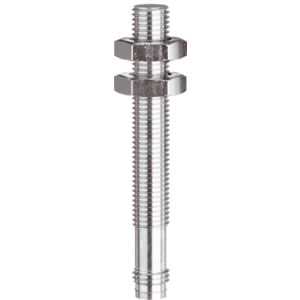

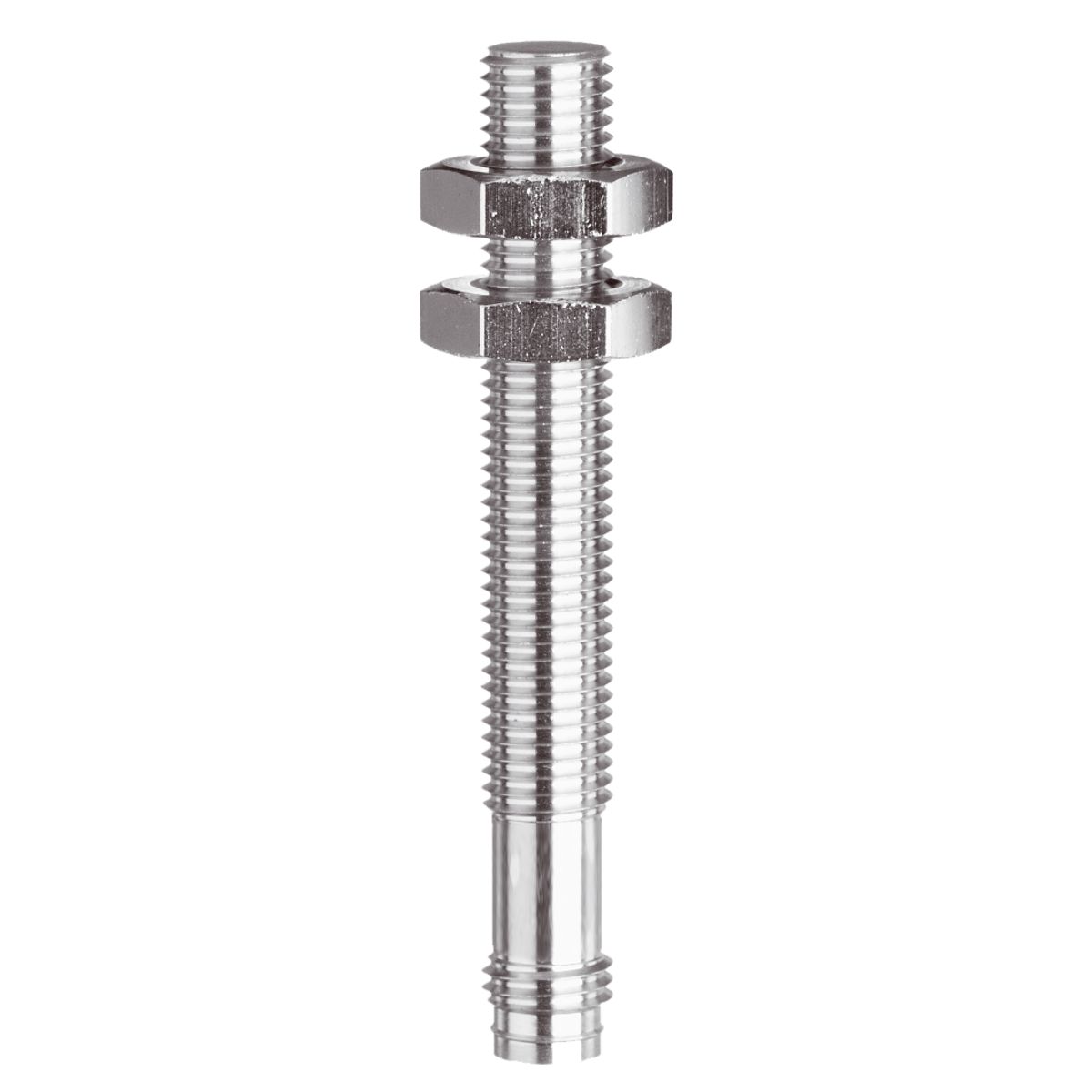

Inductive Proximity Sensor - DCC 08 M 04/10 AK-TSL
Part Number: DCC 08 M 04/10 AK-TSL
Article Number: 202924
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|
| Analog Output | 0.0 V 10.0 V |
| Characteristics | extremely high operating distance |

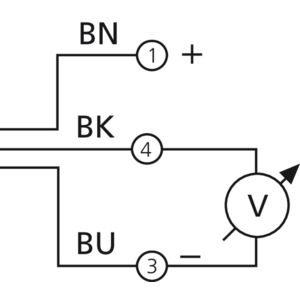

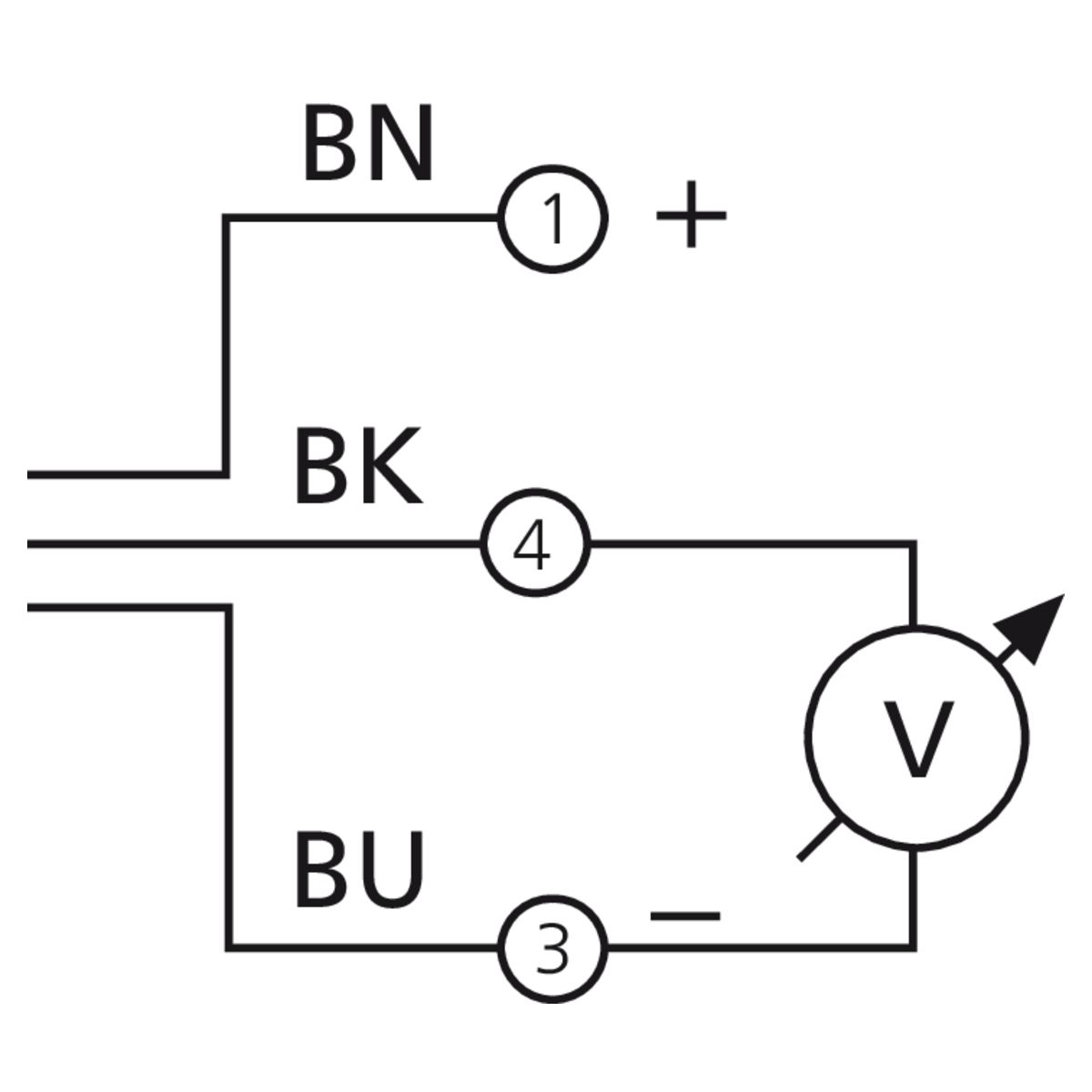

| Connection | Connector M8 3-pin |
| Connection Cable | TK ... |
| Design | Thread |
| Evaluation | analog |

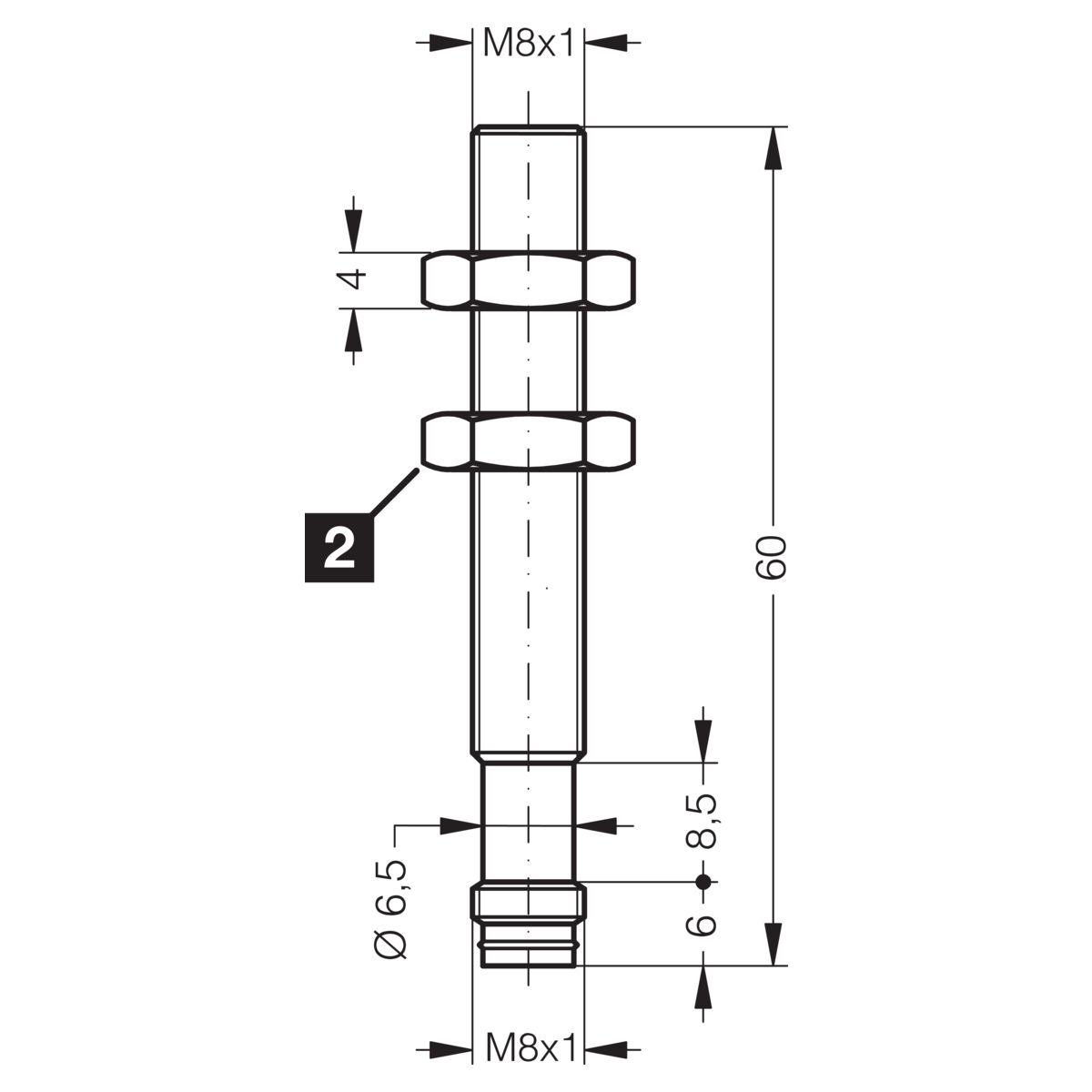

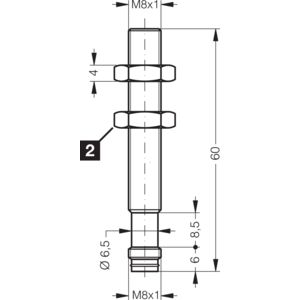

| Housing length | 60.0 mm |
| Housing Material | Brass chromium-plated |
| Illumination Time Pulse | 1.0 |
| Installation Type | quasi-flush |
| Insulation Voltage Endurance | According to IEC 60947-5-2 (7.2.3.1) |
| Internal Power Consumption | 10 < mA |
| Operating Principle | inductive |
| Product Series | INA Analog |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Screw In Length MAX UNIT | mm |
| Service Voltage | 15 ... 30.0V DC |
| Standardized Measuring Plate | 12 x 12 x 1 mm |
| Switching Distance (SN) | 0.0 mm 4.0 mm |
| Switching Frequency | 100.0 Hz |
| Thread | M8 x 1 |
| Tightening Torque (max.) | 4.0 Nm |
