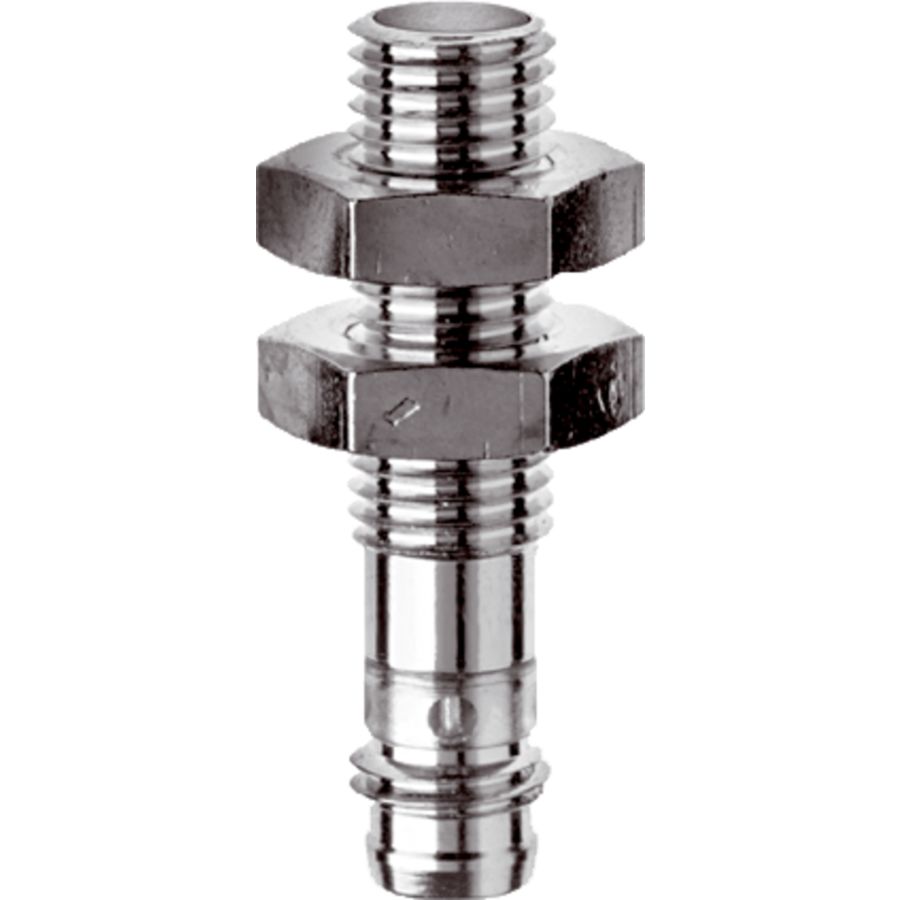

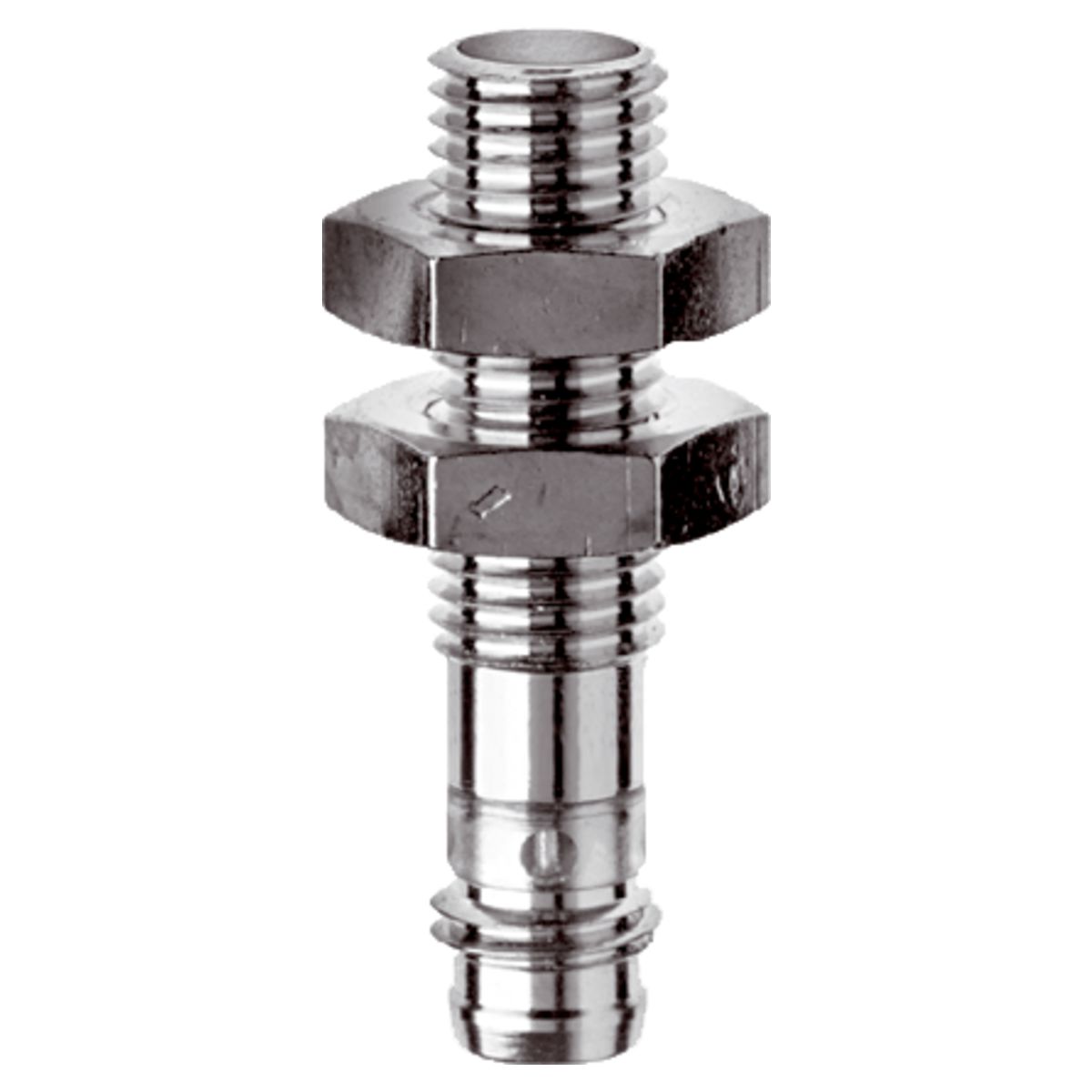

Inductive Proximity Sensor - DCC 08 M 1.5 NSK-TSL/32
Part Number: DCC 08 M 1.5 NSK-TSL/32
Article Number: 208286
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|
| Connection | Connector M8 3-pin |
| Connection Cable | TK ... |
| Design | Thread |
| Evaluation | digital |
| Housing length | 32.0 mm |
| Housing Material | Stainless steel |
| Illumination Time Pulse | 1.0 |
| Installation Type | Flush |
| Insulation Voltage Endurance | 500.0 V |
| Internal Power Consumption | 10 < mA |
| Operating Principle | inductive |
| Product Series | IND-100 Short design |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Screw In Length MAX UNIT | mm |
| Service Voltage | 10.0 ... 30.0V DC |
| Standardized Measuring Plate | 8 x 8 x 1 mm |
| Switching Distance (SN) | 1.5 mm |
| Switching Frequency | 3000 Hz |
| Switching Hysteresis (max.) | 15.0 < % |
| Switching Output | npn 200.0 mA NO |
| Thread | M8 x 1 |
| Tightening Torque (max.) | 4.0 Nm |
| Voltage Drop (max.) | 2.4 V |
