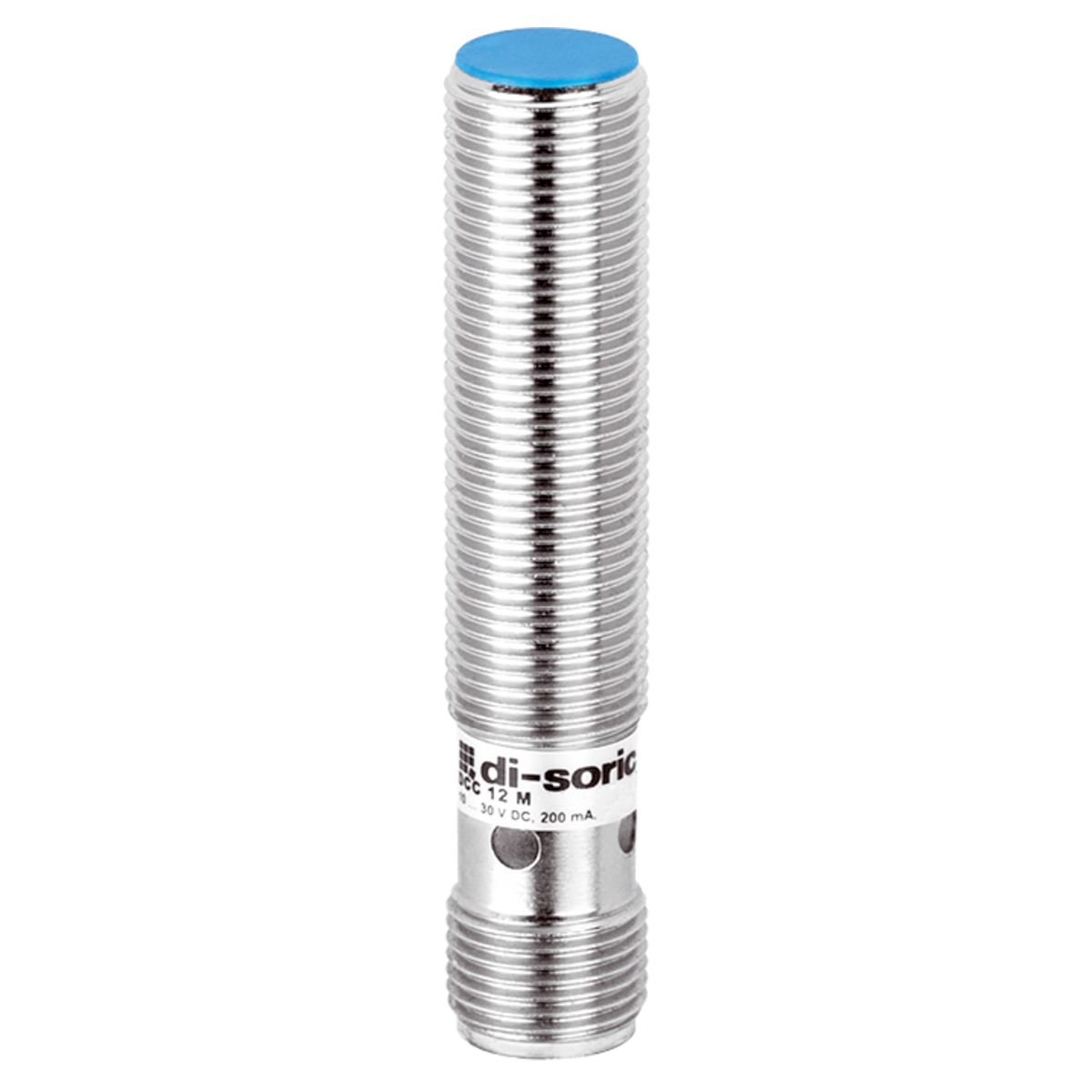

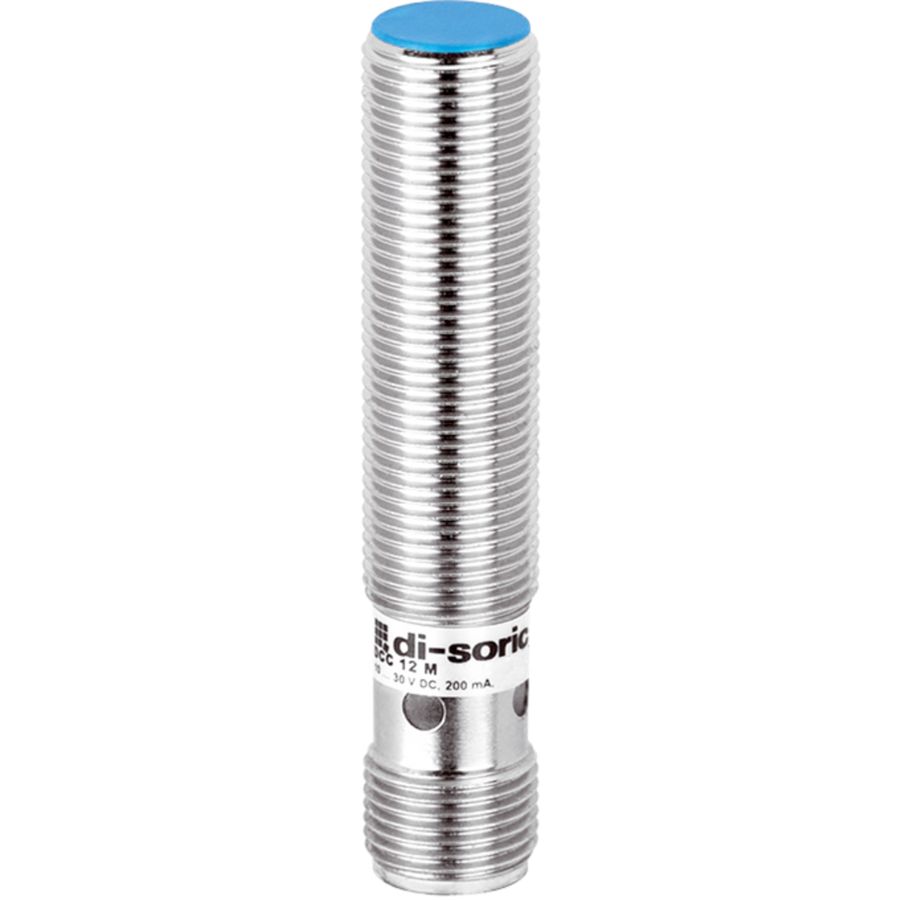

Inductive Proximity Sensor - DCC 12 M 04B NOK-IBSL
Part Number: DCC 12 M 04B NOK-IBSL
Article Number: 206658
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|
| Characteristics | increased operating distance |
| Connection | Connector M12 4-pin |
| Connection Cable | VK ... |
| Design | Thread |
| Evaluation | digital |

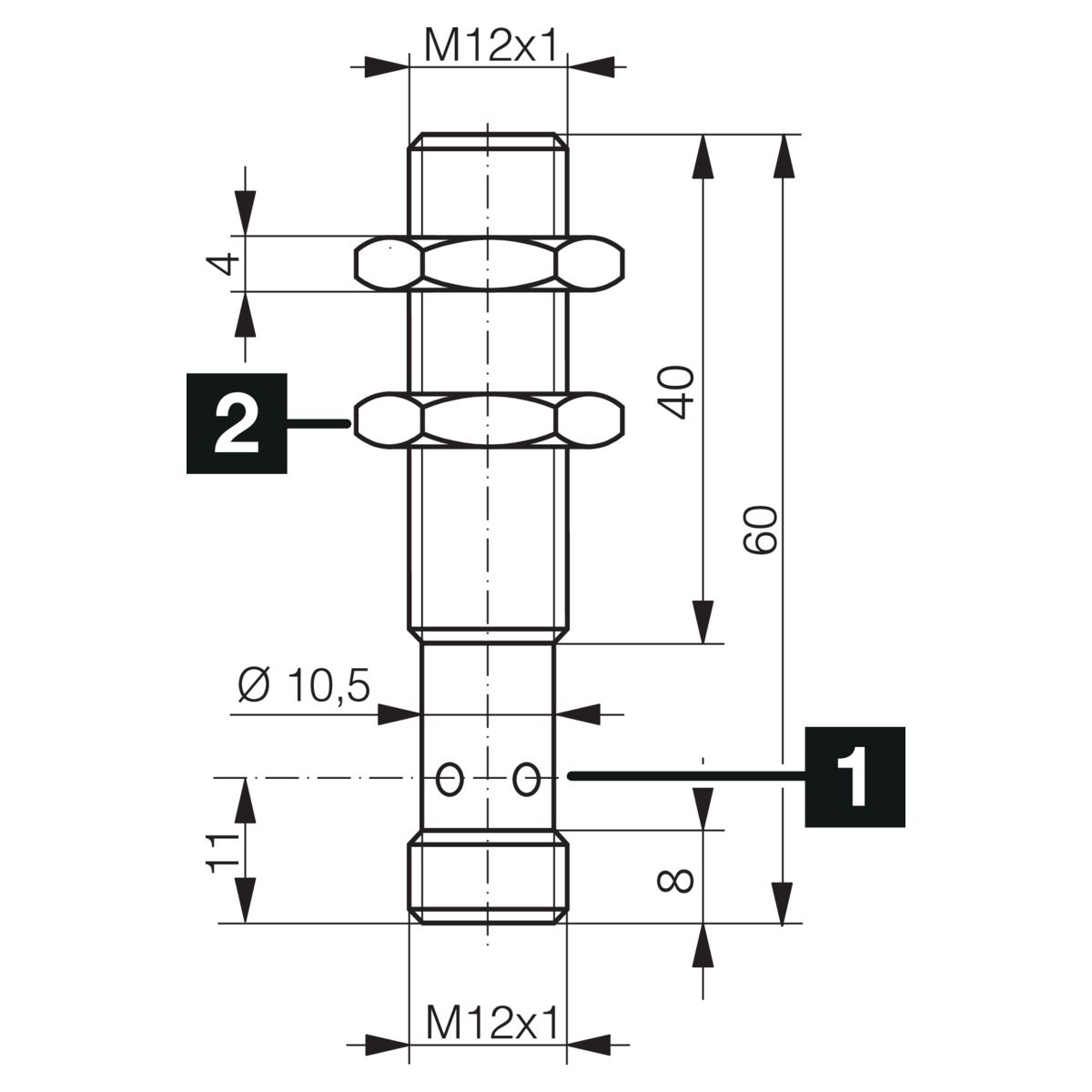

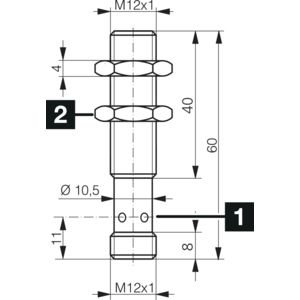

| Housing length | 60.0 mm |
| Housing Material | Brass nickel-plated |
| Illumination Time Pulse | 1.0 |
| Installation Type | Flush |
| Insulation Voltage Endurance | 500.0 V |
| Internal Power Consumption | 10 < mA |
| Operating Principle | inductive |
| Product Series | INE Extended |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Service Voltage | 10 ... 30.0V DC |
| Standardized Measuring Plate | 12 x 12 x 1 mm |
| Switching Distance (SN) | 4.0 mm |
| Switching Frequency | 800.0 Hz |
| Switching Hysteresis (max.) | 15.0 < % |

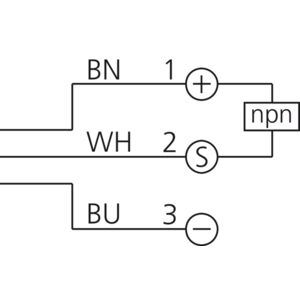

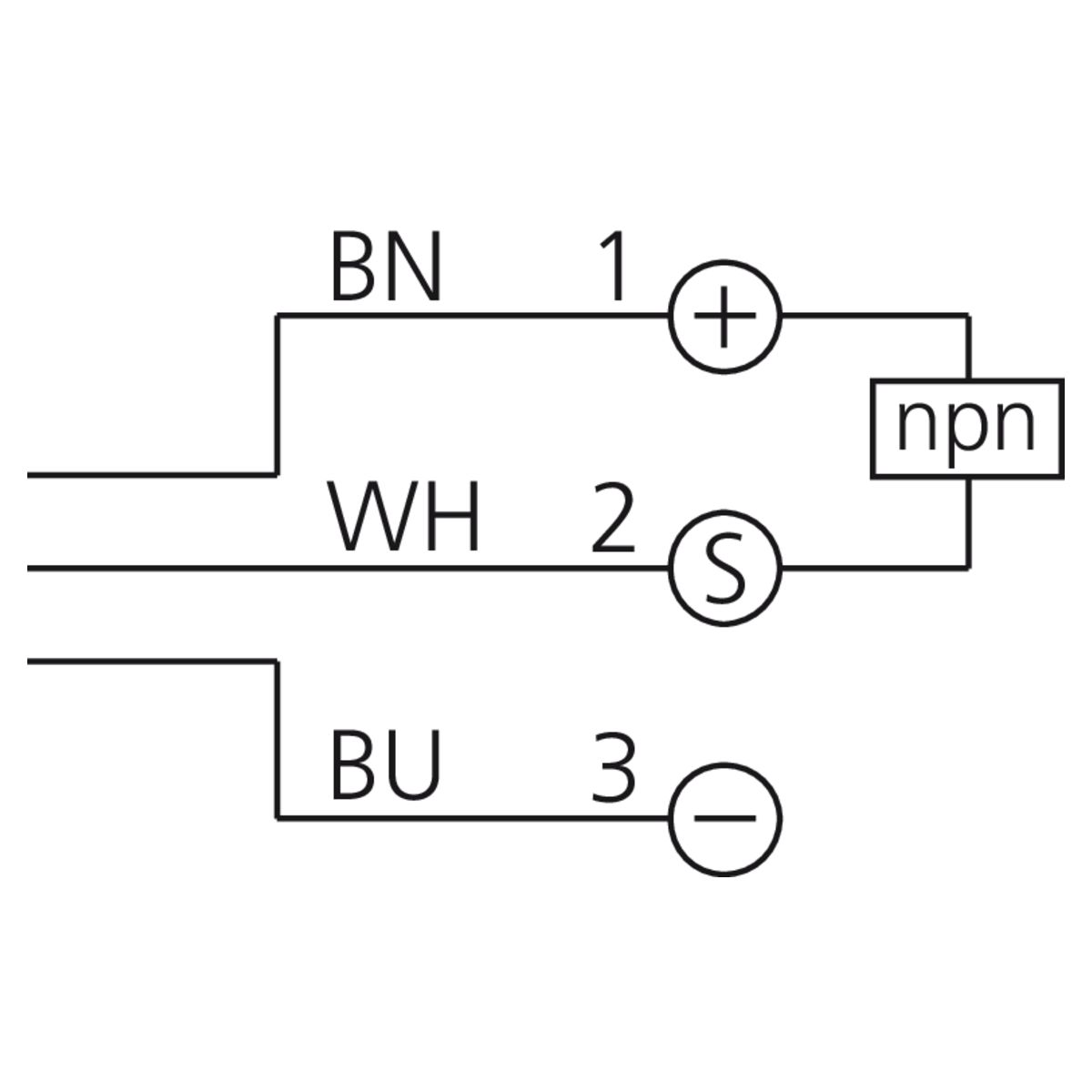

| Switching Output | npn 200.0 mA NC |
| Thread | M12 x 1 |
| Voltage Drop (max.) | 2.4 V |
