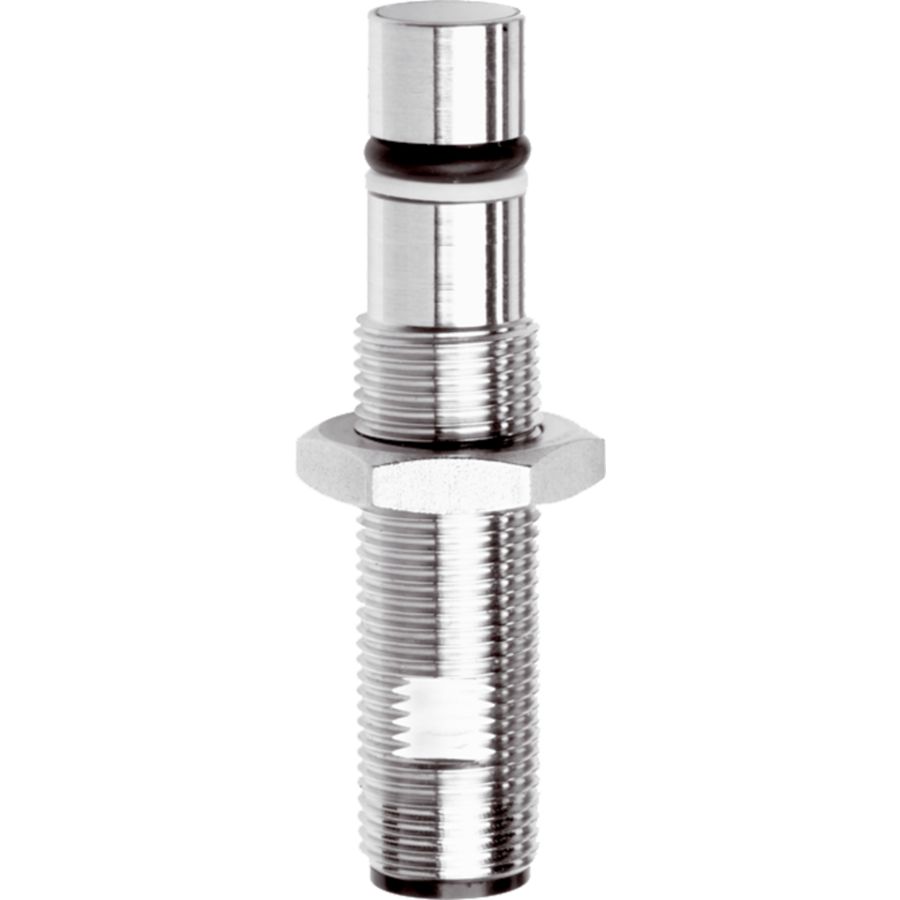

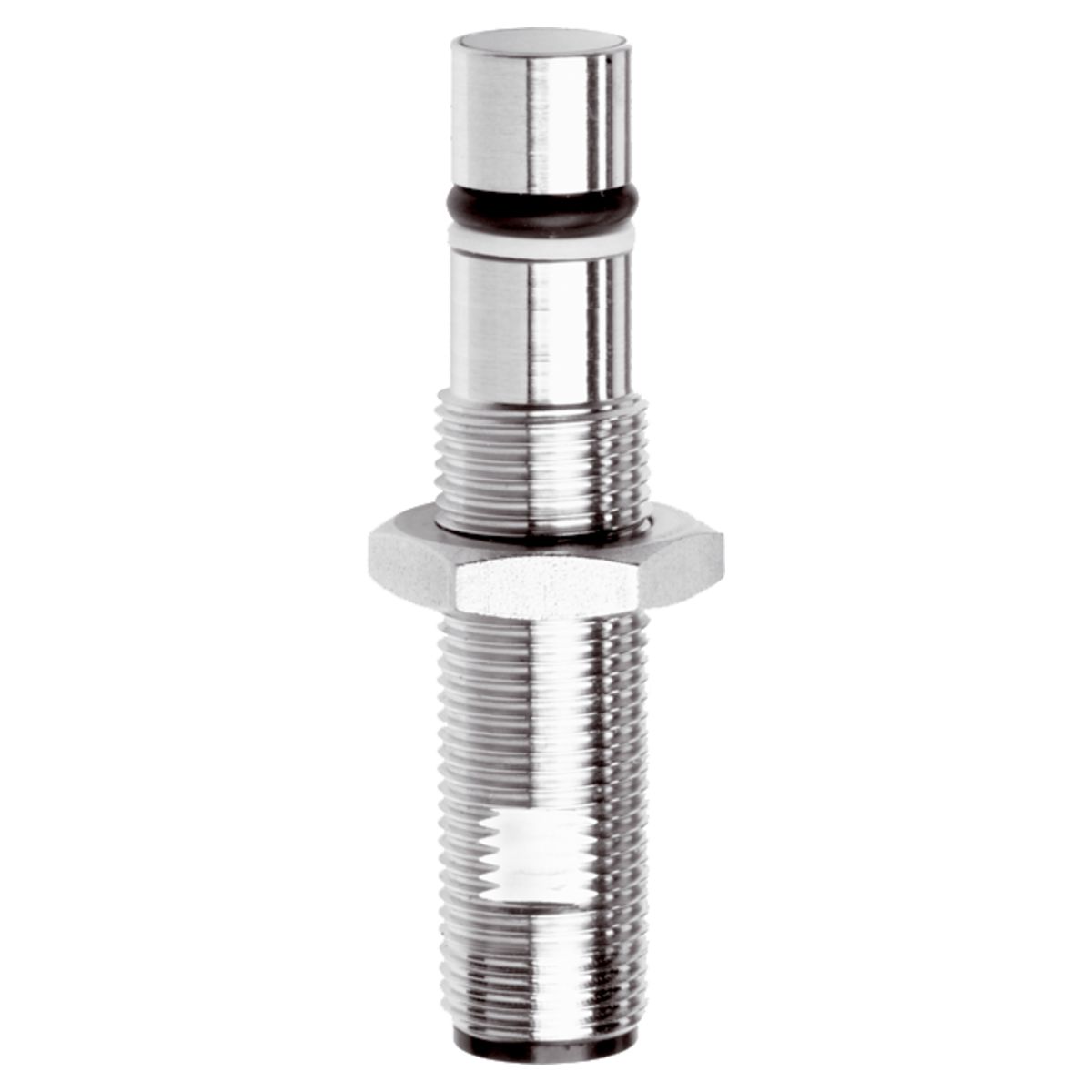

Inductive Proximity Sensor - DCC 12 V 1.5 PSK-IBSL 500/56
Part Number: DCC 12 V 1.5 PSK-IBSL 500/56
Article Number: 203132
Technical Details
| Ambient Temperature During Operation | -25.0 ... 80.0°C |
|---|---|
| Connection | Connector M12 3-pin |
| Connection Cable | VK ... |
| Design | Thread |
| Evaluation | digital |

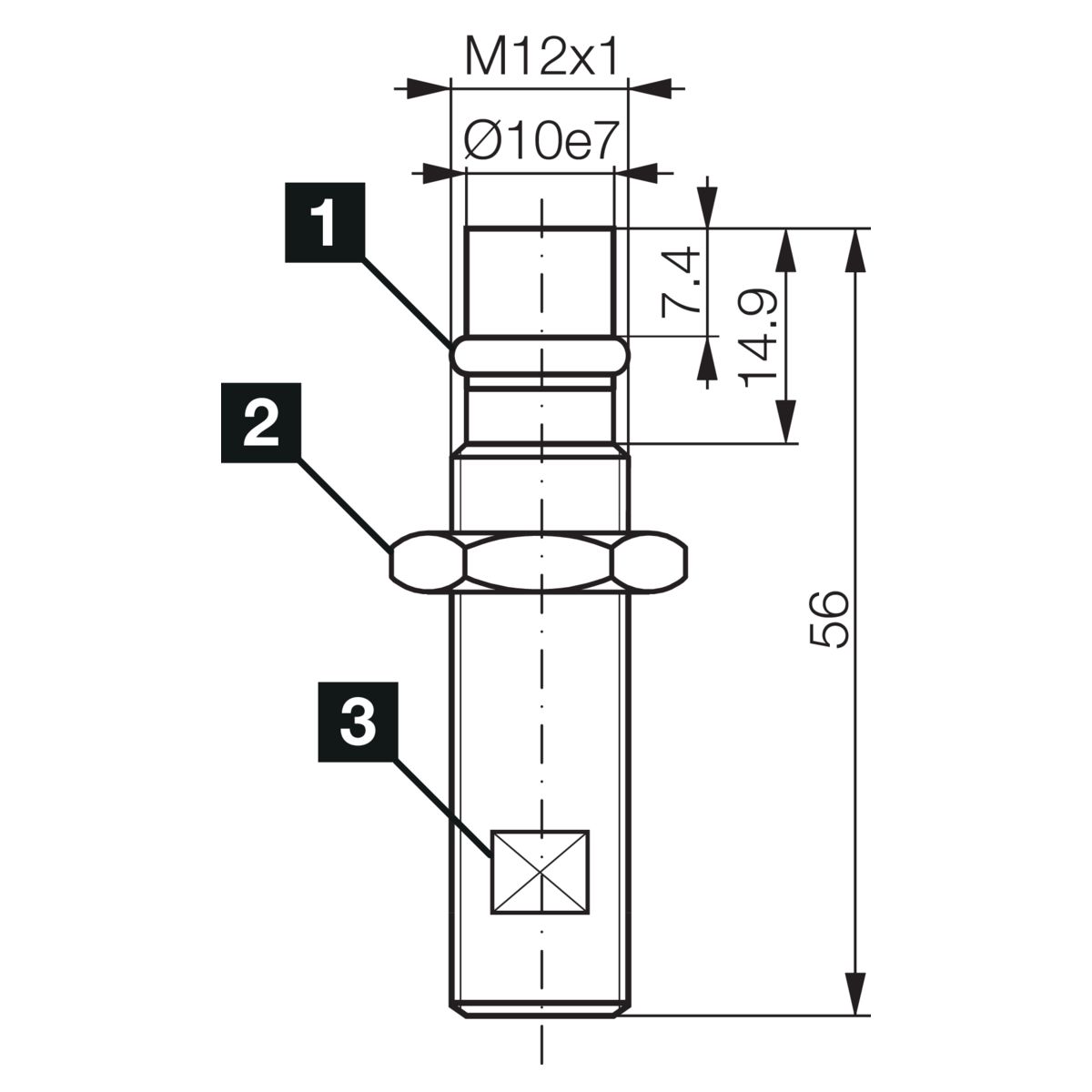

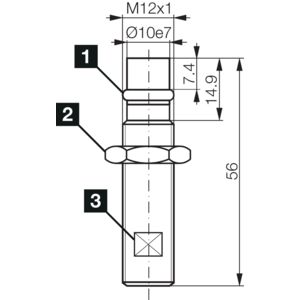

| Housing length | 56.0 mm |
| Housing Material | Stainless steel;ZrO2 ceramic |
| Illumination Time Pulse | 1.0 |
| Installation Type | Flush |
| Insulation Voltage Endurance | According to IEC 60947-5-2 (7.2.3.1) |
| Internal Power Consumption | 10 < mA |
| Operating Principle | inductive |
| Product Series | INP High-pressure resistant |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 68 |
| Service Voltage | 10 ... 30.0V DC |
| Standardized Measuring Plate | 10 x 10 x 1 mm |
| Switching Distance (SN) | 1.5 mm |
| Switching Frequency | 600.0 Hz |
| Switching Hysteresis (max.) | 10.0 % |
| Switching Output | pnp 200.0 mA NO |
| Thread | M12 x 1 |
| Voltage Drop (max.) | 2.0 V |
