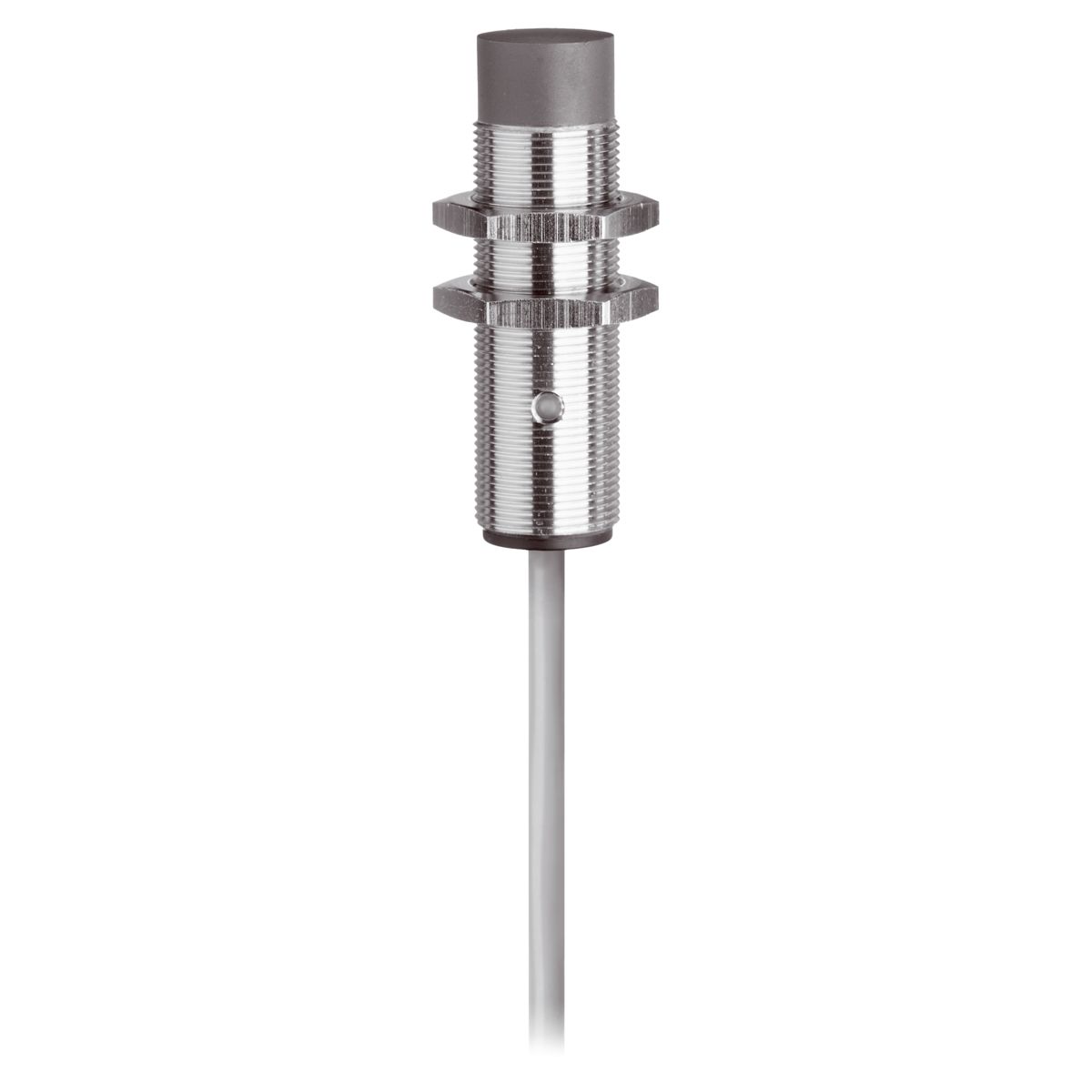

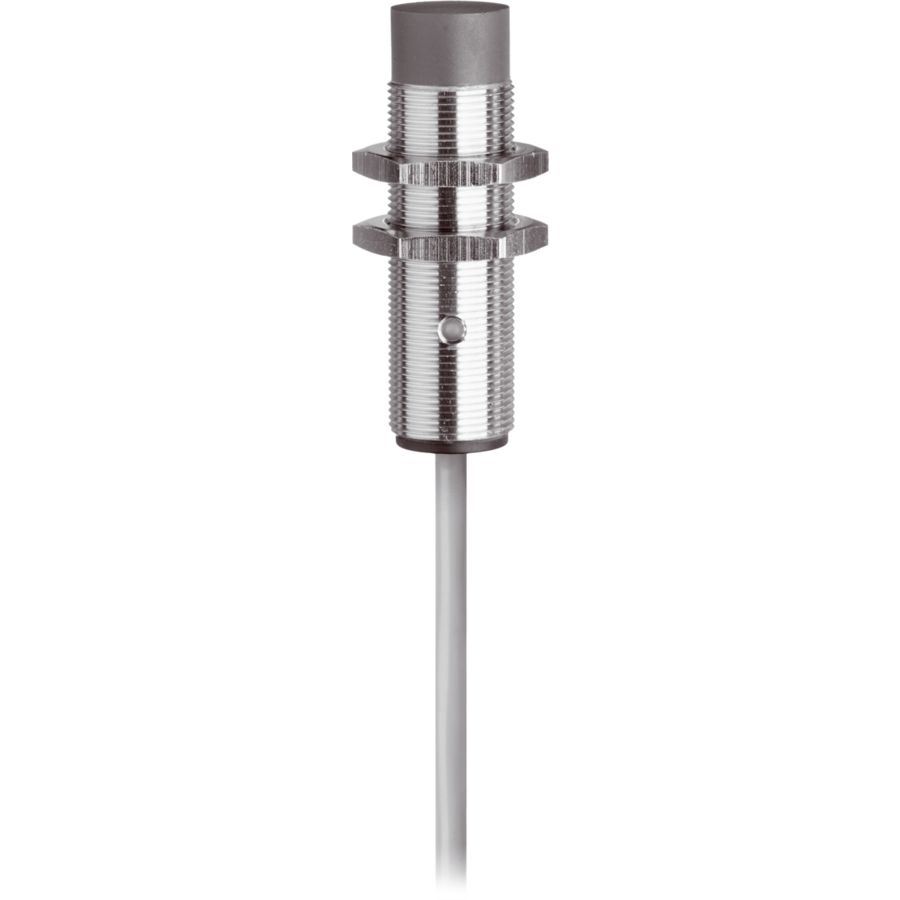

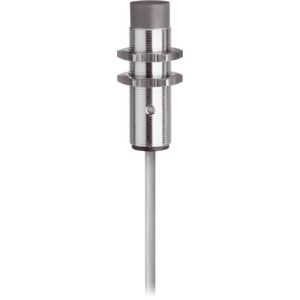

Inductive Proximity Sensor - DCC 18 M 20 PSLK
Part Number: DCC 18 M 20 PSLK
Article Number: 200347
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|
| Characteristics | extremely high operating distance |
| Connection | Cable 2.0 m flying leads |
| Design | Thread |
| Evaluation | digital |

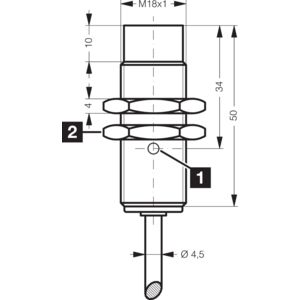

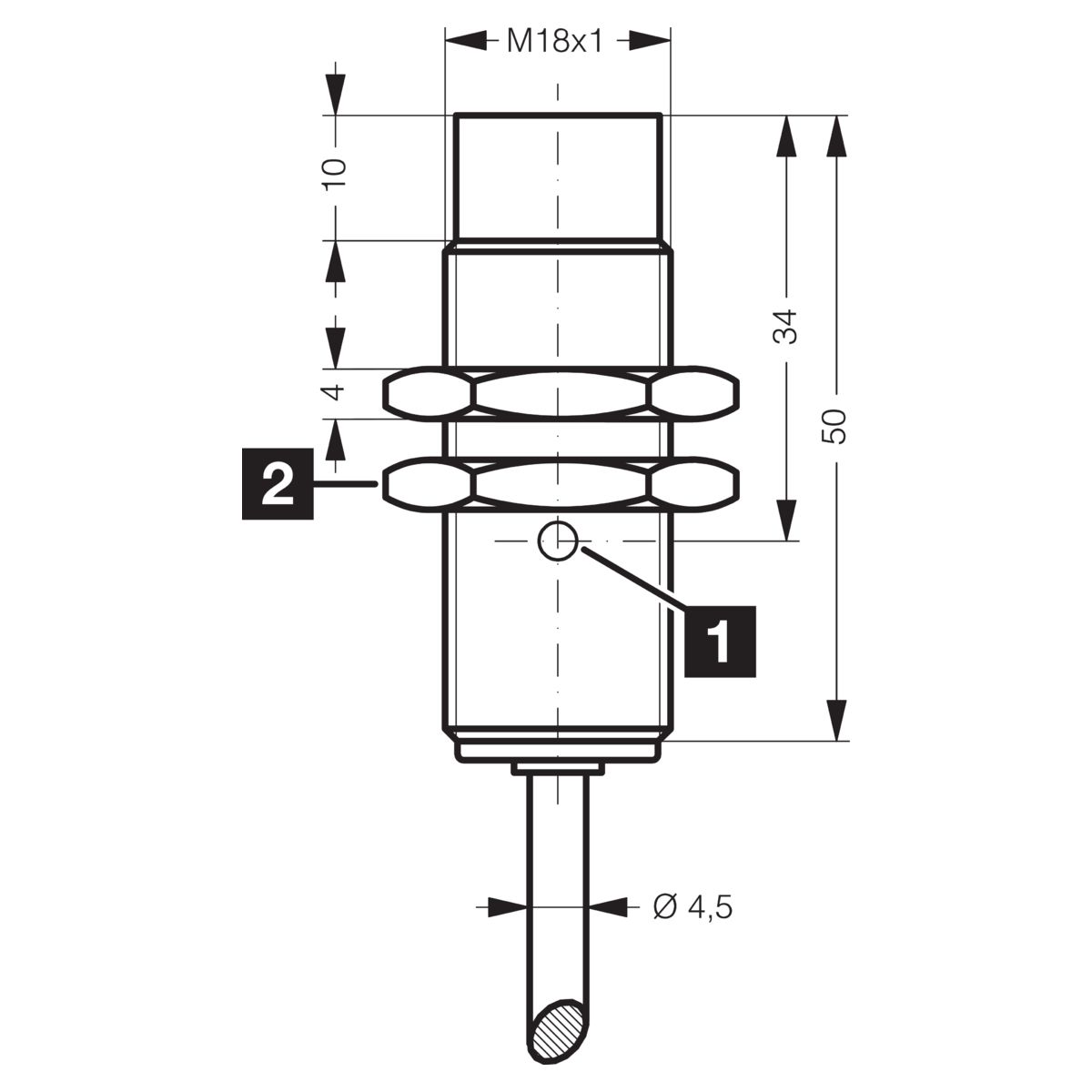

| Housing length | 51.0 mm |
| Housing Material | Brass chromium-plated |
| Illumination Time Pulse | 1.0 |
| Installation Type | non-flush |
| Insulation Voltage Endurance | According to IEC 60947-5-2 (7.2.3.1) |
| Internal Power Consumption | 10 < mA |
| Material Of Cable | PVC |
| Operating Principle | inductive |
| Product Series | INE Extended |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Service Voltage | 10 ... 30.0V DC |
| Standardized Measuring Plate | 60 x 60 x 1 mm |
| Switching Distance (SN) | 20.0 mm |
| Switching Frequency | 500.0 Hz |
| Switching Hysteresis (max.) | 3.0 < % 15.0 % |
| Switching Output | pnp 200.0 mA NO |
| Thread | M18 x 1 |
| Voltage Drop (max.) | 2.0 V 200 mA |
