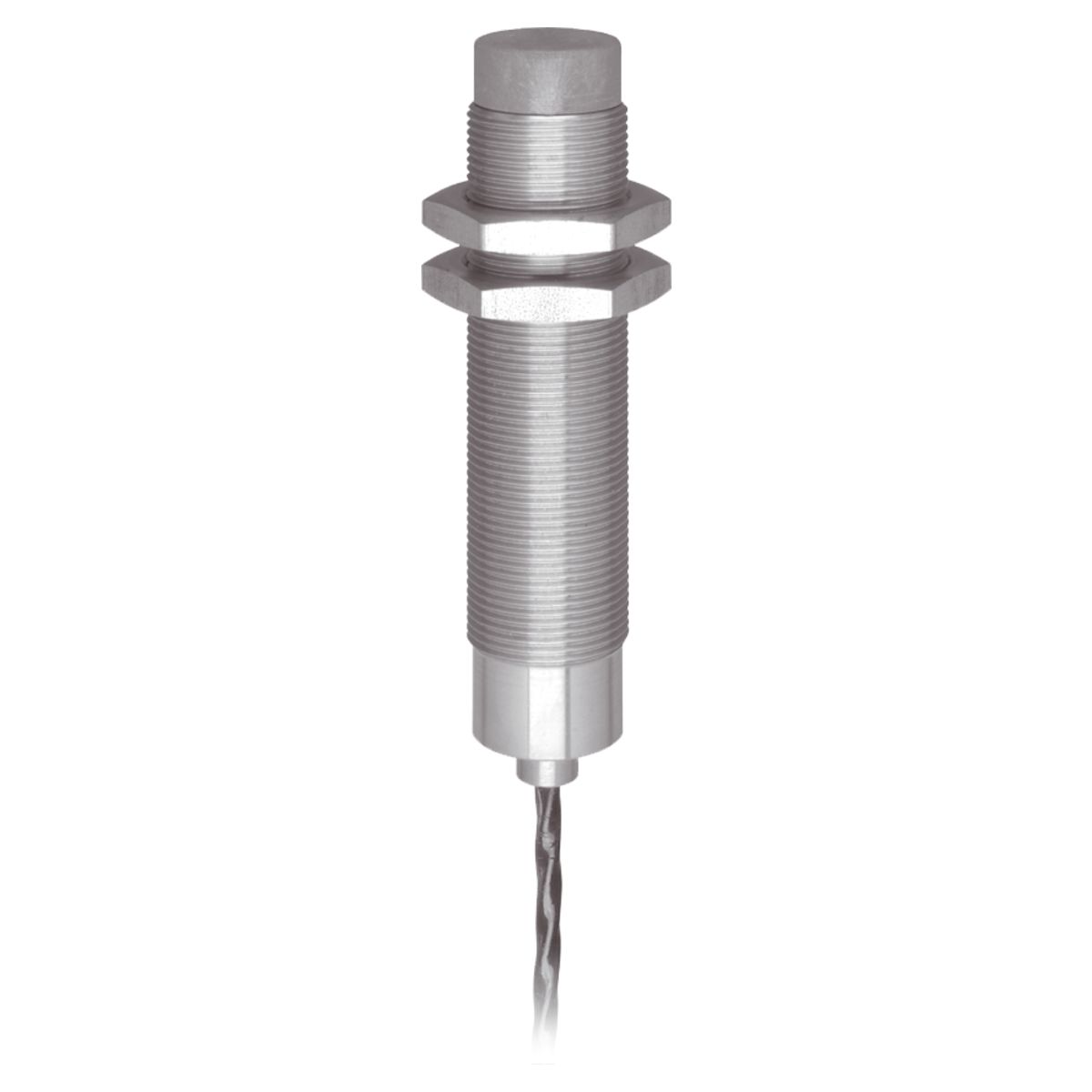

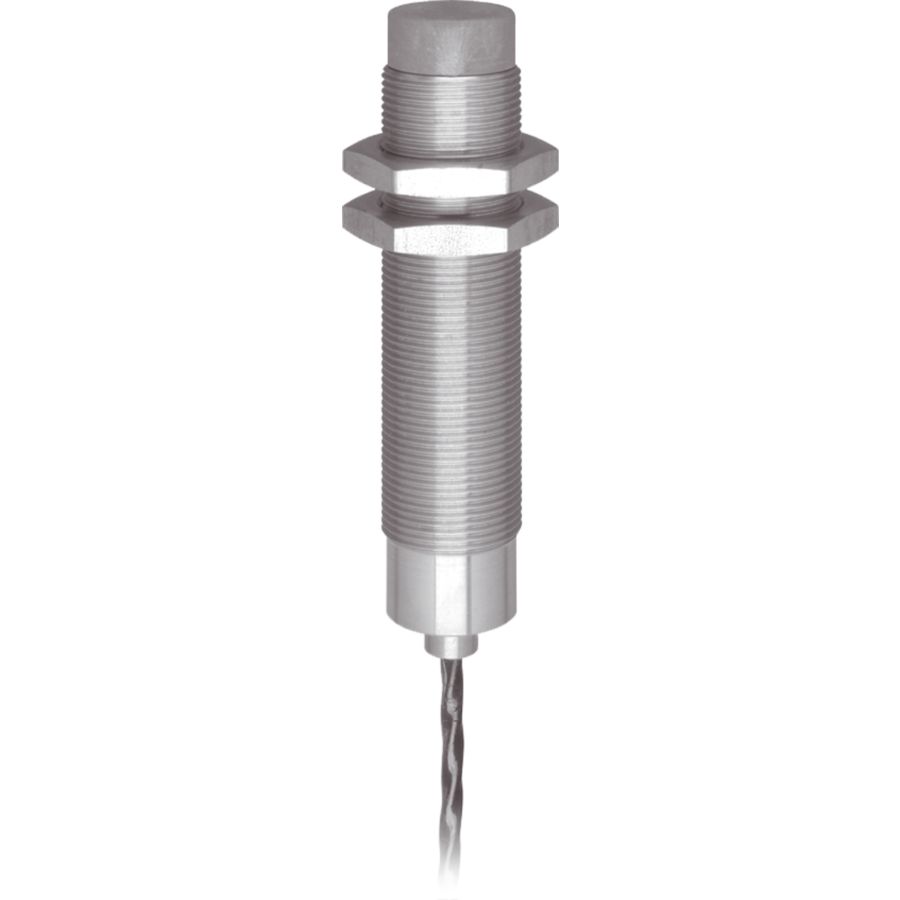

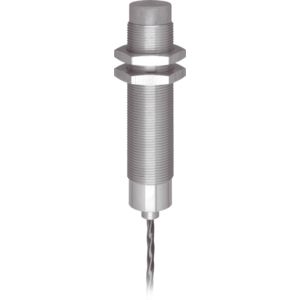

Inductive Proximity Sensor - DCC 18 VH 08 PSK/180
Part Number: DCC 18 VH 08 PSK/180
Article Number: 203353
Technical Details
| Ambient Temperature During Operation | 0.0 ... 180.0°C |
|---|---|
| Characteristics | 180 < °C high-temperature resistant |
| Connection | Cable 2.0 m flying leads |
| Design | Thread |
| Evaluation | digital |

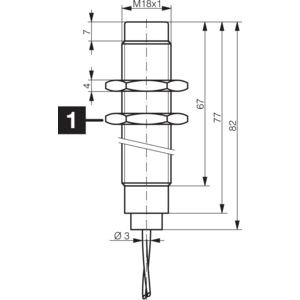

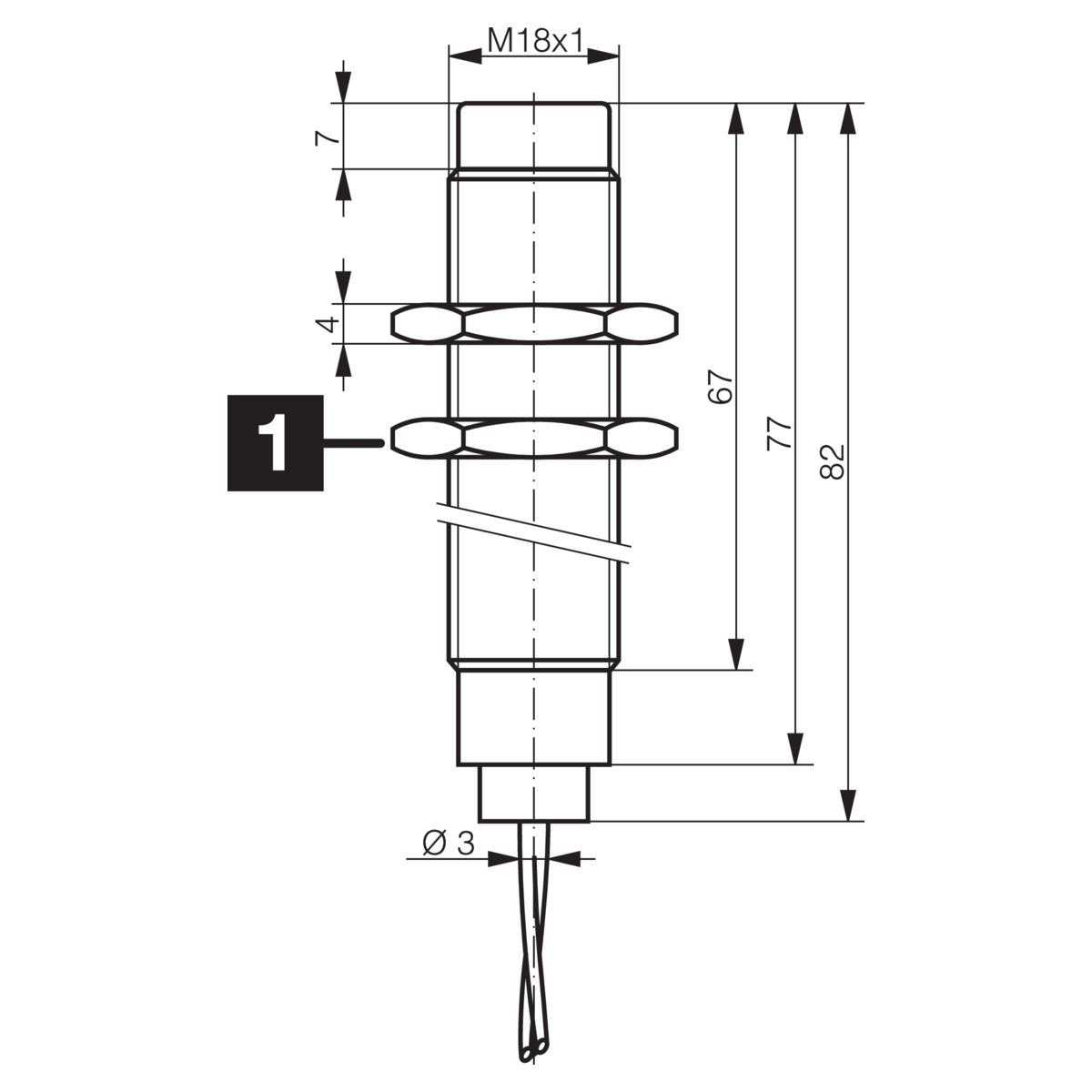

| Housing length | 82.0 mm |
| Housing Material | Stainless steel LCP |
| Illumination Time Pulse | 1.0 |
| Installation Type | non-flush |
| Insulation Voltage Endurance | 500.0 V |
| Internal Power Consumption | 10 < mA |
| Material Of Cable | PTFE |
| Operating Principle | inductive |
| Product Series | INH High-temperature resistant |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 65 |
| Screw In Length MAX UNIT | mm |
| Service Voltage | 10 ... 30.0V DC |
| Standardized Measuring Plate | 24 x 24 x 1 mm |
| Switching Distance (SN) | 8.0 mm |
| Switching Frequency | 400.0 Hz |
| Switching Hysteresis (max.) | 3.0 % 15.0 % |
| Switching Output | pnp 150.0 mA NO |
| Thread | M18 x 1 |
| Tightening Torque (max.) | 50.0 Nm |
| Voltage Drop (max.) | 2.0 V |
