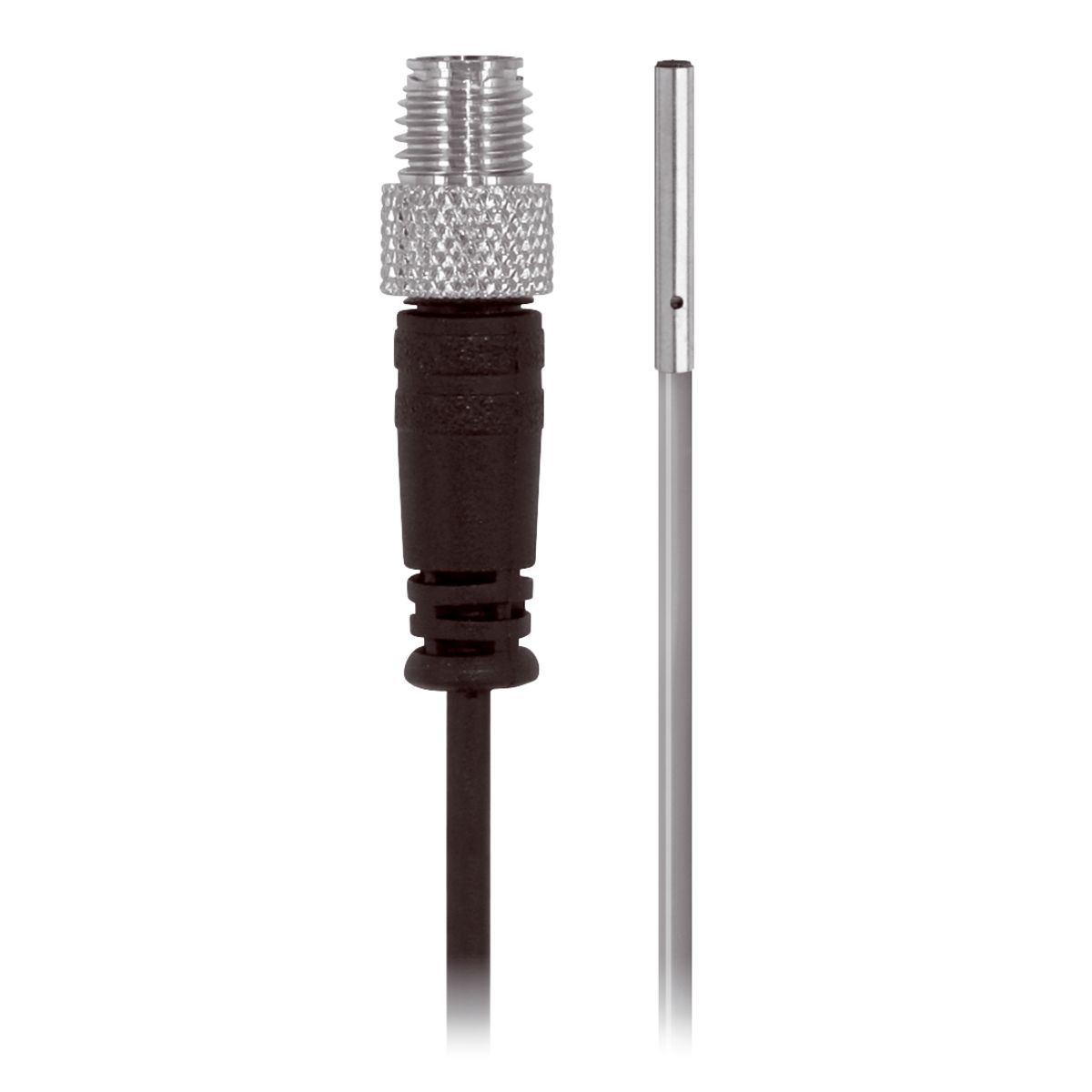

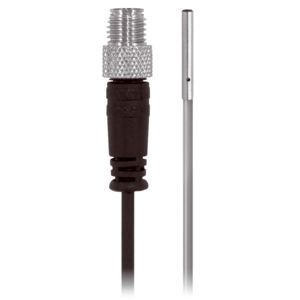

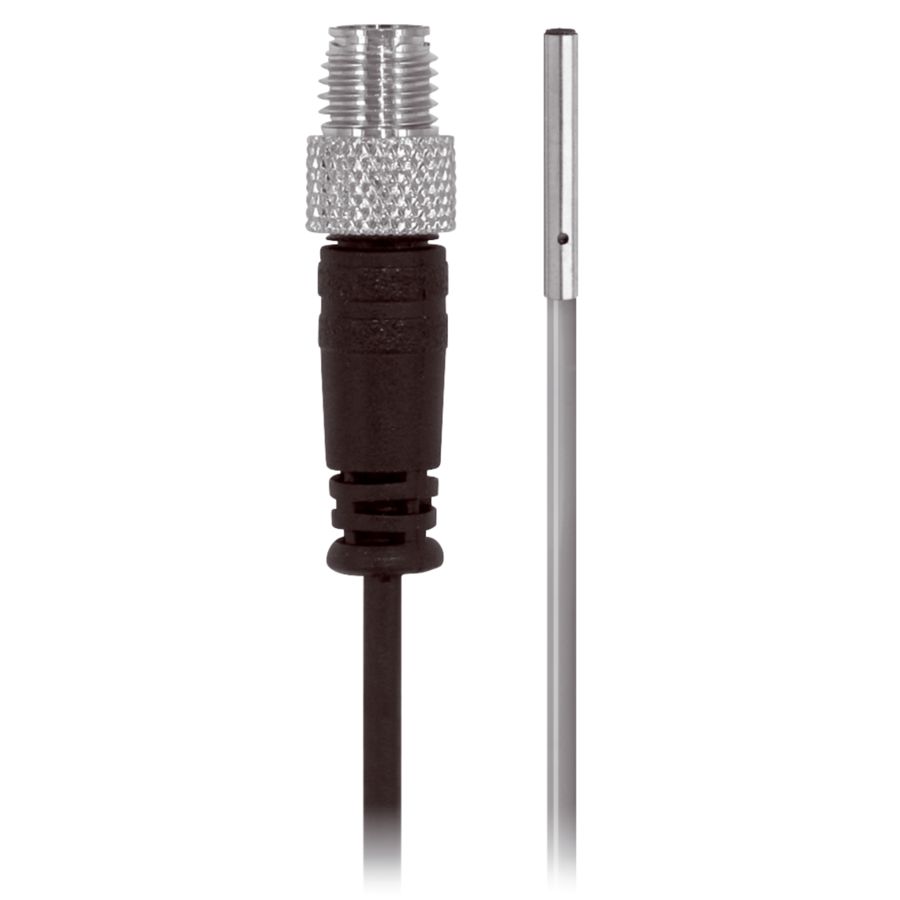

Inductive Proximity Sensor - DCC 3.0 V 0.6 NOK-K-TSL
Part Number: DCC 3.0 V 0.6 NOK-K-TSL
Article Number: 205092
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|
| Connection | Pigtail 0.15 m M8 3-pin |
| Connection Cable | TK ... |
| Design | Cylinder |
| Diameter | 3 mm |
| Evaluation | digital |
| Housing length | 22.0 mm |
| Housing Material | Stainless steel V2A |
| Illumination Time Pulse | 1.0 |
| Installation Type | Flush |
| Insulation Voltage Endurance | According to IEC 60947-5-2 (7.2.3.1) |
| Internal Power Consumption | 10 < mA |
| Operating Principle | inductive |
| Product Series | INM-100 Miniature |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Service Voltage | 10 ... 30.0V DC |
| Standardized Measuring Plate | 3 x 3 x 1 mm |
| Switching Distance (SN) | 0.6 mm |
| Switching Frequency | 3000.0 Hz |
| Switching Hysteresis (max.) | 10.0 < % |
| Switching Output | npn 100.0 mA NC |
| Voltage Drop (max.) | 2.0 V 100 mA |
