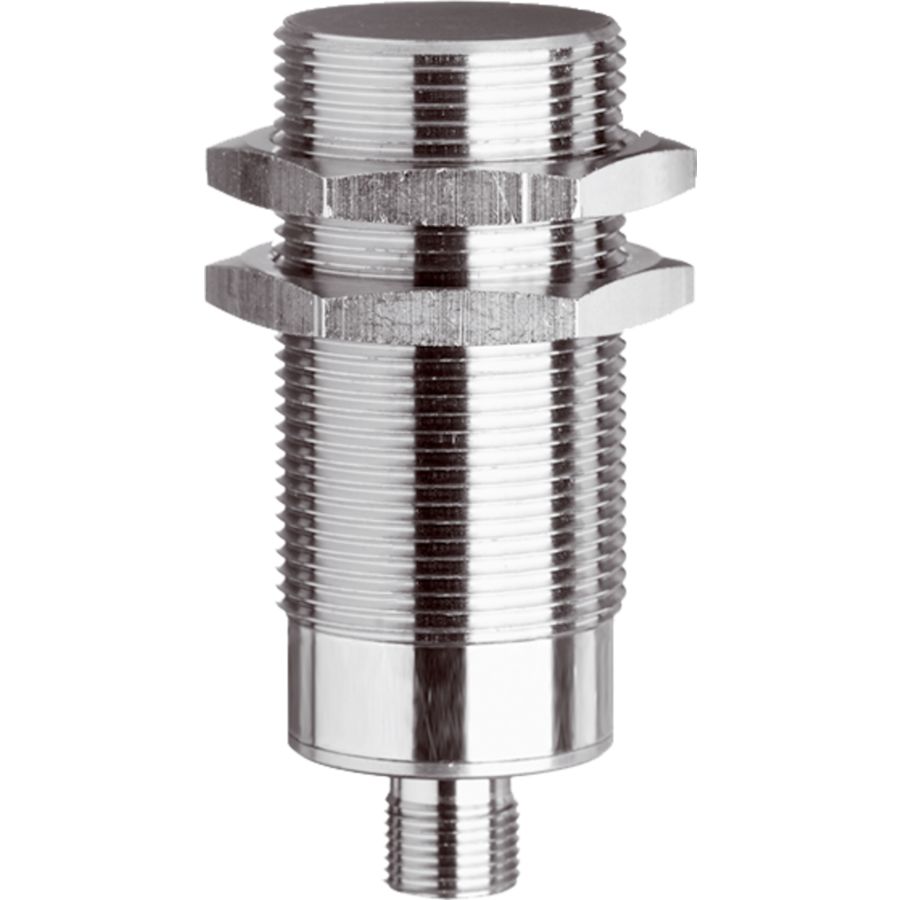

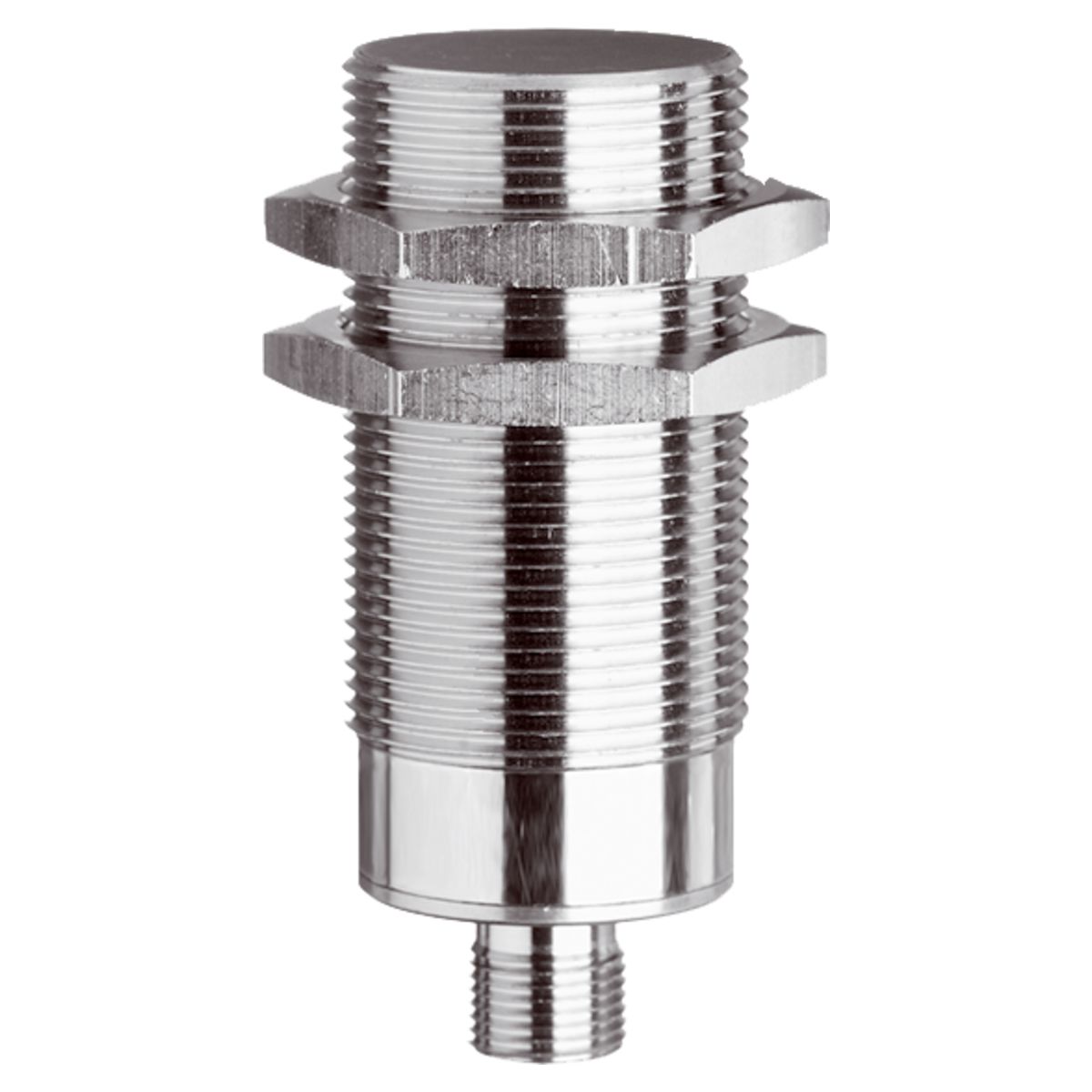

Inductive Proximity Sensor - DCC 30 M 20 AIK-IBS
Part Number: DCC 30 M 20 AIK-IBS
Article Number: 200371
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|
| Analog Output | 0.0 V 5.0 V 1.0 mA 5.0 mA |
| Characteristics | extremely high operating distance |

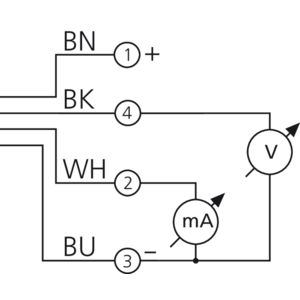

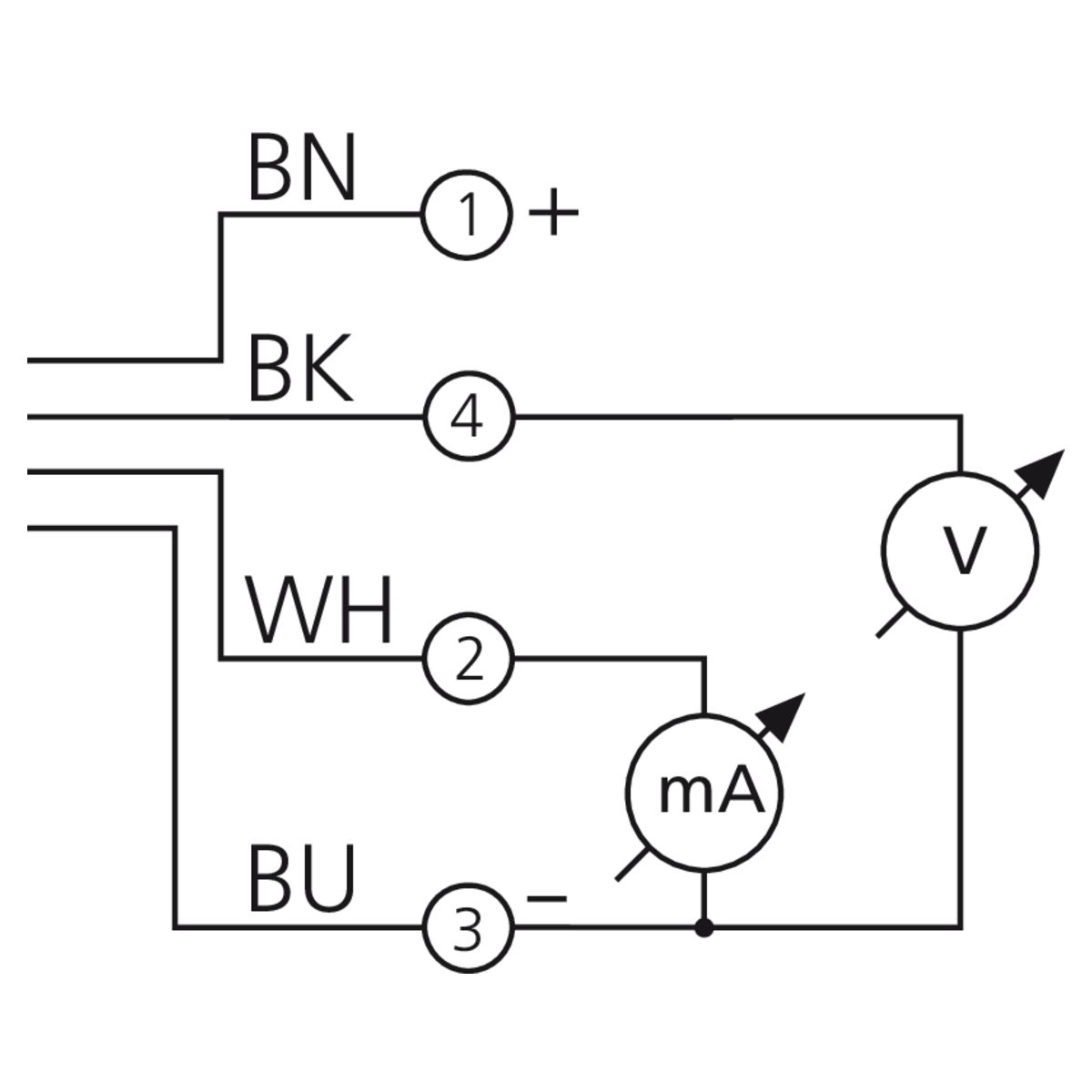

| Connection | Connector M12 4-pin |
| Connection Cable | VK ... |
| Design | Thread |
| Evaluation | analog |

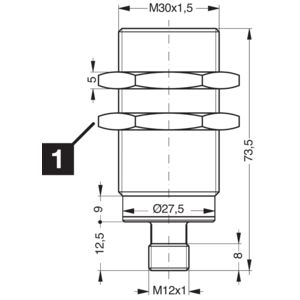

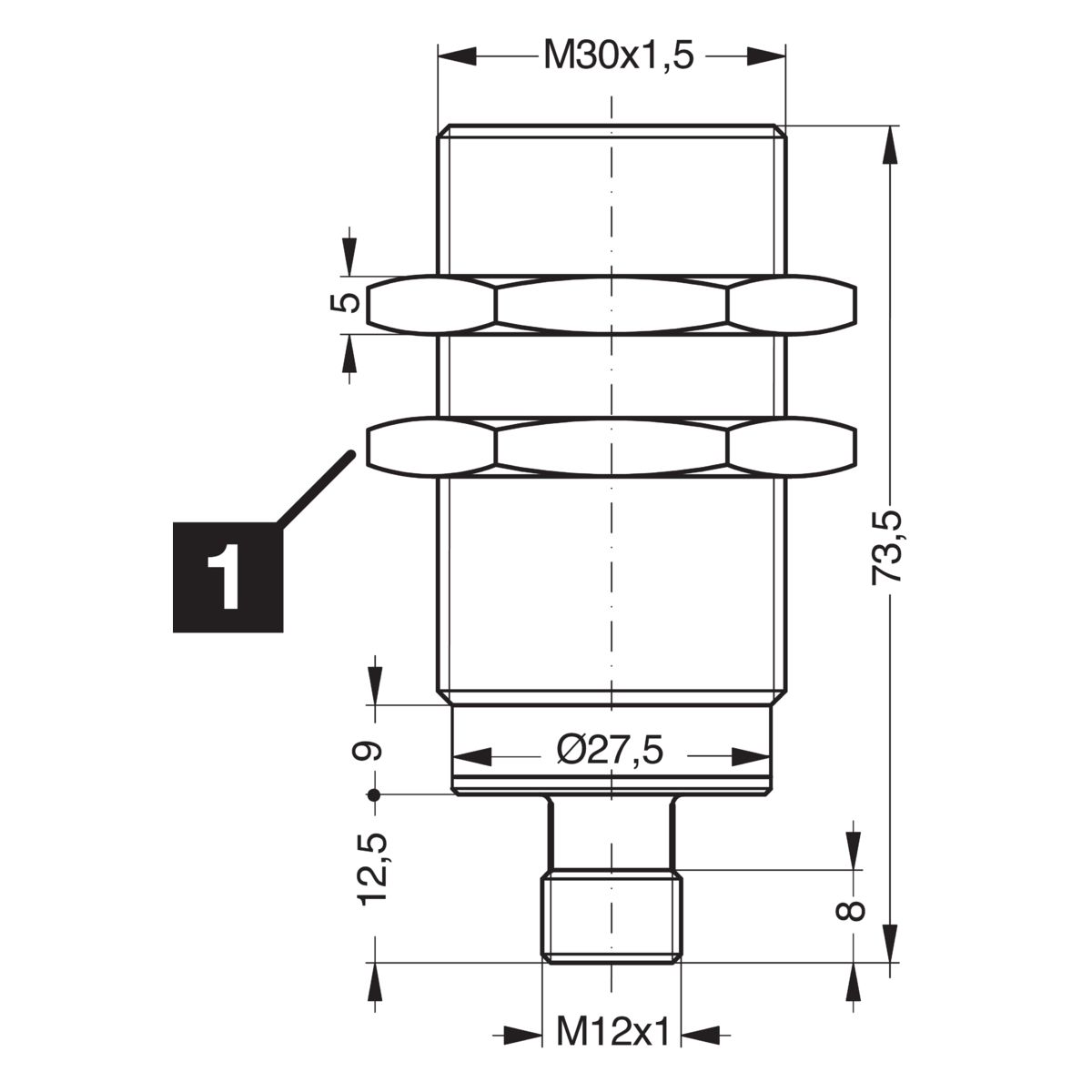

| Housing length | 73.5 mm |
| Housing Material | Brass CuZn nickel-plated |
| Illumination Time Pulse | 1.0 |
| Installation Type | quasi-flush |
| Insulation Voltage Endurance | According to IEC 60947-5-2 (7.2.3.1) |
| Internal Power Consumption | 10 mA |
| Operating Principle | inductive |
| Product Series | INA Analog |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Screw In Length MAX UNIT | mm |
| Service Voltage | 10 ... 30.0V DC |
| Standardized Measuring Plate | 60 x 60 x 1 mm |
| Switching Distance (SN) | 0.0 mm 20.0 mm |
| Switching Frequency | 500.0 Hz |
| Thread | M30 x 1.5 |
| Tightening Torque (max.) | 70.0 Nm |
