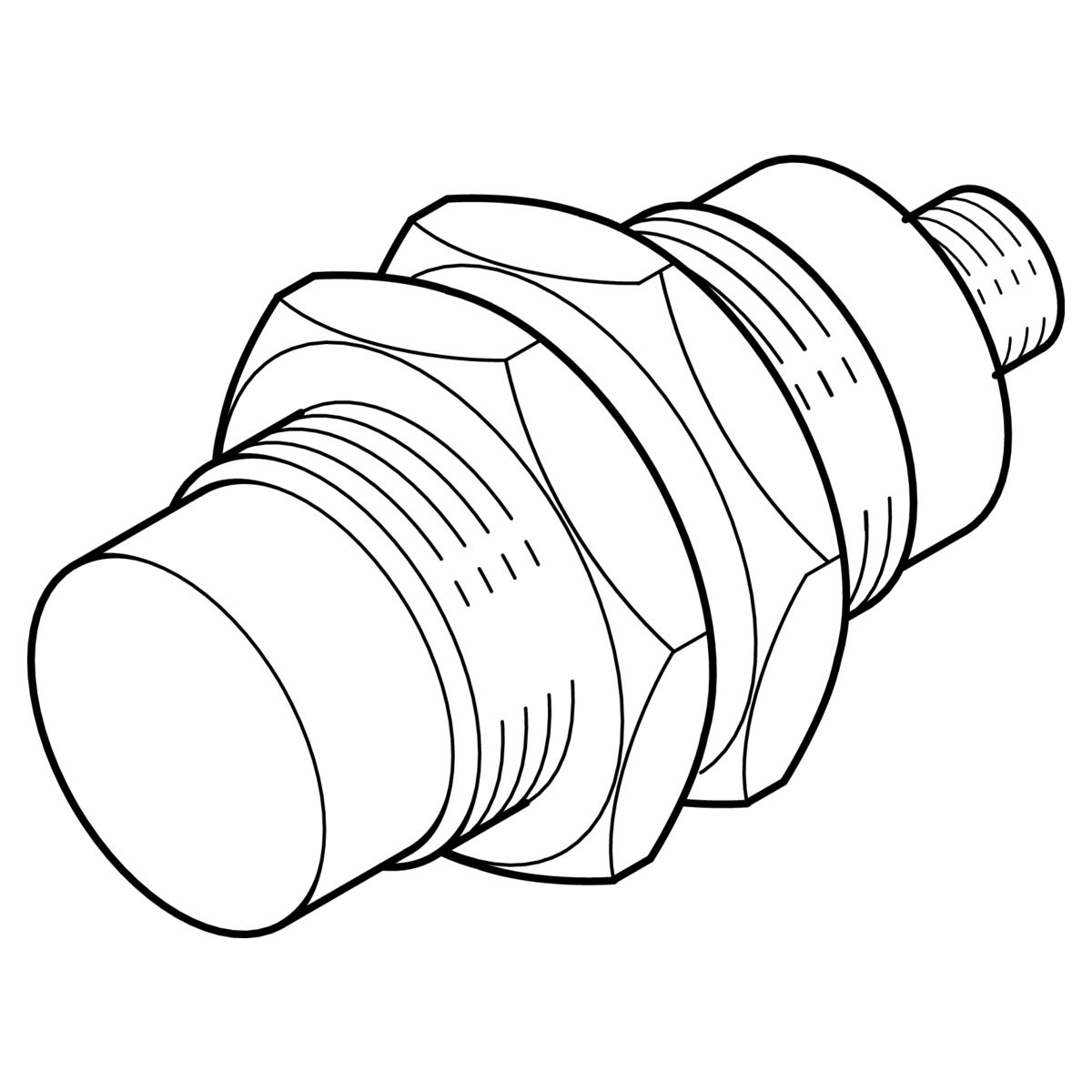

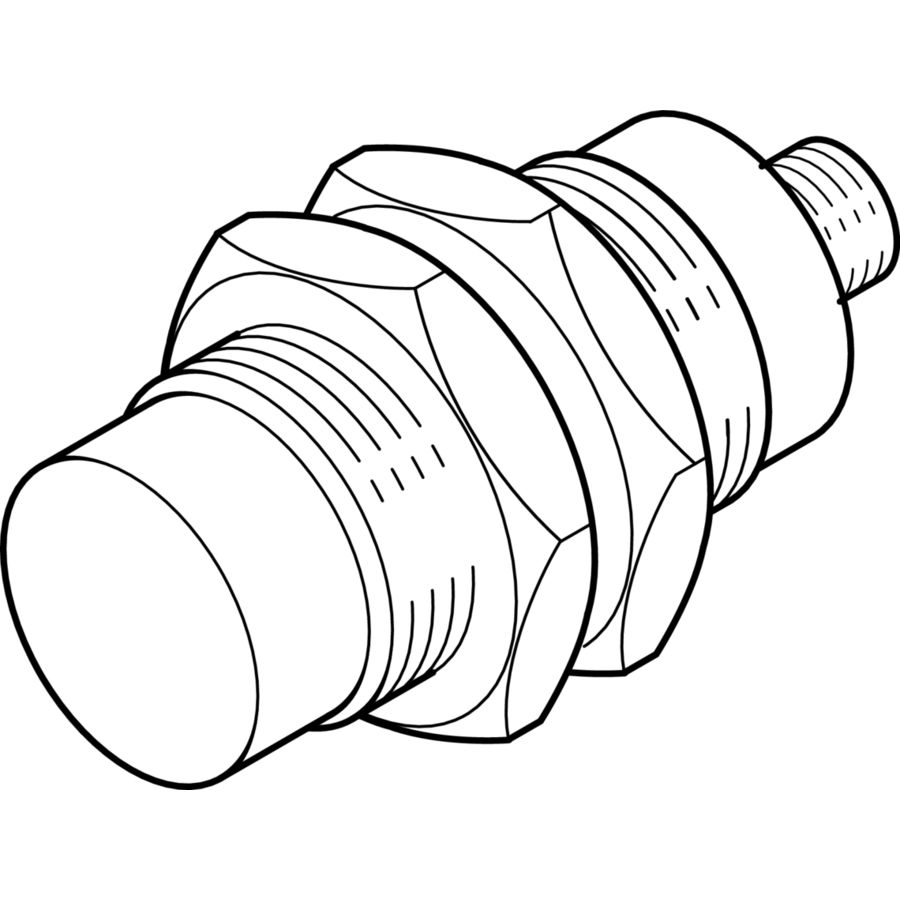

Inductive Proximity Sensor - DCC 30 M 30 PSK-IBSL
Part Number: DCC 30 M 30 PSK-IBSL
Article Number: 204220
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|
| Characteristics | Double switching distance |
| Connection | Connector M12 4-pin |
| Connection Cable | VK ... |
| Design | Thread |
| Evaluation | digital |

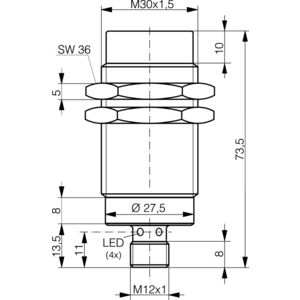

| Housing length | 48.5 mm |
| Housing Material | Brass chromium-plated |
| Illumination Time Pulse | 1.0 |
| Installation Type | non-flush |
| Insulation Voltage Endurance | 500.0 V |
| Internal Power Consumption | 10 < mA |
| Operating Principle | inductive |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Service Voltage | 10 ... 30.0V DC |
| Standardized Measuring Plate | 120 x 120 x 1 mm |
| Switching Distance (SN) | 30.0 mm |
| Switching Frequency | 65.0 Hz |
| Switching Hysteresis (max.) | 3.0 < % 15.0 % |
| Switching Output | pnp 200.0 mA NO |
| Thread | M30 x 1.5 |
| Voltage Drop (max.) | 2.0 V 200 mA |
