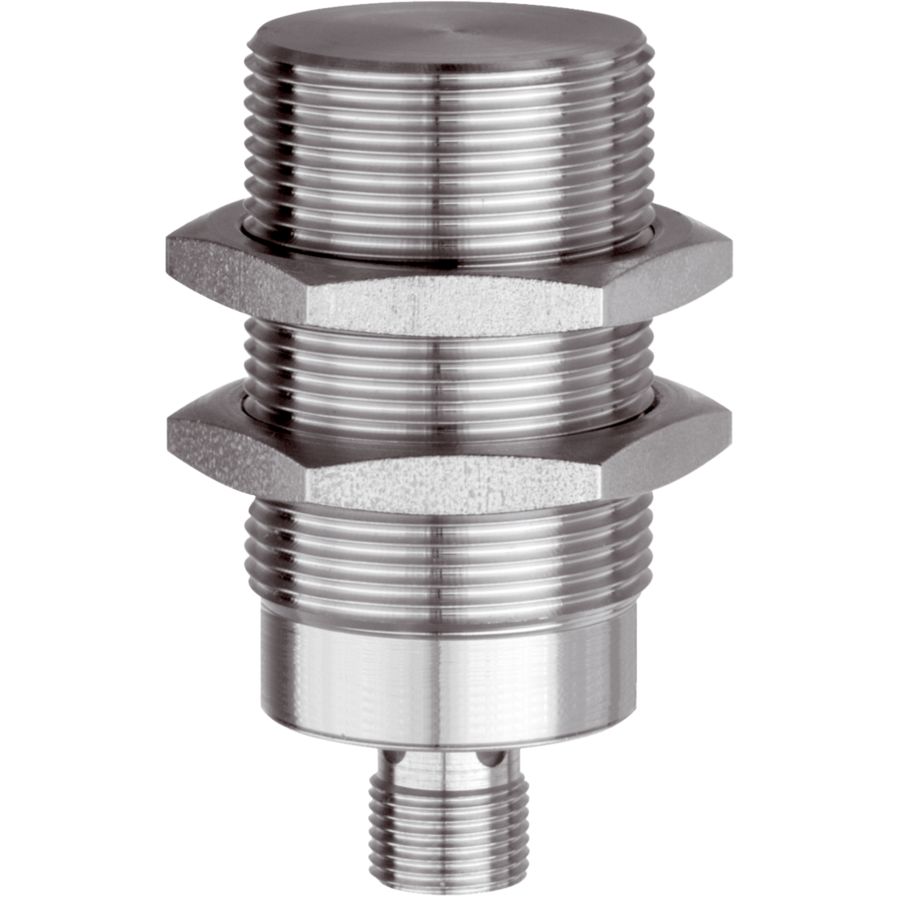

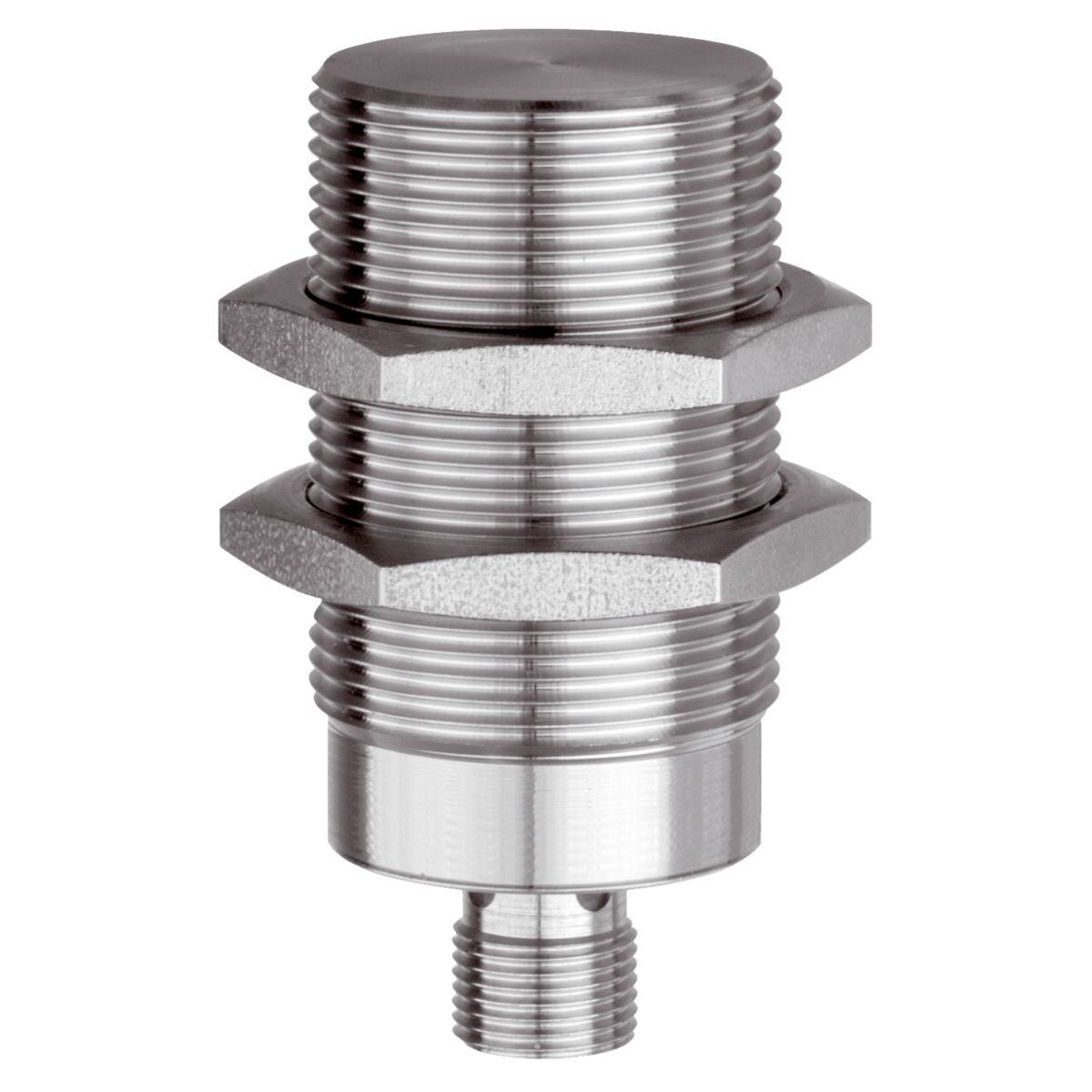

Inductive Proximity Sensor - DCC 30 VL 20 PSK-IBSL
Part Number: DCC 30 VL 20 PSK-IBSL
Article Number: 203392
Technical Details
| Ambient Temperature During Operation | -25.0 ... 85.0°C |
|---|---|
| Characteristics | extremely high operating distance 40 < bar Full-metal casing closed |
| Connection | Connector M12 3-pin |
| Connection Cable | VK ... |
| Design | Thread |
| Evaluation | digital |

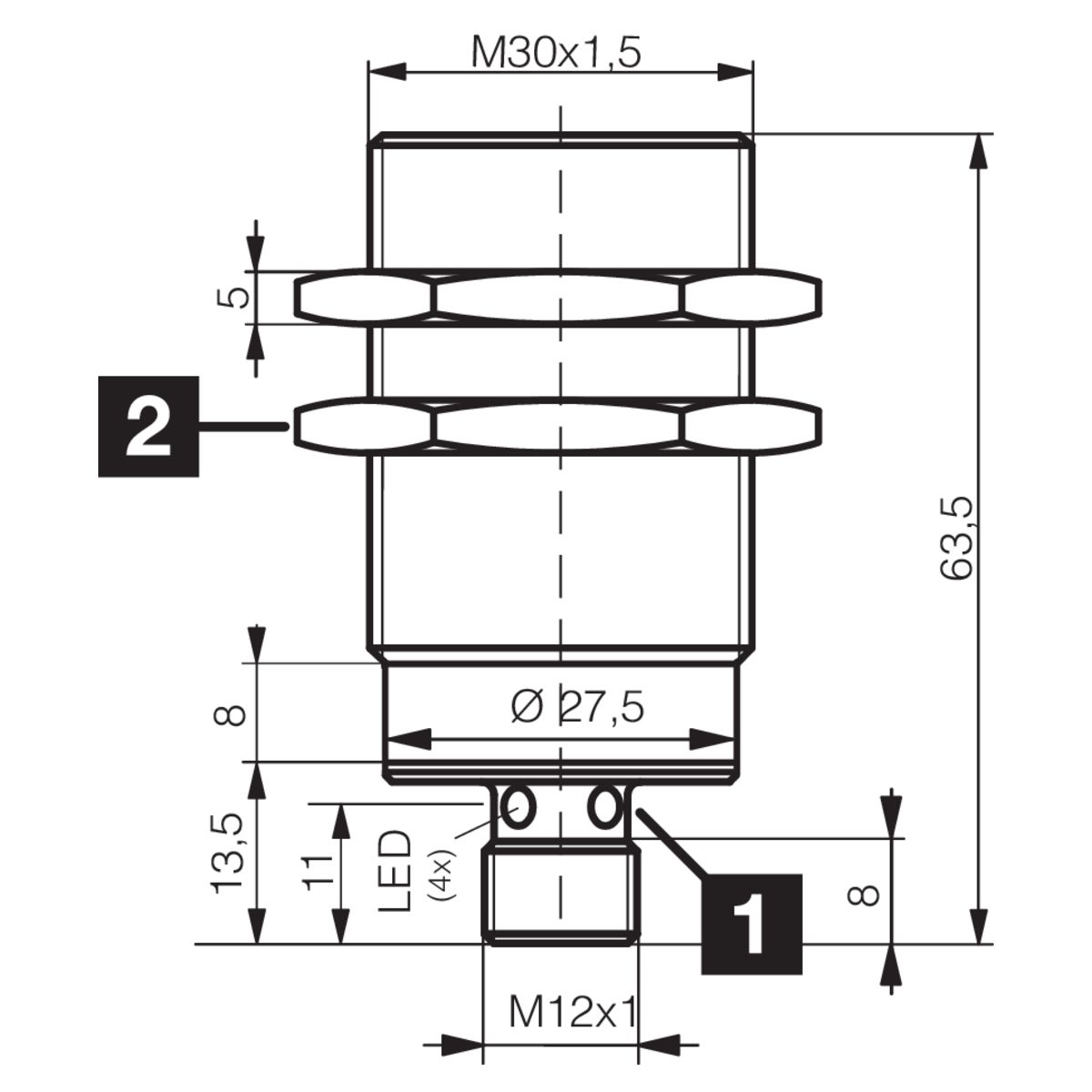

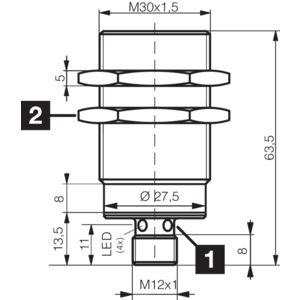

| Housing length | 63.5 mm |
| Housing Material | Stainless steel 1.4435 / AISI 316L |
| Illumination Time Pulse | 1.0 |
| Installation Type | Flush |
| Insulation Voltage Endurance | According to IEC 60947-5-2 (7.2.3.1) |
| No Load Current (max.) | 10.0 < mA |
| Operating Principle | inductive |
| Product Series | INW-100 Full metal |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 68;IP 69K |
| Screw In Length MAX UNIT | mm |
| Service Voltage | 10 ... 30.0V DC |
| Standardized Measuring Plate | 60 x 60 x 1 mm |
| Switching Distance (SN) | 20.0 mm |
| Switching Frequency | 120.0 Hz |
| Switching Hysteresis (max.) | 15.0 % |
| Switching Output | pnp 200.0 mA NO |
| Thread | M30 x 1.5 |
| Tightening Torque (max.) | 150.0 Nm |
| Voltage Drop (max.) | 2.0 V |
