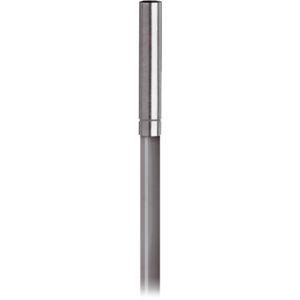

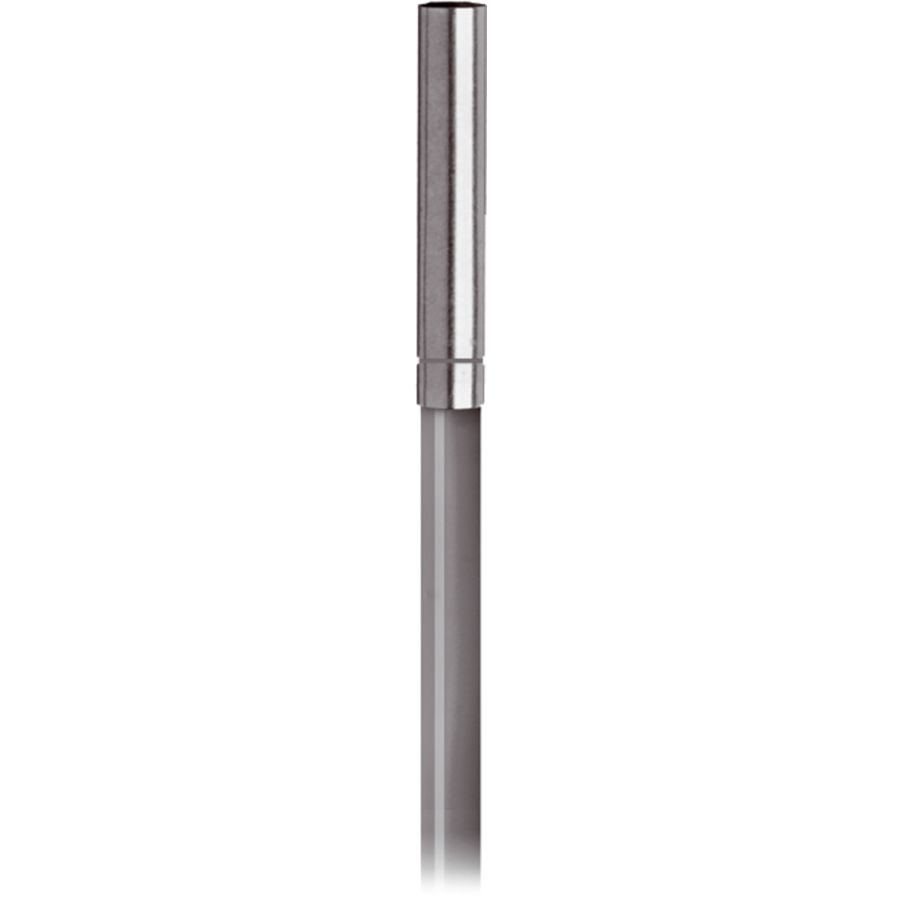

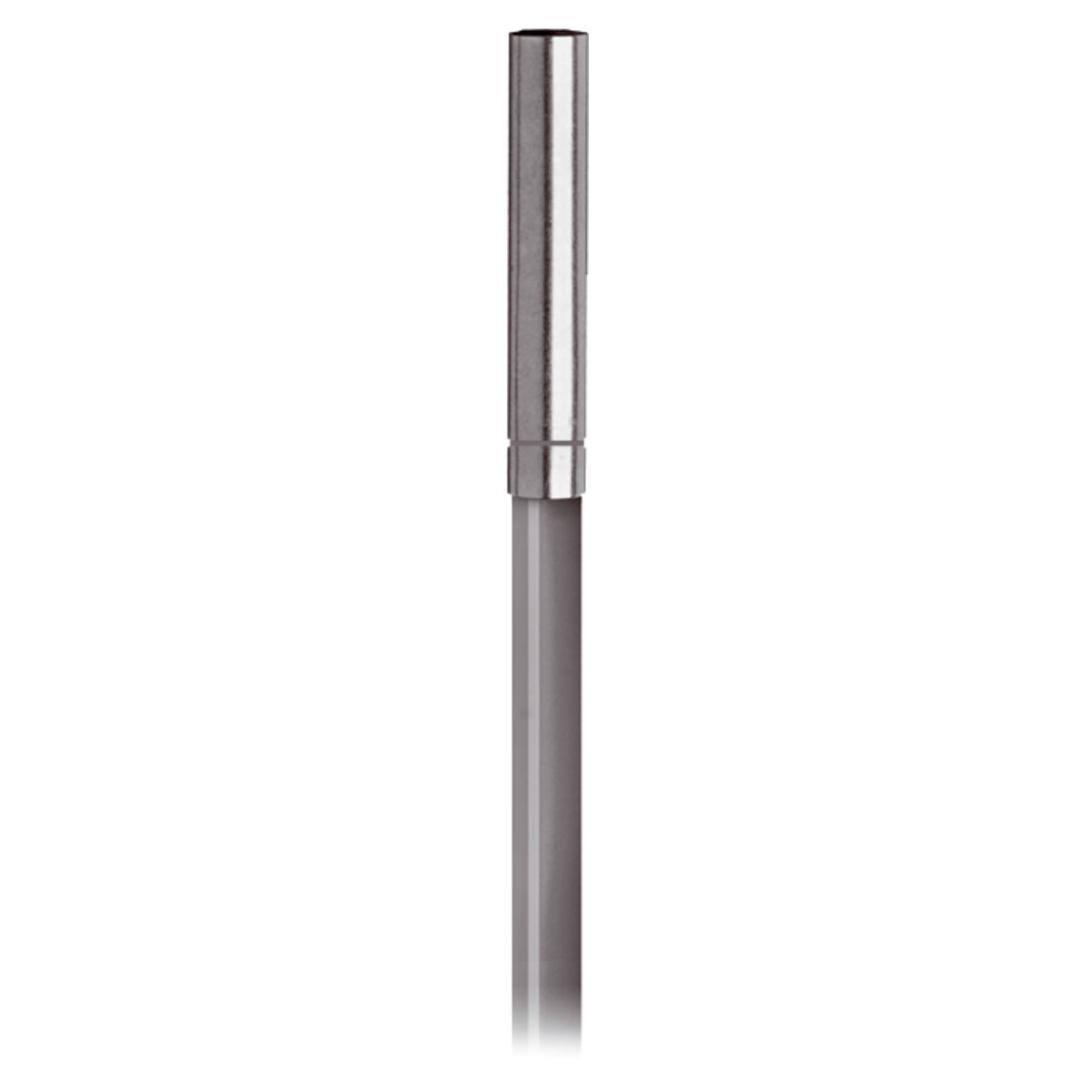

Inductive Proximity Sensor - DCC 4.0 V 0.6 PSLK-E
Part Number: DCC 4.0 V 0.6 PSLK-E
Article Number: 202569
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|
| Connection | Cable 2.0 m flying leads |
| Design | Cylinder |

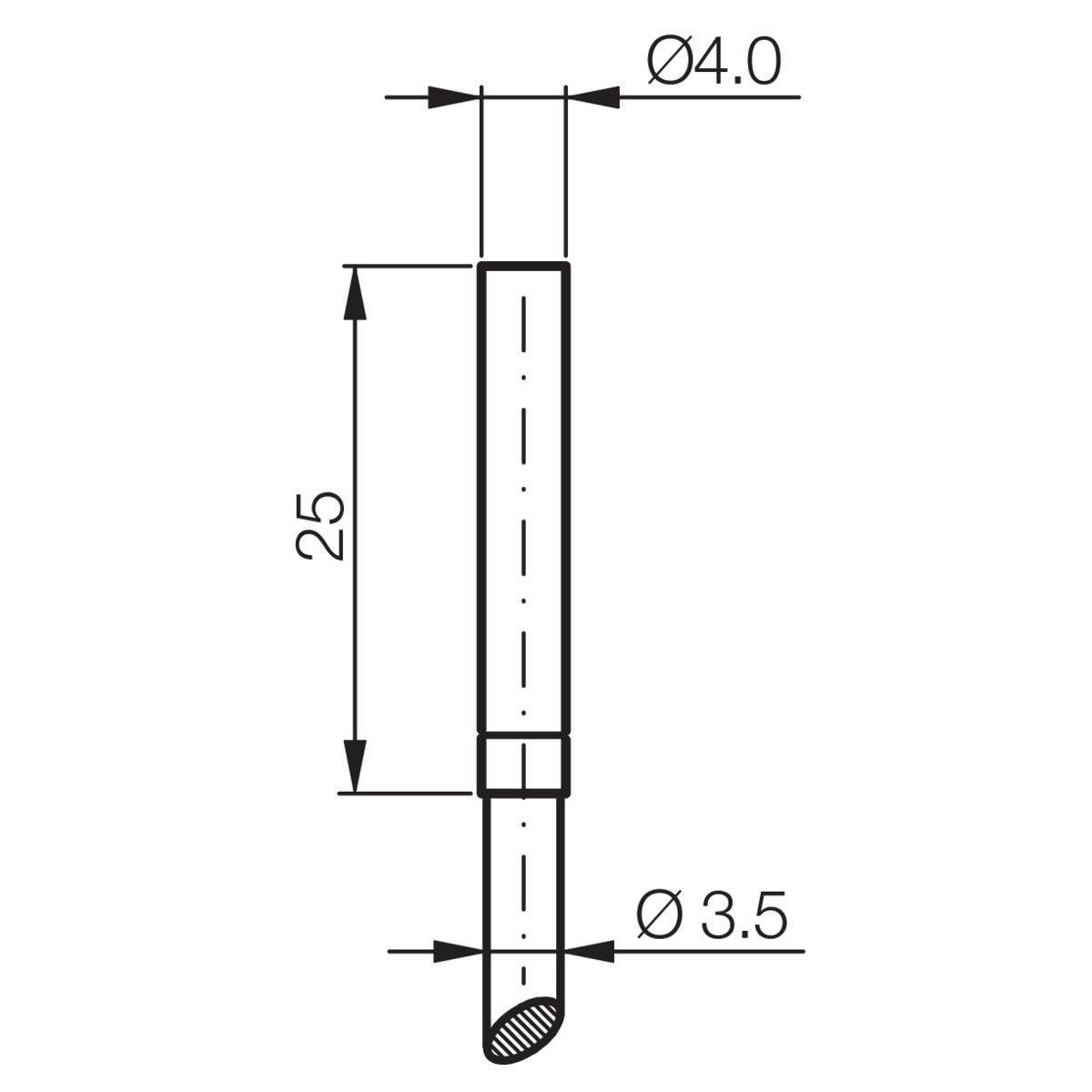

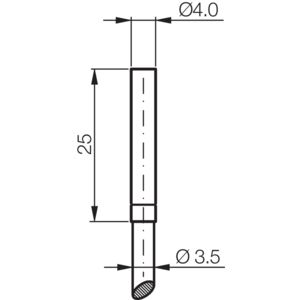

| Diameter | 4 mm |
| Evaluation | digital |
| Illumination Time Pulse | 1.0 |
| Installation Type | Flush |
| Insulation Voltage Endurance | According to IEC 60947-5-2 (7.2.3.1) |
| Internal Power Consumption | 10 < mA |
| Operating Principle | inductive |
| Product Series | INM-100 Miniature |
| Screw In Length MAX UNIT | mm |
| Service Voltage | 10 ... 30.0V DC |
| Standardized Measuring Plate | 4 x 4 x 1 mm |
| Switching Distance (SN) | 0.6 mm |
| Switching Hysteresis (max.) | 10.0 < % |

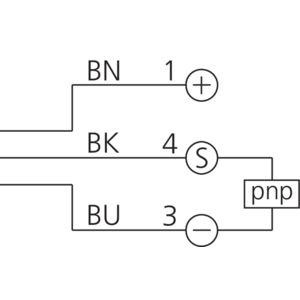

| Switching Output | pnp 200.0 mA NO |
| Voltage Drop (max.) | 2.0 V 200 mA |
