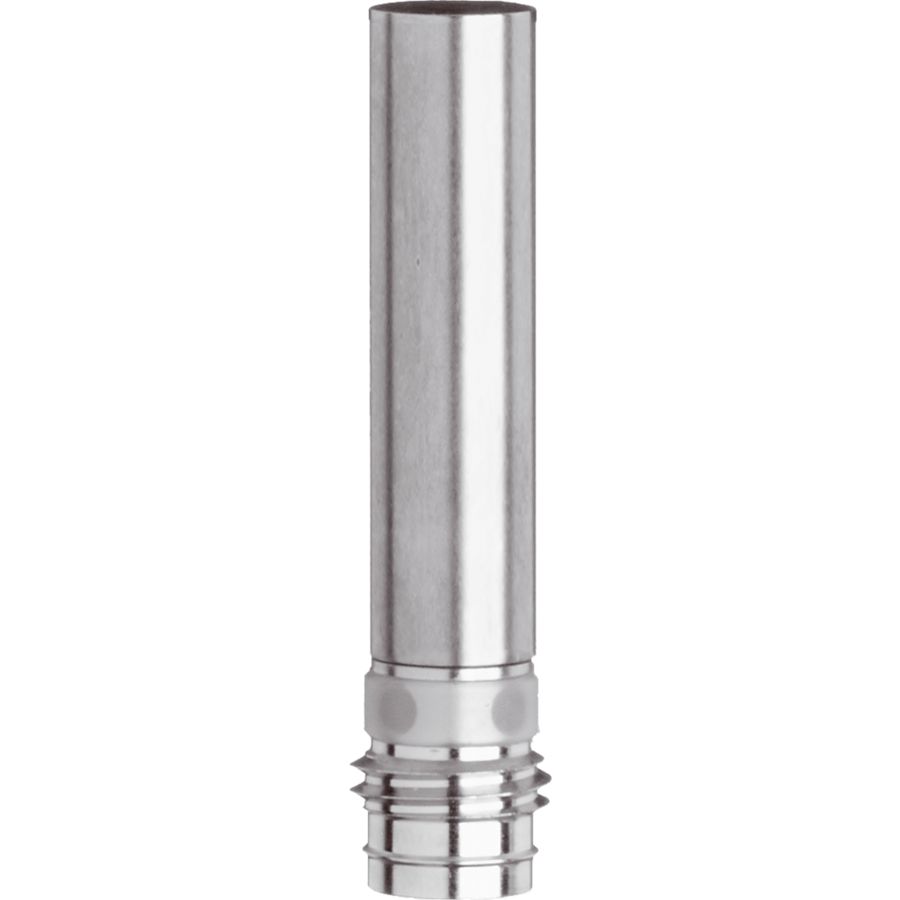

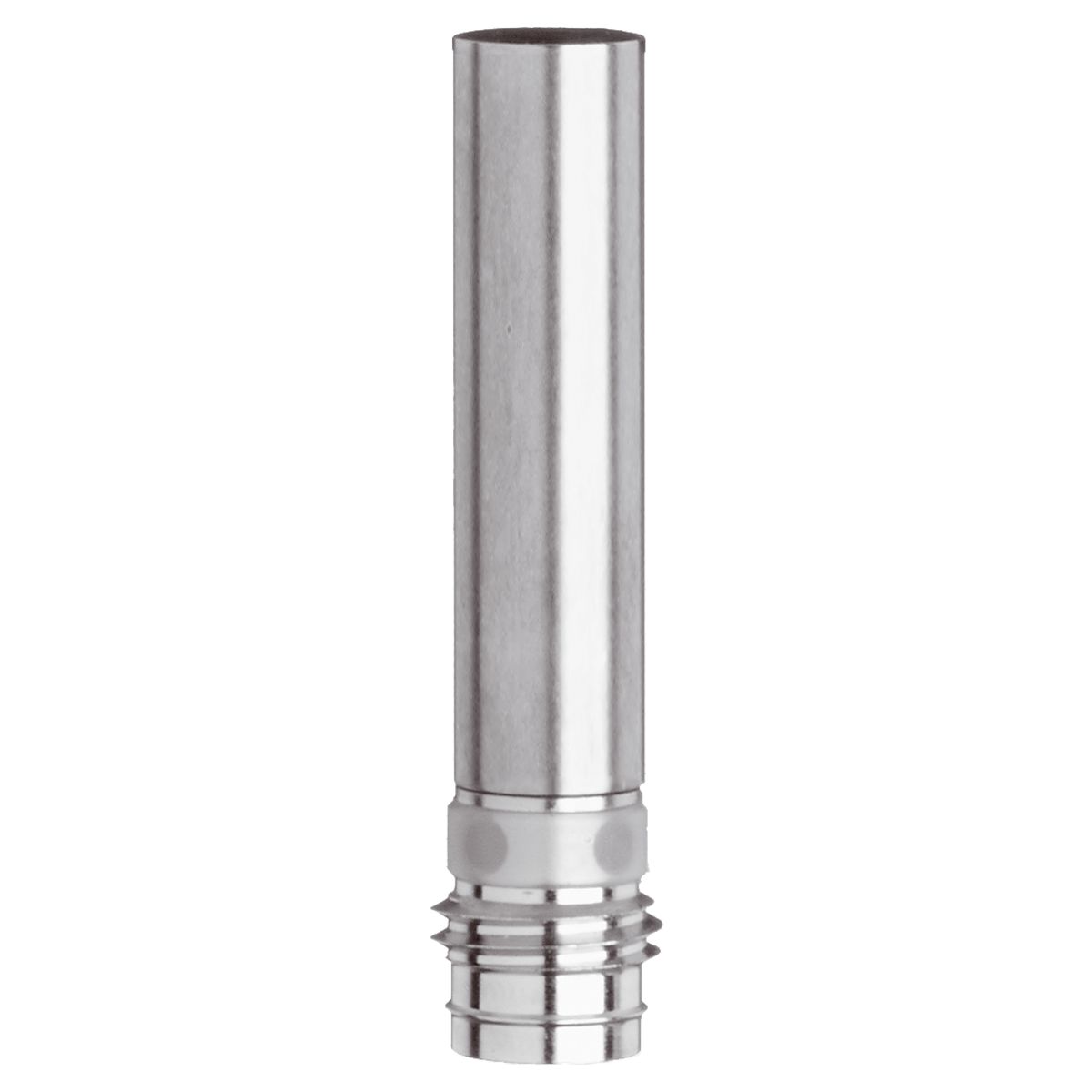

Inductive Proximity Sensor - DCC 6.5 V 02 POK-TSL/34
Part Number: DCC 6.5 V 02 POK-TSL/34
Article Number: 202575
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|
| Characteristics | increased operating distance |
| Connection | Connector M8 3-pin |

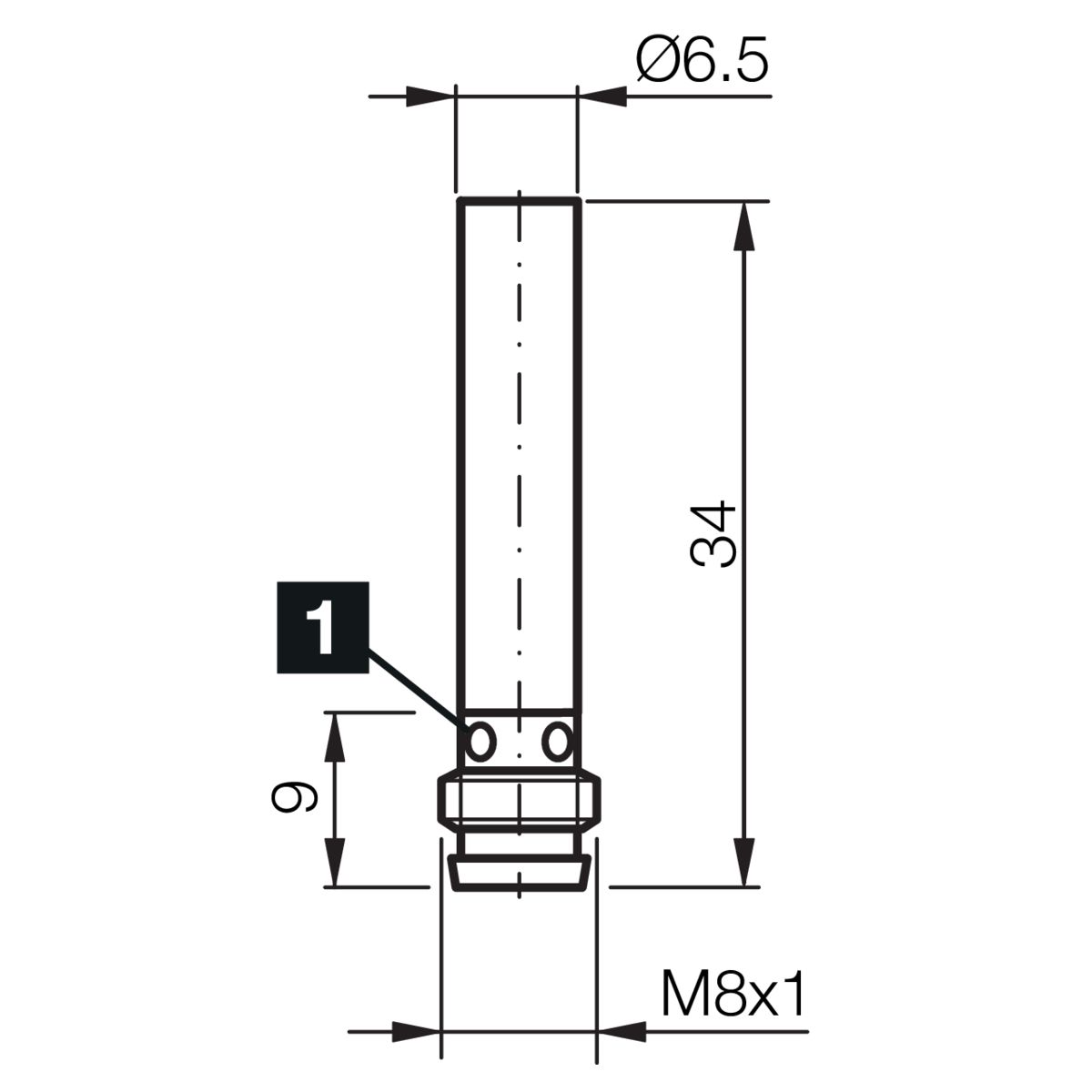

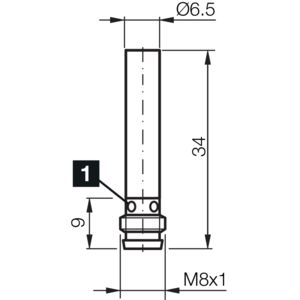

| Design | Cylinder |
| Diameter | 6.5 mm |
| Evaluation | digital |
| Housing length | 32.0 mm |
| Housing Material | Stainless steel V2A |
| Illumination Time Pulse | 1.0 |
| Installation Type | Flush |
| Insulation Voltage Endurance | According to IEC 60947-5-2 (7.2.3.1) |
| Internal Power Consumption | 10 < mA |
| Operating Principle | inductive |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Service Voltage | 10 ... 30.0V DC |
| Standardized Measuring Plate | 6.5 x 6.5 x 1 mm |
| Switching Distance (SN) | 2.0 mm |
| Switching Frequency | 5000.0 Hz |
| Switching Hysteresis (max.) | 10.0 < % |
| Switching Output | pnp 200.0 mA NC |
| Voltage Drop (max.) | 2.0 V 200 mA |
